itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField > Class Template Reference
[Finite Difference Functions]

#include <itkPDEDeformableRegistrationFunction.h>

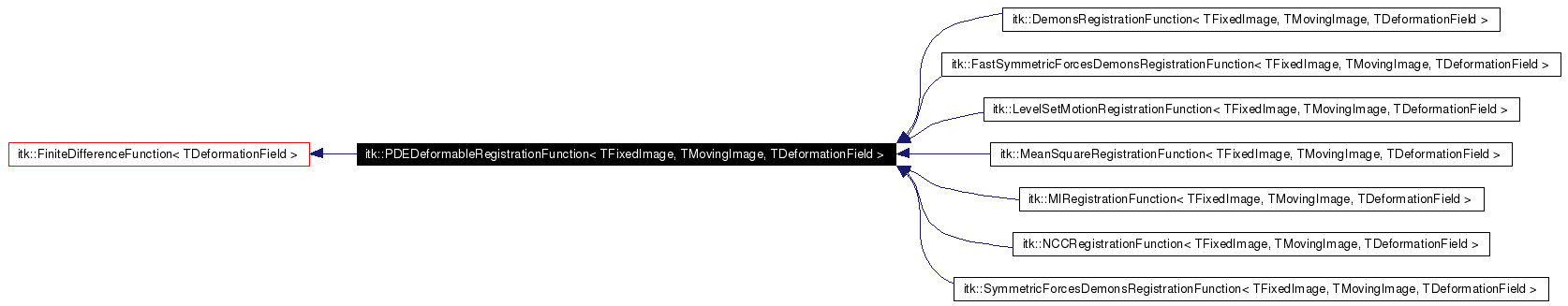

Inheritance diagram for itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >:

[legend]Collaboration diagram for itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >:

[legend]List of all members.

Public Types
typedef PDEDeformableRegistrationFunction	Self
typedef FiniteDifferenceFunction< TDeformationField >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TMovingImage	MovingImageType
typedef MovingImageType::ConstPointer	MovingImagePointer
typedef TFixedImage	FixedImageType
typedef FixedImageType::ConstPointer	FixedImagePointer
typedef TDeformationField	DeformationFieldType
typedef DeformationFieldType::Pointer	DeformationFieldTypePointer
Public Member Functions
virtual const char *	GetNameOfClass () const
void	SetMovingImage (const MovingImageType *ptr)
const MovingImageType *	GetMovingImage (void) const
void	SetFixedImage (const FixedImageType *ptr)
const FixedImageType *	GetFixedImage (void) const
void	SetDeformationField (DeformationFieldTypePointer ptr)
DeformationFieldTypePointer	GetDeformationField (void)
void	SetEnergy (double e)
double	GetEnergy () const
void	SetGradientStep (double e)
double	GetGradientStep () const
void	SetNormalizeGradient (bool e)
bool	GetNormalizeGradient () const
Protected Member Functions
	PDEDeformableRegistrationFunction ()
	~PDEDeformableRegistrationFunction ()
void	PrintSelf (std::ostream &os, Indent indent) const
Protected Attributes
MovingImagePointer	m_MovingImage
FixedImagePointer	m_FixedImage
DeformationFieldTypePointer	m_DeformationField
double	m_Energy
bool	m_NormalizeGradient
double	m_GradientStep

---

Detailed Description

template<class TFixedImage, class TMovingImage, class TDeformationField>
class itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >

This is an abstract base class for all PDE functions which drives a deformable registration algorithm. It is used by PDEDeformationRegistrationFilter subclasses to compute the output deformation field which will map a moving image onto a fixed image.

This class is templated over the fixed image type, moving image type and the deformation field type.

See also:

PDEDeformableRegistrationFilter

Definition at line 39 of file itkPDEDeformableRegistrationFunction.h.

---

Member Typedef Documentation

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef SmartPointer<const Self> itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::ConstPointer

Reimplemented from itk::FiniteDifferenceFunction< TDeformationField >. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 47 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef TDeformationField itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::DeformationFieldType

Deformation field type. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 62 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef DeformationFieldType::Pointer itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::DeformationFieldTypePointer

Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 64 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef FixedImageType::ConstPointer itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::FixedImagePointer

Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 59 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef TFixedImage itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::FixedImageType

FixedImage image type. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 58 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef MovingImageType::ConstPointer itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::MovingImagePointer

Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 55 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef TMovingImage itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::MovingImageType

MovingImage image type. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 51 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef SmartPointer<Self> itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::Pointer

Reimplemented from itk::FiniteDifferenceFunction< TDeformationField >. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 46 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef PDEDeformableRegistrationFunction itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::Self

Standard class typedefs. Reimplemented from itk::FiniteDifferenceFunction< TDeformationField >. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 44 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> typedef FiniteDifferenceFunction<TDeformationField> itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::Superclass

Reimplemented from itk::FiniteDifferenceFunction< TDeformationField >. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 45 of file itkPDEDeformableRegistrationFunction.h.

---

Constructor & Destructor Documentation

template<class TFixedImage, class TMovingImage, class TDeformationField> itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::PDEDeformableRegistrationFunction (   )  [inline, protected]

Definition at line 99 of file itkPDEDeformableRegistrationFunction.h. References NULL.

template<class TFixedImage, class TMovingImage, class TDeformationField> itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::~PDEDeformableRegistrationFunction (   )  [inline, protected]

Definition at line 109 of file itkPDEDeformableRegistrationFunction.h.

---

Member Function Documentation

template<class TFixedImage, class TMovingImage, class TDeformationField> DeformationFieldTypePointer itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::GetDeformationField (  void   )  [inline]

Get the fixed image. Definition at line 87 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> double itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::GetEnergy (   )  const [inline]

Definition at line 92 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> const FixedImageType* itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::GetFixedImage (  void   )  const [inline]

Get the fixed image. Definition at line 79 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> double itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::GetGradientStep (   )  const [inline]

Definition at line 94 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> const MovingImageType* itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::GetMovingImage (  void   )  const [inline]

Get the moving image. Definition at line 71 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> virtual const char* itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods) Reimplemented from itk::FiniteDifferenceFunction< TDeformationField >. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >.

template<class TFixedImage, class TMovingImage, class TDeformationField> bool itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::GetNormalizeGradient (   )  const [inline]

Definition at line 96 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> void itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::PrintSelf (  std::ostream &  os, Indent  indent )  const [inline, protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::FiniteDifferenceFunction< TDeformationField >. Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, and itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >. Definition at line 111 of file itkPDEDeformableRegistrationFunction.h. References HardConnectedComponentImageFilter::PrintSelf().

template<class TFixedImage, class TMovingImage, class TDeformationField> void itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::SetDeformationField (  DeformationFieldTypePointer  ptr  )  [inline]

Set the fixed image. Definition at line 83 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> void itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::SetEnergy (  double  e  )  [inline]

Definition at line 91 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> void itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::SetFixedImage (  const FixedImageType *  ptr  )  [inline]

Set the fixed image. Definition at line 75 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> void itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::SetGradientStep (  double  e  )  [inline]

Definition at line 93 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> void itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::SetMovingImage (  const MovingImageType *  ptr  )  [inline]

Set the moving image. Definition at line 67 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> void itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::SetNormalizeGradient (  bool  e  )  [inline]

Definition at line 95 of file itkPDEDeformableRegistrationFunction.h.

---

Member Data Documentation

template<class TFixedImage, class TMovingImage, class TDeformationField> DeformationFieldTypePointer itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::m_DeformationField [protected]

The deformation field. Definition at line 128 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> double itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::m_Energy [mutable, protected]

Definition at line 130 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> FixedImagePointer itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::m_FixedImage [protected]

The fixed image. Definition at line 125 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> double itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::m_GradientStep [mutable, protected]

Definition at line 132 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> MovingImagePointer itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::m_MovingImage [protected]

The moving image. Definition at line 119 of file itkPDEDeformableRegistrationFunction.h.

template<class TFixedImage, class TMovingImage, class TDeformationField> bool itk::PDEDeformableRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >::m_NormalizeGradient [protected]

Definition at line 131 of file itkPDEDeformableRegistrationFunction.h.

---

The documentation for this class was generated from the following file:

• itkPDEDeformableRegistrationFunction.h

---
