itk::ChainCodePath2D Class Reference
[Path Representation Objects]

#include <itkChainCodePath2D.h>

Inheritance diagram for itk::ChainCodePath2D:

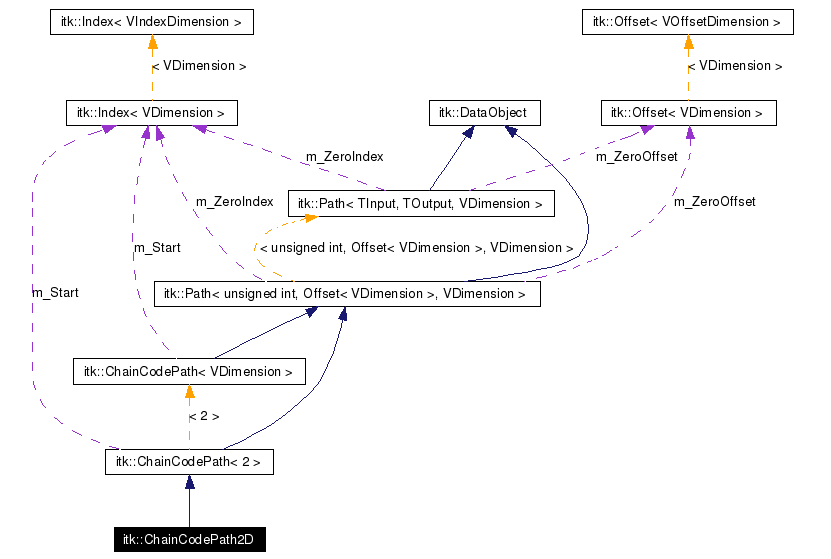

[legend]Collaboration diagram for itk::ChainCodePath2D:

[legend]List of all members.

---

Detailed Description

Represent a 2D path as a sequence of connected image index offsets.

This class is intended to represent sequences of connected indices in a 2D image plane. It does so by storing the offset of each index from its immediately preceeding, connected, index using a standard Freeman code (1=up, 2=up to the right, and so on proceeding clockwise to 8=up to the left). The only image index stored directly is thatof the first index. ChainCodePath2D maps a 1D integer input (step number) to a 2D interger output (either an offset or an image index, depending on whether Evaluate or EvaluateToIndex is called).

See also:

ChainCodePath

ParametricPath

Path

Index

Definition at line 53 of file itkChainCodePath2D.h.

Public Types
typedef std::vector< int >	ChainCode2DType
typedef std::vector< OffsetType >	ChainCodeType
typedef SmartPointer< const Self >	ConstPointer
typedef Index< 2 >	IndexType
typedef Superclass::InputType	InputType
typedef OutputType	OffsetType
typedef Superclass::OutputType	OutputType
typedef SmartPointer< Self >	Pointer
typedef ChainCodePath2D	Self
typedef ChainCodePath< 2 >	Superclass
Public Member Functions
void	ChangeStep (InputType position, OffsetType step)
Change the direction of a step in the chaincode *void	ChangeStep (InputType position, int encodedStep)
Remove all steps from the chain code *virtual void	Clear ()
virtual InputType	EndOfInput () const
virtual OutputType	Evaluate (const InputType &input) const
virtual IndexType	EvaluateToIndex (const InputType &input) const
std::string	GetChainCodeAsString (void) const
virtual const char *	GetNameOfClass () const
virtual const IndexType &	GetStart ()
virtual OffsetType	IncrementInput (InputType &input) const
Needed for Pipelining *virtual void	Initialize (void)
void	InsertStep (InputType position, OffsetType step)
Insert a new step into the chaincode at a specified position *void	InsertStep (InputType position, int encodedStep)
	itkStaticConstMacro (PathDimension, unsigned int, VDimension)
	itkStaticConstMacro (Dimension, unsigned int, VDimension)
	itkStaticConstMacro (Dimension, unsigned int, 2)
unsigned int	NumberOfSteps () const
Set Get the index associated with the initial position of the path *virtual void	SetStart (IndexType _arg)
virtual InputType	StartOfInput () const
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	ChainCodePath ()
	ChainCodePath2D ()
OffsetType	DecodeOffset (int encodedStep) const
Encode and Decode between an offset and a Freeman code *int	EncodeOffset (OffsetType step) const
virtual IndexType	GetZeroIndex () const
virtual OffsetType	GetZeroOffset () const
	Path ()
void	PrintSelf (std::ostream &os, Indent indent) const
	~ChainCodePath2D ()

---

Member Typedef Documentation

typedef std::vector<int> itk::ChainCodePath2D::ChainCode2DType

ChainCodePath2D stores its data as a Freeman-encoded chain code Definition at line 82 of file itkChainCodePath2D.h.

typedef std::vector<OffsetType> itk::ChainCodePath2D::ChainCodeType

ChainCodeType is a usless relic of the parent class Reimplemented from itk::ChainCodePath< 2 >. Definition at line 79 of file itkChainCodePath2D.h.

typedef SmartPointer<const Self> itk::ChainCodePath2D::ConstPointer

Reimplemented from itk::ChainCodePath< 2 >. Definition at line 65 of file itkChainCodePath2D.h.

typedef Index<2> itk::ChainCodePath2D::IndexType

All paths must be mapable to index space Reimplemented from itk::ChainCodePath< 2 >. Definition at line 76 of file itkChainCodePath2D.h.

typedef Superclass::InputType itk::ChainCodePath2D::InputType

Input type Reimplemented from itk::ChainCodePath< 2 >. Definition at line 72 of file itkChainCodePath2D.h.

typedef OutputType itk::ChainCodePath2D::OffsetType

The output type of this function is an Index Reimplemented from itk::ChainCodePath< 2 >. Definition at line 75 of file itkChainCodePath2D.h.

typedef Superclass::OutputType itk::ChainCodePath2D::OutputType

OutputType typedef support. Reimplemented from itk::ChainCodePath< 2 >. Definition at line 68 of file itkChainCodePath2D.h.

typedef SmartPointer<Self> itk::ChainCodePath2D::Pointer

Reimplemented from itk::ChainCodePath< 2 >. Definition at line 64 of file itkChainCodePath2D.h.

typedef ChainCodePath2D itk::ChainCodePath2D::Self

Standard class typedefs. Reimplemented from itk::ChainCodePath< 2 >. Definition at line 61 of file itkChainCodePath2D.h.

typedef ChainCodePath<2> itk::ChainCodePath2D::Superclass

Reimplemented from itk::ChainCodePath< 2 >. Definition at line 62 of file itkChainCodePath2D.h.

---

Constructor & Destructor Documentation

itk::ChainCodePath2D::ChainCodePath2D (   )  [protected]

itk::ChainCodePath2D::~ChainCodePath2D (   )  [protected]

---

Member Function Documentation

itk::ChainCodePath< VDimension >::ChainCodePath (   )  [protected, inherited]

void itk::ChainCodePath2D::ChangeStep (  InputType  position, OffsetType  step )  [inline, virtual]

Reimplemented from itk::ChainCodePath< 2 >. Definition at line 126 of file itkChainCodePath2D.h.

Change the direction of a step in the chaincode* void itk::ChainCodePath2D::ChangeStep (  InputType  position, int  encodedStep )  [inline]

Definition at line 121 of file itkChainCodePath2D.h.

Remove all steps from the chain code* virtual void itk::ChainCodePath2D::Clear (   )  [inline, virtual]

Reimplemented from itk::ChainCodePath< 2 >. Definition at line 134 of file itkChainCodePath2D.h.

OffsetType itk::ChainCodePath2D::DecodeOffset (  int  encodedStep  )  const [inline, protected]

Definition at line 153 of file itkChainCodePath2D.h.

Encode and Decode between an offset and a Freeman code* int itk::ChainCodePath2D::EncodeOffset (  OffsetType  step  )  const [inline, protected]

Definition at line 149 of file itkChainCodePath2D.h.

virtual InputType itk::ChainCodePath< VDimension >::EndOfInput (   )  const [inline, virtual, inherited]

Where does the path end (what is the last valid input value)? Reimplemented from itk::Path< unsigned int, Offset< VDimension >, VDimension >. Definition at line 95 of file itkChainCodePath.h.

virtual OutputType itk::ChainCodePath2D::Evaluate (  const InputType &  input  )  const [virtual]

Evaluate the chaincode for the offset at the specified path-position. Reimplemented from itk::ChainCodePath< 2 >.

virtual IndexType itk::ChainCodePath2D::EvaluateToIndex (  const InputType &  input  )  const [virtual]

Like Evaluate(), but returns the index at the specified path-position. Reimplemented from itk::ChainCodePath< 2 >.

std::string itk::ChainCodePath2D::GetChainCodeAsString (  void   )  const

virtual const char* itk::ChainCodePath2D::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::ChainCodePath< 2 >.

virtual const IndexType& itk::ChainCodePath< VDimension >::GetStart (   )  [virtual, inherited]

virtual IndexType itk::Path< unsigned int , Offset< VDimension > , VDimension >::GetZeroIndex (   )  const [protected, virtual, inherited]

virtual OffsetType itk::Path< unsigned int , Offset< VDimension > , VDimension >::GetZeroOffset (   )  const [protected, virtual, inherited]

virtual OffsetType itk::ChainCodePath2D::IncrementInput (  InputType &  input  )  const [virtual]

Increment the input variable passed by reference and return the offset stored at the previous path-position. If the chaincode is unable to be incremented, input is not changed and an offset of zero is returned, which may be used to check for the end of the chain code. Reimplemented from itk::ChainCodePath< 2 >.

Needed for Pipelining* virtual void itk::ChainCodePath< VDimension >::Initialize (  void   )  [inline, virtual, inherited]

Definition at line 143 of file itkChainCodePath.h.

void itk::ChainCodePath2D::InsertStep (  InputType  position, OffsetType  step )  [inline, virtual]

Reimplemented from itk::ChainCodePath< 2 >. Definition at line 113 of file itkChainCodePath2D.h.

Insert a new step into the chaincode at a specified position* void itk::ChainCodePath2D::InsertStep (  InputType  position, int  encodedStep )  [inline]

Definition at line 108 of file itkChainCodePath2D.h.

itk::Path< unsigned int , Offset< VDimension > , VDimension >::itkStaticConstMacro (  PathDimension  , unsigned  int, VDimension  )  [inherited]

Path dimension. The dimension of a path is fixed at construction.

itk::ChainCodePath< VDimension >::itkStaticConstMacro (  Dimension  , unsigned  int, VDimension  )  [inherited]

Dimension underlying input image.

itk::ChainCodePath2D::itkStaticConstMacro (  Dimension  , unsigned  int, 2  )

Dimension underlying input image.

static Pointer itk::ChainCodePath2D::New (   )  [static]

New() method for dynamic construction Reimplemented from itk::ChainCodePath< 2 >.

unsigned int itk::ChainCodePath2D::NumberOfSteps (   )  const [inline, virtual]

How many steps in the chaincode? Reimplemented from itk::ChainCodePath< 2 >. Definition at line 104 of file itkChainCodePath2D.h.

itk::Path< unsigned int , Offset< VDimension > , VDimension >::Path (   )  [protected, inherited]

void itk::ChainCodePath2D::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected]

Reimplemented from itk::ChainCodePath< 2 >.

Set Get the index associated with the initial position of the path* virtual void itk::ChainCodePath< VDimension >::SetStart (  IndexType  _arg  )  [virtual, inherited]

virtual InputType itk::Path< unsigned int , Offset< VDimension > , VDimension >::StartOfInput (   )  const [inline, virtual, inherited]

Where does the path begin? For most types of paths, the path will begin at zero. This value can be overridden in children, and is necessary for iterators to know how to go to the beginning of a path. Definition at line 79 of file itkPath.h.

---

The documentation for this class was generated from the following file:

• itkChainCodePath2D.h

---
