itk::Statistics::EuclideanDistance< TVector > Class Template Reference

#include <itkEuclideanDistance.h>

Inheritance diagram for itk::Statistics::EuclideanDistance< TVector >:

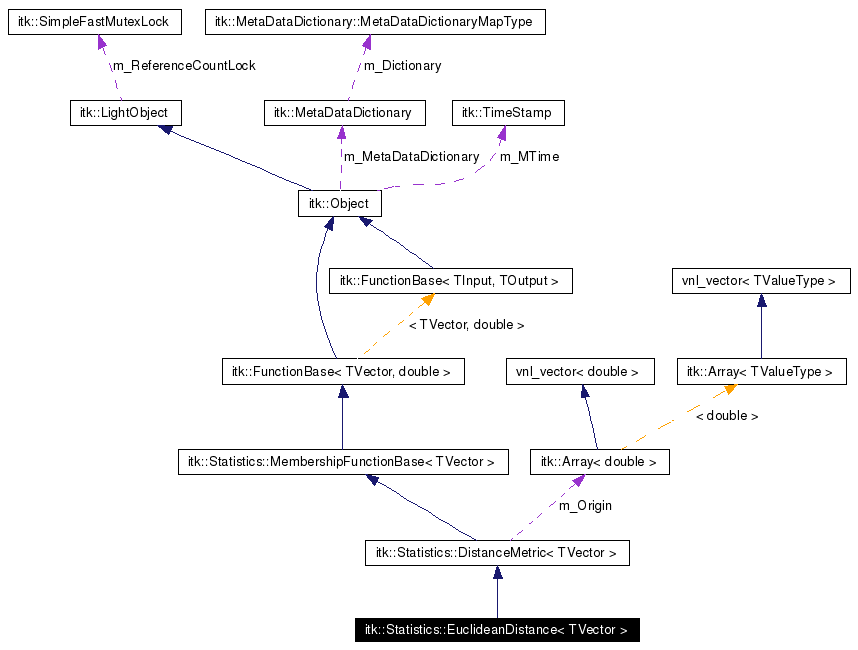

[legend]Collaboration diagram for itk::Statistics::EuclideanDistance< TVector >:

[legend]List of all members.

---

Detailed Description

template<class TVector>
class itk::Statistics::EuclideanDistance< TVector >

Euclidean distance function.

This class is derived from DistanceMetric class. In addition to the two Evaluate methods in the base class, this class has a method (Evaluate) to compute the coordinate distance between two vector component (not vectors), and a method to tell if a measurement vector is whithin the range (defined by a radius value) from the origin (set by SetOrigin mehtod).

The class can be templated over any container that holds data elements. The containter is expected to provide access to its elements with the [] operator. It must also implement a Size() that returns the length of the container. It must also contain a typedef "ValueType" that defines the data-type held by the container. (In other words it will support itk::Vector, FixedArray, Array ).

Recent API changes: The static const macro to get the length of a measurement vector, VectorLength has been removed to allow the length of a measurement vector to be specified at run time. Please use the function GetMeasurementVectorSize() instead.

Definition at line 52 of file itkEuclideanDistance.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef TVector	InputType
typedef Superclass::MeasurementVectorSizeType	MeasurementVectorSizeType
typedef Array< double >	OriginType
typedef double	OutputType
typedef SmartPointer< Self >	Pointer
typedef EuclideanDistance	Self
typedef DistanceMetric< TVector >	Superclass
typedef TVector::ValueType	ValueType
Public Member Functions
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
virtual void	Delete ()
virtual OutputType	Evaluate (const InputType &input) const =0
Sets the origin point that will be used for the single point *version	Evaluate () function.This function is necessary part of *implementing MembershipFunctionBase's Evaluate() interface */void SetOrigin(const OriginType &x)
double	Evaluate (const ValueType &a, const ValueType &b) const
double	Evaluate (const TVector &x1, const TVector &x2) const
double	Evaluate (const TVector &x) const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
virtual MeasurementVectorSizeType	GetMeasurementVectorSize () const
const MetaDataDictionary &	GetMetaDataDictionary (void) const
MetaDataDictionary &	GetMetaDataDictionary (void)
virtual unsigned long	GetMTime () const
virtual const char *	GetNameOfClass () const
virtual const OriginType &	GetOrigin ()
virtual int	GetReferenceCount () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &) const
void	InvokeEvent (const EventObject &)
bool	IsWithinRange (const TVector &x, const double radius) const
virtual void	Modified () const
void	Print (std::ostream &os, Indent indent=0) const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
Set Get Macros to set the length of each measurement vector *virtual void	SetMeasurementVectorSize (MeasurementVectorSizeType _arg)
virtual void	SetMeasurementVectorSize (const MeasurementVectorSizeType)
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Static Public Member Functions
static void	BreakOnError ()
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
This is a global flag that controls whether any warning *or error messages are displayed *static void	SetGlobalWarningDisplay (bool flag)
Public Attributes
Allow people to add remove invoke observers(callbacks) to any ITK *object.This is an implementation of the subject/observer design *pattern.An observer is added by specifying an event to respond to *and an itk unsigned lon	AddObserver )(const EventObject &event, Command *) const
This is a global flag that controls whether any	debug
Protected Member Functions
	EuclideanDistance ()
	FunctionBase ()
bool	PrintObservers (std::ostream &os, Indent indent) const
void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~EuclideanDistance ()
Protected Attributes
MeasurementVectorSizeType	m_MeasurementVectorSize
OriginType	m_Origin
int	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock
Methods invoked by virtual Print() to print information about the object *including superclasses.Typically not called by the user(use Print()*instead) but used in the hierarchical print process to combine the *output of several classes.*/virtual void PrintSelf(std voi	PrintHeader )(std::ostream &os, Indent indent) const

---

Member Typedef Documentation

template<class TVector> typedef SmartPointer<const Self> itk::Statistics::EuclideanDistance< TVector >::ConstPointer

Reimplemented from itk::Statistics::MembershipFunctionBase< TVector >. Definition at line 60 of file itkEuclideanDistance.h.

typedef TVector itk::FunctionBase< TVector , double >::InputType [inherited]

Input type Definition at line 54 of file itkFunctionBase.h.

template<class TVector> typedef Superclass::MeasurementVectorSizeType itk::Statistics::EuclideanDistance< TVector >::MeasurementVectorSizeType

Typedef for the length of each measurement vector Reimplemented from itk::Statistics::DistanceMetric< TVector >. Definition at line 61 of file itkEuclideanDistance.h.

template<class TVector> typedef Array< double > itk::Statistics::DistanceMetric< TVector >::OriginType [inherited]

Definition at line 66 of file itkDistanceMetric.h.

typedef double itk::FunctionBase< TVector , double >::OutputType [inherited]

Output type Definition at line 60 of file itkFunctionBase.h.

template<class TVector> typedef SmartPointer< Self > itk::Statistics::EuclideanDistance< TVector >::Pointer

Reimplemented from itk::Statistics::MembershipFunctionBase< TVector >. Definition at line 59 of file itkEuclideanDistance.h.

template<class TVector> typedef EuclideanDistance itk::Statistics::EuclideanDistance< TVector >::Self

Standard "Self" typedef. Reimplemented from itk::Statistics::DistanceMetric< TVector >. Definition at line 57 of file itkEuclideanDistance.h.

template<class TVector> typedef DistanceMetric< TVector > itk::Statistics::EuclideanDistance< TVector >::Superclass

Reimplemented from itk::Statistics::DistanceMetric< TVector >. Definition at line 58 of file itkEuclideanDistance.h.

template<class TVector> typedef TVector::ValueType itk::Statistics::EuclideanDistance< TVector >::ValueType

Type of the component of a vector Definition at line 67 of file itkEuclideanDistance.h.

---

Constructor & Destructor Documentation

template<class TVector> itk::Statistics::EuclideanDistance< TVector >::EuclideanDistance (   )  [inline, protected]

Definition at line 87 of file itkEuclideanDistance.h.

template<class TVector> virtual itk::Statistics::EuclideanDistance< TVector >::~EuclideanDistance (   )  [inline, protected, virtual]

Definition at line 88 of file itkEuclideanDistance.h.

---

Member Function Documentation

static void itk::LightObject::BreakOnError (   )  [static, inherited]

This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

virtual LightObject::Pointer itk::Object::CreateAnother (   )  const [virtual, inherited]

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class. Reimplemented from itk::LightObject.

virtual void itk::Object::DebugOff (   )  const [virtual, inherited]

Turn debugging output off.

virtual void itk::Object::DebugOn (   )  const [virtual, inherited]

Turn debugging output on.

virtual void itk::LightObject::Delete (   )  [virtual, inherited]

Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

virtual OutputType itk::FunctionBase< TVector , double >::Evaluate (  const InputType &  input  )  const [pure virtual, inherited]

Evaluate at the specified input position

template<class TVector> Sets the origin point that will be used for the single point* version itk::Statistics::DistanceMetric< TVector >::Evaluate (   )  const [inherited]

template<class TVector> double itk::Statistics::EuclideanDistance< TVector >::Evaluate (  const ValueType &  a, const ValueType &  b )  const

Gets the cooridnate distance between a and b. NOTE: a and b should be type of component

template<class TVector> double itk::Statistics::EuclideanDistance< TVector >::Evaluate (  const TVector &  x1, const TVector &  x2 )  const [virtual]

Gets the distance between x1 and x2 Implements itk::Statistics::DistanceMetric< TVector >.

template<class TVector> double itk::Statistics::EuclideanDistance< TVector >::Evaluate (  const TVector &  x  )  const [virtual]

Gets the distance between the origin and x Implements itk::Statistics::DistanceMetric< TVector >.

itk::FunctionBase< TVector , double >::FunctionBase (   )  [inline, protected, inherited]

Definition at line 66 of file itkFunctionBase.h.

Command* itk::Object::GetCommand (  unsigned long  tag  )  [inherited]

Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used.

bool itk::Object::GetDebug (   )  const [inherited]

Get the value of the debug flag.

static bool itk::Object::GetGlobalWarningDisplay (   )  [static, inherited]

template<class TVector> virtual MeasurementVectorSizeType itk::Statistics::MembershipFunctionBase< TVector >::GetMeasurementVectorSize (   )  const [virtual, inherited]

const MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  const [inherited]

Returns: A constant reference to this objects MetaDataDictionary.

MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  [inherited]

Returns: A reference to this objects MetaDataDictionary. Warning: This reference may be changed.

virtual unsigned long itk::Object::GetMTime (   )  const [virtual, inherited]

Return this objects modified time. Reimplemented in itk::ImageRegistrationMethod< TFixedImage, TMovingImage >, itk::DeformationFieldSource< TOutputImage >, itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >, itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::BoundingBox< TPointIdentifier, VPointDimension, TCoordRep, TPointsContainer >, itk::SceneSpatialObject< SpaceDimension >, and itk::SceneSpatialObject< NDimensions >.

template<class TVector> virtual const char* itk::Statistics::EuclideanDistance< TVector >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::Statistics::DistanceMetric< TVector >.

template<class TVector> virtual const OriginType& itk::Statistics::DistanceMetric< TVector >::GetOrigin (   )  [virtual, inherited]

virtual int itk::LightObject::GetReferenceCount (   )  const [inline, virtual, inherited]

Gets the reference count on this object. Definition at line 98 of file itkLightObject.h.

static void itk::Object::GlobalWarningDisplayOff (   )  [inline, static, inherited]

Definition at line 100 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay().

static void itk::Object::GlobalWarningDisplayOn (   )  [inline, static, inherited]

Definition at line 98 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay().

bool itk::Object::HasObserver (  const EventObject &  event  )  const [inherited]

Return true if an observer is registered for this event.

void itk::Object::InvokeEvent (  const EventObject &   )  const [inherited]

Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object.

void itk::Object::InvokeEvent (  const EventObject &   )  [inherited]

Call Execute on all the Commands observing this event id.

template<class TVector> bool itk::Statistics::EuclideanDistance< TVector >::IsWithinRange (  const TVector &  x, const double  radius )  const

Returns true if the distance between x and the origin is less than radius

virtual void itk::Object::Modified (   )  const [virtual, inherited]

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data. Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetCenter(), itk::HistogramAlgorithmBase< TInputHistogram >::SetInputHistogram(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetOffset(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetRealThresholds(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints1(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints2(), itk::NonUniformBSpline< TDimension >::SetSplineOrder(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetThresholds(), itk::Statistics::GoodnessOfFitFunctionBase< typename ComponentType::HistogramType >::SetTotalObservedScale(), and itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetTranslation().

template<class TVector> static Pointer itk::Statistics::EuclideanDistance< TVector >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::Object.

void itk::LightObject::Print (  std::ostream &  os, Indent  indent = 0 )  const [inherited]

Cause the object to print itself out.

bool itk::Object::PrintObservers (  std::ostream &  os, Indent  indent )  const [protected, inherited]

template<class TVector> void itk::Statistics::DistanceMetric< TVector >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual, inherited]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::Statistics::MembershipFunctionBase< TVector >.

virtual void itk::LightObject::PrintTrailer (  std::ostream &  os, Indent  indent )  const [protected, virtual, inherited]

virtual void itk::Object::Register (   )  const [virtual, inherited]

Increase the reference count (mark as used by another object). Reimplemented from itk::LightObject.

void itk::Object::RemoveAllObservers (   )  [inherited]

Remove all observers .

void itk::Object::RemoveObserver (  unsigned long  tag  )  [inherited]

Remove the observer with this tag value.

void itk::Object::SetDebug (  bool  debugFlag  )  const [inherited]

Set the value of the debug flag. A non-zero value turns debugging on.

This is a global flag that controls whether any warning* or error messages are displayed* static void itk::Object::SetGlobalWarningDisplay (  bool  flag  )  [static, inherited]

Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn().

template<class TVector> Set Get Macros to set the length of each measurement vector* virtual void itk::Statistics::MembershipFunctionBase< TVector >::SetMeasurementVectorSize (  MeasurementVectorSizeType  _arg  )  [virtual, inherited]

template<class TVector> virtual void itk::Statistics::DistanceMetric< TVector >::SetMeasurementVectorSize (  const   MeasurementVectorSizeType  )  [virtual, inherited]

Set the length of each measurement vector.

void itk::Object::SetMetaDataDictionary (  const MetaDataDictionary &  rhs  )  [inherited]

Returns: Set the MetaDataDictionary

virtual void itk::Object::SetReferenceCount (  int   )  [virtual, inherited]

Sets the reference count (use with care) Reimplemented from itk::LightObject.

virtual void itk::Object::UnRegister (   )  const [virtual, inherited]

Decrease the reference count (release by another object). Reimplemented from itk::LightObject.

---

Member Data Documentation

Allow people to add remove invoke observers (callbacks) to any ITK * object. This is an implementation of the subject/observer design * pattern. An observer is added by specifying an event to respond to * and an itk unsigned lon itk::Object::AddObserver)(const EventObject &event, Command *) const [inherited]

This is a global flag that controls whether any itk::Object::debug [inherited]

Definition at line 94 of file itkObject.h.

template<class TVector> MeasurementVectorSizeType itk::Statistics::MembershipFunctionBase< TVector >::m_MeasurementVectorSize [protected, inherited]

Definition at line 74 of file itkMembershipFunctionBase.h.

template<class TVector> OriginType itk::Statistics::DistanceMetric< TVector >::m_Origin [protected, inherited]

Definition at line 92 of file itkDistanceMetric.h.

int itk::LightObject::m_ReferenceCount [mutable, protected, inherited]

Number of uses of this object by other objects. Definition at line 119 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock [mutable, protected, inherited]

Mutex lock to protect modification to the reference count Definition at line 122 of file itkLightObject.h.

Methods invoked by virtual Print () to print information about the object * including superclasses. Typically not called by the user (use Print() * instead) but used in the hierarchical print process to combine the * output of several classes. */ virtual void PrintSelf(std voi itk::LightObject::PrintHeader)(std::ostream &os, Indent indent) const [protected, inherited]

---

The documentation for this class was generated from the following file:

• itkEuclideanDistance.h

---
