itk::Statistics::ImageToCooccurrenceListAdaptor< TImage > Class Template Reference

#include <itkImageToCooccurrenceListAdaptor.h>

Inheritance diagram for itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >:

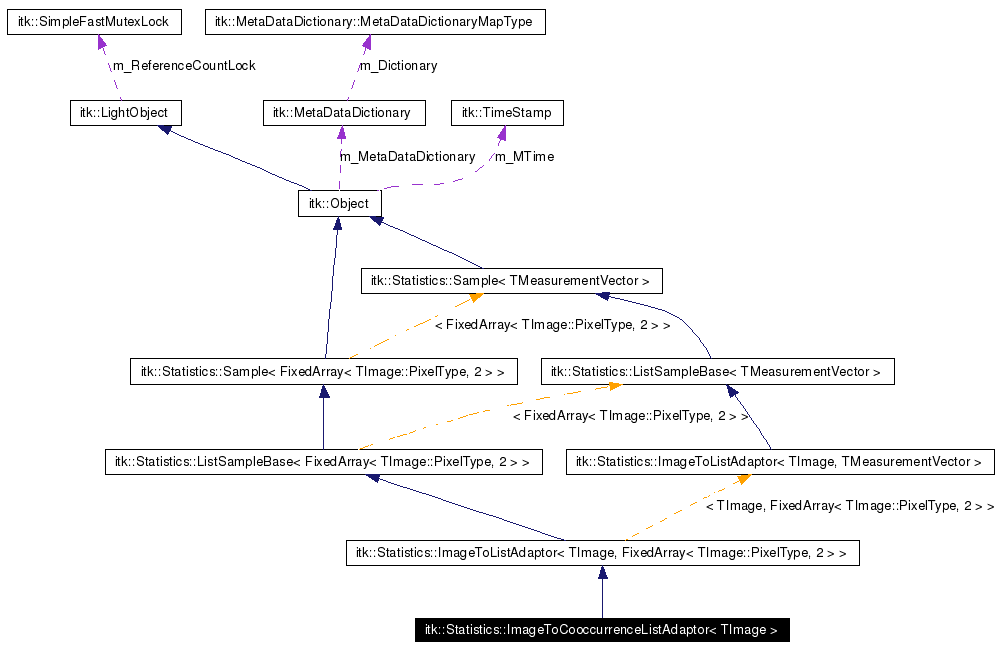

[legend]Collaboration diagram for itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >:

[legend]List of all members.

---

Detailed Description

template<class TImage>
class itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >

Converts pixel data into a list of pairs in order to compute a cooccurrence Histogram.

This class is intended to be used in combination with the ListToHistogramGenerator class.

Author:

Glenn Pierce

Definition at line 54 of file itkImageToCooccurrenceListAdaptor.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::FrequencyType	FrequencyType
typedef ImageType::ConstPointer	ImageConstPointer
typedef ImageType::Pointer	ImagePointer
typedef TImage	ImageType
typedef ImageType::IndexType	IndexType
typedef Superclass::InstanceIdentifier	InstanceIdentifier
typedef ImageRegionIterator< ImageType >	IteratorType
typedef Superclass::MeasurementType	MeasurementType
typedef SampleType::MeasurementVectorSizeType	MeasurementVectorSizeType
typedef FixedArray< typename TImage::PixelType, 2 >	MeasurementVectorType
typedef std::vector< OffsetType >	OffsetTable
typedef ShapedNeighborhoodIteratorType::OffsetType	OffsetType
typedef ImageType::PixelContainerConstPointer	PixelContainerConstPointer
typedef PixelTraits< typename TImage::PixelType >	PixelTraitsType
typedef ImageType::PixelType	PixelType
typedef SmartPointer< Self >	Pointer
typedef itk::Statistics::ListSample< MeasurementVectorType >	SampleType
typedef std::vector< InstanceIdentifier >	SearchResultVectorType
typedef ImageToCooccurrenceListAdaptor	Self
typedef itk::ShapedNeighborhoodIterator< TImage, ConstantBoundaryCondition< TImage > >	ShapedNeighborhoodIteratorType
typedef ImageToListAdaptor< TImage, MeasurementVectorType >	Superclass
typedef Superclass::TotalFrequencyType	TotalFrequencyType
typedef MeasurementVectorType	ValueType
Public Member Functions
ConstIterator	Begin () const
Iterator	Begin ()
void	Compute ()
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
virtual void	Delete ()
ConstIterator	End () const
Iterator	End ()
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
FrequencyType	GetFrequency (const InstanceIdentifier &id) const
const TImage *	GetImage () const
virtual const MeasurementVectorType &	GetMeasurementVector (const InstanceIdentifier &id) const
unsigned int	GetMeasurementVectorSize () const
const MetaDataDictionary &	GetMetaDataDictionary (void) const
MetaDataDictionary &	GetMetaDataDictionary (void)
virtual unsigned long	GetMTime () const
virtual const char *	GetNameOfClass () const
virtual int	GetReferenceCount () const
TotalFrequencyType	GetTotalFrequency () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &) const
void	InvokeEvent (const EventObject &)
	itkStaticConstMacro (MeasurementVectorSize, unsigned int, PixelTraitsType::Dimension)
	itkStaticConstMacro (ImageDimension, unsigned int, TImage::ImageDimension)
	itkStaticConstMacro (MeasurementVectorSize, unsigned int, 2)
virtual void	Modified () const
void	Print (std::ostream &os, Indent indent=0) const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	Search (MeasurementVectorType center, double radius, SearchResultVectorType &result) const
void	SetDebug (bool debugFlag) const
void	SetImage (const TImage *image)
virtual void	SetMeasurementVectorSize (const MeasurementVectorSizeType s)
virtual void	SetMeasurementVectorSize (const MeasurementVectorSizeType)
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
unsigned int	Size () const
virtual void	UnRegister () const
void	UseNeighbor (const OffsetType &offset)
Static Public Member Functions
static void	BreakOnError ()
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
This is a global flag that controls whether any warning *or error messages are displayed *static void	SetGlobalWarningDisplay (bool flag)
Public Attributes
Allow people to add remove invoke observers(callbacks) to any ITK *object.This is an implementation of the subject/observer design *pattern.An observer is added by specifying an event to respond to *and an itk unsigned lon	AddObserver )(const EventObject &event, Command *) const
This is a global flag that controls whether any	debug
Protected Member Functions
virtual const IndexType &	GetImageBeginIndex ()
virtual const IndexType &	GetImageEndIndex ()
virtual const PixelContainerConstPointer &	GetPixelContainer ()
virtual const bool &	GetUseBuffer ()
	ImageToCooccurrenceListAdaptor ()
	ImageToListAdaptor ()
	ListSampleBase ()
bool	PrintObservers (std::ostream &os, Indent indent) const
void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
	Sample ()
virtual	~ImageToCooccurrenceListAdaptor ()
Protected Attributes
int	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock
Methods invoked by virtual Print() to print information about the object *including superclasses.Typically not called by the user(use Print()*instead) but used in the hierarchical print process to combine the *output of several classes.*/virtual void PrintSelf(std voi	PrintHeader )(std::ostream &os, Indent indent) const

---

Member Typedef Documentation

template<class TImage> typedef SmartPointer<const Self> itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::ConstPointer

Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 71 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef Superclass::FrequencyType itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::FrequencyType

Superclass typedefs for Measurement vector, measurement, Instance Identifier, frequency, size, size element value Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 113 of file itkImageToCooccurrenceListAdaptor.h.

typedef ImageType::ConstPointer itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::ImageConstPointer [inherited]

Definition at line 84 of file itkImageToListAdaptor.h.

typedef ImageType::Pointer itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::ImagePointer [inherited]

Definition at line 83 of file itkImageToListAdaptor.h.

template<class TImage> typedef TImage itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::ImageType

Image typedefs Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 60 of file itkImageToCooccurrenceListAdaptor.h.

typedef ImageType::IndexType itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::IndexType [inherited]

Definition at line 85 of file itkImageToListAdaptor.h.

template<class TImage> typedef Superclass::InstanceIdentifier itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::InstanceIdentifier

InstanceIdentifier typedef. This identifier is a unique sequential id for each measurement vector in a Sample subclass. Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 115 of file itkImageToCooccurrenceListAdaptor.h.

typedef ImageRegionIterator< ImageType > itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::IteratorType [inherited]

Image Iterator typedef support Definition at line 92 of file itkImageToListAdaptor.h.

template<class TImage> typedef Superclass::MeasurementType itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::MeasurementType

Superclass typedefs for Measurement vector, measurement, Instance Identifier, frequency, size, size element value Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 114 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef SampleType::MeasurementVectorSizeType itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::MeasurementVectorSizeType

Typedef for the length of each measurement vector Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 65 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef FixedArray< typename TImage::PixelType, 2 > itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::MeasurementVectorType

Typedefs inherited from the superclass Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 62 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef std::vector<OffsetType> itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::OffsetTable

Definition at line 81 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef ShapedNeighborhoodIteratorType::OffsetType itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::OffsetType

Offset type used for Neighborhoods Definition at line 80 of file itkImageToCooccurrenceListAdaptor.h.

typedef ImageType::PixelContainerConstPointer itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::PixelContainerConstPointer [inherited]

Definition at line 87 of file itkImageToListAdaptor.h.

typedef PixelTraits< typename TImage ::PixelType > itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::PixelTraitsType [inherited]

Definition at line 93 of file itkImageToListAdaptor.h.

typedef ImageType::PixelType itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::PixelType [inherited]

Definition at line 86 of file itkImageToListAdaptor.h.

template<class TImage> typedef SmartPointer< Self > itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::Pointer

Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 70 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef itk::Statistics::ListSample< MeasurementVectorType > itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::SampleType

Definition at line 64 of file itkImageToCooccurrenceListAdaptor.h.

typedef std::vector< InstanceIdentifier > itk::Statistics::ListSampleBase< FixedArray< TImage::PixelType, 2 > >::SearchResultVectorType [inherited]

Vector of InstanceIdentifiers used for returning search results. Definition at line 67 of file itkListSampleBase.h.

template<class TImage> typedef ImageToCooccurrenceListAdaptor itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::Self

Standard class typedefs Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 68 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef itk::ShapedNeighborhoodIterator< TImage , ConstantBoundaryCondition<TImage> > itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::ShapedNeighborhoodIteratorType

Neighborhood iterator type. Definition at line 77 of file itkImageToCooccurrenceListAdaptor.h.

template<class TImage> typedef ImageToListAdaptor< TImage, MeasurementVectorType > itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::Superclass

Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 69 of file itkImageToCooccurrenceListAdaptor.h.

typedef Superclass::TotalFrequencyType itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::TotalFrequencyType [inherited]

Total frequency type Reimplemented from itk::Statistics::Sample< FixedArray< TImage::PixelType, 2 > >. Definition at line 99 of file itkImageToListAdaptor.h.

template<class TImage> typedef MeasurementVectorType itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::ValueType

Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 116 of file itkImageToCooccurrenceListAdaptor.h.

---

Constructor & Destructor Documentation

template<class TImage> itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::ImageToCooccurrenceListAdaptor (   )  [protected]

template<class TImage> virtual itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::~ImageToCooccurrenceListAdaptor (   )  [inline, protected, virtual]

Definition at line 125 of file itkImageToCooccurrenceListAdaptor.h.

---

Member Function Documentation

ConstIterator itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::Begin (  void   )  const [inline, inherited]

Definition at line 286 of file itkImageToListAdaptor.h.

Iterator itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::Begin (  void   )  [inline, inherited]

Definition at line 274 of file itkImageToListAdaptor.h.

static void itk::LightObject::BreakOnError (   )  [static, inherited]

This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

template<class TImage> void itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::Compute (   )

Triggers the Computation of the co-occurence matrix

virtual LightObject::Pointer itk::Object::CreateAnother (   )  const [virtual, inherited]

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class. Reimplemented from itk::LightObject.

virtual void itk::Object::DebugOff (   )  const [virtual, inherited]

Turn debugging output off.

virtual void itk::Object::DebugOn (   )  const [virtual, inherited]

Turn debugging output on.

virtual void itk::LightObject::Delete (   )  [virtual, inherited]

Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

ConstIterator itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::End (  void   )  const [inline, inherited]

Definition at line 292 of file itkImageToListAdaptor.h.

Iterator itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::End (  void   )  [inline, inherited]

Definition at line 280 of file itkImageToListAdaptor.h.

Command* itk::Object::GetCommand (  unsigned long  tag  )  [inherited]

Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used.

bool itk::Object::GetDebug (   )  const [inherited]

Get the value of the debug flag.

FrequencyType itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetFrequency (  const InstanceIdentifier &  id  )  const [inline, virtual, inherited]

Get the frequency of a measurement specified by instance identifier. Implements itk::Statistics::Sample< FixedArray< TImage::PixelType, 2 > >.

static bool itk::Object::GetGlobalWarningDisplay (   )  [static, inherited]

const TImage * itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetImage (  void   )  const [inherited]

Method to get the image

virtual const IndexType& itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetImageBeginIndex (   )  [protected, virtual, inherited]

virtual const IndexType& itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetImageEndIndex (   )  [protected, virtual, inherited]

virtual const MeasurementVectorType& itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetMeasurementVector (  const InstanceIdentifier &  id  )  const [inline, virtual, inherited]

Get the measurement associated with a particular InstanceIdentifier. Implements itk::Statistics::Sample< FixedArray< TImage::PixelType, 2 > >.

template<class TImage> unsigned int itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::GetMeasurementVectorSize (   )  const [inline, virtual]

Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >. Definition at line 105 of file itkImageToCooccurrenceListAdaptor.h.

const MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  const [inherited]

Returns: A constant reference to this objects MetaDataDictionary.

MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  [inherited]

Returns: A reference to this objects MetaDataDictionary. Warning: This reference may be changed.

virtual unsigned long itk::Object::GetMTime (   )  const [virtual, inherited]

Return this objects modified time. Reimplemented in itk::ImageRegistrationMethod< TFixedImage, TMovingImage >, itk::DeformationFieldSource< TOutputImage >, itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >, itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::BoundingBox< TPointIdentifier, VPointDimension, TCoordRep, TPointsContainer >, itk::SceneSpatialObject< SpaceDimension >, and itk::SceneSpatialObject< NDimensions >.

template<class TImage> virtual const char* itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >.

virtual const PixelContainerConstPointer& itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetPixelContainer (   )  [protected, virtual, inherited]

virtual int itk::LightObject::GetReferenceCount (   )  const [inline, virtual, inherited]

Gets the reference count on this object. Definition at line 98 of file itkLightObject.h.

TotalFrequencyType itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetTotalFrequency (   )  const [virtual, inherited]

Get the total frequency of the sample. Implements itk::Statistics::Sample< FixedArray< TImage::PixelType, 2 > >.

virtual const bool& itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::GetUseBuffer (   )  [protected, virtual, inherited]

static void itk::Object::GlobalWarningDisplayOff (   )  [inline, static, inherited]

Definition at line 100 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay().

static void itk::Object::GlobalWarningDisplayOn (   )  [inline, static, inherited]

Definition at line 98 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay().

bool itk::Object::HasObserver (  const EventObject &  event  )  const [inherited]

Return true if an observer is registered for this event.

itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::ImageToListAdaptor (   )  [protected, inherited]

void itk::Object::InvokeEvent (  const EventObject &   )  const [inherited]

Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object.

void itk::Object::InvokeEvent (  const EventObject &   )  [inherited]

Call Execute on all the Commands observing this event id.

itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::itkStaticConstMacro (  MeasurementVectorSize  , unsigned  int, PixelTraitsType::Dimension  )  [inherited]

the number of components in a measurement vector

template<class TImage> itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::itkStaticConstMacro (  ImageDimension  , unsigned  int, TImage::ImageDimension  )

Image dimension.

template<class TImage> itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::itkStaticConstMacro (  MeasurementVectorSize  , unsigned  int, 2  )

the number of components in a measurement vector

itk::Statistics::ListSampleBase< FixedArray< TImage::PixelType, 2 > >::ListSampleBase (   )  [inline, protected, inherited]

Definition at line 116 of file itkListSampleBase.h.

virtual void itk::Object::Modified (   )  const [virtual, inherited]

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data. Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetCenter(), itk::HistogramAlgorithmBase< TInputHistogram >::SetInputHistogram(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetOffset(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetRealThresholds(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints1(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints2(), itk::NonUniformBSpline< TDimension >::SetSplineOrder(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetThresholds(), itk::Statistics::GoodnessOfFitFunctionBase< typename ComponentType::HistogramType >::SetTotalObservedScale(), and itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetTranslation().

template<class TImage> static Pointer itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >.

void itk::LightObject::Print (  std::ostream &  os, Indent  indent = 0 )  const [inherited]

Cause the object to print itself out.

bool itk::Object::PrintObservers (  std::ostream &  os, Indent  indent )  const [protected, inherited]

template<class TImage> void itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::Statistics::ImageToListAdaptor< TImage, FixedArray< TImage::PixelType, 2 > >.

virtual void itk::LightObject::PrintTrailer (  std::ostream &  os, Indent  indent )  const [protected, virtual, inherited]

virtual void itk::Object::Register (   )  const [virtual, inherited]

Increase the reference count (mark as used by another object). Reimplemented from itk::LightObject.

void itk::Object::RemoveAllObservers (   )  [inherited]

Remove all observers .

void itk::Object::RemoveObserver (  unsigned long  tag  )  [inherited]

Remove the observer with this tag value.

itk::Statistics::Sample< FixedArray< TImage::PixelType, 2 > >::Sample (   )  [inline, protected, inherited]

Definition at line 130 of file itkSample.h.

void itk::Statistics::ListSampleBase< FixedArray< TImage::PixelType, 2 > >::Search (  MeasurementVectorType  center, double  radius, SearchResultVectorType &  result )  const [inline, inherited]

Search for measurements within the specified radius of a search point. A vector of InstanceIdentifiers is returned. Definition at line 71 of file itkListSampleBase.h.

void itk::Object::SetDebug (  bool  debugFlag  )  const [inherited]

Set the value of the debug flag. A non-zero value turns debugging on.

This is a global flag that controls whether any warning* or error messages are displayed* static void itk::Object::SetGlobalWarningDisplay (  bool  flag  )  [static, inherited]

Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn().

void itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::SetImage (  const TImage *  image  )  [inherited]

Method to set the image

virtual void itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::SetMeasurementVectorSize (  const MeasurementVectorSizeType  s  )  [inline, virtual, inherited]

Reimplemented from itk::Statistics::Sample< FixedArray< TImage::PixelType, 2 > >. Definition at line 106 of file itkImageToListAdaptor.h.

template<class TImage> virtual void itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::SetMeasurementVectorSize (  const   MeasurementVectorSizeType  )  [inline, virtual]

Definition at line 97 of file itkImageToCooccurrenceListAdaptor.h. References itkWarningMacro.

void itk::Object::SetMetaDataDictionary (  const MetaDataDictionary &  rhs  )  [inherited]

Returns: Set the MetaDataDictionary

virtual void itk::Object::SetReferenceCount (  int   )  [virtual, inherited]

Sets the reference count (use with care) Reimplemented from itk::LightObject.

unsigned int itk::Statistics::ImageToListAdaptor< TImage , FixedArray< TImage::PixelType, 2 > >::Size (  void   )  const [virtual, inherited]

returns the number of measurement vectors in this container Implements itk::Statistics::Sample< FixedArray< TImage::PixelType, 2 > >.

virtual void itk::Object::UnRegister (   )  const [virtual, inherited]

Decrease the reference count (release by another object). Reimplemented from itk::LightObject.

template<class TImage> void itk::Statistics::ImageToCooccurrenceListAdaptor< TImage >::UseNeighbor (  const OffsetType &  offset  )

---

Member Data Documentation

Allow people to add remove invoke observers (callbacks) to any ITK * object. This is an implementation of the subject/observer design * pattern. An observer is added by specifying an event to respond to * and an itk unsigned lon itk::Object::AddObserver)(const EventObject &event, Command *) const [inherited]

This is a global flag that controls whether any itk::Object::debug [inherited]

Definition at line 94 of file itkObject.h.

int itk::LightObject::m_ReferenceCount [mutable, protected, inherited]

Number of uses of this object by other objects. Definition at line 119 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock [mutable, protected, inherited]

Mutex lock to protect modification to the reference count Definition at line 122 of file itkLightObject.h.

Methods invoked by virtual Print () to print information about the object * including superclasses. Typically not called by the user (use Print() * instead) but used in the hierarchical print process to combine the * output of several classes. */ virtual void PrintSelf(std voi itk::LightObject::PrintHeader)(std::ostream &os, Indent indent) const [protected, inherited]

---

The documentation for this class was generated from the following file:

• itkImageToCooccurrenceListAdaptor.h

---
