#include <itkGPUDenseFiniteDifferenceImageFilter.h>

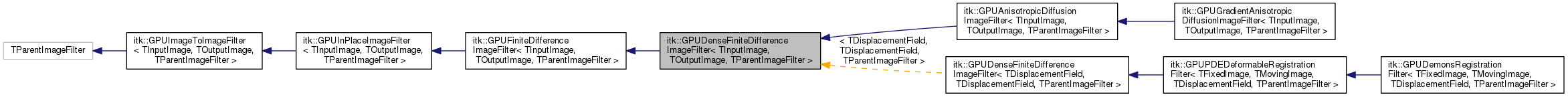

Inheritance diagram for itk::GPUDenseFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >:

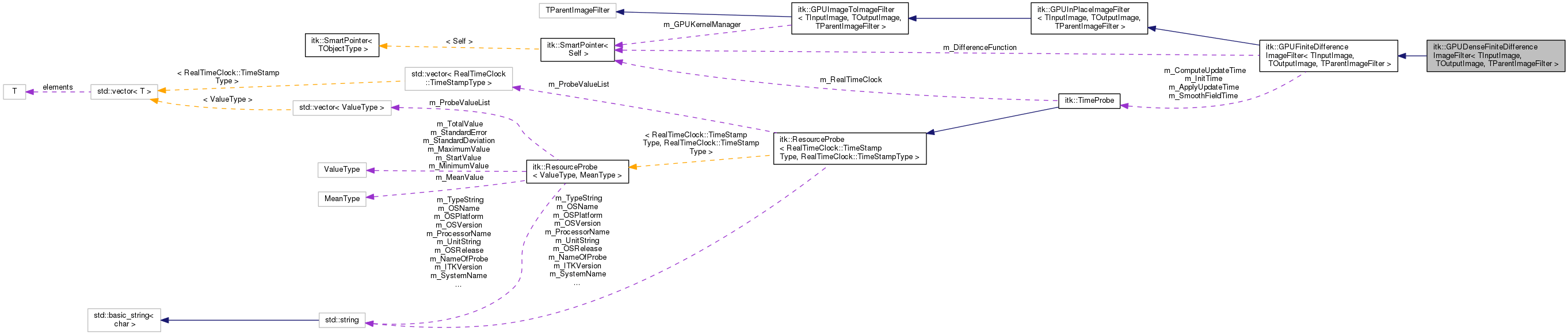

Collaboration diagram for itk::GPUDenseFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >:

Detailed Description

template<typename TInputImage, typename TOutputImage, typename TParentImageFilter = DenseFiniteDifferenceImageFilter< TInputImage, TOutputImage >>
class itk::GPUDenseFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >

This is the GPU version of DenseFiniteDifferenceImageFilter class. Currently only single-threaded, single GPU version is implemented. See documentation for FiniteDifferenceImageFilter for an overview of the iterative finite difference algorithm:

: $u_{\mathbf{i}}^{n+1}=u^n_{\mathbf{i}}+\Delta u^n_{\mathbf{i}}\Delta t$

: This class defines an update buffer for $\Delta$ and the methods GPUCalculateChange() and GPUApplyUpdate(), which are GPU version of CalculateChange() and ApplyUpdate().

Use m_UpdateBuffer defined in CPU superclass (DenseFiniteDifferenceImageFilter).

How to use this class: This filter can be used as a base class for GPU implementation of DenseFiniteDifferenceImageFilter.

Definition at line 54 of file itkGPUDenseFiniteDifferenceImageFilter.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer

typedef TParentImageFilter	CPUSuperclass

typedef GPUSuperclass::FiniteDifferenceFunctionType	FiniteDifferenceFunctionType

typedef GPUFiniteDifferenceImageFilter < TInputImage, TOutputImage, TParentImageFilter >	GPUSuperclass

typedef GPUSuperclass::InputImageType	InputImageType

typedef GPUSuperclass::OutputImageType	OutputImageType

typedef GPUSuperclass::PixelType	PixelType

typedef SmartPointer< Self >	Pointer

typedef GPUDenseFiniteDifferenceImageFilter	Self

typedef GPUSuperclass::TimeStepType	TimeStepType

typedef OutputImageType	UpdateBufferType

Public Types inherited from itk::GPUFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
typedef SmartPointer< const Self >	ConstPointer

typedef TParentImageFilter	CPUSuperclass

enum	FilterStateType { UNINITIALIZED = 0, INITIALIZED = 1 }

typedef GPUFiniteDifferenceFunction < TOutputImage > ::DifferenceFunctionType	FiniteDifferenceFunctionType

typedef GPUInPlaceImageFilter < TInputImage, TOutputImage, TParentImageFilter >	GPUSuperclass

typedef TInputImage	InputImageType

typedef TInputImage::PixelType	InputPixelType

typedef NumericTraits < InputPixelType >::ValueType	InputPixelValueType

typedef FiniteDifferenceFunctionType::NeighborhoodScalesType	NeighborhoodScalesType

typedef TOutputImage	OutputImageType

typedef TOutputImage::PixelType	OutputPixelType

typedef NumericTraits < OutputPixelType >::ValueType	OutputPixelValueType

typedef OutputPixelType	PixelType

typedef SmartPointer< Self >	Pointer

typedef FiniteDifferenceFunctionType::RadiusType	RadiusType

typedef GPUFiniteDifferenceImageFilter	Self

typedef FiniteDifferenceFunctionType::TimeStepType	TimeStepType

Public Types inherited from itk::GPUInPlaceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
typedef SmartPointer< const Self >	ConstPointer

typedef TParentImageFilter	CPUSuperclass

typedef GPUImageToImageFilter < TInputImage, TOutputImage, TParentImageFilter >	GPUSuperclass

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef InputImageType::PixelType	InputImagePixelType

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::RegionType	InputImageRegionType

typedef TInputImage	InputImageType

typedef GPUSuperclass::OutputImagePixelType	OutputImagePixelType

typedef GPUSuperclass::OutputImagePointer	OutputImagePointer

typedef GPUSuperclass::OutputImageRegionType	OutputImageRegionType

typedef GPUSuperclass::OutputImageType	OutputImageType

typedef SmartPointer< Self >	Pointer

typedef GPUInPlaceImageFilter	Self

Public Types inherited from itk::GPUImageToImageFilter< TInputImage, TOutputImage, TParentImageFilter >
typedef SmartPointer< const Self >	ConstPointer

typedef Superclass::DataObjectIdentifierType	DataObjectIdentifierType

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef InputImageType::PixelType	InputImagePixelType

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::RegionType	InputImageRegionType

typedef TInputImage	InputImageType

typedef Superclass::OutputImagePixelType	OutputImagePixelType

typedef Superclass::OutputImageRegionType	OutputImageRegionType

typedef SmartPointer< Self >	Pointer

typedef GPUImageToImageFilter	Self

typedef TParentImageFilter	Superclass

Public Member Functions
virtual const char *	GetNameOfClass () const

	itkGetOpenCLSourceFromKernelMacro (GPUDenseFiniteDifferenceImageFilterKernel)

Public Member Functions inherited from itk::GPUFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
virtual const FiniteDifferenceFunctionType::Pointer &	GetDifferenceFunction () const override

void	SetStateToInitialized ()

void	SetStateToUninitialized ()

virtual void	SetDifferenceFunction (FiniteDifferenceFunctionType *differenceFunction) override

virtual void	SetState (FilterStateType _arg)

virtual const FilterStateType &	GetState () const

virtual const TimeProbe &	GetInitTime () const

virtual const TimeProbe &	GetComputeUpdateTime () const

virtual const TimeProbe &	GetApplyUpdateTime () const

virtual const TimeProbe &	GetSmoothFieldTime () const

Public Member Functions inherited from itk::GPUImageToImageFilter< TInputImage, TOutputImage, TParentImageFilter >
virtual ::itk::LightObject::Pointer	CreateAnother () const

void	GenerateData () override

virtual bool	GetGPUEnabled () const

virtual void	GPUEnabledOff ()

virtual void	GPUEnabledOn ()

virtual void	GraftOutput (typename itk::GPUTraits< TOutputImage >::Type *output)

virtual void	GraftOutput (const DataObjectIdentifierType &key, typename itk::GPUTraits< TOutputImage >::Type *output)

virtual void	SetGPUEnabled (bool _arg)

Static Public Attributes
static const unsigned int	ImageDimension = GPUSuperclass::ImageDimension

Static Public Attributes inherited from itk::GPUFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
static const unsigned int	ImageDimension = OutputImageType::ImageDimension

Static Public Attributes inherited from itk::GPUInPlaceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
static const unsigned int	InputImageDimension = TInputImage::ImageDimension

static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension

Static Public Attributes inherited from itk::GPUImageToImageFilter< TInputImage, TOutputImage, TParentImageFilter >
static const unsigned int	InputImageDimension = TInputImage::ImageDimension

static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension

Protected Member Functions
virtual void	AllocateUpdateBuffer () override

virtual void	ApplyUpdate (const TimeStepType &dt) override

virtual void	CopyInputToOutput () override

virtual UpdateBufferType *	GetUpdateBuffer () override

virtual void	GPUApplyUpdate (const TimeStepType &dt) override

virtual TimeStepType	GPUCalculateChange () override

	GPUDenseFiniteDifferenceImageFilter ()

void	PrintSelf (std::ostream &os, Indent indent) const override

	~GPUDenseFiniteDifferenceImageFilter ()

Protected Member Functions inherited from itk::GPUFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
virtual void	GenerateInputRequestedRegion () override

virtual void	GPUApplyUpdate (const TimeStepType &dt)=0

	GPUFiniteDifferenceImageFilter ()

virtual void	GPUGenerateData () override

virtual bool	Halt () override

virtual void	Initialize () override

virtual void	InitializeIteration () override

virtual void	PostProcessOutput () override

void	PrintSelf (std::ostream &os, Indent indent) const override

virtual TimeStepType	ResolveTimeStep (const std::vector< TimeStepType > &timeStepList, const std::vector< bool > &valid) const override

virtual bool	ThreadedHalt (void *) override

	~GPUFiniteDifferenceImageFilter ()

Protected Member Functions inherited from itk::GPUInPlaceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
virtual void	AllocateOutputs () override

	GPUInPlaceImageFilter ()

virtual void	ReleaseInputs () override

	~GPUInPlaceImageFilter ()

Protected Member Functions inherited from itk::GPUImageToImageFilter< TInputImage, TOutputImage, TParentImageFilter >
	GPUImageToImageFilter ()

virtual void	GraftOutput (DataObject *output) override

virtual void	GraftOutput (const DataObjectIdentifierType &key, DataObject *output) override

	~GPUImageToImageFilter ()

Protected Attributes
int	m_ApplyUpdateGPUKernelHandle

Protected Attributes inherited from itk::GPUFiniteDifferenceImageFilter< TInputImage, TOutputImage, TParentImageFilter >
TimeProbe	m_ApplyUpdateTime

TimeProbe	m_ComputeUpdateTime

TimeProbe	m_InitTime

bool	m_ManualReinitialization

double	m_MaximumRMSError

double	m_RMSChange

TimeProbe	m_SmoothFieldTime

Protected Attributes inherited from itk::GPUImageToImageFilter< TInputImage, TOutputImage, TParentImageFilter >
GPUKernelManager::Pointer	m_GPUKernelManager

Additional Inherited Members
Static Public Member Functions inherited from itk::GPUImageToImageFilter< TInputImage, TOutputImage, TParentImageFilter >
static Pointer	New ()
