itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter > Class Template Reference

#include <itkVTKVisualizeImageLevelSet.h>

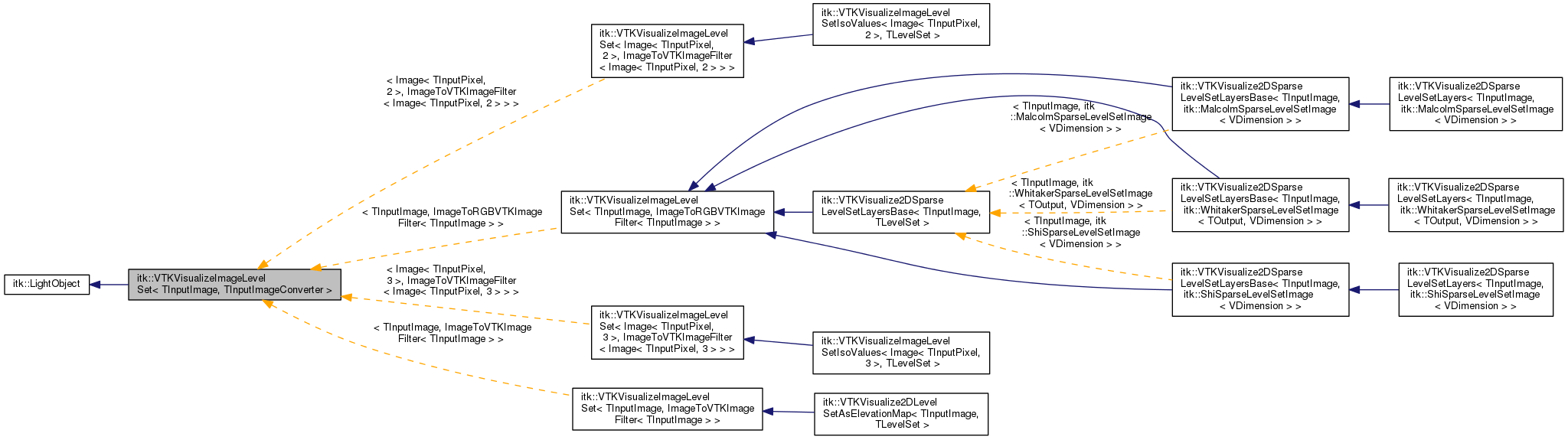

Inheritance diagram for itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >:

Collaboration diagram for itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >:

Detailed Description

template<typename TInputImage, typename TInputImageConverter>
class itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >

Base class for visualizing level sets defined on an image with VTK.

Template Parameters

TInputImage	Input image the level set evolves on.
TInputImageConverter	ITK filter to convert the input image to a VTK object.

Definition at line 44 of file itkVTKVisualizeImageLevelSet.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef TInputImageConverter	InputImageConverterType
typedef TInputImage	InputImageType
typedef SmartPointer< Self >	Pointer
typedef VTKVisualizeImageLevelSet	Self
typedef LightObject	Superclass
Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef LightObject	Self

Public Member Functions
virtual const char *	GetNameOfClass () const
vtkRenderer *	GetRenderer ()
virtual void	SetInputImage (const InputImageType *inputImage)
void	SetScreenCapturePrefix (const char *prefix)
virtual void	Update ()
void	SetScreenCapture (const bool iCapture)
bool	GetScreenCapture () const
vtkRenderWindow *	GetRenderWindow ()
void	SetRenderWindow (vtkRenderWindow *renderWindow)
void	SetCurrentIteration (const IdentifierType iteration)
IdentifierType	GetCurrentIteration () const
Public Member Functions inherited from itk::LightObject
virtual Pointer	CreateAnother () const
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const
virtual void	Register () const
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const noexcept

Protected Member Functions
virtual void	PrepareVTKPipeline ()=0
	VTKVisualizeImageLevelSet ()
virtual	~VTKVisualizeImageLevelSet ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Protected Attributes
InputImageConverterType::Pointer	m_InputImageConverter
vtkSmartPointer< vtkRenderer >	m_Renderer
Protected Attributes inherited from itk::LightObject
AtomicInt< int >	m_ReferenceCount

Private Attributes
vtkSmartPointer < vtkCornerAnnotation >	m_Annotation
IdentifierType	m_CurrentIteration
vtkSmartPointer< vtkRenderWindow >	m_RenderWindow
bool	m_ScreenCapture
std::string	m_ScreenCapturePrefix

Additional Inherited Members
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()
static Pointer	New ()

Member Typedef Documentation

template<typename TInputImage, typename TInputImageConverter>

typedef SmartPointer< const Self > itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::ConstPointer

Definition at line 50 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

typedef TInputImageConverter itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::InputImageConverterType

Type of the ITK filter to convert the input image to a VTK object.

Definition at line 59 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

typedef TInputImage itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::InputImageType

Type of the input image the level set evolves on.

Definition at line 53 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

typedef SmartPointer< Self > itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::Pointer

Definition at line 49 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

typedef VTKVisualizeImageLevelSet itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::Self

Definition at line 47 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

typedef LightObject itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::Superclass

Definition at line 48 of file itkVTKVisualizeImageLevelSet.h.

Constructor & Destructor Documentation

template<typename TInputImage, typename TInputImageConverter>

itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::VTKVisualizeImageLevelSet ( )

protected

template<typename TInputImage, typename TInputImageConverter>

virtual itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::~VTKVisualizeImageLevelSet ( )

protectedvirtual

Member Function Documentation

template<typename TInputImage, typename TInputImageConverter>

IdentifierType itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::GetCurrentIteration

(

)

const

Set/Get the current iteration. Used for the filename during screen capture.

template<typename TInputImage, typename TInputImageConverter>

virtual const char* itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::LightObject.

Reimplemented in itk::VTKVisualize2DSparseLevelSetLayers< TInputImage, itk::MalcolmSparseLevelSetImage< VDimension > >, itk::VTKVisualizeImageLevelSetIsoValues< Image< TInputPixel, 3 >, TLevelSet >, itk::VTKVisualize2DSparseLevelSetLayers< TInputImage, itk::ShiSparseLevelSetImage< VDimension > >, itk::VTKVisualizeImageLevelSetIsoValues< Image< TInputPixel, 2 >, TLevelSet >, itk::VTKVisualize2DSparseLevelSetLayers< TInputImage, itk::WhitakerSparseLevelSetImage< TOutput, VDimension > >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, TLevelSet >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::WhitakerSparseLevelSetImage< TOutput, VDimension > >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::MalcolmSparseLevelSetImage< VDimension > >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::ShiSparseLevelSetImage< VDimension > >, and itk::VTKVisualize2DLevelSetAsElevationMap< TInputImage, TLevelSet >.

template<typename TInputImage, typename TInputImageConverter>

vtkRenderer* itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::GetRenderer

(

)

Get the renderer.

template<typename TInputImage, typename TInputImageConverter>

vtkRenderWindow* itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::GetRenderWindow

(

)

Set/Get the render window.

template<typename TInputImage, typename TInputImageConverter>

bool itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::GetScreenCapture

(

)

const

Do a screen capture at every iteration.

template<typename TInputImage, typename TInputImageConverter>

virtual void itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::PrepareVTKPipeline ( )

protectedpure virtual

Setup the VTK pipeline for a Render() call.

Implemented in itk::VTKVisualizeImageLevelSetIsoValues< Image< TInputPixel, 3 >, TLevelSet >, itk::VTKVisualizeImageLevelSetIsoValues< Image< TInputPixel, 2 >, TLevelSet >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, TLevelSet >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::WhitakerSparseLevelSetImage< TOutput, VDimension > >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::MalcolmSparseLevelSetImage< VDimension > >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::ShiSparseLevelSetImage< VDimension > >, and itk::VTKVisualize2DLevelSetAsElevationMap< TInputImage, TLevelSet >.

template<typename TInputImage, typename TInputImageConverter>

void itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::SetCurrentIteration

(

const IdentifierType

iteration

)

Set/Get the current iteration. Used for the filename during screen capture.

template<typename TInputImage, typename TInputImageConverter>

virtual void itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::SetInputImage ( const InputImageType *  inputImage )

virtual

Set the input image the level set is being evolved over.

Reimplemented in itk::VTKVisualizeImageLevelSetIsoValues< Image< TInputPixel, 3 >, TLevelSet >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, TLevelSet >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::WhitakerSparseLevelSetImage< TOutput, VDimension > >, itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::MalcolmSparseLevelSetImage< VDimension > >, and itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, itk::ShiSparseLevelSetImage< VDimension > >.

template<typename TInputImage, typename TInputImageConverter>

void itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::SetRenderWindow

(

vtkRenderWindow *

renderWindow

)

Set/Get the render window.

template<typename TInputImage, typename TInputImageConverter>

void itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::SetScreenCapture

(

const bool

iCapture

)

Do a screen capture at every iteration.

template<typename TInputImage, typename TInputImageConverter>

void itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::SetScreenCapturePrefix

(

const char *

prefix

)

Set the filename prefix for screen captures.

template<typename TInputImage, typename TInputImageConverter>

virtual void itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::Update ( )

virtual

Set up the VTK pipeline and render. Do a screen capture if the option is set.

Member Data Documentation

template<typename TInputImage, typename TInputImageConverter>

vtkSmartPointer< vtkCornerAnnotation > itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::m_Annotation

private

Definition at line 109 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

IdentifierType itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::m_CurrentIteration

private

Definition at line 105 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

InputImageConverterType::Pointer itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::m_InputImageConverter

protected

Definition at line 97 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

vtkSmartPointer< vtkRenderer > itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::m_Renderer

protected

Definition at line 99 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

vtkSmartPointer< vtkRenderWindow > itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::m_RenderWindow

private

Definition at line 108 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

bool itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::m_ScreenCapture

private

Definition at line 102 of file itkVTKVisualizeImageLevelSet.h.

template<typename TInputImage, typename TInputImageConverter>

std::string itk::VTKVisualizeImageLevelSet< TInputImage, TInputImageConverter >::m_ScreenCapturePrefix

private

Definition at line 106 of file itkVTKVisualizeImageLevelSet.h.

---

The documentation for this class was generated from the following file:

• itkVTKVisualizeImageLevelSet.h
