#include <itkBinaryBallStructuringElement.h>

Inheritance diagram for itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >:

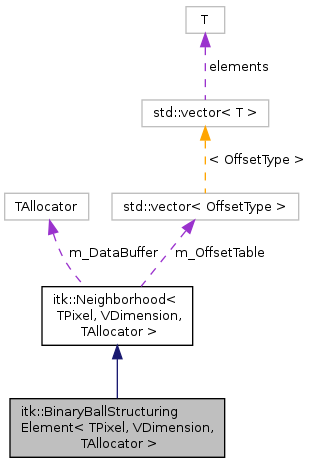

Collaboration diagram for itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >:

Public Types
typedef TAllocator	AllocatorType
typedef AllocatorType::const_iterator	ConstIterator
typedef AllocatorType::iterator	Iterator
typedef TPixel	PixelType
typedef Superclass::RadiusType	RadiusType
typedef BinaryBallStructuringElement	Self
typedef Superclass::SizeType	SizeType
typedef Superclass::SizeValueType	SizeValueType
typedef SliceIterator< TPixel, Self >	SliceIteratorType
typedef Neighborhood< TPixel, VDimension, TAllocator >	Superclass
Public Types inherited from itk::Neighborhood< TPixel, VDimension, TAllocator >
typedef unsigned int	DimensionValueType
typedef SizeValueType	NeighborIndexType
typedef Offset< VDimension >	OffsetType

Public Member Functions
	BinaryBallStructuringElement ()
	BinaryBallStructuringElement (const Self &other)
void	CreateStructuringElement ()
virtual	~BinaryBallStructuringElement ()

Self &	operator= (const Self &other)
Public Member Functions inherited from itk::Neighborhood< TPixel, VDimension, TAllocator >
NeighborIndexType	GetCenterNeighborhoodIndex () const
TPixel	GetCenterValue () const
virtual NeighborIndexType	GetNeighborhoodIndex (const OffsetType &) const
OffsetType	GetOffset (NeighborIndexType i) const
const SizeType	GetRadius () const
SizeValueType	GetRadius (DimensionValueType n) const
SizeValueType	GetSize (DimensionValueType n) const
SizeType	GetSize () const
std::slice	GetSlice (unsigned int) const
OffsetValueType	GetStride (DimensionValueType axis) const
	Neighborhood (const Self &other)
bool	operator!= (const Self &other) const
bool	operator== (const Self &other) const
void	Print (std::ostream &os) const
void	SetRadius (const SizeType &)
void	SetRadius (const SizeValueType *rad)
void	SetRadius (const SizeValueType)
NeighborIndexType	Size () const
virtual	~Neighborhood ()
	Neighborhood ()
Iterator	End ()
Iterator	Begin ()
ConstIterator	End () const
ConstIterator	Begin () const
TPixel &	operator[] (NeighborIndexType i)
const TPixel &	operator[] (NeighborIndexType i) const
TPixel &	GetElement (NeighborIndexType i)
AllocatorType &	GetBufferReference ()
const AllocatorType &	GetBufferReference () const
TPixel &	operator[] (const OffsetType &o)
const TPixel &	operator[] (const OffsetType &o) const

Static Public Attributes
static const unsigned int	NeighborhoodDimension = VDimension
Static Public Attributes inherited from itk::Neighborhood< TPixel, VDimension, TAllocator >

Additional Inherited Members
Public Attributes inherited from itk::Neighborhood< TPixel, VDimension, TAllocator >
Protected Member Functions inherited from itk::Neighborhood< TPixel, VDimension, TAllocator >
virtual void	Allocate (NeighborIndexType i)
virtual void	ComputeNeighborhoodOffsetTable ()
virtual void	ComputeNeighborhoodStrideTable ()
virtual void	PrintSelf (std::ostream &, Indent) const
void	SetSize ()

Detailed Description

template<class TPixel, unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>
class itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >

A Neighborhood that represents a ball structuring element (ellipsoid) with binary elements.

This class defines a Neighborhood whose elements are either 0 or 1 depending on whether they are outside or inside an ellipsoid whose radii match the radii of the Neighborhood. This class can be used as a structuring element for the Morphology image filters.

A BinaryBallStructuringElement has an N-dimensional radius. The radius is defined separately for each dimension as the number of pixels that the neighborhood extends outward from the center pixel. For example, a 2D BinaryBallStructuringElement object with a radius of 2x3 has sides of length 5x7.

BinaryBallStructuringElement objects always have an unambiguous center because their side lengths are always odd.

See also:: Neighborhood; MorphologyImageFilter; BinaryDilateImageFilter; BinaryErodeImageFilter

Wiki Examples:

All Examples

An elliptical structuring element

Definition at line 59 of file itkBinaryBallStructuringElement.h.

Member Typedef Documentation

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef TAllocator itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::AllocatorType

External support for allocator type.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 68 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef AllocatorType::const_iterator itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::ConstIterator

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 80 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef AllocatorType::iterator itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::Iterator

Iterator typedef support. Note the naming is intentional, i.e., AllocatorType::iterator and AllocatorType::const_iterator, because the allocator may be a vnl object or other type, which uses this form.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 79 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef TPixel itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::PixelType

External support for pixel type.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 74 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef Superclass::RadiusType itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::RadiusType

Radius typedef support.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 87 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef BinaryBallStructuringElement itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::Self

Standard class typedefs.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 64 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef Superclass::SizeType itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::SizeType

Size and value typedef support.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 83 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef Superclass::SizeValueType itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::SizeValueType

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 84 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef SliceIterator< TPixel, Self > itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::SliceIteratorType

External slice iterator type typedef support.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 90 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

typedef Neighborhood< TPixel, VDimension, TAllocator > itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::Superclass

Definition at line 65 of file itkBinaryBallStructuringElement.h.

Constructor & Destructor Documentation

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::BinaryBallStructuringElement ( )

inline

Default constructor.

Definition at line 93 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

virtual itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::~BinaryBallStructuringElement ( )

inlinevirtual

Default destructor.

Definition at line 96 of file itkBinaryBallStructuringElement.h.

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::BinaryBallStructuringElement ( const Self & other )

inline

Copy constructor.

Definition at line 99 of file itkBinaryBallStructuringElement.h.

Member Function Documentation

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

void itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::CreateStructuringElement ( )

Build the structuring element

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

Self& itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::operator= ( const Self & other )

inline

Assignment operator.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 104 of file itkBinaryBallStructuringElement.h.

Member Data Documentation

template<class TPixel , unsigned int VDimension = 2, class TAllocator = NeighborhoodAllocator< TPixel >>

const unsigned int itk::BinaryBallStructuringElement< TPixel, VDimension, TAllocator >::NeighborhoodDimension = VDimension

static

External support for dimensionality.

Reimplemented from itk::Neighborhood< TPixel, VDimension, TAllocator >.

Definition at line 71 of file itkBinaryBallStructuringElement.h.

The documentation for this class was generated from the following file:

itkBinaryBallStructuringElement.h
