#include <itkCostFunction.h>

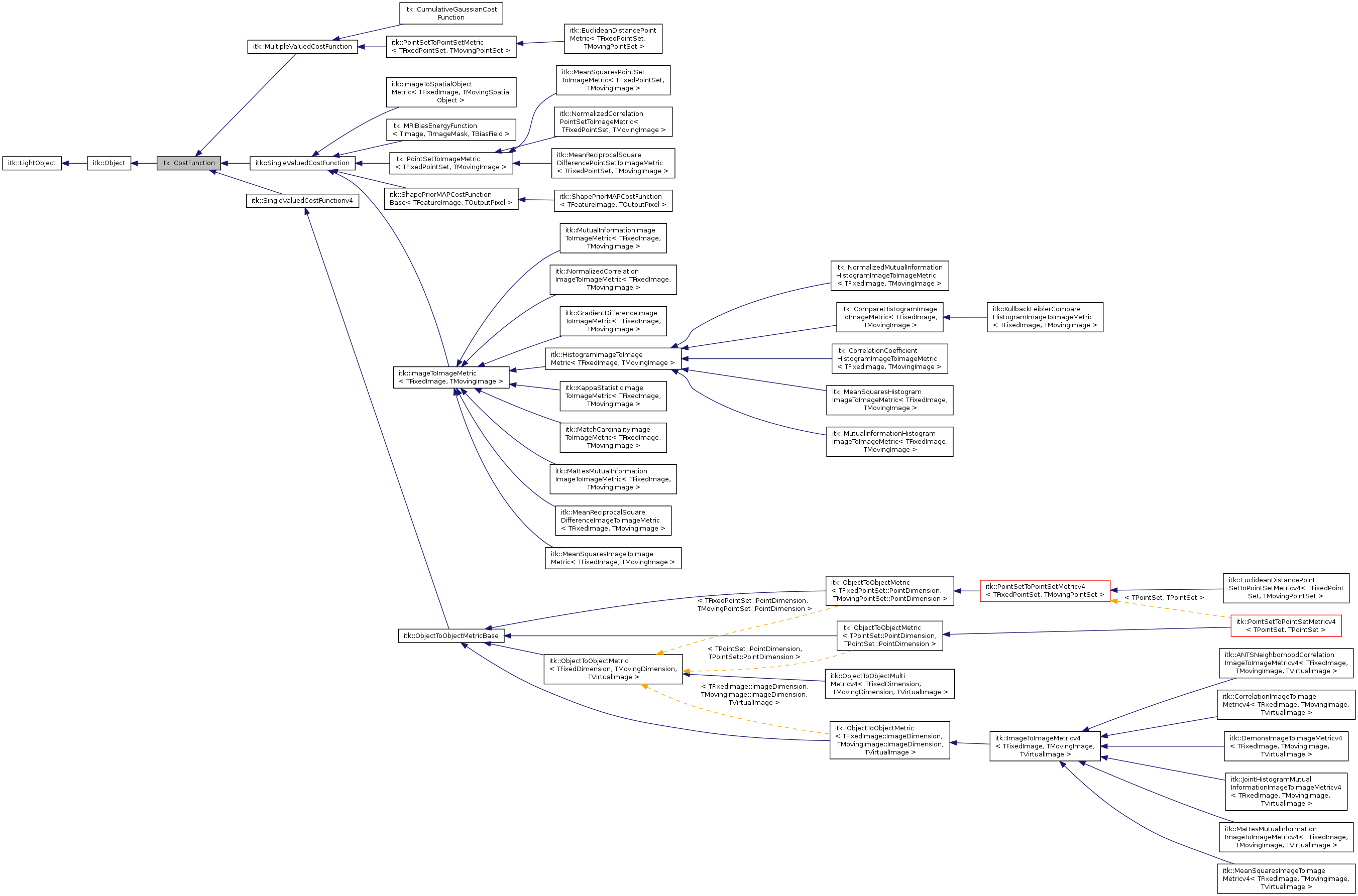

Inheritance diagram for itk::CostFunction:

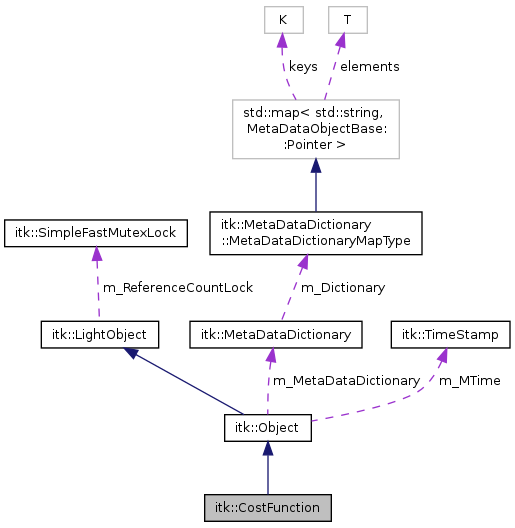

Collaboration diagram for itk::CostFunction:

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef OptimizerParameters < ParametersValueType >	ParametersType
typedef double	ParametersValueType
typedef SmartPointer< Self >	Pointer
typedef CostFunction	Self
typedef Object	Superclass
Public Types inherited from itk::Object
Public Types inherited from itk::LightObject

Public Member Functions
virtual const char *	GetNameOfClass () const
virtual unsigned int	GetNumberOfParameters (void) const =0
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Protected Member Functions
	CostFunction ()
void	PrintSelf (std::ostream &os, Indent indent) const
virtual	~CostFunction ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Private Member Functions
	CostFunction (const Self &)
void	operator= (const Self &)

Additional Inherited Members
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

Detailed Description

Base class for cost functions intended to be used with Optimizers.

Definition at line 36 of file itkCostFunction.h.

Member Typedef Documentation

typedef SmartPointer< const Self > itk::CostFunction::ConstPointer

Reimplemented from itk::Object.

Definition at line 43 of file itkCostFunction.h.

typedef OptimizerParameters< ParametersValueType > itk::CostFunction::ParametersType

Reimplemented in itk::ImageToImageMetricv4< TFixedImage, TMovingImage, TVirtualImage >, itk::ImageToImageMetric< TFixedImage, TMovingImage >, itk::MattesMutualInformationImageToImageMetric< TFixedImage, TMovingImage >, itk::ImageToSpatialObjectMetric< TFixedImage, TMovingSpatialObject >, itk::PointSetToImageMetric< TFixedPointSet, TMovingImage >, itk::MutualInformationImageToImageMetric< TFixedImage, TMovingImage >, itk::ObjectToObjectMultiMetricv4< TFixedDimension, TMovingDimension, TVirtualImage >, itk::ObjectToObjectMetric< TFixedDimension, TMovingDimension, TVirtualImage >, itk::ObjectToObjectMetric< TFixedImage::ImageDimension, TMovingImage::ImageDimension, TVirtualImage >, itk::ObjectToObjectMetric< TPointSet::PointDimension, TPointSet::PointDimension >, itk::ObjectToObjectMetric< TFixedPointSet::PointDimension, TMovingPointSet::PointDimension >, itk::PointSetToPointSetMetric< TFixedPointSet, TMovingPointSet >, itk::PointSetToPointSetMetricv4< TFixedPointSet, TMovingPointSet >, itk::PointSetToPointSetMetricv4< TPointSet, TPointSet >, itk::MRIBiasEnergyFunction< TImage, TImageMask, TBiasField >, itk::ObjectToObjectMetricBase, itk::JointHistogramMutualInformationImageToImageMetricv4< TFixedImage, TMovingImage, TVirtualImage >, itk::ShapePriorMAPCostFunctionBase< TFeatureImage, TOutputPixel >, itk::ShapePriorMAPCostFunction< TFeatureImage, TOutputPixel >, itk::CumulativeGaussianCostFunction, itk::SingleValuedCostFunctionv4, itk::MeanSquaresImageToImageMetric< TFixedImage, TMovingImage >, itk::SingleValuedCostFunction, and itk::MultipleValuedCostFunction.

Definition at line 51 of file itkCostFunction.h.

typedef double itk::CostFunction::ParametersValueType

ParametersType typedef. It defines a position in the optimization search space.

Reimplemented in itk::ImageToImageMetricv4< TFixedImage, TMovingImage, TVirtualImage >, itk::ObjectToObjectMultiMetricv4< TFixedDimension, TMovingDimension, TVirtualImage >, itk::ObjectToObjectMetric< TFixedDimension, TMovingDimension, TVirtualImage >, itk::ObjectToObjectMetric< TFixedImage::ImageDimension, TMovingImage::ImageDimension, TVirtualImage >, itk::ObjectToObjectMetric< TPointSet::PointDimension, TPointSet::PointDimension >, itk::ObjectToObjectMetric< TFixedPointSet::PointDimension, TMovingPointSet::PointDimension >, itk::PointSetToPointSetMetricv4< TFixedPointSet, TMovingPointSet >, itk::PointSetToPointSetMetricv4< TPointSet, TPointSet >, itk::ObjectToObjectMetricBase, itk::JointHistogramMutualInformationImageToImageMetricv4< TFixedImage, TMovingImage, TVirtualImage >, itk::SingleValuedCostFunctionv4, and itk::SingleValuedCostFunction.

Definition at line 46 of file itkCostFunction.h.

typedef SmartPointer< Self > itk::CostFunction::Pointer

Reimplemented from itk::Object.

Definition at line 42 of file itkCostFunction.h.

typedef CostFunction itk::CostFunction::Self

Standard class typedefs.

Reimplemented from itk::Object.

Definition at line 40 of file itkCostFunction.h.

typedef Object itk::CostFunction::Superclass

Reimplemented from itk::Object.

Definition at line 41 of file itkCostFunction.h.

Constructor & Destructor Documentation

itk::CostFunction::CostFunction ( )

inlineprotected

Definition at line 59 of file itkCostFunction.h.

virtual itk::CostFunction::~CostFunction ( )

inlineprotectedvirtual

Definition at line 60 of file itkCostFunction.h.

itk::CostFunction::CostFunction ( const Self & )

private

Member Function Documentation

virtual const char* itk::CostFunction::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::Object.

virtual unsigned int itk::CostFunction::GetNumberOfParameters ( void ) const

pure virtual

Return the number of parameters required to compute this cost function. This method MUST be overloaded by derived classes.

Implemented in itk::ImageToImageMetric< TFixedImage, TMovingImage >, itk::PointSetToImageMetric< TFixedPointSet, TMovingImage >, itk::ObjectToObjectMetric< TFixedDimension, TMovingDimension, TVirtualImage >, itk::ObjectToObjectMetric< TFixedImage::ImageDimension, TMovingImage::ImageDimension, TVirtualImage >, itk::ObjectToObjectMetric< TPointSet::PointDimension, TPointSet::PointDimension >, itk::ObjectToObjectMetric< TFixedPointSet::PointDimension, TMovingPointSet::PointDimension >, itk::MRIBiasEnergyFunction< TImage, TImageMask, TBiasField >, itk::CompareHistogramImageToImageMetric< TFixedImage, TMovingImage >, itk::ObjectToObjectMetricBase, itk::KullbackLeiblerCompareHistogramImageToImageMetric< TFixedImage, TMovingImage >, itk::PointSetToPointSetMetric< TFixedPointSet, TMovingPointSet >, itk::ShapePriorMAPCostFunctionBase< TFeatureImage, TOutputPixel >, and itk::CumulativeGaussianCostFunction.

void itk::CostFunction::operator= ( const Self & )

private

Mutex lock to protect modification to the reference count

Reimplemented from itk::Object.

void itk::CostFunction::PrintSelf	(	std::ostream &	os,
		Indent	indent
	)		const

protectedvirtual

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from itk::Object.

The documentation for this class was generated from the following file:

itkCostFunction.h
