#include <itkLevelSetEquationTermBase.h>

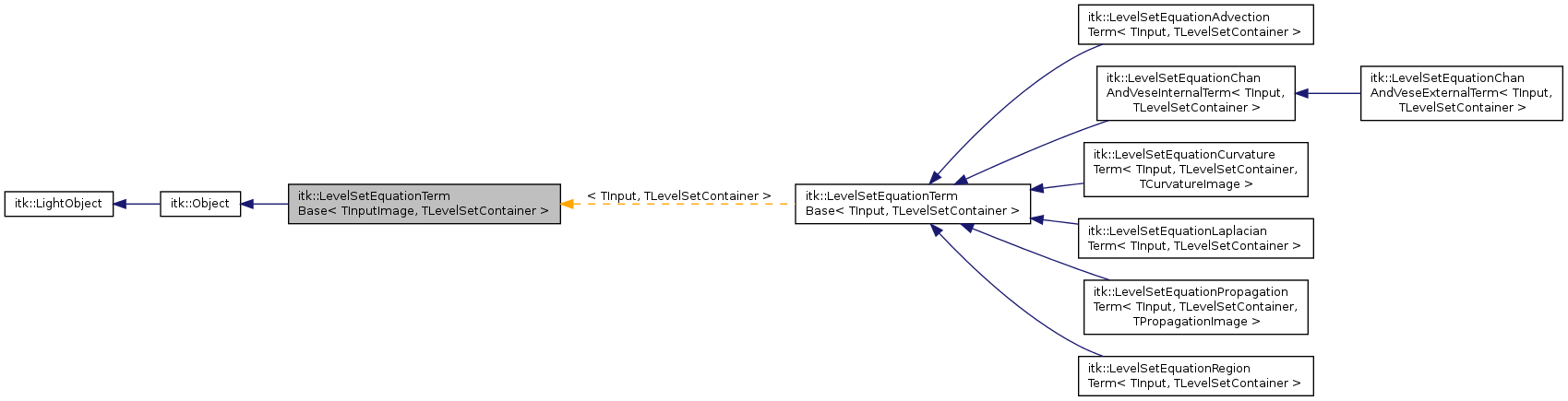

Inheritance diagram for itk::LevelSetEquationTermBase< TInputImage, TLevelSetContainer >:

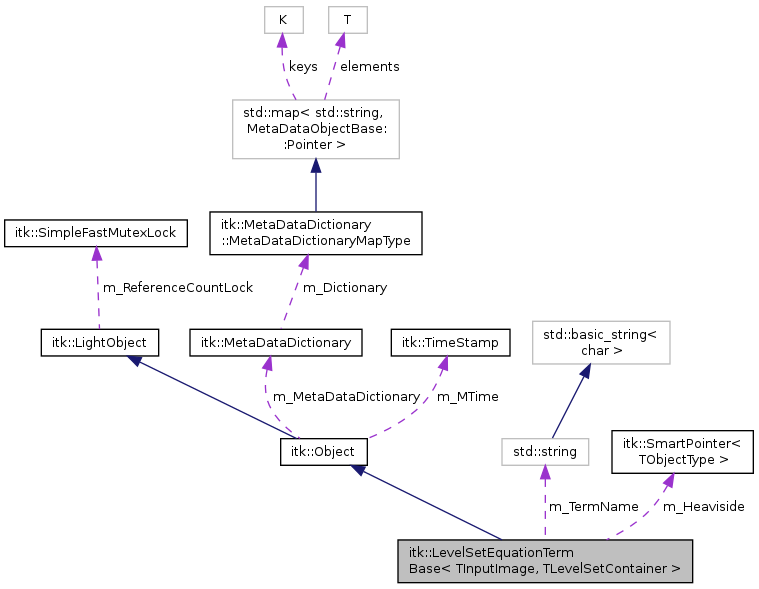

Collaboration diagram for itk::LevelSetEquationTermBase< TInputImage, TLevelSetContainer >:

Public Types
typedef LevelSetContainerType::CacheImageType	CacheImageType
typedef SmartPointer< const Self >	ConstPointer
typedef LevelSetContainerType::DomainMapImageFilterType	DomainMapImageFilterType
typedef HeavisideType::ConstPointer	HeavisideConstPointer
typedef HeavisideStepFunctionBase < LevelSetOutputRealType, LevelSetOutputRealType >	HeavisideType
typedef InputImageType::Pointer	InputImagePointer
typedef TInputImage	InputImageType
typedef NumericTraits < InputPixelType >::RealType	InputPixelRealType
typedef InputImageType::PixelType	InputPixelType
typedef LevelSetContainerType::Pointer	LevelSetContainerPointer
typedef TLevelSetContainer	LevelSetContainerType
typedef LevelSetContainerType::LevelSetDataType	LevelSetDataType
typedef LevelSetContainerType::GradientType	LevelSetGradientType
typedef LevelSetContainerType::HessianType	LevelSetHessianType
typedef LevelSetContainerType::LevelSetIdentifierType	LevelSetIdentifierType
typedef LevelSetContainerType::InputIndexType	LevelSetInputIndexType
typedef LevelSetContainerType::OutputType	LevelSetOutputPixelType
typedef LevelSetContainerType::OutputRealType	LevelSetOutputRealType
typedef LevelSetContainerType::LevelSetPointer	LevelSetPointer
typedef LevelSetContainerType::LevelSetType	LevelSetType
typedef SmartPointer< Self >	Pointer
typedef itksys::hash_set < std::string >	RequiredDataType
typedef LevelSetEquationTermBase	Self
typedef Object	Superclass
Public Types inherited from itk::Object
Public Types inherited from itk::LightObject

Public Member Functions
virtual LevelSetOutputRealType	Evaluate (const LevelSetInputIndexType &iP)
virtual LevelSetOutputRealType	Evaluate (const LevelSetInputIndexType &iP, const LevelSetDataType &iData)
virtual LevelSetOutputRealType	GetCFLContribution () const
virtual LevelSetOutputRealType	GetCoefficient ()
virtual LevelSetIdentifierType	GetCurrentLevelSetId ()
virtual LevelSetType *	GetCurrentLevelSetPointer ()
virtual LevelSetContainerType *	GetLevelSetContainer ()
virtual const char *	GetNameOfClass () const
const RequiredDataType &	GetRequiredData () const
virtual void	Initialize (const LevelSetInputIndexType &iP)=0
virtual void	InitializeParameters ()=0
virtual void	SetCoefficient (LevelSetOutputRealType _arg)
virtual void	SetCurrentLevelSetId (LevelSetIdentifierType _arg)
virtual void	SetLevelSetContainer (LevelSetContainerType *ptr)
virtual void	Update ()=0
virtual void	UpdatePixel (const LevelSetInputIndexType &iP, const LevelSetOutputRealType &oldValue, const LevelSetOutputRealType &newValue)=0

virtual void	SetInput (InputImageType *_arg)
virtual InputImageType *	GetInput ()

virtual void	SetTermName (const char *_arg)
virtual const char *	GetTermName () const
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Protected Member Functions
	LevelSetEquationTermBase ()
void	SetUp ()
virtual LevelSetOutputRealType	Value (const LevelSetInputIndexType &iP)=0
virtual LevelSetOutputRealType	Value (const LevelSetInputIndexType &iP, const LevelSetDataType &iData)=0
virtual	~LevelSetEquationTermBase ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Protected Attributes
LevelSetOutputRealType	m_CFLContribution
LevelSetOutputRealType	m_Coefficient
LevelSetIdentifierType	m_CurrentLevelSetId
LevelSetPointer	m_CurrentLevelSetPointer
HeavisideConstPointer	m_Heaviside
InputImagePointer	m_Input
LevelSetContainerPointer	m_LevelSetContainer
RequiredDataType	m_RequiredData
std::string	m_TermName

Private Member Functions
	LevelSetEquationTermBase (const Self &)
void	operator= (const Self &)

Additional Inherited Members
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

Detailed Description

template<class TInputImage, class TLevelSetContainer>
class itk::LevelSetEquationTermBase< TInputImage, TLevelSetContainer >

Abstract class to represents a term in the level-set evolution PDE.

Template Parameters:

TInput	Input Image Type
TLevelSetContainer	Level set function container type

Evolving single level-set function $\phi$ can be expressed as follows:

$\frac{\partial \phi(p)}{\partial \tau} = \sum\limits_{i=1}^{N} \alpha_{i} \cdot \omega_i(p)$

where $\omega_i$ is a term which could depend on the level-set function, the input image; and $\alpha_i$ is a weight to balance the contribution of each term in the PDE.
