#include <itkLevelSetEvolutionBase.h>

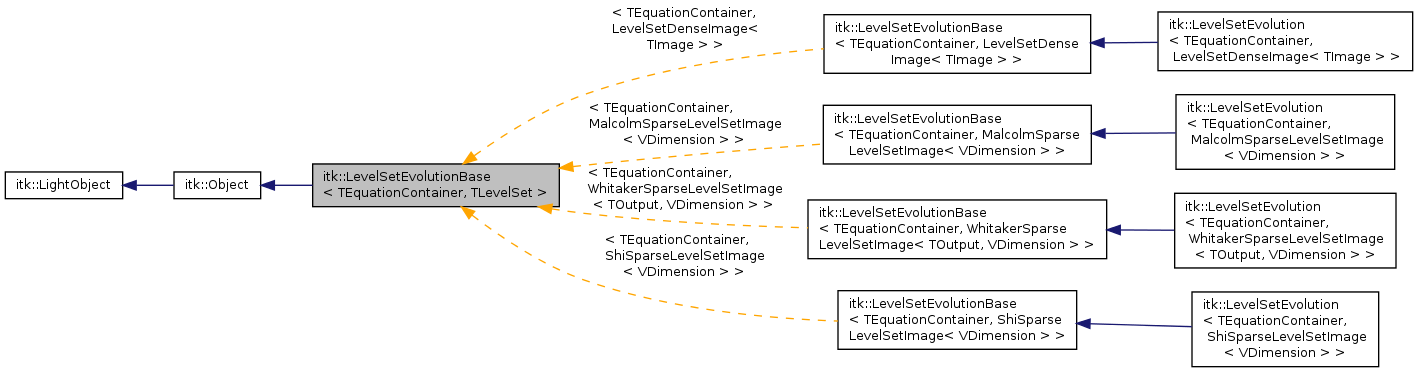

Inheritance diagram for itk::LevelSetEvolutionBase< TEquationContainer, TLevelSet >:

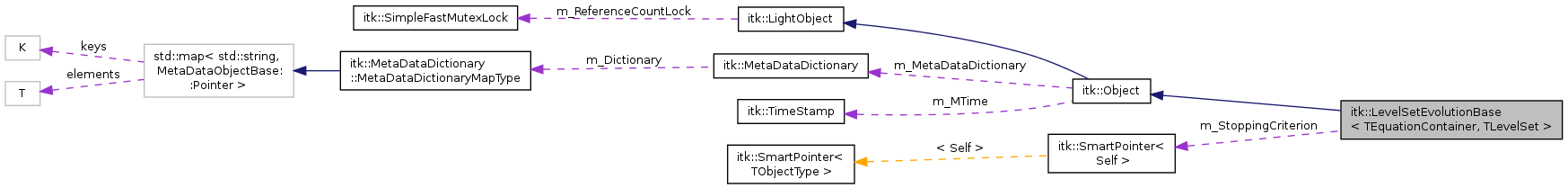

Collaboration diagram for itk::LevelSetEvolutionBase< TEquationContainer, TLevelSet >:

Public Types
typedef LevelSetContainerType::CacheImageType	CacheImageType
typedef SmartPointer< const Self >	ConstPointer
typedef LevelSetContainerType::DomainMapImageFilterType	DomainMapImageFilterType
typedef EquationContainerType::Pointer	EquationContainerPointer
typedef TEquationContainer	EquationContainerType
typedef LevelSetContainerType::IdListConstIterator	IdListConstIterator
typedef LevelSetContainerType::IdListImageType	IdListImageType
typedef LevelSetContainerType::IdListIterator	IdListIterator
typedef LevelSetContainerType::IdListType	IdListType
typedef InputImageType::ConstPointer	InputImageConstPointer
typedef InputImageType::PixelType	InputImagePixelType
typedef InputImageType::RegionType	InputImageRegionType
typedef TermContainerType::InputImageType	InputImageType
typedef NumericTraits < InputImagePixelType > ::RealType	InputPixelRealType
typedef TermContainerType::LevelSetContainerType	LevelSetContainerType
typedef LevelSetType::LevelSetDataType	LevelSetDataType
typedef LevelSetContainerType::LevelSetIdentifierType	LevelSetIdentifierType
typedef LevelSetType::InputType	LevelSetInputType
typedef LevelSetType::OutputRealType	LevelSetOutputRealType
typedef LevelSetType::OutputType	LevelSetOutputType
typedef TLevelSet	LevelSetType
typedef SmartPointer< Self >	Pointer
typedef LevelSetEvolutionBase	Self
typedef StoppingCriterionType::Pointer	StoppingCriterionPointer
typedef LevelSetEvolutionStoppingCriterion < LevelSetContainerType >	StoppingCriterionType
typedef Object	Superclass
typedef TermContainerType::Pointer	TermContainerPointer
typedef EquationContainerType::TermContainerType	TermContainerType
typedef TermType::Pointer	TermPointer
typedef TermContainerType::TermType	TermType
Public Types inherited from itk::Object
Public Types inherited from itk::LightObject

Public Member Functions
virtual LevelSetContainerType *	GetLevelSetContainer ()
virtual const char *	GetNameOfClass () const
virtual IdentifierType	GetNumberOfIterations () const
virtual void	SetLevelSetContainer (LevelSetContainerType *_arg)
void	SetTimeStep (const LevelSetOutputRealType &iDt)
void	Update ()

virtual void	SetAlpha (LevelSetOutputRealType _arg)
virtual LevelSetOutputRealType	GetAlpha ()

virtual void	SetEquationContainer (EquationContainerType *_arg)
virtual EquationContainerType *	GetEquationContainer ()

virtual StoppingCriterionType *	GetStoppingCriterion ()
virtual void	SetStoppingCriterion (StoppingCriterionType *_arg)
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Static Public Attributes
static const unsigned int	ImageDimension = InputImageType::ImageDimension

Protected Member Functions
virtual void	AllocateUpdateBuffer ()
void	CheckSetUp ()
virtual void	ComputeIteration ()
virtual void	ComputeTimeStepForNextIteration ()
void	Evolve ()
void	InitializeIteration ()
	LevelSetEvolutionBase ()
virtual void	UpdateEquations ()=0
virtual void	UpdateLevelSets ()=0
virtual	~LevelSetEvolutionBase ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Protected Attributes
LevelSetOutputRealType	m_Alpha
LevelSetOutputRealType	m_Dt
EquationContainerPointer	m_EquationContainer
LevelSetContainerType::Pointer	m_LevelSetContainer
LevelSetContainerType::Iterator	m_LevelSetContainerIteratorToProcessWhenThreading
LevelSetContainerType::Iterator	m_LevelSetUpdateContainerIteratorToProcessWhenThreading
IdentifierType	m_NumberOfIterations
LevelSetOutputRealType	m_RMSChangeAccumulator
StoppingCriterionPointer	m_StoppingCriterion
bool	m_UserGloballyDefinedTimeStep

Private Member Functions
	LevelSetEvolutionBase (const Self &)
void	operator= (const Self &)

Additional Inherited Members
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

Detailed Description

template<class TEquationContainer, class TLevelSet>
class itk::LevelSetEvolutionBase< TEquationContainer, TLevelSet >

Class for iterating and evolving the dense level-set function.

Template Parameters:

TEquationContainer Container holding the system of level set of equations

Definition at line 43 of file itkLevelSetEvolutionBase.h.
