#include <itkLoggerThreadWrapper.h>

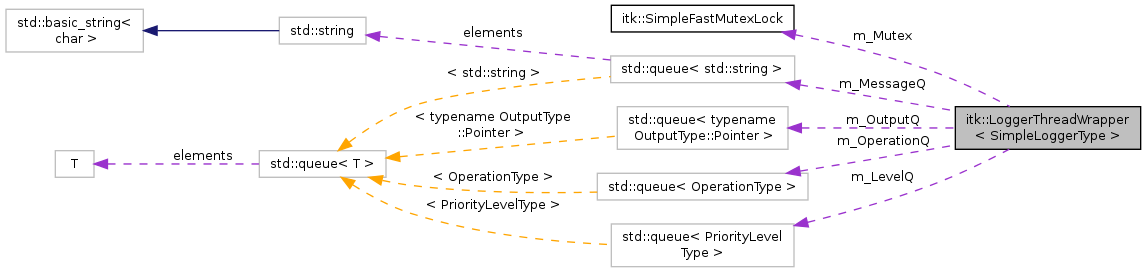

Collaboration diagram for itk::LoggerThreadWrapper< SimpleLoggerType >:

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef unsigned int	DelayType
enum	OperationType { SET_PRIORITY_LEVEL, SET_LEVEL_FOR_FLUSHING, ADD_LOG_OUTPUT, WRITE, FLUSH }
typedef SimpleLoggerType::OutputType	OutputType
typedef SmartPointer< Self >	Pointer
typedef SimpleLoggerType::PriorityLevelType	PriorityLevelType
typedef LoggerThreadWrapper	Self
typedef SimpleLoggerType	Superclass

Public Member Functions
virtual void	AddLogOutput (OutputType *output)
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual void	Flush ()
virtual DelayType	GetDelay () const
virtual PriorityLevelType	GetLevelForFlushing () const
virtual const char *	GetNameOfClass () const
virtual PriorityLevelType	GetPriorityLevel () const
virtual void	SetDelay (DelayType delay)
virtual void	SetLevelForFlushing (PriorityLevelType level)
virtual void	SetPriorityLevel (PriorityLevelType level)
virtual void	Write (PriorityLevelType level, std::string const &content)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	LoggerThreadWrapper ()
virtual void	PrintSelf (std::ostream &os, Indent indent) const
virtual	~LoggerThreadWrapper ()

Static Protected Member Functions
static ITK_THREAD_RETURN_TYPE	ThreadFunction (void *)

Private Types
typedef std::queue < PriorityLevelType >	LevelContainerType
typedef std::queue< std::string >	MessageContainerType
typedef std::queue< OperationType >	OperationContainerType
typedef std::queue< typename OutputType::Pointer >	OutputContainerType

Private Attributes
DelayType	m_Delay
LevelContainerType	m_LevelQ
MessageContainerType	m_MessageQ
SimpleFastMutexLock	m_Mutex
OperationContainerType	m_OperationQ
OutputContainerType	m_OutputQ
MultiThreader::Pointer	m_Threader
ThreadIdType	m_ThreadID

Detailed Description

template<class SimpleLoggerType>
class itk::LoggerThreadWrapper< SimpleLoggerType >

Used for providing logging service as a separate thread.

Author:: Hee-Su Kim, Compute Science Dept. Kyungpook National University, ISIS Center, Georgetown University.

Definition at line 40 of file itkLoggerThreadWrapper.h.

Member Typedef Documentation

template<class SimpleLoggerType >

typedef SmartPointer< const Self > itk::LoggerThreadWrapper< SimpleLoggerType >::ConstPointer

Definition at line 47 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef unsigned int itk::LoggerThreadWrapper< SimpleLoggerType >::DelayType

Definition at line 57 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef std::queue< PriorityLevelType > itk::LoggerThreadWrapper< SimpleLoggerType >::LevelContainerType

private

Definition at line 118 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef std::queue< std::string > itk::LoggerThreadWrapper< SimpleLoggerType >::MessageContainerType

private

Definition at line 116 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef std::queue< OperationType > itk::LoggerThreadWrapper< SimpleLoggerType >::OperationContainerType

private

Definition at line 114 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef std::queue< typename OutputType::Pointer > itk::LoggerThreadWrapper< SimpleLoggerType >::OutputContainerType

private

Definition at line 120 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef SimpleLoggerType::OutputType itk::LoggerThreadWrapper< SimpleLoggerType >::OutputType

Definition at line 53 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef SmartPointer< Self > itk::LoggerThreadWrapper< SimpleLoggerType >::Pointer

Definition at line 46 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef SimpleLoggerType::PriorityLevelType itk::LoggerThreadWrapper< SimpleLoggerType >::PriorityLevelType

Definition at line 56 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef LoggerThreadWrapper itk::LoggerThreadWrapper< SimpleLoggerType >::Self

Definition at line 44 of file itkLoggerThreadWrapper.h.

template<class SimpleLoggerType >

typedef SimpleLoggerType itk::LoggerThreadWrapper< SimpleLoggerType >::Superclass

Definition at line 45 of file itkLoggerThreadWrapper.h.

Member Enumeration Documentation

template<class SimpleLoggerType >

enum itk::LoggerThreadWrapper::OperationType

Definition of types of operations for LoggerThreadWrapper.

Enumerator:

SET_PRIORITY_LEVEL
SET_LEVEL_FOR_FLUSHING
ADD_LOG_OUTPUT
WRITE
FLUSH

Definition at line 60 of file itkLoggerThreadWrapper.h.

Constructor & Destructor Documentation

template<class SimpleLoggerType >

itk::LoggerThreadWrapper< SimpleLoggerType >::LoggerThreadWrapper ( )

protected

Constructor

template<class SimpleLoggerType >

virtual itk::LoggerThreadWrapper< SimpleLoggerType >::~LoggerThreadWrapper ( )

protectedvirtual

Destructor

Member Function Documentation

template<class SimpleLoggerType >

virtual void itk::LoggerThreadWrapper< SimpleLoggerType >::AddLogOutput ( OutputType * output )

virtual

Registers another output stream with the multiple output.

template<class SimpleLoggerType >

virtual::itk::LightObject::Pointer itk::LoggerThreadWrapper< SimpleLoggerType >::CreateAnother ( void ) const

template<class SimpleLoggerType >

virtual void itk::LoggerThreadWrapper< SimpleLoggerType >::Flush ( )

virtual

template<class SimpleLoggerType >

virtual DelayType itk::LoggerThreadWrapper< SimpleLoggerType >::GetDelay ( ) const

virtual

Get the delay in milliseconds between checks to see if there are any low priority messages to be processed.

template<class SimpleLoggerType >

virtual PriorityLevelType itk::LoggerThreadWrapper< SimpleLoggerType >::GetLevelForFlushing ( ) const

virtual

template<class SimpleLoggerType >

virtual const char* itk::LoggerThreadWrapper< SimpleLoggerType >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

template<class SimpleLoggerType >

virtual PriorityLevelType itk::LoggerThreadWrapper< SimpleLoggerType >::GetPriorityLevel ( ) const

virtual

Get the priority level for the current logger. Only messages that have priorities equal or greater than the one set here will be posted to the current outputs

template<class SimpleLoggerType >

static Pointer itk::LoggerThreadWrapper< SimpleLoggerType >::New ( )

static

New macro for creation of through a Smart Pointer

template<class SimpleLoggerType >

virtual void itk::LoggerThreadWrapper< SimpleLoggerType >::PrintSelf	(	std::ostream &	os,
		Indent	indent
	)		const

protectedvirtual

Print contents of a LoggerThreadWrapper

template<class SimpleLoggerType >

virtual void itk::LoggerThreadWrapper< SimpleLoggerType >::SetDelay ( DelayType delay )

virtual

Set the delay in milliseconds between checks to see if there are any low priority messages to be processed.

template<class SimpleLoggerType >

virtual void itk::LoggerThreadWrapper< SimpleLoggerType >::SetLevelForFlushing ( PriorityLevelType level )

virtual

template<class SimpleLoggerType >

virtual void itk::LoggerThreadWrapper< SimpleLoggerType >::SetPriorityLevel ( PriorityLevelType level )

virtual

Set the priority level for the current logger. Only messages that have priorities equal or greater than the one set here will be posted to the current outputs

template<class SimpleLoggerType >

static ITK_THREAD_RETURN_TYPE itk::LoggerThreadWrapper< SimpleLoggerType >::ThreadFunction ( void * )

staticprotected

template<class SimpleLoggerType >
