itk::PolygonCell< TCellInterface > Class Template Reference

#include <itkPolygonCell.h>

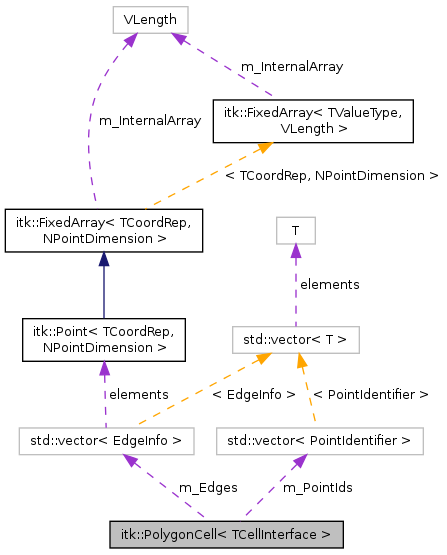

Collaboration diagram for itk::PolygonCell< TCellInterface >:

List of all members.

Public Types
typedef EdgeType::SelfAutoPointer	EdgeAutoPointer
typedef FixedArray< int, 2 >	EdgeInfo
typedef std::deque< EdgeInfo >	EdgeInfoDQ
typedef LineCell< TCellInterface >	EdgeType
typedef VertexType::SelfAutoPointer	VertexAutoPointer
typedef VertexCell < TCellInterface >	VertexType

Public Member Functions
void	AddPointId (PointIdentifier)
void	BuildEdges (void)
void	ClearPoints (void)
virtual bool	GetBoundaryFeature (int dimension, CellFeatureIdentifier, CellAutoPointer &)
virtual unsigned int	GetDimension (void) const
virtual bool	GetEdge (CellFeatureIdentifier, EdgeAutoPointer &)
virtual const char *	GetNameOfClass () const
virtual CellFeatureCount	GetNumberOfBoundaryFeatures (int dimension) const
virtual CellFeatureCount	GetNumberOfEdges (void) const
virtual unsigned int	GetNumberOfPoints (void) const
virtual CellFeatureCount	GetNumberOfVertices (void) const
virtual bool	GetVertex (CellFeatureIdentifier, VertexAutoPointer &)
	itkCellVisitMacro (Superclass::POLYGON_CELL)
virtual PointIdIterator	PointIdsBegin (void)
virtual PointIdConstIterator	PointIdsBegin (void) const
virtual PointIdIterator	PointIdsEnd (void)
virtual PointIdConstIterator	PointIdsEnd (void) const
void	RemovePointId (PointIdentifier)
virtual void	SetPointId (int localId, PointIdentifier)
virtual void	SetPointIds (PointIdConstIterator first)
virtual void	SetPointIds (PointIdConstIterator first, PointIdConstIterator last)
void	SetPointIds (int dummy, int num, PointIdConstIterator first)
	~PolygonCell ()
	itkCellCommonTypedefs (PolygonCell)
	itkCellInheritedTypedefs (TCellInterface)
virtual CellGeometry	GetType (void) const
virtual void	MakeCopy (CellAutoPointer &) const
	PolygonCell ()
	PolygonCell (PointIdentifier NumberOfPoints)

Static Public Attributes
static const unsigned int	CellDimension = 2

Protected Attributes
std::vector< EdgeInfo >	m_Edges
std::vector< PointIdentifier >	m_PointIds

Private Member Functions
void	operator= (const Self &)
	PolygonCell (const Self &)

---

Detailed Description

template<typename TCellInterface>
class itk::PolygonCell< TCellInterface >

Represents a polygon in a Mesh.

PolygonCell represents a polygon for a Mesh. the points of the polygon can be dynamically changed.

Template Parameters:

TPixelType	The type associated with a point, cell, or boundary for use in storing its data.
TCellTraits	Type information of mesh containing cell.

Definition at line 53 of file itkPolygonCell.h.

---

Member Typedef Documentation

template<typename TCellInterface >

typedef EdgeType::SelfAutoPointer itk::PolygonCell< TCellInterface >::EdgeAutoPointer

Definition at line 73 of file itkPolygonCell.h.

template<typename TCellInterface >

typedef FixedArray< int, 2 > itk::PolygonCell< TCellInterface >::EdgeInfo

Definition at line 75 of file itkPolygonCell.h.

template<typename TCellInterface >

typedef std::deque< EdgeInfo > itk::PolygonCell< TCellInterface >::EdgeInfoDQ

Definition at line 76 of file itkPolygonCell.h.

template<typename TCellInterface >

typedef LineCell< TCellInterface > itk::PolygonCell< TCellInterface >::EdgeType

The type of boundary for this triangle's edges.

Definition at line 72 of file itkPolygonCell.h.

template<typename TCellInterface >

typedef VertexType::SelfAutoPointer itk::PolygonCell< TCellInterface >::VertexAutoPointer

Definition at line 69 of file itkPolygonCell.h.

template<typename TCellInterface >

typedef VertexCell< TCellInterface > itk::PolygonCell< TCellInterface >::VertexType

The type of boundary for this triangle's vertices.

Definition at line 68 of file itkPolygonCell.h.

---

Constructor & Destructor Documentation

template<typename TCellInterface >

itk::PolygonCell< TCellInterface >::PolygonCell ( )

inline

Constructor and destructor

Definition at line 126 of file itkPolygonCell.h.

template<typename TCellInterface >

itk::PolygonCell< TCellInterface >::PolygonCell ( PointIdentifier  NumberOfPoints )

inline

Constructor and destructor

Definition at line 127 of file itkPolygonCell.h.

template<typename TCellInterface >

itk::PolygonCell< TCellInterface >::~PolygonCell ( )

inline

Definition at line 137 of file itkPolygonCell.h.

template<typename TCellInterface >

itk::PolygonCell< TCellInterface >::PolygonCell ( const Self &  )

private

---

Member Function Documentation

template<typename TCellInterface >

void itk::PolygonCell< TCellInterface >::AddPointId

(

PointIdentifier

)

template<typename TCellInterface >

void itk::PolygonCell< TCellInterface >::BuildEdges

(

void

)

template<typename TCellInterface >

void itk::PolygonCell< TCellInterface >::ClearPoints

(

void

)

template<typename TCellInterface >

virtual bool itk::PolygonCell< TCellInterface >::GetBoundaryFeature ( int  dimension, CellFeatureIdentifier  , CellAutoPointer &    )

virtual

template<typename TCellInterface >

virtual unsigned int itk::PolygonCell< TCellInterface >::GetDimension ( void  ) const

virtual

template<typename TCellInterface >

virtual bool itk::PolygonCell< TCellInterface >::GetEdge ( CellFeatureIdentifier  , EdgeAutoPointer &    )

virtual

template<typename TCellInterface >

virtual const char* itk::PolygonCell< TCellInterface >::GetNameOfClass ( ) const

virtual

Standard part of every itk Object.

template<typename TCellInterface >

virtual CellFeatureCount itk::PolygonCell< TCellInterface >::GetNumberOfBoundaryFeatures ( int  dimension ) const

virtual

template<typename TCellInterface >

virtual CellFeatureCount itk::PolygonCell< TCellInterface >::GetNumberOfEdges ( void  ) const

virtual

template<typename TCellInterface >

virtual unsigned int itk::PolygonCell< TCellInterface >::GetNumberOfPoints ( void  ) const

virtual

Referenced by itk::SimplexMeshToTriangleMeshFilter< TInputMesh, TOutputMesh >::SimplexCellVisitor::Visit(), and itk::SimplexMeshVolumeCalculator< TInputMesh >::SimplexCellVisitor::Visit().

template<typename TCellInterface >

virtual CellFeatureCount itk::PolygonCell< TCellInterface >::GetNumberOfVertices ( void  ) const

virtual

Polygon-specific interface.

template<typename TCellInterface >

virtual CellGeometry itk::PolygonCell< TCellInterface >::GetType ( void  ) const

inlinevirtual

Implement the standard CellInterface.

Definition at line 82 of file itkPolygonCell.h.

template<typename TCellInterface >

virtual bool itk::PolygonCell< TCellInterface >::GetVertex ( CellFeatureIdentifier  , VertexAutoPointer &    )

virtual

template<typename TCellInterface >

itk::PolygonCell< TCellInterface >::itkCellCommonTypedefs

(

PolygonCell< TCellInterface >

)

Standard class typedefs.

template<typename TCellInterface >

itk::PolygonCell< TCellInterface >::itkCellInheritedTypedefs

(

TCellInterface

)

Standard class typedefs.

template<typename TCellInterface >

itk::PolygonCell< TCellInterface >::itkCellVisitMacro

(

Superclass::POLYGON_CELL

)

Need to add POLYGON_CELL into CellInterface.

template<typename TCellInterface >

virtual void itk::PolygonCell< TCellInterface >::MakeCopy ( CellAutoPointer &  ) const

virtual

Implement the standard CellInterface.

template<typename TCellInterface >

void itk::PolygonCell< TCellInterface >::operator= ( const Self &  )

private

template<typename TCellInterface >

virtual PointIdIterator itk::PolygonCell< TCellInterface >::PointIdsBegin ( void  )

virtual

Referenced by itk::SimplexMeshToTriangleMeshFilter< TInputMesh, TOutputMesh >::SimplexCellVisitor::Visit(), itk::SimplexMeshVolumeCalculator< TInputMesh >::SimplexCellVisitor::Visit(), and itk::SimplexMeshAdaptTopologyFilter< TInputMesh, TOutputMesh >::SimplexCellVisitor::Visit().

template<typename TCellInterface >

virtual PointIdConstIterator itk::PolygonCell< TCellInterface >::PointIdsBegin ( void  ) const

virtual

template<typename TCellInterface >

virtual PointIdIterator itk::PolygonCell< TCellInterface >::PointIdsEnd ( void  )

virtual

Referenced by itk::SimplexMeshToTriangleMeshFilter< TInputMesh, TOutputMesh >::SimplexCellVisitor::Visit(), itk::SimplexMeshVolumeCalculator< TInputMesh >::SimplexCellVisitor::Visit(), and itk::SimplexMeshAdaptTopologyFilter< TInputMesh, TOutputMesh >::SimplexCellVisitor::Visit().

template<typename TCellInterface >

virtual PointIdConstIterator itk::PolygonCell< TCellInterface >::PointIdsEnd ( void  ) const

virtual

template<typename TCellInterface >

void itk::PolygonCell< TCellInterface >::RemovePointId

(

PointIdentifier

)

template<typename TCellInterface >

virtual void itk::PolygonCell< TCellInterface >::SetPointId ( int  localId, PointIdentifier    )

virtual

template<typename TCellInterface >

virtual void itk::PolygonCell< TCellInterface >::SetPointIds ( PointIdConstIterator  first )

virtual

template<typename TCellInterface >

virtual void itk::PolygonCell< TCellInterface >::SetPointIds ( PointIdConstIterator  first, PointIdConstIterator  last  )

virtual

template<typename TCellInterface >

void itk::PolygonCell< TCellInterface >::SetPointIds	(	int	dummy,
		int	num,
		PointIdConstIterator	first
	)

---

Member Data Documentation

template<typename TCellInterface >

const unsigned int itk::PolygonCell< TCellInterface >::CellDimension = 2

static

Save some template parameter information.

Definition at line 65 of file itkPolygonCell.h.

template<typename TCellInterface >

std::vector< EdgeInfo > itk::PolygonCell< TCellInterface >::m_Edges

protected

Definition at line 139 of file itkPolygonCell.h.

template<typename TCellInterface >

std::vector< PointIdentifier > itk::PolygonCell< TCellInterface >::m_PointIds

protected

Definition at line 140 of file itkPolygonCell.h.

---

The documentation for this class was generated from the following file:

• itkPolygonCell.h
