#include <itkRGBPixel.h>

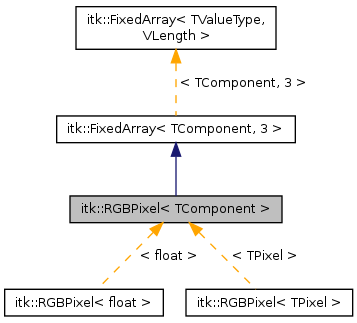

Inheritance diagram for itk::RGBPixel< TComponent >:

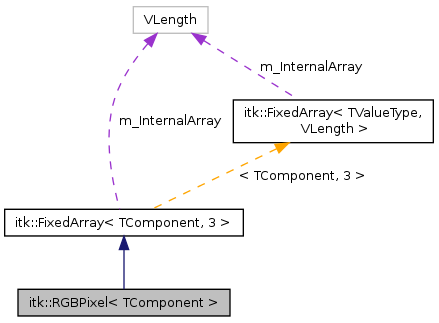

Collaboration diagram for itk::RGBPixel< TComponent >:

Public Types
typedef FixedArray< TComponent, 3 >	BaseArray
typedef TComponent	ComponentType
typedef NumericTraits < ComponentType >::RealType	LuminanceType
typedef RGBPixel	Self
typedef FixedArray< TComponent, 3 >	Superclass
Public Types inherited from itk::FixedArray< TComponent, 3 >
typedef ValueType	CArray [VLength]
typedef const ValueType *	const_pointer
typedef const ValueType &	const_reference
typedef const ValueType *	ConstIterator
typedef ValueType *	Iterator
typedef ValueType *	pointer
typedef ValueType &	reference
typedef unsigned int	SizeType
typedef TComponent	ValueType

Public Member Functions
const ComponentType &	GetBlue (void) const
const ComponentType &	GetGreen (void) const
LuminanceType	GetLuminance (void) const
ComponentType	GetNthComponent (int c) const
const ComponentType &	GetRed (void) const
ComponentType	GetScalarValue () const
Self	operator* (const ComponentType &f) const
Self	operator+ (const Self &vec) const
const Self &	operator+= (const Self &vec)
Self	operator- (const Self &vec) const
const Self &	operator-= (const Self &vec)
bool	operator< (const Self &vec) const
Self &	operator= (const ComponentType r[3])
bool	operator== (const Self &vec) const
	RGBPixel ()
	RGBPixel (const ComponentType &r)
void	SetBlue (ComponentType blue)
void	SetGreen (ComponentType green)
void	SetNthComponent (int c, const ComponentType &v)
void	SetRed (ComponentType red)

template<class TRGBPixelValueType >
	RGBPixel (const RGBPixel< TRGBPixelValueType > &r)
	RGBPixel (const ComponentType r[3])

template<class TRGBPixelValueType >
Self &	operator= (const RGBPixel< TRGBPixelValueType > &r)

void	Set (ComponentType red, ComponentType green, ComponentType blue)
Public Member Functions inherited from itk::FixedArray< TComponent, 3 >
Iterator	Begin ()
ConstIterator	Begin () const
Iterator	End ()
ConstIterator	End () const
void	Fill (const ValueType &)
ValueType *	GetDataPointer ()
const ValueType *	GetDataPointer () const
bool	operator!= (const FixedArray &r) const
FixedArray &	operator= (const ValueType r[VLength])
bool	operator== (const FixedArray &r) const
ReverseIterator	rBegin ()
ConstReverseIterator	rBegin () const
ReverseIterator	rEnd ()
ConstReverseIterator	rEnd () const
SizeType	Size () const
	FixedArray ()
	FixedArray (const ValueType r[VLength])
	FixedArray (const ValueType &r)
	FixedArray (const FixedArray< TFixedArrayValueType, VLength > &r)
FixedArray &	operator= (const FixedArray< TFixedArrayValueType, VLength > &r)
reference	operator[] (short index)
const_reference	operator[] (short index) const
reference	operator[] (unsigned short index)
const_reference	operator[] (unsigned short index) const
reference	operator[] (int index)
const_reference	operator[] (int index) const
reference	operator[] (unsigned int index)
const_reference	operator[] (unsigned int index) const
reference	operator[] (long index)
const_reference	operator[] (long index) const
reference	operator[] (unsigned long index)
const_reference	operator[] (unsigned long index) const
reference	operator[] (long long index)
const_reference	operator[] (long long index) const
reference	operator[] (unsigned long long index)
const_reference	operator[] (unsigned long long index) const
void	SetElement (unsigned short index, const_reference value)
const_reference	GetElement (unsigned short index) const

Static Public Member Functions
static unsigned int	GetNumberOfComponents ()
Static Public Member Functions inherited from itk::FixedArray< TComponent, 3 >
static FixedArray	Filled (const ValueType &)

Static Public Attributes
static const unsigned int	Dimension = 3
static const unsigned int	Length = 3
Static Public Attributes inherited from itk::FixedArray< TComponent, 3 >

Detailed Description

template<typename TComponent = unsigned short>
class itk::RGBPixel< TComponent >

Represent Red, Green and Blue components for color images.

This class is templated over the representation used for each component.

The following syntax for assigning an index is allowed/suggested:

    RGBPixel<float> pixel; pixel = 1.0f, 0.0f, .5f;
    RGBPixel<char> pixelArray[2];
    pixelArray[0] = 255, 255, 255;
    pixelArray[1] = 255, 255, 244;

Since RGBPixel is a subclass of Array, you can access its components as: pixel[0], pixel[1], pixel[2]

Wiki Examples:

All Examples

Create an RGB image

Examples:: ImageLinearIteratorWithIndex.cxx, ImageRegionIteratorWithIndex.cxx, and RGBImage.cxx.

Definition at line 58 of file itkRGBPixel.h.

Member Typedef Documentation

template<typename TComponent = unsigned short>

typedef FixedArray< TComponent, 3 > itk::RGBPixel< TComponent >::BaseArray

Convenience typedefs.

Definition at line 66 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

typedef TComponent itk::RGBPixel< TComponent >::ComponentType

Define the component type.

Definition at line 75 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

typedef NumericTraits< ComponentType >::RealType itk::RGBPixel< TComponent >::LuminanceType

Definition at line 76 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

typedef RGBPixel itk::RGBPixel< TComponent >::Self

Standard class typedefs.

Definition at line 62 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

typedef FixedArray< TComponent, 3 > itk::RGBPixel< TComponent >::Superclass

Definition at line 63 of file itkRGBPixel.h.

Constructor & Destructor Documentation

template<typename TComponent = unsigned short>

itk::RGBPixel< TComponent >::RGBPixel ( )

inline

Default constructor has nothing to do

Definition at line 79 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

itk::RGBPixel< TComponent >::RGBPixel ( const ComponentType & r )

inline

Constructor to fill Red=Blug=Green= r.

Definition at line 82 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

template<class TRGBPixelValueType >

itk::RGBPixel< TComponent >::RGBPixel ( const RGBPixel< TRGBPixelValueType > & r )

inline

Pass-through constructor for the Array base class.

Definition at line 86 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

itk::RGBPixel< TComponent >::RGBPixel ( const ComponentType r[3] )

inline

Pass-through constructor for the Array base class.

Definition at line 87 of file itkRGBPixel.h.

Member Function Documentation

template<typename TComponent = unsigned short>

const ComponentType& itk::RGBPixel< TComponent >::GetBlue ( void ) const

inline

Get the Blue component.

Definition at line 162 of file itkRGBPixel.h.

Referenced by itk::BluePixelAccessor< T >::Get().

template<typename TComponent = unsigned short>

const ComponentType& itk::RGBPixel< TComponent >::GetGreen ( void ) const

inline

Get the Green component.

Definition at line 159 of file itkRGBPixel.h.

Referenced by itk::GreenPixelAccessor< T >::Get().

template<typename TComponent = unsigned short>

LuminanceType itk::RGBPixel< TComponent >::GetLuminance ( void ) const

Get Luminance out of RGB

template<typename TComponent = unsigned short>

ComponentType itk::RGBPixel< TComponent >::GetNthComponent ( int c ) const

inline

Return the value for the Nth component.

Definition at line 120 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

static unsigned int itk::RGBPixel< TComponent >::GetNumberOfComponents ( )

inlinestatic

Return the number of components.

Definition at line 117 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

const ComponentType& itk::RGBPixel< TComponent >::GetRed ( void ) const

inline

Get the Red component.

Definition at line 156 of file itkRGBPixel.h.

Referenced by itk::RedPixelAccessor< T >::Get().

template<typename TComponent = unsigned short>

ComponentType itk::RGBPixel< TComponent >::GetScalarValue ( ) const

inline

Return the value for the Nth component.

Definition at line 123 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

Self itk::RGBPixel< TComponent >::operator* ( const ComponentType & f ) const

template<typename TComponent = unsigned short>

Self itk::RGBPixel< TComponent >::operator+ ( const Self & vec ) const

Aritmetic operations between pixels. Return a new RGBPixel.

template<typename TComponent = unsigned short>

const Self& itk::RGBPixel< TComponent >::operator+= ( const Self & vec )

template<typename TComponent = unsigned short>

Self itk::RGBPixel< TComponent >::operator- ( const Self & vec ) const

template<typename TComponent = unsigned short>

const Self& itk::RGBPixel< TComponent >::operator-= ( const Self & vec )

template<typename TComponent = unsigned short>

bool itk::RGBPixel< TComponent >::operator< ( const Self & vec ) const

template<typename TComponent = unsigned short>

template<class TRGBPixelValueType >

Self& itk::RGBPixel< TComponent >::operator= ( const RGBPixel< TRGBPixelValueType > & r )

inline

Pass-through assignment operator for the Array base class.

Definition at line 92 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

Self& itk::RGBPixel< TComponent >::operator= ( const ComponentType r[3] )

template<typename TComponent = unsigned short>

bool itk::RGBPixel< TComponent >::operator== ( const Self & vec ) const

template<typename TComponent = unsigned short>

void itk::RGBPixel< TComponent >::Set	(	ComponentType	red,
		ComponentType	green,
		ComponentType	blue
	)

inline

Set the three components.

Definition at line 147 of file itkRGBPixel.h.

Referenced by itk::Functor::ComposeRGB< TInputImage::PixelType >::operator()().

template<typename TComponent = unsigned short>

void itk::RGBPixel< TComponent >::SetBlue ( ComponentType blue )

inline

Set the Blue component.

Definition at line 144 of file itkRGBPixel.h.

Referenced by itk::BluePixelAccessor< T >::Set().

template<typename TComponent = unsigned short>

void itk::RGBPixel< TComponent >::SetGreen ( ComponentType green )

inline

Set the Green component.

Definition at line 141 of file itkRGBPixel.h.

Referenced by itk::GreenPixelAccessor< T >::Set().

template<typename TComponent = unsigned short>

void itk::RGBPixel< TComponent >::SetNthComponent	(	int	c,
		const ComponentType &	v
	)

inline

Set the Nth component to v.

Definition at line 135 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

void itk::RGBPixel< TComponent >::SetRed ( ComponentType red )

inline

Set the Red component.

Definition at line 138 of file itkRGBPixel.h.

Referenced by itk::RedPixelAccessor< T >::Set().

Member Data Documentation

template<typename TComponent = unsigned short>

const unsigned int itk::RGBPixel< TComponent >::Dimension = 3

static

Dimension of the vector space.

Reimplemented from itk::FixedArray< TComponent, 3 >.

Definition at line 69 of file itkRGBPixel.h.

template<typename TComponent = unsigned short>

const unsigned int itk::RGBPixel< TComponent >::Length = 3

static

Length of the pixel.

Reimplemented from itk::FixedArray< TComponent, 3 >.

Definition at line 72 of file itkRGBPixel.h.

The documentation for this class was generated from the following file:

itkRGBPixel.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

template<typename TComponent = unsigned short> class itk::RGBPixel< TComponent >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename TComponent = unsigned short>
class itk::RGBPixel< TComponent >
