#include <itkLayerBase.h>

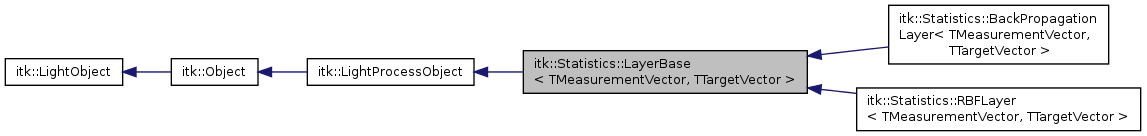

Inheritance diagram for itk::Statistics::LayerBase< TMeasurementVector, TTargetVector >:

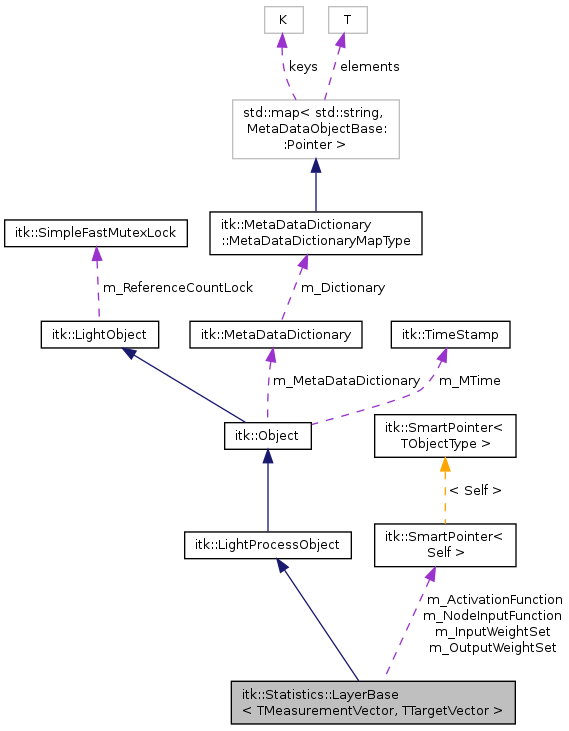

Collaboration diagram for itk::Statistics::LayerBase< TMeasurementVector, TTargetVector >:

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef InputFunctionBase < ValueType *, ValueType >	InputFunctionInterfaceType
typedef TMeasurementVector	InputVectorType
typedef Array< ValueType >	InternalVectorType
typedef LayerBase	LayerInterfaceType
enum	LayerTypeCode { INVALIDLAYER = 0, INPUTLAYER = 1, HIDDENLAYER = 2, OUTPUTLAYER = 3 }
typedef vnl_vector< ValueType >	NodeVectorType
typedef TTargetVector	OutputVectorType
typedef SmartPointer< Self >	Pointer
typedef LayerBase	Self
typedef LightProcessObject	Superclass
typedef TransferFunctionBase < ValueType >	TransferFunctionInterfaceType
typedef const ValueType *	ValueConstPointer
typedef ValueType *	ValuePointer
typedef TMeasurementVector::ValueType	ValueType
typedef WeightSetBase < TMeasurementVector, TTargetVector >	WeightSetInterfaceType
typedef WeightSetBase < TMeasurementVector, TTargetVector >	WeightSetType
Public Types inherited from itk::LightProcessObject
Public Types inherited from itk::Object
Public Types inherited from itk::LightObject

Public Member Functions
virtual ValueType	Activation (ValueType)=0
virtual void	BackwardPropagate ()
virtual void	BackwardPropagate (InternalVectorType)
virtual ValueType	DActivation (ValueType)=0
virtual void	ForwardPropagate ()
virtual void	ForwardPropagate (TMeasurementVector)
virtual TransferFunctionInterfaceType *	GetActivationFunction ()
virtual const TransferFunctionInterfaceType *	GetActivationFunction ()
virtual ValueType	GetInputErrorValue (unsigned int) const =0
virtual ValuePointer	GetInputErrorVector ()=0
virtual ValueType	GetInputValue (unsigned int) const =0
virtual WeightSetInterfaceType *	GetInputWeightSet ()
virtual const WeightSetInterfaceType *	GetInputWeightSet ()
virtual const unsigned int &	GetLayerId ()
virtual LayerTypeCode	GetLayerTypeCode () const
virtual const char *	GetNameOfClass () const
virtual InputFunctionInterfaceType *	GetNodeInputFunction ()
virtual const InputFunctionInterfaceType *	GetNodeInputFunction ()
unsigned int	GetNumberOfNodes () const
virtual ValueType	GetOutputErrorValue (unsigned int) const =0
virtual ValueType	GetOutputValue (unsigned int) const =0
virtual ValuePointer	GetOutputVector ()=0
virtual WeightSetInterfaceType *	GetOutputWeightSet ()
virtual const WeightSetInterfaceType *	GetOutputWeightSet ()
virtual void	SetInputErrorValue (ValueType, unsigned int)
void	SetInputWeightSet (WeightSetInterfaceType *)
virtual void	SetLayerId (unsigned int _arg)
virtual void	SetLayerTypeCode (const LayerTypeCode _arg)
void	SetNodeInputFunction (InputFunctionInterfaceType *f)
virtual void	SetNumberOfNodes (unsigned int)
virtual void	SetOutputErrorValues (TTargetVector)
void	SetOutputWeightSet (WeightSetInterfaceType *)
void	SetTransferFunction (TransferFunctionInterfaceType *f)
Public Member Functions inherited from itk::LightProcessObject
virtual void	AbortGenerateDataOff ()
virtual void	AbortGenerateDataOn ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const bool &	GetAbortGenerateData ()
virtual void	SetAbortGenerateData (bool _arg)
virtual void	UpdateOutputData ()
void	UpdateProgress (float amount)
virtual void	SetProgress (float _arg)
virtual const float &	GetProgress ()
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Protected Member Functions
	LayerBase ()
virtual void	PrintSelf (std::ostream &os, Indent indent) const
	~LayerBase ()
Protected Member Functions inherited from itk::LightProcessObject
	LightProcessObject ()
	~LightProcessObject ()
virtual void	GenerateData ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Protected Attributes
TransferFunctionInterfaceType::Pointer	m_ActivationFunction
WeightSetInterfaceType::Pointer	m_InputWeightSet
unsigned int	m_LayerId
LayerTypeCode	m_LayerTypeCode
InputFunctionInterfaceType::Pointer	m_NodeInputFunction
unsigned int	m_NumberOfNodes
WeightSetInterfaceType::Pointer	m_OutputWeightSet

Additional Inherited Members
Static Public Member Functions inherited from itk::LightProcessObject
static Pointer	New ()
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

Detailed Description
