itk::StoppingCriterionBase Class Reference

#include <itkStoppingCriterionBase.h>

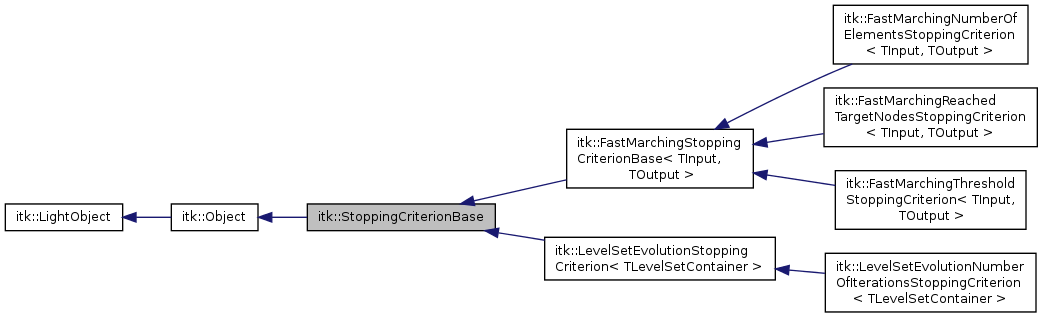

Inheritance diagram for itk::StoppingCriterionBase:

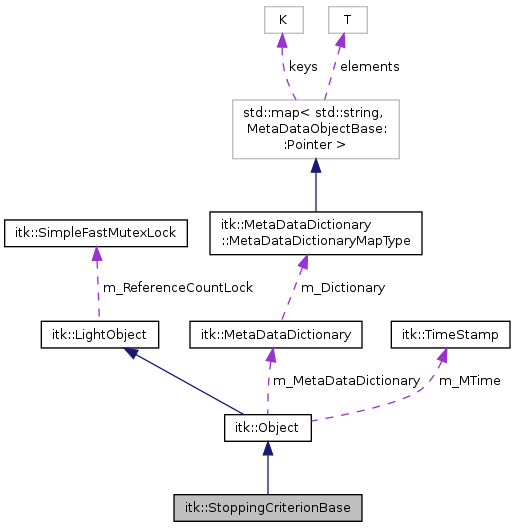

Collaboration diagram for itk::StoppingCriterionBase:

List of all members.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef StoppingCriterionBase	Self
typedef Object	Superclass
Public Types inherited from itk::Object
Public Types inherited from itk::LightObject

Public Member Functions
virtual const char *	GetNameOfClass () const
virtual bool	IsSatisfied () const =0
virtual std::string	GetDescription () const =0
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Protected Member Functions
	StoppingCriterionBase ()
virtual	~StoppingCriterionBase ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Private Member Functions
void	operator= (const Self &)
	StoppingCriterionBase (const Self &)

Additional Inherited Members
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

---

Detailed Description

An abstract base class to represent a stopping criterion for an iterative algorithm.

The main method is StoppingCriterionBase::IsSatisfied that must be reimplemented in inheriting classes.

Definition at line 38 of file itkStoppingCriterionBase.h.

---

Member Typedef Documentation

typedef SmartPointer< const Self > itk::StoppingCriterionBase::ConstPointer

Reimplemented from itk::Object.

Reimplemented in itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >, itk::FastMarchingStoppingCriterionBase< TInput, TOutput >, itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >, and itk::LevelSetEvolutionStoppingCriterion< TLevelSetContainer >.

Definition at line 44 of file itkStoppingCriterionBase.h.

typedef SmartPointer< Self > itk::StoppingCriterionBase::Pointer

Reimplemented from itk::Object.

Reimplemented in itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >, itk::FastMarchingStoppingCriterionBase< TInput, TOutput >, itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >, and itk::LevelSetEvolutionStoppingCriterion< TLevelSetContainer >.

Definition at line 43 of file itkStoppingCriterionBase.h.

typedef StoppingCriterionBase itk::StoppingCriterionBase::Self

Smart pointer typedef support.

Reimplemented from itk::Object.

Reimplemented in itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >, itk::FastMarchingStoppingCriterionBase< TInput, TOutput >, itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >, and itk::LevelSetEvolutionStoppingCriterion< TLevelSetContainer >.

Definition at line 41 of file itkStoppingCriterionBase.h.

typedef Object itk::StoppingCriterionBase::Superclass

Reimplemented from itk::Object.

Reimplemented in itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >, itk::FastMarchingStoppingCriterionBase< TInput, TOutput >, itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >, and itk::LevelSetEvolutionStoppingCriterion< TLevelSetContainer >.

Definition at line 42 of file itkStoppingCriterionBase.h.

---

Constructor & Destructor Documentation

itk::StoppingCriterionBase::StoppingCriterionBase ( )

protected

Constructor.

virtual itk::StoppingCriterionBase::~StoppingCriterionBase ( )

protectedvirtual

Destructor.

itk::StoppingCriterionBase::StoppingCriterionBase ( const Self &  )

private

---

Member Function Documentation

virtual std::string itk::StoppingCriterionBase::GetDescription ( ) const

pure virtual

Returns:

true if the stopping criterion is reached (and the algorithm must stop).

fasle else.

Implemented in itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >, and itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >.

virtual const char* itk::StoppingCriterionBase::GetNameOfClass ( ) const

virtual

Standard part of all itk objects.

Reimplemented from itk::Object.

Reimplemented in itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingStoppingCriterionBase< TInput, TOutput >, itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >, itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >, and itk::LevelSetEvolutionStoppingCriterion< TLevelSetContainer >.

virtual bool itk::StoppingCriterionBase::IsSatisfied ( ) const

pure virtual

Returns:

true if the stopping criterion is reached (and the algorithm must stop).

fasle else.

Implemented in itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >, and itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >.

void itk::StoppingCriterionBase::operator= ( const Self &  )

private

Mutex lock to protect modification to the reference count

Reimplemented from itk::Object.

Reimplemented in itk::FastMarchingReachedTargetNodesStoppingCriterion< TInput, TOutput >, itk::FastMarchingStoppingCriterionBase< TInput, TOutput >, itk::FastMarchingNumberOfElementsStoppingCriterion< TInput, TOutput >, itk::LevelSetEvolutionStoppingCriterion< TLevelSetContainer >, itk::FastMarchingThresholdStoppingCriterion< TInput, TOutput >, and itk::LevelSetEvolutionNumberOfIterationsStoppingCriterion< TLevelSetContainer >.

---

The documentation for this class was generated from the following file:

• itkStoppingCriterionBase.h
