#include <itkTransformIOBase.h>

Inheritance diagram for itk::TransformIOBase:

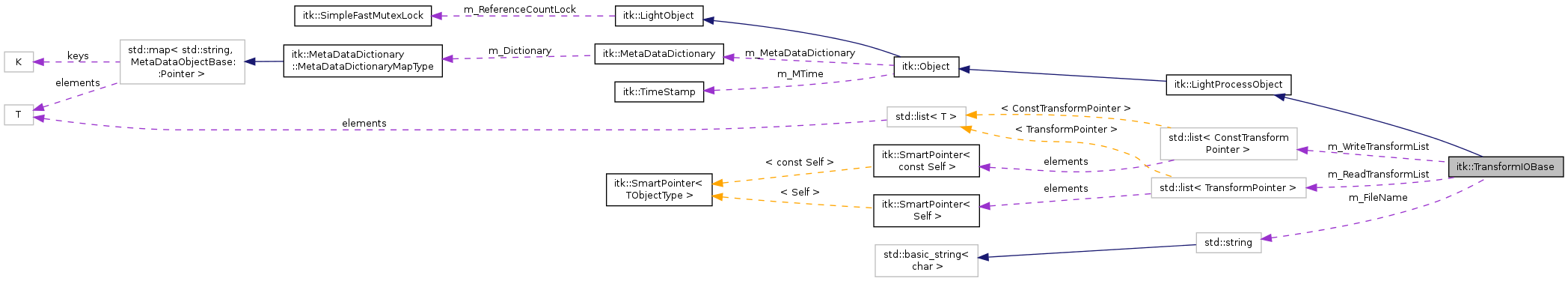

Collaboration diagram for itk::TransformIOBase:

Public Types
typedef std::list < ConstTransformPointer >	ConstTransformListType
typedef TransformType::ConstPointer	ConstTransformPointer
typedef SmartPointer< Self >	Pointer
typedef TransformIOBase	Self
typedef LightProcessObject	Superclass
typedef std::list < TransformPointer >	TransformListType
typedef TransformType::Pointer	TransformPointer
typedef TransformBase	TransformType
Public Types inherited from itk::LightProcessObject
typedef SmartPointer< const Self >	ConstPointer
Public Types inherited from itk::Object
Public Types inherited from itk::LightObject

Public Member Functions
virtual bool	CanReadFile (const char *)=0
virtual bool	CanWriteFile (const char *)=0
virtual const char *	GetNameOfClass () const
virtual void	Read ()=0
void	SetTransformList (ConstTransformListType &transformList)
virtual void	Write ()=0

virtual void	SetFileName (const char *_arg)
virtual const char *	GetFileName () const

TransformListType &	GetTransformList ()
TransformListType &	GetReadTransformList ()
ConstTransformListType &	GetWriteTransformList ()
Public Member Functions inherited from itk::LightProcessObject
virtual void	AbortGenerateDataOff ()
virtual void	AbortGenerateDataOn ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const bool &	GetAbortGenerateData ()
virtual void	SetAbortGenerateData (bool _arg)
virtual void	UpdateOutputData ()
void	UpdateProgress (float amount)
virtual void	SetProgress (float _arg)
virtual const float &	GetProgress ()
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Protected Member Functions
void	CreateTransform (TransformPointer &ptr, const std::string &ClassName)
void	OpenStream (std::ofstream &out, bool binary)
Protected Member Functions inherited from itk::LightProcessObject
	LightProcessObject ()
	~LightProcessObject ()
virtual void	GenerateData ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Private Attributes
bool	m_AppendMode
std::string	m_FileName
TransformListType	m_ReadTransformList
ConstTransformListType	m_WriteTransformList
virtual void	SetAppendMode (bool _arg)
virtual bool	GetAppendMode () const
virtual void	AppendModeOn ()
virtual void	AppendModeOff ()
	TransformIOBase ()
virtual	~TransformIOBase ()
void	PrintSelf (std::ostream &os, Indent indent) const

Additional Inherited Members
Static Public Member Functions inherited from itk::LightProcessObject
static Pointer	New ()
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

Detailed Description

Abstract superclass defining the Transform IO interface.

TransformIOBase is a pure virtual base class for dervied classes that read/write transform data. It's used by the TransformFileReader and TransformFileWriter classes. End users don't directly manipulate classes derived from TransformIOBase; the TransformIOFactory is used by the Reader/Writer to pick a concrete derived class to do the actual reading/writing of transforms.

Definition at line 40 of file itkTransformIOBase.h.

Member Typedef Documentation

typedef std::list< ConstTransformPointer > itk::TransformIOBase::ConstTransformListType

Definition at line 60 of file itkTransformIOBase.h.

typedef TransformType::ConstPointer itk::TransformIOBase::ConstTransformPointer

Definition at line 59 of file itkTransformIOBase.h.

typedef SmartPointer< Self > itk::TransformIOBase::Pointer

Reimplemented from itk::LightProcessObject.

Reimplemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

Definition at line 46 of file itkTransformIOBase.h.

typedef TransformIOBase itk::TransformIOBase::Self

Standard class typedefs

Reimplemented from itk::LightProcessObject.

Reimplemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

Definition at line 44 of file itkTransformIOBase.h.

typedef LightProcessObject itk::TransformIOBase::Superclass

Reimplemented from itk::LightProcessObject.

Reimplemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

Definition at line 45 of file itkTransformIOBase.h.

typedef std::list< TransformPointer > itk::TransformIOBase::TransformListType

Reimplemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

Definition at line 58 of file itkTransformIOBase.h.

typedef TransformType::Pointer itk::TransformIOBase::TransformPointer

For writing, a const transform list gets passed in, for reading, a non-const transform list is created from the file.

Reimplemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

Definition at line 57 of file itkTransformIOBase.h.

typedef TransformBase itk::TransformIOBase::TransformType

Transform types

Reimplemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

Definition at line 49 of file itkTransformIOBase.h.

Constructor & Destructor Documentation

itk::TransformIOBase::TransformIOBase ( )

protected

Set the writer to append to the specified file

virtual itk::TransformIOBase::~TransformIOBase ( )

protectedvirtual

Set the writer to append to the specified file

Member Function Documentation

virtual void itk::TransformIOBase::AppendModeOff ( )

virtual

Set the writer to append to the specified file

virtual void itk::TransformIOBase::AppendModeOn ( )

virtual

Set the writer to append to the specified file

virtual bool itk::TransformIOBase::CanReadFile ( const char * )

pure virtual

Determine the file type. Returns true if this TransformIO can read the file specified.

Implemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

virtual bool itk::TransformIOBase::CanWriteFile ( const char * )

pure virtual

Determine the file type. Returns true if this TransformIO can read the file specified.

Implemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

void itk::TransformIOBase::CreateTransform	(	TransformPointer &	ptr,
		const std::string &	ClassName
	)

protected

virtual bool itk::TransformIOBase::GetAppendMode ( ) const

virtual

Set the writer to append to the specified file

virtual const char* itk::TransformIOBase::GetFileName ( ) const

virtual

Set/Get the name of the file to be read.

virtual const char* itk::TransformIOBase::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::LightProcessObject.

Reimplemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

TransformListType& itk::TransformIOBase::GetReadTransformList ( )

inline

Get the list of transforms resulting from a file read

Definition at line 83 of file itkTransformIOBase.h.

TransformListType& itk::TransformIOBase::GetTransformList ( )

inline

Get the list of transforms resulting from a file read

Definition at line 82 of file itkTransformIOBase.h.

ConstTransformListType& itk::TransformIOBase::GetWriteTransformList ( )

inline

Get the list of transforms resulting from a file read

Definition at line 84 of file itkTransformIOBase.h.

void itk::TransformIOBase::OpenStream	(	std::ofstream &	out,
		bool	binary
	)

protected

void itk::TransformIOBase::PrintSelf	(	std::ostream &	os,
		Indent	indent
	)		const

protectedvirtual

Set the writer to append to the specified file

Reimplemented from itk::LightProcessObject.

virtual void itk::TransformIOBase::Read ( )

pure virtual

Reads the data from disk into the memory buffer provided.

Implemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

virtual void itk::TransformIOBase::SetAppendMode ( bool _arg )

virtual

Set the writer to append to the specified file

virtual void itk::TransformIOBase::SetFileName ( const char * _arg )

virtual

Set/Get the name of the file to be read.

void itk::TransformIOBase::SetTransformList ( ConstTransformListType & transformList )

Set the list of transforms before writing

virtual void itk::TransformIOBase::Write ( )

pure virtual

Writes the transform list to disk.

Implemented in itk::HDF5TransformIO, and itk::MatlabTransformIO.

Member Data Documentation

bool itk::TransformIOBase::m_AppendMode

private

Definition at line 108 of file itkTransformIOBase.h.

std::string itk::TransformIOBase::m_FileName

private

Definition at line 105 of file itkTransformIOBase.h.

TransformListType itk::TransformIOBase::m_ReadTransformList

private

Definition at line 106 of file itkTransformIOBase.h.

ConstTransformListType itk::TransformIOBase::m_WriteTransformList

private

Definition at line 107 of file itkTransformIOBase.h.

The documentation for this class was generated from the following file:

itkTransformIOBase.h
