itk::WatershedMiniPipelineProgressCommand Class Reference

#include <itkWatershedMiniPipelineProgressCommand.h>

Inheritance diagram for itk::WatershedMiniPipelineProgressCommand:

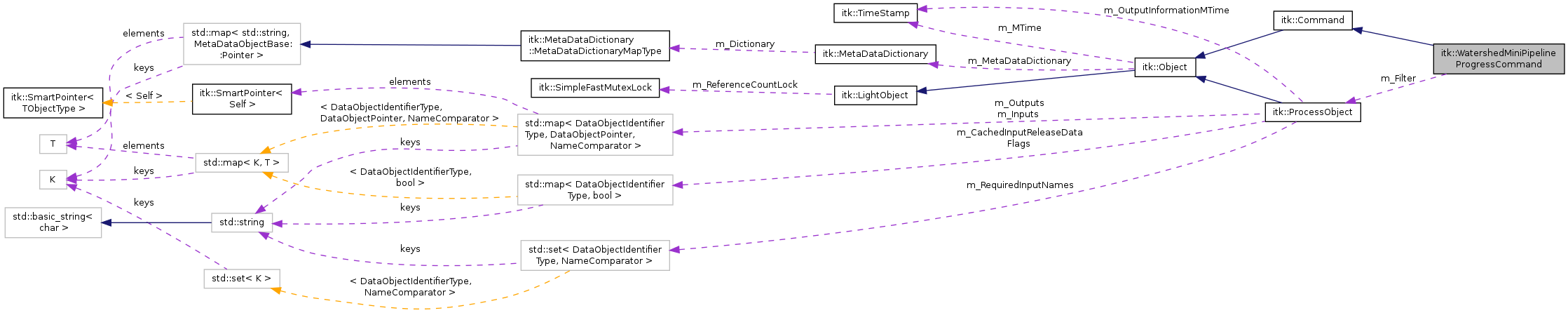

Collaboration diagram for itk::WatershedMiniPipelineProgressCommand:

List of all members.

 Public Types inherited from itk::Command  Public Types inherited from itk::Object  Public Types inherited from itk::LightObject

Public Member Functions
void	Execute (Object *caller, const EventObject &event)
void	Execute (const Object *caller, const EventObject &event)
void	SetFilter (ProcessObject *p)
const ProcessObject *	GetFilter ()
virtual void	SetCount (double _arg)
virtual double	GetCount () const
Protected Member Functions inherited from itk::Command
	Command ()
	~Command ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Private Attributes
double	m_Count
ProcessObject *	m_Filter
double	m_NumberOfFilters
typedef WatershedMiniPipelineProgressCommand	Self
typedef Command	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
virtual const char *	GetNameOfClass () const
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
static Pointer	New ()
virtual void	SetNumberOfFilters (double _arg)
virtual double	GetNumberOfFilters () const
	WatershedMiniPipelineProgressCommand ()
virtual	~WatershedMiniPipelineProgressCommand ()
void	PrintSelf (std::ostream &os, Indent indent) const

Additional Inherited Members

---

Detailed Description

A specialized Command object for updating the progress of a MiniPipeline. Follows the progress of a series of filters and calls UpdateProgress on another filter (i.e. the filter implementing the mini-pipeline).

Definition at line 33 of file itkWatershedMiniPipelineProgressCommand.h.

---

Member Typedef Documentation

typedef itk::SmartPointer< const Self > itk::WatershedMiniPipelineProgressCommand::ConstPointer

Smart pointer declaration methods

Reimplemented from itk::Command.

Definition at line 40 of file itkWatershedMiniPipelineProgressCommand.h.

typedef itk::SmartPointer< Self > itk::WatershedMiniPipelineProgressCommand::Pointer

Smart pointer declaration methods

Reimplemented from itk::Command.

Definition at line 39 of file itkWatershedMiniPipelineProgressCommand.h.

typedef WatershedMiniPipelineProgressCommand itk::WatershedMiniPipelineProgressCommand::Self

Smart pointer declaration methods

Reimplemented from itk::Command.

Definition at line 37 of file itkWatershedMiniPipelineProgressCommand.h.

typedef Command itk::WatershedMiniPipelineProgressCommand::Superclass

Smart pointer declaration methods

Reimplemented from itk::Command.

Definition at line 38 of file itkWatershedMiniPipelineProgressCommand.h.

---

Constructor & Destructor Documentation

itk::WatershedMiniPipelineProgressCommand::WatershedMiniPipelineProgressCommand ( )

inlineprotected

Set/Get the number of filters that this command will expect to be observing

Definition at line 68 of file itkWatershedMiniPipelineProgressCommand.h.

virtual itk::WatershedMiniPipelineProgressCommand::~WatershedMiniPipelineProgressCommand ( )

inlineprotectedvirtual

Set/Get the number of filters that this command will expect to be observing

Definition at line 70 of file itkWatershedMiniPipelineProgressCommand.h.

---

Member Function Documentation

virtual::itk::LightObject::Pointer itk::WatershedMiniPipelineProgressCommand::CreateAnother ( void  ) const

virtual

Smart pointer declaration methods

Reimplemented from itk::Object.

void itk::WatershedMiniPipelineProgressCommand::Execute ( Object *  caller, const EventObject &  event  )

virtual

Standard Command virtual methods

Implements itk::Command.

void itk::WatershedMiniPipelineProgressCommand::Execute ( const Object *  caller, const EventObject &  event  )

virtual

Abstract method that defines the action to be taken by the command. This variant is expected to be used when requests comes from a const Object

Implements itk::Command.

virtual double itk::WatershedMiniPipelineProgressCommand::GetCount ( ) const

virtual

Set/Get the base count for stepping through filter progress values

const ProcessObject* itk::WatershedMiniPipelineProgressCommand::GetFilter ( )

inline

Set/Get the filter whose UpdateProgress will be set by this command object

Definition at line 54 of file itkWatershedMiniPipelineProgressCommand.h.

virtual const char* itk::WatershedMiniPipelineProgressCommand::GetNameOfClass ( ) const

virtual

Smart pointer declaration methods

Reimplemented from itk::Command.

virtual double itk::WatershedMiniPipelineProgressCommand::GetNumberOfFilters ( ) const

virtual

Set/Get the number of filters that this command will expect to be observing

static Pointer itk::WatershedMiniPipelineProgressCommand::New ( )

static

Smart pointer declaration methods

Reimplemented from itk::Object.

void itk::WatershedMiniPipelineProgressCommand::PrintSelf ( std::ostream &  os, Indent  indent  ) const

protectedvirtual

Set/Get the number of filters that this command will expect to be observing

Reimplemented from itk::Object.

virtual void itk::WatershedMiniPipelineProgressCommand::SetCount ( double  _arg )

virtual

Set/Get the base count for stepping through filter progress values

void itk::WatershedMiniPipelineProgressCommand::SetFilter ( ProcessObject *  p )

inline

Set/Get the filter whose UpdateProgress will be set by this command object

Definition at line 52 of file itkWatershedMiniPipelineProgressCommand.h.

virtual void itk::WatershedMiniPipelineProgressCommand::SetNumberOfFilters ( double  _arg )

virtual

Set/Get the number of filters that this command will expect to be observing

---

Member Data Documentation

double itk::WatershedMiniPipelineProgressCommand::m_Count

private

Definition at line 75 of file itkWatershedMiniPipelineProgressCommand.h.

ProcessObject* itk::WatershedMiniPipelineProgressCommand::m_Filter

private

Definition at line 76 of file itkWatershedMiniPipelineProgressCommand.h.

double itk::WatershedMiniPipelineProgressCommand::m_NumberOfFilters

private

Definition at line 77 of file itkWatershedMiniPipelineProgressCommand.h.

---

The documentation for this class was generated from the following file:

• itkWatershedMiniPipelineProgressCommand.h
