#include <itkFEMElement3DC0LinearTriangularMembrane.h>

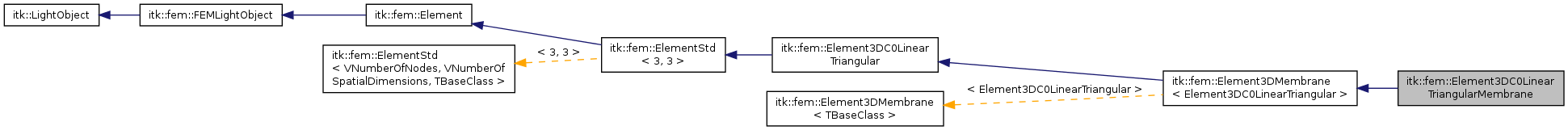

Inheritance diagram for itk::fem::Element3DC0LinearTriangularMembrane:

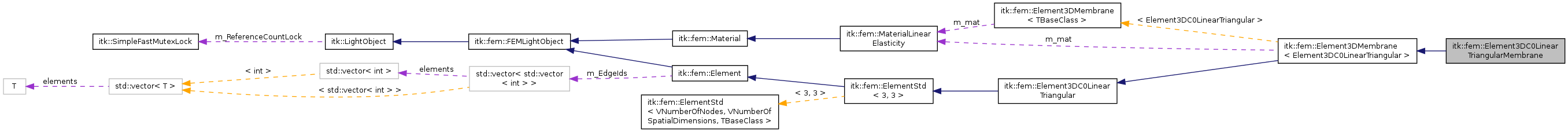

Collaboration diagram for itk::fem::Element3DC0LinearTriangularMembrane:

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef Element3DC0LinearTriangularMembrane	Self
typedef Element3DMembrane < Element3DC0LinearTriangular >	Superclass
Public Types inherited from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >
typedef Superclass::Float	Float
typedef Superclass::MatrixType	MatrixType
typedef Superclass::VectorType	VectorType
Public Types inherited from itk::fem::Element3DC0LinearTriangular
enum	{ DefaultIntegrationOrder = 1 }
typedef ElementStd< 3, 3 >	TemplatedParentClass
Public Types inherited from itk::fem::ElementStd< 3, 3 >
enum
enum
enum
typedef Superclass::DegreeOfFreedomIDType	DegreeOfFreedomIDType
typedef Superclass::LoadPointer	LoadPointer
typedef Superclass::LoadType	LoadType
typedef Superclass::Node	Node
typedef Superclass::NodeIDType	NodeIDType
Public Types inherited from itk::fem::Element
enum	{ InvalidDegreeOfFreedomID = 0xffffffff }
enum	{ gaussMaxOrder = 10 }
typedef FEMPArray< Element >	ArrayType
typedef VectorContainer < ElementIdentifier, Element::Pointer >	ArrayType1
typedef unsigned long	ElementIdentifier
Public Types inherited from itk::fem::FEMLightObject
typedef Self	Baseclass
Public Types inherited from itk::LightObject

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
	Element3DC0LinearTriangularMembrane ()
virtual const char *	GetNameOfClass () const
Public Member Functions inherited from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >
	Element3DMembrane ()
void	GetMassMatrix (MatrixType &Me) const
virtual Material::ConstPointer	GetMaterial (void) const
virtual void	GetMaterialMatrix (MatrixType &D) const
virtual unsigned int	GetNumberOfDegreesOfFreedomPerNode (void) const
virtual void	GetStrainDisplacementMatrix (MatrixType &B, const MatrixType &shapeDgl) const
virtual void	SetMaterial (Material::ConstPointer mat_)
Public Member Functions inherited from itk::fem::Element3DC0LinearTriangular
void	ComputeNormalDirection (const VectorType &v1, const VectorType &v2, const VectorType &v3, VectorType &n) const
itk::fem::Element::Float	Determinant2x2 (const VectorType &c1, const VectorType &c2) const
void	GeneralizedProjectPoint (const VectorType &x, const VectorType &origin, const VectorType &normal, VectorType &xproj) const
virtual void	GetIntegrationPointAndWeight (unsigned int i, VectorType &pt, Float &w, unsigned int order) const
virtual bool	GetLocalFromGlobalCoordinates (const VectorType &globalPt, VectorType &localPt) const
virtual unsigned int	GetNumberOfIntegrationPoints (unsigned int order) const
virtual Float	JacobianDeterminant (const VectorType &pt, const MatrixType *pJ=0) const
virtual void	JacobianInverse (const VectorType &pt, MatrixType &invJ, const MatrixType *pJ=0) const
virtual void	PopulateEdgeIds ()
virtual void	ShapeFunctionDerivatives (const VectorType &pt, MatrixType &shapeD) const
virtual VectorType	ShapeFunctions (const VectorType &pt) const
Public Member Functions inherited from itk::fem::ElementStd< 3, 3 >
	ElementStd ()
virtual NodeIDType	GetNode (unsigned int n) const
virtual const VectorType &	GetNodeCoordinates (unsigned int n) const
virtual unsigned int	GetNumberOfNodes (void) const
virtual unsigned int	GetNumberOfSpatialDimensions () const
virtual void	SetNode (unsigned int n, NodeIDType node)
virtual void	SetNode (unsigned int n, typename Superclass::Node::Pointer node)
Public Member Functions inherited from itk::fem::Element
virtual std::vector < std::vector< int > >	GetEdgeIds (void) const
virtual Float	GetElementDeformationEnergy (MatrixType &LocalSolution) const
virtual VectorType	GetGlobalFromLocalCoordinates (const VectorType &pt) const
virtual void	GetLandmarkContributionMatrix (float eta, MatrixType &Le) const
virtual unsigned int	GetNumberOfDegreesOfFreedom (void) const
virtual void	GetStiffnessMatrix (MatrixType &Ke) const
virtual VectorType	GetStrainsAtPoint (const VectorType &pt, const Solution &sol, unsigned int index) const
virtual VectorType	GetStressesAtPoint (const VectorType &pt, const VectorType &e, const Solution &sol, unsigned int index) const
virtual VectorType	InterpolateSolution (const VectorType &pt, const Solution &sol, unsigned int solutionIndex=0) const
virtual Float	InterpolateSolutionN (const VectorType &pt, const Solution &sol, unsigned int f, unsigned int solutionIndex=0) const
virtual void	Jacobian (const VectorType &pt, MatrixType &J, const MatrixType *pshapeD=0) const
virtual void	ShapeFunctionGlobalDerivatives (const VectorType &pt, MatrixType &shapeDgl, const MatrixType pJ=0, const MatrixType pshapeD=0) const
DegreeOfFreedomIDType	GetDegreeOfFreedom (unsigned int local_dof) const
Public Member Functions inherited from itk::fem::FEMLightObject
int	GetGlobalNumber () const
void	SetGlobalNumber (int)
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const
virtual void	Register () const
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const

Static Public Member Functions
static Pointer	New ()
	Element3DC0LinearTriangularMembrane (NodeIDType n1_, NodeIDType n2_, NodeIDType n3_, Material::ConstPointer p_)
virtual void	PrintSelf (std::ostream &os, Indent indent) const

Additional Inherited Members
Protected Attributes inherited from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >
const MaterialLinearElasticity *	m_mat

Detailed Description

3-noded finite element class in 3D space for surface membrane problem.

This element is combined from Element3DC0LinearTriangular and Element3DMembrane. A membrane element in three dimensional is an isotropic homogeneous element through a small thickness. The elements have three translational degrees of freedom at each node.

Definition at line 40 of file itkFEMElement3DC0LinearTriangularMembrane.h.

Member Typedef Documentation

typedef SmartPointer<const Self> itk::fem::Element3DC0LinearTriangularMembrane::ConstPointer

Reimplemented from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >.

Definition at line 48 of file itkFEMElement3DC0LinearTriangularMembrane.h.

typedef SmartPointer<Self> itk::fem::Element3DC0LinearTriangularMembrane::Pointer

Reimplemented from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >.

Definition at line 47 of file itkFEMElement3DC0LinearTriangularMembrane.h.

typedef Element3DC0LinearTriangularMembrane itk::fem::Element3DC0LinearTriangularMembrane::Self

Standard class typedefs.

Reimplemented from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >.

Definition at line 45 of file itkFEMElement3DC0LinearTriangularMembrane.h.

typedef Element3DMembrane<Element3DC0LinearTriangular> itk::fem::Element3DC0LinearTriangularMembrane::Superclass

Reimplemented from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >.

Definition at line 46 of file itkFEMElement3DC0LinearTriangularMembrane.h.

Constructor & Destructor Documentation

itk::fem::Element3DC0LinearTriangularMembrane::Element3DC0LinearTriangularMembrane ( )

Default constructor only clears the internal storage

itk::fem::Element3DC0LinearTriangularMembrane::Element3DC0LinearTriangularMembrane	(	NodeIDType	n1_,
		NodeIDType	n2_,
		NodeIDType	n3_,
		Material::ConstPointer	p_
	)

Construct an element by specifying pointers to 3 points and a material.

Member Function Documentation

virtual::itk::LightObject::Pointer itk::fem::Element3DC0LinearTriangularMembrane::CreateAnother ( void ) const

virtual

CreateAnother method will clone the existing instance of this type, including its internal member variables.

Reimplemented from itk::LightObject.

virtual const char* itk::fem::Element3DC0LinearTriangularMembrane::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >.

static Pointer itk::fem::Element3DC0LinearTriangularMembrane::New ( )

static

Method for creation through the object factory.

Reimplemented from itk::LightObject.

virtual void itk::fem::Element3DC0LinearTriangularMembrane::PrintSelf	(	std::ostream &	os,
		Indent	indent
	)		const

protectedvirtual

Construct an element by specifying pointers to 3 points and a material.

Reimplemented from itk::fem::Element3DMembrane< Element3DC0LinearTriangular >.

The documentation for this class was generated from the following file:

itkFEMElement3DC0LinearTriangularMembrane.h
