itk::fem::LoadTest< TClass > Class Template Reference

#include <itkFEMLoadTest.h>

Inheritance diagram for itk::fem::LoadTest< TClass >:

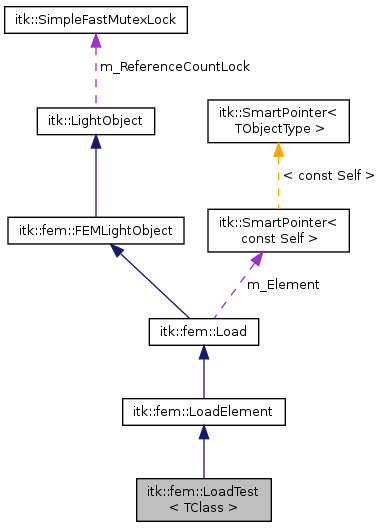

Collaboration diagram for itk::fem::LoadTest< TClass >:

List of all members.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef LoadTest	Self
typedef LoadElement	Superclass
Public Types inherited from itk::fem::LoadElement
typedef std::vector< const Element * >	ElementPointersVectorType
typedef Element::Float	Float
Public Types inherited from itk::fem::Load
typedef FEMPArray< Self >	ArrayType
Public Types inherited from itk::fem::FEMLightObject
typedef Self	Baseclass
Public Types inherited from itk::LightObject

Public Member Functions
virtual const char *	GetNameOfClass () const
Public Member Functions inherited from itk::fem::LoadElement
void	AddNextElement (Element::ConstPointer e)
void	AddNextElement (Element::Pointer e)
virtual void	ApplyLoad (Element::ConstPointer, Element::VectorType &)
Element::ConstPointer	GetElement (int i)
ElementPointersVectorType &	GetElementArray ()
const ElementPointersVectorType &	GetElementArray () const
unsigned int	GetNumberOfElements (void)
	LoadElement ()
Public Member Functions inherited from itk::fem::Load
const Element *	GetElement () const
virtual Solution::ConstPointer	GetSolution ()
void	SetElement (const Element *el)
virtual void	SetSolution (Solution::ConstPointer)
Public Member Functions inherited from itk::fem::FEMLightObject
int	GetGlobalNumber () const
void	SetGlobalNumber (int)
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const
virtual void	Register () const
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const

Static Public Member Functions
static Pointer	New ()
TClass	data
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
	LoadTest ()

Additional Inherited Members
Protected Member Functions inherited from itk::fem::LoadElement
void	AddNextElementInternal (const Element *e)
virtual void	PrintSelf (std::ostream &os, Indent indent) const

---

Detailed Description

template<class TClass>
class itk::fem::LoadTest< TClass >

Example to show how to define templated load classes.

Note:

The class must be instantiated, before the object factory can produce more objects of this class. Instantiate the specific derived classes with: "template class LoadTest<...>;" where required.

Definition at line 38 of file itkFEMLoadTest.h.

---

Member Typedef Documentation

template<class TClass >

typedef SmartPointer<const Self> itk::fem::LoadTest< TClass >::ConstPointer

Reimplemented from itk::fem::LoadElement.

Definition at line 46 of file itkFEMLoadTest.h.

template<class TClass >

typedef SmartPointer<Self> itk::fem::LoadTest< TClass >::Pointer

Reimplemented from itk::fem::LoadElement.

Definition at line 45 of file itkFEMLoadTest.h.

template<class TClass >

typedef LoadTest itk::fem::LoadTest< TClass >::Self

Standard class typedefs.

Reimplemented from itk::fem::LoadElement.

Definition at line 43 of file itkFEMLoadTest.h.

template<class TClass >

typedef LoadElement itk::fem::LoadTest< TClass >::Superclass

Reimplemented from itk::fem::LoadElement.

Definition at line 44 of file itkFEMLoadTest.h.

---

Constructor & Destructor Documentation

template<class TClass >

itk::fem::LoadTest< TClass >::LoadTest ( )

inline

Default constructor

Definition at line 75 of file itkFEMLoadTest.h.

---

Member Function Documentation

template<class TClass >

virtual::itk::LightObject::Pointer itk::fem::LoadTest< TClass >::CreateAnother ( void  ) const

inlinevirtual

CreateAnother method will clone the existing instance of this type, including its internal member variables.

Reimplemented from itk::fem::LoadElement.

Definition at line 56 of file itkFEMLoadTest.h.

References itk::fem::FEMLightObject::GetGlobalNumber(), itk::fem::Load::m_Element, and itk::fem::LoadTest< TClass >::New().

template<class TClass >

virtual const char* itk::fem::LoadTest< TClass >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::fem::LoadElement.

template<class TClass >

static Pointer itk::fem::LoadTest< TClass >::New ( )

static

Method for creation through the object factory.

Reimplemented from itk::fem::LoadElement.

Referenced by itk::fem::LoadTest< TClass >::CreateAnother().

---

Member Data Documentation

template<class TClass >

TClass itk::fem::LoadTest< TClass >::data

Some data that this load defines.

Definition at line 82 of file itkFEMLoadTest.h.

---

The documentation for this class was generated from the following file:

• itkFEMLoadTest.h
