#include <itkBSplineResampleImageFilterBase.h>

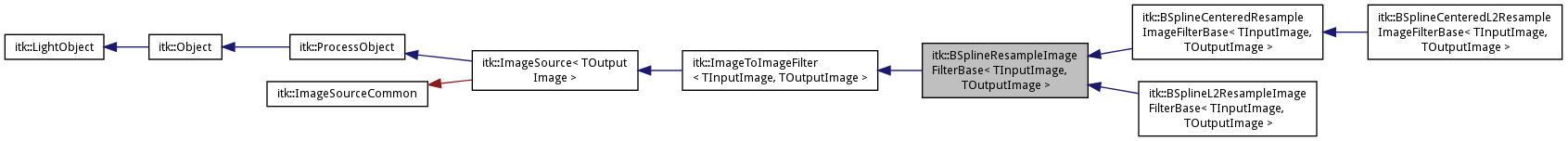

Inheritance diagram for itk::BSplineResampleImageFilterBase< TInputImage, TOutputImage >:

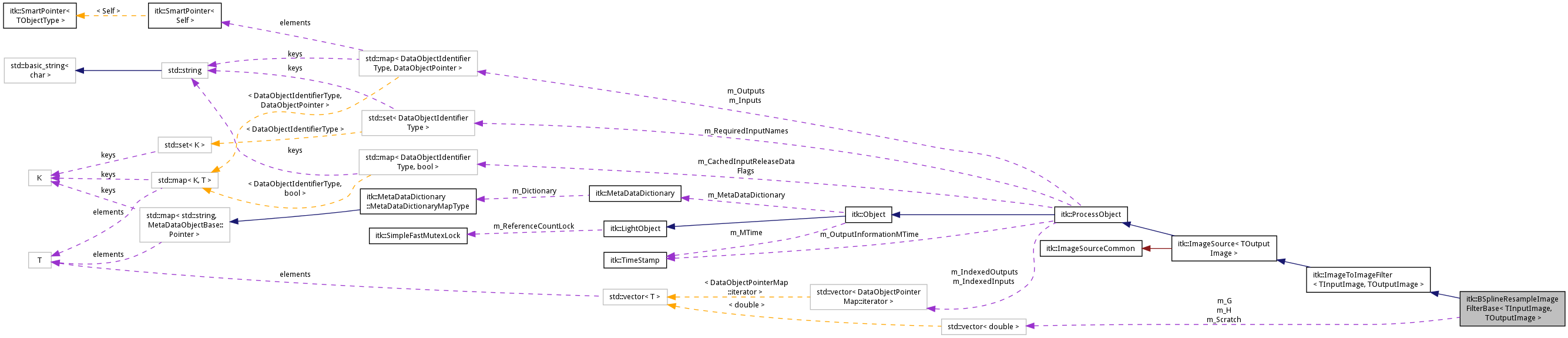

Collaboration diagram for itk::BSplineResampleImageFilterBase< TInputImage, TOutputImage >:

Detailed Description

template<class TInputImage, class TOutputImage>
class itk::BSplineResampleImageFilterBase< TInputImage, TOutputImage >

Uses the "l2" spline pyramid implementation of B-Spline Filters to up/down sample an image by a factor of 2.

This class defines N-Dimension B-Spline transformation. It is based on: [1] M. Unser, "Splines: A Perfect Fit for Signal and Image Processing," IEEE Signal Processing Magazine, vol. 16, no. 6, pp. 22-38, November 1999. [2] M. Unser, A. Aldroubi and M. Eden, "B-Spline Signal Processing: Part I–Theory," IEEE Transactions on Signal Processing, vol. 41, no. 2, pp. 821-832, February 1993. [3] M. Unser, A. Aldroubi and M. Eden, "B-Spline Signal Processing: Part II–Efficient Design and Applications," IEEE Transactions on Signal Processing, vol. 41, no. 2, pp. 834-848, February 1993. And code obtained from bigwww.epfl.ch by Philippe Thevenaz

Limitations: Spline order for the l2 pyramid must be between 0 and 3. This code cannot be multi-threaded since the entire image must be traversed in the proper order. This code cannot be streamed and requires the all of the input image. Only up/down samples by a factor of 2. This is a base class and is not meant to be instantiated on its own. It requires one of the itkBSplineDownsampleImageFilter or itkBSplineUpsampleImageFilter classes.

See Also: itkBSplineDownsampleImageFilter; itkBSplineUpsampleImageFilter; itkBSplineCenteredL2ResampleImageFilterBase; itkBSplineCenteredResampleImageFilterBase; itkBSplineL2ResampleImageFilterBase

Definition at line 82 of file itkBSplineResampleImageFilterBase.h.

Public Types
typedef itk::ImageLinearConstIteratorWithIndex < TInputImage >	ConstInputImageIterator

typedef itk::ImageLinearConstIteratorWithIndex < TOutputImage >	ConstOutputImageIterator

typedef SmartPointer< const Self >	ConstPointer

typedef TInputImage::IndexType	IndexType

typedef Superclass::InputImageType	InputImageType

typedef itk::ImageLinearIteratorWithIndex < TOutputImage >	OutputImageIterator

typedef Superclass::OutputImagePixelType	OutputImagePixelType

typedef SmartPointer< Self >	Pointer

typedef TInputImage::RegionType	RegionType

typedef BSplineResampleImageFilterBase	Self

typedef TInputImage::SizeType	SizeType

typedef ImageToImageFilter < TInputImage, TOutputImage >	Superclass

Public Types inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
typedef SmartPointer< const Self >	ConstPointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef InputImageType::PixelType	InputImagePixelType

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::RegionType	InputImageRegionType

typedef TInputImage	InputImageType

typedef Superclass::OutputImagePixelType	OutputImagePixelType

typedef Superclass::OutputImageRegionType	OutputImageRegionType

typedef SmartPointer< Self >	Pointer

typedef ImageToImageFilter	Self

typedef ImageSource< TOutputImage >	Superclass

Public Types inherited from itk::ImageSource< TOutputImage >
typedef SmartPointer< const Self >	ConstPointer

typedef Superclass::DataObjectIdentifierType	DataObjectIdentifierType

typedef DataObject::Pointer	DataObjectPointer

typedef Superclass::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType

typedef OutputImageType::PixelType	OutputImagePixelType

typedef OutputImageType::Pointer	OutputImagePointer

typedef OutputImageType::RegionType	OutputImageRegionType

typedef TOutputImage	OutputImageType

typedef SmartPointer< Self >	Pointer

typedef ImageSource	Self

typedef ProcessObject	Superclass

Public Types inherited from itk::ProcessObject
typedef SmartPointer< const Self >	ConstPointer

typedef DataObject::DataObjectIdentifierType	DataObjectIdentifierType

typedef DataObject::Pointer	DataObjectPointer

typedef std::vector < DataObjectPointer >	DataObjectPointerArray

typedef DataObjectPointerArray::size_type	DataObjectPointerArraySizeType

typedef std::vector < DataObjectIdentifierType >	NameArray

typedef SmartPointer< Self >	Pointer

typedef ProcessObject	Self

typedef Object	Superclass

Public Types inherited from itk::Object
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef Object	Self

typedef LightObject	Superclass

Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef LightObject	Self

Public Member Functions
virtual const char *	GetNameOfClass () const

virtual int	GetSplineOrder () const

void	SetSplineOrder (int SplineOrder)

Public Member Functions inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
const InputImageType *	GetInput (void) const

const InputImageType *	GetInput (unsigned int idx) const

virtual void	PopBackInput ()

virtual void	PopFrontInput ()

virtual void	PushBackInput (const InputImageType *image)

virtual void	PushFrontInput (const InputImageType *image)

virtual void	SetInput (const InputImageType *image)

virtual void	SetInput (unsigned int, const TInputImage *image)

virtual void	SetCoordinateTolerance (double _arg)

virtual double	GetCoordinateTolerance () const

virtual void	SetDirectionTolerance (double _arg)

virtual double	GetDirectionTolerance () const

Public Member Functions inherited from itk::ImageSource< TOutputImage >
OutputImageType *	GetOutput (unsigned int idx)

virtual void	GraftNthOutput (unsigned int idx, DataObject *output)

virtual void	GraftOutput (DataObject *output)

virtual void	GraftOutput (const DataObjectIdentifierType &key, DataObject *output)

OutputImageType *	GetOutput (void)

const OutputImageType *	GetOutput (void) const

virtual ProcessObject::DataObjectPointer	MakeOutput (ProcessObject::DataObjectPointerArraySizeType idx)

Public Member Functions inherited from itk::ProcessObject
virtual void	AbortGenerateDataOff ()

virtual void	AbortGenerateDataOn ()

virtual void	EnlargeOutputRequestedRegion (DataObject *)

virtual const bool &	GetAbortGenerateData ()

NameArray	GetInputNames () const

MultiThreader *	GetMultiThreader () const

DataObjectPointerArraySizeType	GetNumberOfIndexedInputs () const

DataObjectPointerArraySizeType	GetNumberOfInputs () const

DataObjectPointerArraySizeType	GetNumberOfOutputs () const

virtual DataObjectPointerArraySizeType	GetNumberOfValidRequiredInputs () const

NameArray	GetOutputNames () const

virtual const float &	GetProgress ()

NameArray	GetRequiredInputNames () const

bool	HasInput (const DataObjectIdentifierType &key) const

bool	HasOutput (const DataObjectIdentifierType &key) const

virtual DataObjectPointer	MakeOutput (const DataObjectIdentifierType &)

virtual void	PrepareOutputs ()

virtual void	PropagateRequestedRegion (DataObject *output)

virtual void	ResetPipeline ()

virtual void	SetAbortGenerateData (bool _arg)

virtual void	SetProgress (float _arg)

virtual void	Update ()

virtual void	UpdateLargestPossibleRegion ()

virtual void	UpdateOutputData (DataObject *output)

virtual void	UpdateOutputInformation ()

void	UpdateProgress (float amount)

DataObjectPointerArray	GetInputs ()

DataObjectPointerArray	GetOutputs ()

DataObjectPointerArray	GetIndexedInputs ()

DataObjectPointerArray	GetIndexedOutputs ()

DataObjectPointerArraySizeType	GetNumberOfIndexedOutputs () const

virtual void	SetReleaseDataFlag (bool flag)

virtual bool	GetReleaseDataFlag () const

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

virtual void	SetReleaseDataBeforeUpdateFlag (bool _arg)

virtual const bool &	GetReleaseDataBeforeUpdateFlag ()

virtual void	ReleaseDataBeforeUpdateFlagOn ()

virtual void	ReleaseDataBeforeUpdateFlagOff ()

virtual void	SetNumberOfThreads (ThreadIdType _arg)

virtual const ThreadIdType &	GetNumberOfThreads ()

Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)

unsigned long	AddObserver (const EventObject &event, Command *) const

virtual LightObject::Pointer	CreateAnother () const

virtual void	DebugOff () const

virtual void	DebugOn () const

Command *	GetCommand (unsigned long tag)

bool	GetDebug () const

MetaDataDictionary &	GetMetaDataDictionary (void)

const MetaDataDictionary &	GetMetaDataDictionary (void) const

virtual ModifiedTimeType	GetMTime () const

virtual const TimeStamp &	GetTimeStamp () const

bool	HasObserver (const EventObject &event) const

void	InvokeEvent (const EventObject &)

void	InvokeEvent (const EventObject &) const

virtual void	Modified () const

virtual void	Register () const

void	RemoveAllObservers ()

void	RemoveObserver (unsigned long tag)

void	SetDebug (bool debugFlag) const

void	SetMetaDataDictionary (const MetaDataDictionary &rhs)

virtual void	SetReferenceCount (int)

virtual void	UnRegister () const

Public Member Functions inherited from itk::LightObject
virtual void	Delete ()

virtual int	GetReferenceCount () const

	itkCloneMacro (Self)

void	Print (std::ostream &os, Indent indent=0) const

Static Public Attributes
static const unsigned int	ImageDimension = TInputImage::ImageDimension

Static Public Attributes inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
static const unsigned int	InputImageDimension = TInputImage::ImageDimension

static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension

Static Public Attributes inherited from itk::ImageSource< TOutputImage >
static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension

Protected Member Functions
	BSplineResampleImageFilterBase ()

virtual void	Expand1DImage (const std::vector< double > &In, OutputImageIterator &Iter, unsigned int traverseSize, ProgressReporter &progress)

void	ExpandNDImage (OutputImageIterator &OutItr)

virtual void	InitializePyramidSplineFilter (int SplineOrder)

void	PrintSelf (std::ostream &os, Indent indent) const

virtual void	Reduce1DImage (const std::vector< double > &In, OutputImageIterator &Iter, unsigned int traverseSize, ProgressReporter &progress)

void	ReduceNDImage (OutputImageIterator &OutItr)

virtual	~BSplineResampleImageFilterBase ()

Protected Member Functions inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
virtual void	CallCopyInputRegionToOutputRegion (OutputImageRegionType &destRegion, const InputImageRegionType &srcRegion)

virtual void	CallCopyOutputRegionToInputRegion (InputImageRegionType &destRegion, const OutputImageRegionType &srcRegion)

virtual void	GenerateInputRequestedRegion ()

	ImageToImageFilter ()

virtual void	VerifyInputInformation ()

	~ImageToImageFilter ()

void	PushBackInput (const DataObject *input)

void	PushFrontInput (const DataObject *input)

Protected Member Functions inherited from itk::ImageSource< TOutputImage >
virtual void	AfterThreadedGenerateData ()

virtual void	AllocateOutputs ()

virtual void	BeforeThreadedGenerateData ()

virtual void	GenerateData ()

virtual const ImageRegionSplitterBase *	GetImageRegionSplitter (void) const

	ImageSource ()

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, ThreadIdType threadId)

virtual	~ImageSource ()

Protected Member Functions inherited from itk::ProcessObject
virtual void	AddInput (DataObject *input)

virtual void	AddOutput (DataObject *output)

virtual void	CacheInputReleaseDataFlags ()

virtual void	GenerateOutputInformation ()

virtual void	GenerateOutputRequestedRegion (DataObject *output)

virtual const DataObjectPointerArraySizeType &	GetNumberOfRequiredOutputs ()

bool	IsIndexedInputName (const DataObjectIdentifierType &) const

bool	IsIndexedOutputName (const DataObjectIdentifierType &) const

	itkLegacyMacro (virtual void RemoveOutput(DataObject *output))

	itkLegacyMacro (void SetNumberOfOutputs(DataObjectPointerArraySizeType num))

	itkLegacyMacro (virtual void RemoveInput(DataObject *input))

	itkLegacyMacro (void SetNumberOfInputs(DataObjectPointerArraySizeType num))

DataObjectPointerArraySizeType	MakeIndexFromInputName (const DataObjectIdentifierType &name) const

DataObjectPointerArraySizeType	MakeIndexFromOutputName (const DataObjectIdentifierType &name) const

DataObjectIdentifierType	MakeNameFromInputIndex (DataObjectPointerArraySizeType idx) const

DataObjectIdentifierType	MakeNameFromOutputIndex (DataObjectPointerArraySizeType idx) const

	ProcessObject ()

virtual void	PropagateResetPipeline ()

virtual void	ReleaseInputs ()

virtual void	RemoveInput (const DataObjectIdentifierType &key)

virtual void	RemoveInput (DataObjectPointerArraySizeType)

virtual void	RemoveOutput (const DataObjectIdentifierType &key)

virtual void	RemoveOutput (DataObjectPointerArraySizeType idx)

virtual void	RestoreInputReleaseDataFlags ()

virtual void	SetInput (const DataObjectIdentifierType &key, DataObject *input)

virtual void	SetNthInput (DataObjectPointerArraySizeType num, DataObject *input)

virtual void	SetNthOutput (DataObjectPointerArraySizeType num, DataObject *output)

void	SetNumberOfIndexedInputs (DataObjectPointerArraySizeType num)

void	SetNumberOfIndexedOutputs (DataObjectPointerArraySizeType num)

virtual void	SetNumberOfRequiredOutputs (DataObjectPointerArraySizeType _arg)

virtual void	SetOutput (const DataObjectIdentifierType &key, DataObject *output)

virtual void	SetPrimaryInput (DataObject *input)

virtual void	SetPrimaryOutput (DataObject *output)

virtual void	VerifyPreconditions ()

	~ProcessObject ()

DataObject *	GetInput (const DataObjectIdentifierType &key)

const DataObject *	GetInput (const DataObjectIdentifierType &key) const

DataObject *	GetInput (DataObjectPointerArraySizeType idx)

const DataObject *	GetInput (DataObjectPointerArraySizeType idx) const

DataObject *	GetPrimaryInput ()

const DataObject *	GetPrimaryInput () const

virtual void	SetPrimaryInputName (const DataObjectIdentifierType &key)

virtual const char *	GetPrimaryInputName (void) const

virtual void	SetNumberOfRequiredInputs (DataObjectPointerArraySizeType)

virtual const DataObjectPointerArraySizeType &	GetNumberOfRequiredInputs ()

bool	AddRequiredInputName (const DataObjectIdentifierType &)

bool	AddRequiredInputName (const DataObjectIdentifierType &, DataObjectPointerArraySizeType idx)

bool	RemoveRequiredInputName (const DataObjectIdentifierType &)

bool	IsRequiredInputName (const DataObjectIdentifierType &) const

void	SetRequiredInputNames (const NameArray &)

DataObject *	GetOutput (const DataObjectIdentifierType &key)

const DataObject *	GetOutput (const DataObjectIdentifierType &key) const

virtual void	SetPrimaryOutputName (const DataObjectIdentifierType &key)

virtual const char *	GetPrimaryOutputName (void) const

DataObject *	GetOutput (DataObjectPointerArraySizeType idx)

const DataObject *	GetOutput (DataObjectPointerArraySizeType idx) const

DataObject *	GetPrimaryOutput ()

const DataObject *	GetPrimaryOutput () const

Protected Member Functions inherited from itk::Object
	Object ()

bool	PrintObservers (std::ostream &os, Indent indent) const

virtual void	SetTimeStamp (const TimeStamp &time)

virtual	~Object ()

Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const

	LightObject ()

virtual void	PrintHeader (std::ostream &os, Indent indent) const

virtual void	PrintTrailer (std::ostream &os, Indent indent) const

virtual	~LightObject ()

Protected Attributes
std::vector< double >	m_G

int	m_GSize

std::vector< double >	m_H

int	m_HSize

int	m_SplineOrder

Private Member Functions
	BSplineResampleImageFilterBase (const Self &)

void	CopyInputLineToScratch (ConstInputImageIterator &Iter)

void	CopyLineToScratch (ConstInputImageIterator &Iter)

void	CopyOutputLineToScratch (ConstOutputImageIterator &Iter)

void	InitializeScratch (SizeType DataLength)

void	operator= (const Self &)

Private Attributes
std::vector< double >	m_Scratch

Additional Inherited Members
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()

static void	GlobalWarningDisplayOff ()

static void	GlobalWarningDisplayOn ()

static Pointer	New ()

static void	SetGlobalWarningDisplay (bool flag)

Protected Types inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
typedef ImageToImageFilterDetail::ImageRegionCopier < itkGetStaticConstMacro(OutputImageDimension), itkGetStaticConstMacro(InputImageDimension) >	InputToOutputRegionCopierType

typedef ImageToImageFilterDetail::ImageRegionCopier < itkGetStaticConstMacro(InputImageDimension), itkGetStaticConstMacro(OutputImageDimension) >	OutputToInputRegionCopierType

Static Protected Member Functions inherited from itk::ImageSource< TOutputImage >
static const ImageRegionSplitterBase *	GetGlobalDefaultSplitter ()

static ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
