itk::ContourSpatialObjectPoint< TPointDimension > Class Template Reference

#include <itkContourSpatialObjectPoint.h>

Inheritance diagram for itk::ContourSpatialObjectPoint< TPointDimension >:

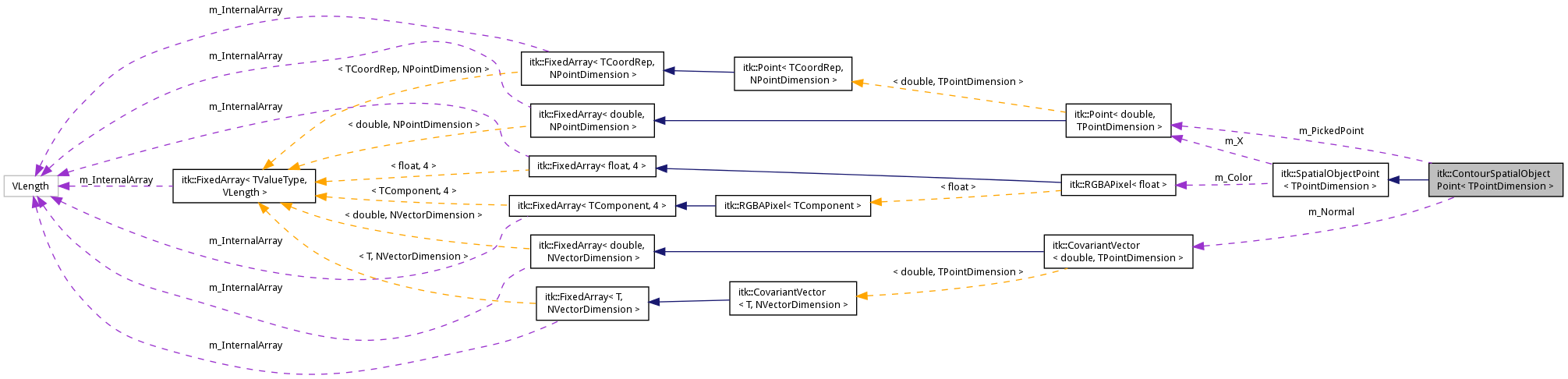

Collaboration diagram for itk::ContourSpatialObjectPoint< TPointDimension >:

Detailed Description

template<unsigned int TPointDimension = 3>
class itk::ContourSpatialObjectPoint< TPointDimension >

Point used for a Contour definition.

This class contains all the functions necessary to define a point that can be used to build surfaces. A surface point has a position and only one normal

See Also

SpatialObjectPoint

Definition at line 37 of file itkContourSpatialObjectPoint.h.

Public Types
typedef Point< double, TPointDimension >	PointType
typedef ContourSpatialObjectPoint	Self
typedef SpatialObjectPoint < TPointDimension >	Superclass
typedef CovariantVector < double, TPointDimension >	VectorType
Public Types inherited from itk::SpatialObjectPoint< TPointDimension >
typedef PixelType	ColorType
typedef RGBAPixel< float >	PixelType
typedef Point< double, TPointDimension >	PointType
typedef SpatialObjectPoint	Self
typedef vnl_vector< double >	VectorType

Public Member Functions
	ContourSpatialObjectPoint (void)
const VectorType &	GetNormal (void) const
const PointType &	GetPickedPoint (void) const
Self &	operator= (const ContourSpatialObjectPoint &rhs)
void	SetNormal (const VectorType &normal)
void	SetNormal (const double normalx, const double normaly)
void	SetNormal (const double normalx, const double normaly, const double normalz)
void	SetPickedPoint (const PointType &point)
void	SetPickedPoint (const double pointx, const double pointy)
void	SetPickedPoint (const double pointx, const double pointy, const double pointz)
virtual	~ContourSpatialObjectPoint (void)
Public Member Functions inherited from itk::SpatialObjectPoint< TPointDimension >
float	GetAlpha (void) const
float	GetBlue (void) const
const PixelType &	GetColor (void) const
float	GetGreen (void) const
int	GetID (void) const
const PointType &	GetPosition (void) const
float	GetRed (void) const
Self &	operator= (const SpatialObjectPoint &rhs)
void	Print (std::ostream &os) const
void	SetAlpha (float a)
void	SetBlue (float b)
void	SetColor (const PixelType &color)
void	SetColor (float r, float g, float b, float a=1)
void	SetGreen (float g)
void	SetID (const int newID)
void	SetPosition (const PointType &newX)
void	SetPosition (const double x0, const double x1)
void	SetPosition (const double x0, const double x1, const double x2)
void	SetRed (float r)
	SpatialObjectPoint (void)
virtual	~SpatialObjectPoint (void)

Protected Member Functions
virtual void	PrintSelf (std::ostream &os, Indent indent) const

Protected Attributes
VectorType	m_Normal
PointType	m_PickedPoint
Protected Attributes inherited from itk::SpatialObjectPoint< TPointDimension >
PixelType	m_Color
int	m_ID
PointType	m_X

Member Typedef Documentation

template<unsigned int TPointDimension = 3>

typedef Point< double, TPointDimension > itk::ContourSpatialObjectPoint< TPointDimension >::PointType

Definition at line 44 of file itkContourSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>

typedef ContourSpatialObjectPoint itk::ContourSpatialObjectPoint< TPointDimension >::Self

Definition at line 42 of file itkContourSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>

typedef SpatialObjectPoint< TPointDimension > itk::ContourSpatialObjectPoint< TPointDimension >::Superclass

Definition at line 43 of file itkContourSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>

typedef CovariantVector< double, TPointDimension > itk::ContourSpatialObjectPoint< TPointDimension >::VectorType

Definition at line 45 of file itkContourSpatialObjectPoint.h.

Constructor & Destructor Documentation

template<unsigned int TPointDimension = 3>

itk::ContourSpatialObjectPoint< TPointDimension >::ContourSpatialObjectPoint

(

void

)

Constructor. This one defines the number of dimensions in the ContourSpatialObjectPoint

template<unsigned int TPointDimension = 3>

virtual itk::ContourSpatialObjectPoint< TPointDimension >::~ContourSpatialObjectPoint ( void  )

virtual

Default destructor.

Member Function Documentation

template<unsigned int TPointDimension = 3>

const VectorType& itk::ContourSpatialObjectPoint< TPointDimension >::GetNormal

(

void

)

const

Get Normal

template<unsigned int TPointDimension = 3>

const PointType& itk::ContourSpatialObjectPoint< TPointDimension >::GetPickedPoint

(

void

)

const

Get Picked Point

template<unsigned int TPointDimension = 3>

Self& itk::ContourSpatialObjectPoint< TPointDimension >::operator=

(

const ContourSpatialObjectPoint< TPointDimension > &

rhs

)

Copy one ContourSpatialObjectPoint to another

template<unsigned int TPointDimension = 3>

virtual void itk::ContourSpatialObjectPoint< TPointDimension >::PrintSelf ( std::ostream &  os, Indent  indent  ) const

protectedvirtual

Method to print the object.

Reimplemented from itk::SpatialObjectPoint< TPointDimension >.

template<unsigned int TPointDimension = 3>

void itk::ContourSpatialObjectPoint< TPointDimension >::SetNormal

(

const VectorType &

normal

)

Set Normal

template<unsigned int TPointDimension = 3>

void itk::ContourSpatialObjectPoint< TPointDimension >::SetNormal	(	const double	normalx,
		const double	normaly
	)

template<unsigned int TPointDimension = 3>

void itk::ContourSpatialObjectPoint< TPointDimension >::SetNormal	(	const double	normalx,
		const double	normaly,
		const double	normalz
	)

template<unsigned int TPointDimension = 3>

void itk::ContourSpatialObjectPoint< TPointDimension >::SetPickedPoint

(

const PointType &

point

)

Set Picked Point

template<unsigned int TPointDimension = 3>

void itk::ContourSpatialObjectPoint< TPointDimension >::SetPickedPoint	(	const double	pointx,
		const double	pointy
	)

template<unsigned int TPointDimension = 3>

void itk::ContourSpatialObjectPoint< TPointDimension >::SetPickedPoint	(	const double	pointx,
		const double	pointy,
		const double	pointz
	)

Member Data Documentation

template<unsigned int TPointDimension = 3>

VectorType itk::ContourSpatialObjectPoint< TPointDimension >::m_Normal

protected

Definition at line 81 of file itkContourSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>

PointType itk::ContourSpatialObjectPoint< TPointDimension >::m_PickedPoint

protected

Definition at line 82 of file itkContourSpatialObjectPoint.h.

---

The documentation for this class was generated from the following file:

• itkContourSpatialObjectPoint.h
