itk::QuadEdgeMeshBaseIterator< TQuadEdge > Class Template Reference

#include <itkQuadEdgeMeshBaseIterator.h>

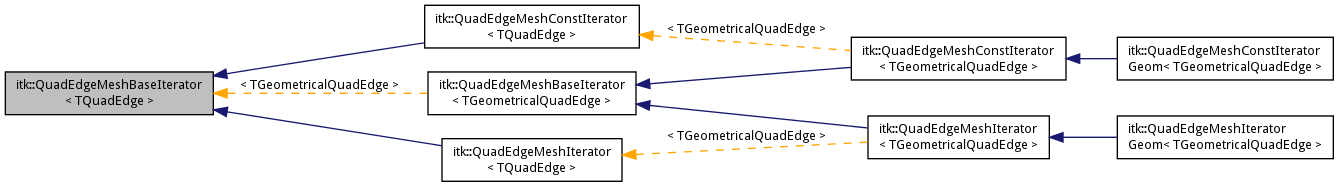

Inheritance diagram for itk::QuadEdgeMeshBaseIterator< TQuadEdge >:

Detailed Description

template<typename TQuadEdge>
class itk::QuadEdgeMeshBaseIterator< TQuadEdge >

Base iterator class for QuadEdgeMesh.

Definition at line 82 of file itkQuadEdgeMeshBaseIterator.h.

Public Types
enum	{   OperatorOnext = 0,   OperatorSym = 1,   OperatorLnext = 2,   OperatorRnext = 3,   OperatorDnext = 4,   OperatorOprev = 5,   OperatorLprev = 6,   OperatorRprev = 7,   OperatorDprev = 8,   OperatorInvOnext = 9,   OperatorInvLnext = 10,   OperatorInvRnext = 11,   OperatorInvDnext = 12 }
typedef TQuadEdge	QuadEdgeType
typedef QuadEdgeMeshBaseIterator	Self

Public Member Functions
QuadEdgeType *	GetIterator () const
int	GetOpType () const
bool	GetStart () const
QuadEdgeType *	GetStartEdge () const
bool	operator!= (Self &r)
bool	operator!= (const Self &r) const
Self &	operator++ ()
Self &	operator++ (int)
Self &	operator= (const Self &r)
bool	operator== (Self &r)
bool	operator== (const Self &r) const
	QuadEdgeMeshBaseIterator (QuadEdgeType *e, int op=OperatorOnext, bool start=true)
virtual	~QuadEdgeMeshBaseIterator ()

Protected Member Functions
virtual void	GoToNext ()

Member Typedef Documentation

template<typename TQuadEdge>

typedef TQuadEdge itk::QuadEdgeMeshBaseIterator< TQuadEdge >::QuadEdgeType

Definition at line 87 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

typedef QuadEdgeMeshBaseIterator itk::QuadEdgeMeshBaseIterator< TQuadEdge >::Self

Definition at line 86 of file itkQuadEdgeMeshBaseIterator.h.

Member Enumeration Documentation

template<typename TQuadEdge>

anonymous enum

Enumerator
OperatorOnext
OperatorSym
OperatorLnext
OperatorRnext
OperatorDnext
OperatorOprev
OperatorLprev
OperatorRprev
OperatorDprev
OperatorInvOnext
OperatorInvLnext
OperatorInvRnext
OperatorInvDnext

Definition at line 90 of file itkQuadEdgeMeshBaseIterator.h.

Constructor & Destructor Documentation

template<typename TQuadEdge>

itk::QuadEdgeMeshBaseIterator< TQuadEdge >::QuadEdgeMeshBaseIterator ( QuadEdgeType *  e, int  op = OperatorOnext, bool  start = true  )

inline

Definition at line 108 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

virtual itk::QuadEdgeMeshBaseIterator< TQuadEdge >::~QuadEdgeMeshBaseIterator ( )

inlinevirtual

Definition at line 114 of file itkQuadEdgeMeshBaseIterator.h.

Member Function Documentation

template<typename TQuadEdge>

QuadEdgeType* itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetIterator ( ) const

inline

Definition at line 129 of file itkQuadEdgeMeshBaseIterator.h.

Referenced by itk::QuadEdgeMeshConstIterator< TGeometricalQuadEdge >::operator=(), and itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::operator=().

template<typename TQuadEdge>

int itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetOpType ( ) const

inline

Definition at line 130 of file itkQuadEdgeMeshBaseIterator.h.

Referenced by itk::QuadEdgeMeshConstIterator< TGeometricalQuadEdge >::operator=(), and itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::operator=().

template<typename TQuadEdge>

bool itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetStart ( ) const

inline

Definition at line 131 of file itkQuadEdgeMeshBaseIterator.h.

Referenced by itk::QuadEdgeMeshConstIterator< TGeometricalQuadEdge >::operator=(), and itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::operator=().

template<typename TQuadEdge>

QuadEdgeType* itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetStartEdge ( ) const

inline

Definition at line 128 of file itkQuadEdgeMeshBaseIterator.h.

Referenced by itk::QuadEdgeMeshConstIterator< TGeometricalQuadEdge >::operator=(), and itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::operator=().

template<typename TQuadEdge>

virtual void itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GoToNext ( )

inlineprotectedvirtual

Method that should do all the iteration work.

Definition at line 183 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

bool itk::QuadEdgeMeshBaseIterator< TQuadEdge >::operator!= ( Self &  r )

inline

Definition at line 150 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

bool itk::QuadEdgeMeshBaseIterator< TQuadEdge >::operator!= ( const Self &  r ) const

inline

Definition at line 155 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

Self& itk::QuadEdgeMeshBaseIterator< TQuadEdge >::operator++ ( )

inline

Definition at line 160 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

Self& itk::QuadEdgeMeshBaseIterator< TQuadEdge >::operator++ ( int  )

inline

Definition at line 171 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

Self& itk::QuadEdgeMeshBaseIterator< TQuadEdge >::operator= ( const Self &  r )

inline

Definition at line 116 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

bool itk::QuadEdgeMeshBaseIterator< TQuadEdge >::operator== ( Self &  r )

inline

Iteration methods.

Definition at line 134 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TQuadEdge>

bool itk::QuadEdgeMeshBaseIterator< TQuadEdge >::operator== ( const Self &  r ) const

inline

Definition at line 142 of file itkQuadEdgeMeshBaseIterator.h.

---

The documentation for this class was generated from the following file:

• itkQuadEdgeMeshBaseIterator.h
