itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE > Class Template Reference

#include <itkQuadEdgeMeshFrontIterator.h>

Inheritance diagram for itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >:

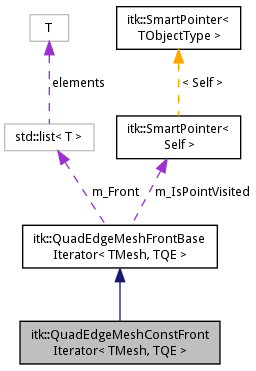

Collaboration diagram for itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >:

Detailed Description

template<class TMesh, class TQE = typename TMesh::QEType>
class itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >

Const quad edge mesh front iterator.

Definition at line 265 of file itkQuadEdgeMeshFrontIterator.h.

Public Types
typedef Superclass::MeshType	MeshType
typedef QuadEdgeMeshFrontIterator < MeshType, QEType >	NoConstType
typedef Superclass::QEType	QEType
typedef QuadEdgeMeshConstFrontIterator	Self
typedef QuadEdgeMeshFrontBaseIterator < TMesh, TQE >	Superclass
Public Types inherited from itk::QuadEdgeMeshFrontBaseIterator< TMesh, TQE >
typedef TMesh	MeshType
typedef TQE	QEType
typedef QuadEdgeMeshFrontBaseIterator	Self

Public Member Functions
const QEType *	Value () const
	QuadEdgeMeshConstFrontIterator (const MeshType *mesh=(MeshType *) 0, bool start=true, QEType *seed=(QEType *) 0)
virtual	~QuadEdgeMeshConstFrontIterator ()
Self &	operator= (const NoConstType &r)
Public Member Functions inherited from itk::QuadEdgeMeshFrontBaseIterator< TMesh, TQE >
MeshType *	GetMesh () const
bool	operator!= (Self &r)
bool	operator!= (const Self &r) const
Self &	operator++ ()
Self &	operator++ (int)
Self &	operator= (const Self &r)
bool	operator== (Self &r)
bool	operator== (const Self &r) const
	QuadEdgeMeshFrontBaseIterator (MeshType *mesh=(MeshType *) 0, bool start=true, QEType *seed=(QEType *) 0)
virtual	~QuadEdgeMeshFrontBaseIterator ()

Additional Inherited Members
Protected Types inherited from itk::QuadEdgeMeshFrontBaseIterator< TMesh, TQE >
typedef MeshType::CoordRepType	CoordRepType
typedef QEType::OriginRefType	QEOriginType
typedef std::list< FrontAtom >	FrontType
typedef FrontType::iterator	FrontTypeIterator
typedef FrontType *	FrontTypePointer
typedef MapContainer < QEOriginType, bool >	IsVisitedContainerType
typedef IsVisitedContainerType::Pointer	IsVisitedPointerType
Protected Member Functions inherited from itk::QuadEdgeMeshFrontBaseIterator< TMesh, TQE >
QEType *	FindDefaultSeed ()
virtual CoordRepType	GetCost (QEType *edge)
Protected Attributes inherited from itk::QuadEdgeMeshFrontBaseIterator< TMesh, TQE >
QEType *	m_CurrentEdge
FrontTypePointer	m_Front
IsVisitedPointerType	m_IsPointVisited
MeshType *	m_Mesh
QEType *	m_Seed
bool	m_Start

Member Typedef Documentation

template<class TMesh , class TQE = typename TMesh::QEType>

typedef Superclass::MeshType itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::MeshType

Definition at line 274 of file itkQuadEdgeMeshFrontIterator.h.

template<class TMesh , class TQE = typename TMesh::QEType>

typedef QuadEdgeMeshFrontIterator< MeshType, QEType > itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::NoConstType

Definition at line 275 of file itkQuadEdgeMeshFrontIterator.h.

template<class TMesh , class TQE = typename TMesh::QEType>

typedef Superclass::QEType itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::QEType

Definition at line 273 of file itkQuadEdgeMeshFrontIterator.h.

template<class TMesh , class TQE = typename TMesh::QEType>

typedef QuadEdgeMeshConstFrontIterator itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::Self

Hierarchy typedefs & values.

Definition at line 271 of file itkQuadEdgeMeshFrontIterator.h.

template<class TMesh , class TQE = typename TMesh::QEType>

typedef QuadEdgeMeshFrontBaseIterator< TMesh, TQE > itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::Superclass

Definition at line 272 of file itkQuadEdgeMeshFrontIterator.h.

Constructor & Destructor Documentation

template<class TMesh , class TQE = typename TMesh::QEType>

itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::QuadEdgeMeshConstFrontIterator ( const MeshType *  mesh = (MeshType *)0, bool  start = true, QEType *  seed = (QEType *)0  )

inline

Object creation methods.

Definition at line 279 of file itkQuadEdgeMeshFrontIterator.h.

template<class TMesh , class TQE = typename TMesh::QEType>

virtual itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::~QuadEdgeMeshConstFrontIterator ( )

inlinevirtual

Todo:

do we need here a : Superclass( mesh, start, seed ) { }

Definition at line 290 of file itkQuadEdgeMeshFrontIterator.h.

Member Function Documentation

template<class TMesh , class TQE = typename TMesh::QEType>

Self& itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::operator= ( const NoConstType &  r )

inline

Todo:

do we need here a : Superclass( mesh, start, seed ) { }

Definition at line 291 of file itkQuadEdgeMeshFrontIterator.h.

References itk::QuadEdgeMeshFrontBaseIterator< TMesh, TQE >::GetMesh().

template<class TMesh , class TQE = typename TMesh::QEType>

const QEType* itk::QuadEdgeMeshConstFrontIterator< TMesh, TQE >::Value ( void  ) const

inline

Definition at line 298 of file itkQuadEdgeMeshFrontIterator.h.

---

The documentation for this class was generated from the following file:

• itkQuadEdgeMeshFrontIterator.h
