#include <itkRegionBasedLevelSetFunctionSharedData.h>

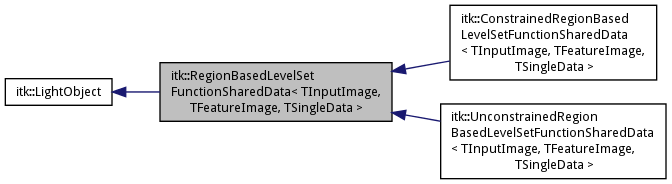

Inheritance diagram for itk::RegionBasedLevelSetFunctionSharedData< TInputImage, TFeatureImage, TSingleData >:

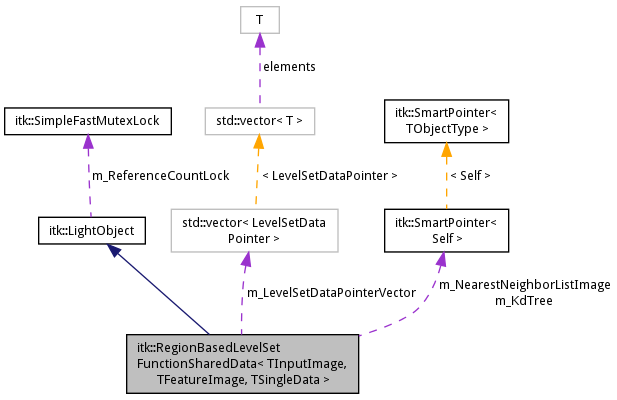

Collaboration diagram for itk::RegionBasedLevelSetFunctionSharedData< TInputImage, TFeatureImage, TSingleData >:

Detailed Description

template<class TInputImage, class TFeatureImage, class TSingleData>
class itk::RegionBasedLevelSetFunctionSharedData< TInputImage, TFeatureImage, TSingleData >

Helper class used to share data in the ScalarChanAndVeseLevelSetFunction.

This class holds cache data used during the computation of the LevelSet updates.

Based on the paper:

   "An active contour model without edges"
    T. Chan and L. Vese.
    In Scale-Space Theories in Computer Vision, pages 141-151, 1999.

Author: Mosaliganti K., Smith B., Gelas A., Gouaillard A., Megason S.

This code was taken from the Insight Journal paper:

"Cell Tracking using Coupled Active Surfaces for Nuclei and Membranes"
http://www.insight-journal.org/browse/publication/642
http://hdl.handle.net/10380/3055

That is based on the papers:

"Level Set Segmentation: Active Contours without edge"
http://www.insight-journal.org/browse/publication/322
http://hdl.handle.net/1926/1532

and

"Level set segmentation using coupled active surfaces"
http://www.insight-journal.org/browse/publication/323
http://hdl.handle.net/1926/1533

Definition at line 68 of file itkRegionBasedLevelSetFunctionSharedData.h.

Public Types
typedef Vector< float, itkGetStaticConstMacro(ImageDimension) >	CentroidVectorType

typedef SmartPointer< const Self >	ConstPointer

typedef FeatureImageType::ConstPointer	FeatureImageConstPointer

typedef FeatureImageType::Pointer	FeatureImagePointer

typedef TFeatureImage	FeatureImageType

typedef FeatureImageType::IndexType	FeatureIndexType

typedef FeatureImageType::PixelType	FeaturePixelType

typedef FeatureImageType::PointType	FeaturePointType

typedef FeatureImageType::RegionType	FeatureRegionType

typedef FeatureImageType::SizeType	FeatureSizeType

typedef FeatureSizeType::SizeValueType	FeatureSizeValueType

typedef FeatureImageType::SpacingType	FeatureSpacingType

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef InputImageType::Pointer	InputImagePointer

typedef TInputImage	InputImageType

typedef InputImageType::IndexType	InputIndexType

typedef InputIndexType::IndexValueType	InputIndexValueType

typedef InputImageType::PixelType	InputPixelType

typedef InputImageType::PointType	InputPointType

typedef InputImageType::RegionType	InputRegionType

typedef InputImageType::SizeType	InputSizeType

typedef InputSizeType::SizeValueType	InputSizeValueType

typedef InputImageType::SpacingType	InputSpacingType

typedef TreeType::Pointer	KdTreePointer

typedef LevelSetDataType::Pointer	LevelSetDataPointer

typedef std::vector < LevelSetDataPointer >	LevelSetDataPointerVector

typedef LevelSetDataPointerVector::iterator	LevelSetDataPointerVectorIterator

typedef TSingleData	LevelSetDataType

typedef ListImageType::ConstPointer	ListImageConstPointer

typedef ListImageType::Pointer	ListImagePointer

typedef Image< ListPixelType, itkGetStaticConstMacro(ImageDimension) >	ListImageType

typedef ListImageType::IndexType	ListIndexType

typedef ListIndexType::IndexValueType	ListIndexValueType

typedef ImageRegionIteratorWithIndex < ListImageType >	ListIteratorType

typedef std::list< unsigned int >	ListPixelType

typedef ListImageType::PointType	ListPointType

typedef ListImageType::RegionType	ListRegionType

typedef ListImageType::SizeType	ListSizeType

typedef ListSizeType::SizeValueType	ListSizeValueType

typedef ListImageType::SpacingType	ListSpacingType

typedef SmartPointer< Self >	Pointer

typedef itk::Statistics::ListSample < CentroidVectorType >	SampleType

typedef RegionBasedLevelSetFunctionSharedData	Self

typedef LightObject	Superclass

typedef itk::Statistics::KdTreeGenerator < SampleType >	TreeGeneratorType

typedef TreeGeneratorType::Pointer	TreePointer

typedef TreeGeneratorType::KdTreeType	TreeType

Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef LightObject	Self

Public Member Functions
void	AllocateListImage (const FeatureImageType *featureImage)

void	CreateHeavisideFunctionOfLevelSetImage (const unsigned int &j, const InputImageType *image)

virtual const char *	GetNameOfClass () const

virtual void	PopulateListImage ()=0

void	SetFunctionCount (const unsigned int &n)

void	SetKdTree (KdTreePointer kdtree)

void	SetNumberOfNeighbors (const unsigned int &n)

Public Member Functions inherited from itk::LightObject
virtual Pointer	CreateAnother () const

virtual void	Delete ()

virtual int	GetReferenceCount () const

	itkCloneMacro (Self)

void	Print (std::ostream &os, Indent indent=0) const

virtual void	Register () const

virtual void	SetReferenceCount (int)

virtual void	UnRegister () const

Public Attributes
unsigned int	m_FunctionCount

KdTreePointer	m_KdTree

LevelSetDataPointerVector	m_LevelSetDataPointerVector

ListImagePointer	m_NearestNeighborListImage

unsigned int	m_NumberOfNeighbors

Static Public Attributes
static const unsigned int	ImageDimension = TFeatureImage::ImageDimension

Protected Member Functions
	RegionBasedLevelSetFunctionSharedData ()

	~RegionBasedLevelSetFunctionSharedData ()

Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const

	LightObject ()

virtual void	PrintHeader (std::ostream &os, Indent indent) const

virtual void	PrintSelf (std::ostream &os, Indent indent) const

virtual void	PrintTrailer (std::ostream &os, Indent indent) const

virtual	~LightObject ()

Private Member Functions
void	operator= (const Self &)

	RegionBasedLevelSetFunctionSharedData (const Self &)

Additional Inherited Members
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

static Pointer	New ()

Protected Types inherited from itk::LightObject
typedef int	InternalReferenceCountType

Protected Attributes inherited from itk::LightObject
InternalReferenceCountType	m_ReferenceCount

SimpleFastMutexLock	m_ReferenceCountLock
