#include <itkLearningFunctionBase.h>

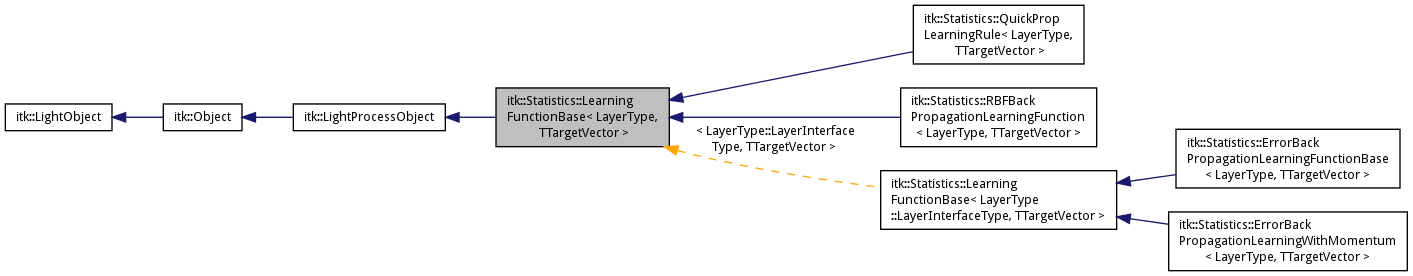

Inheritance diagram for itk::Statistics::LearningFunctionBase< LayerType, TTargetVector >:

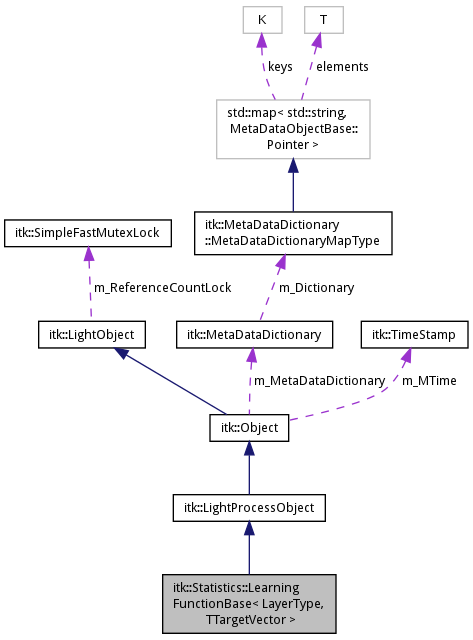

Collaboration diagram for itk::Statistics::LearningFunctionBase< LayerType, TTargetVector >:

Detailed Description

template<class LayerType, class TTargetVector>
class itk::Statistics::LearningFunctionBase< LayerType, TTargetVector >

The LearningFunctionBase is the base class for all the learning strategies.

These include error back propagation, bp+momentum, conjugte gradient descent, quick prop.

This class specifies how the errors are backpropagated for a layer. They take a LayerBase object as input and compute the input for the layers input weightset.

Definition at line 39 of file itkLearningFunctionBase.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef LearningFunctionBase	Self

typedef LightProcessObject	Superclass

typedef LayerType::ValueType	ValueType

Public Types inherited from itk::LightProcessObject
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef LightProcessObject	Self

typedef Object	Superclass

Public Types inherited from itk::Object
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef Object	Self

typedef LightObject	Superclass

Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef LightObject	Self

Public Member Functions
virtual const char *	GetNameOfClass () const

virtual void	Learn (LayerType *layer, ValueType)=0

virtual void	Learn (LayerType *layer, TTargetVector error, ValueType)=0

Public Member Functions inherited from itk::LightProcessObject
virtual void	AbortGenerateDataOff ()

virtual void	AbortGenerateDataOn ()

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const bool &	GetAbortGenerateData ()

virtual void	SetAbortGenerateData (bool _arg)

virtual void	UpdateOutputData ()

void	UpdateProgress (float amount)

virtual void	SetProgress (float _arg)

virtual const float &	GetProgress ()

Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)

unsigned long	AddObserver (const EventObject &event, Command *) const

virtual void	DebugOff () const

virtual void	DebugOn () const

Command *	GetCommand (unsigned long tag)

bool	GetDebug () const

MetaDataDictionary &	GetMetaDataDictionary (void)

const MetaDataDictionary &	GetMetaDataDictionary (void) const

virtual ModifiedTimeType	GetMTime () const

virtual const TimeStamp &	GetTimeStamp () const

bool	HasObserver (const EventObject &event) const

void	InvokeEvent (const EventObject &)

void	InvokeEvent (const EventObject &) const

virtual void	Modified () const

virtual void	Register () const

void	RemoveAllObservers ()

void	RemoveObserver (unsigned long tag)

void	SetDebug (bool debugFlag) const

void	SetMetaDataDictionary (const MetaDataDictionary &rhs)

virtual void	SetReferenceCount (int)

virtual void	UnRegister () const

Public Member Functions inherited from itk::LightObject
virtual void	Delete ()

virtual int	GetReferenceCount () const

	itkCloneMacro (Self)

void	Print (std::ostream &os, Indent indent=0) const

Protected Member Functions
	LearningFunctionBase ()

	~LearningFunctionBase ()


virtual void	PrintSelf (std::ostream &os, Indent indent) const

Protected Member Functions inherited from itk::LightProcessObject
virtual void	GenerateData ()

	LightProcessObject ()

	~LightProcessObject ()

Protected Member Functions inherited from itk::Object
	Object ()

bool	PrintObservers (std::ostream &os, Indent indent) const

virtual void	SetTimeStamp (const TimeStamp &time)

virtual	~Object ()

Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const

	LightObject ()

virtual void	PrintHeader (std::ostream &os, Indent indent) const

virtual void	PrintTrailer (std::ostream &os, Indent indent) const

virtual	~LightObject ()

Additional Inherited Members
Static Public Member Functions inherited from itk::LightProcessObject
static Pointer	New ()

Protected Types inherited from itk::LightObject
typedef int	InternalReferenceCountType

Protected Attributes inherited from itk::LightObject
InternalReferenceCountType	m_ReferenceCount

SimpleFastMutexLock	m_ReferenceCountLock
