#include <itkVectorImageToImageAdaptor.h>

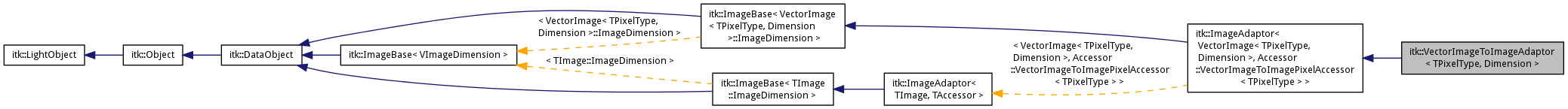

Inheritance diagram for itk::VectorImageToImageAdaptor< TPixelType, Dimension >:

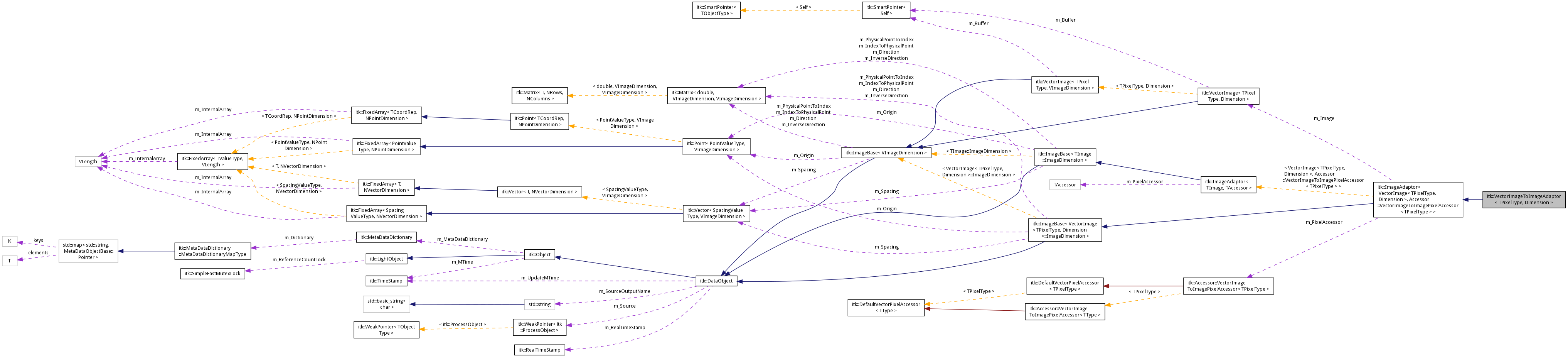

Collaboration diagram for itk::VectorImageToImageAdaptor< TPixelType, Dimension >:

Detailed Description

template<class TPixelType, unsigned int Dimension>
class itk::VectorImageToImageAdaptor< TPixelType, Dimension >

Presents a VectorImage and extracts a component from it into an image.

The class is expected to be templated over a pixel type and dimension. These are the pixel types and dimension of the VectorImage.

The component to extract is set with SetExtractComponentIdx() method RGBPixel type.

Note: This work is part of the National Alliance for Medical Image Computing (NAMIC), funded by the National Institutes of Health through the NIH Roadmap for Medical Research, Grant U54 EB005149.

Wiki Examples:

All Examples

View a component of a vector image as if it were a scalar image

Examples:: itkVectorImageTest.cxx.

Definition at line 143 of file itkVectorImageToImageAdaptor.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer

typedef Superclass::IOPixelType	IOPixelType

typedef Superclass::PixelContainer	PixelContainer

typedef Superclass::PixelContainerConstPointer	PixelContainerConstPointer

typedef Superclass::PixelContainerPointer	PixelContainerPointer

typedef SmartPointer< Self >	Pointer

typedef VectorImageToImageAdaptor	Self

typedef ImageAdaptor < VectorImageType, Accessor::VectorImageToImagePixelAccessor < TPixelType > >	Superclass

typedef VectorImage < TPixelType, Dimension >	VectorImageType

typedef VectorImageType::VectorLengthType	VectorLengthType

Public Types inherited from itk::ImageAdaptor< VectorImage< TPixelType, Dimension >, Accessor::VectorImageToImagePixelAccessor< TPixelType > >
typedef InternalImageType::AccessorFunctorType::template Rebind< Self >::Type	AccessorFunctorType

typedef Accessor::VectorImageToImagePixelAccessor < TPixelType >	AccessorType

typedef SmartPointer< const Self >	ConstPointer

typedef WeakPointer< const Self >	ConstWeakPointer

typedef Superclass::DirectionType	DirectionType

typedef Superclass::IndexType	IndexType

typedef IndexType::IndexValueType	IndexValueType

typedef VectorImage < TPixelType, Dimension >	InternalImageType

typedef InternalPixelType *	InternalPixelPointerType

typedef Accessor::VectorImageToImagePixelAccessor < TPixelType >::InternalType	InternalPixelType

typedef PixelType	IOPixelType

typedef Superclass::OffsetType	OffsetType

typedef OffsetType::OffsetValueType	OffsetValueType

typedef VectorImage < TPixelType, Dimension > ::PixelContainer	PixelContainer

typedef VectorImage < TPixelType, Dimension > ::PixelContainerConstPointer	PixelContainerConstPointer

typedef VectorImage < TPixelType, Dimension > ::PixelContainerPointer	PixelContainerPointer

typedef Accessor::VectorImageToImagePixelAccessor < TPixelType >::ExternalType	PixelType

typedef SmartPointer< Self >	Pointer

typedef Superclass::PointType	PointType

typedef Superclass::RegionType	RegionType

typedef ImageAdaptor	Self

typedef Superclass::SizeType	SizeType

typedef SizeType::SizeValueType	SizeValueType

typedef Superclass::SpacingType	SpacingType

typedef ImageBase < itkGetStaticConstMacro(ImageDimension) >	Superclass

Public Types inherited from itk::ImageBase< VectorImage< TPixelType, Dimension >::ImageDimension >
typedef SmartPointer< const Self >	ConstPointer

typedef Matrix< double, VImageDimension, VImageDimension >	DirectionType

typedef Index< VImageDimension >	IndexType

typedef IndexType::IndexValueType	IndexValueType

typedef Offset< VImageDimension >	OffsetType

typedef OffsetType::OffsetValueType	OffsetValueType

typedef SmartPointer< Self >	Pointer

typedef Point< PointValueType, VImageDimension >	PointType

typedef double	PointValueType

typedef ImageRegion < VImageDimension >	RegionType

typedef ImageBase	Self

typedef Size< VImageDimension >	SizeType

typedef SizeType::SizeValueType	SizeValueType

typedef Vector < SpacingValueType, VImageDimension >	SpacingType

typedef double	SpacingValueType

typedef DataObject	Superclass

Public Types inherited from itk::DataObject
typedef SmartPointer< const Self >	ConstPointer

typedef std::string	DataObjectIdentifierType

typedef std::vector< Pointer > ::size_type	DataObjectPointerArraySizeType

typedef SmartPointer< Self >	Pointer

typedef DataObject	Self

typedef Object	Superclass

Public Types inherited from itk::Object
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef Object	Self

typedef LightObject	Superclass

Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer

typedef SmartPointer< Self >	Pointer

typedef LightObject	Self

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

VectorLengthType	GetExtractComponentIndex () const

virtual const char *	GetNameOfClass () const

void	SetExtractComponentIndex (VectorLengthType componentIdx)

Public Member Functions inherited from itk::ImageAdaptor< VectorImage< TPixelType, Dimension >, Accessor::VectorImageToImagePixelAccessor< TPixelType > >
void	Allocate ()

IndexType	ComputeIndex (OffsetValueType offset) const

virtual void	CopyInformation (const DataObject *data)

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const RegionType &	GetBufferedRegion () const

InternalPixelType *	GetBufferPointer ()

const InternalPixelType *	GetBufferPointer () const

virtual const DirectionType &	GetDirection () const

virtual const RegionType &	GetLargestPossibleRegion () const

virtual ModifiedTimeType	GetMTime () const

const OffsetValueType *	GetOffsetTable () const

virtual const PointType &	GetOrigin () const

PixelType	GetPixel (const IndexType &index) const

AccessorType &	GetPixelAccessor (void)

const AccessorType &	GetPixelAccessor (void) const

PixelContainerPointer	GetPixelContainer ()

const PixelContainer *	GetPixelContainer () const

virtual const RegionType &	GetRequestedRegion () const

virtual const SpacingType &	GetSpacing () const

virtual void	Graft (const DataObject *data)

virtual void	Initialize ()

virtual void	Modified () const

PixelType	operator[] (const IndexType &index) const

virtual void	PropagateRequestedRegion () throw ( InvalidRequestedRegionError )

virtual void	SetBufferedRegion (const RegionType &region)

virtual void	SetDirection (const DirectionType direction)

virtual void	SetImage (VectorImage< TPixelType, Dimension > *)

virtual void	SetLargestPossibleRegion (const RegionType &region)

virtual void	SetOrigin (const PointType values)

virtual void	SetOrigin (const double *values)

virtual void	SetOrigin (const float *values)

void	SetPixel (const IndexType &index, const PixelType &value)

void	SetPixelAccessor (const AccessorType &accessor)

void	SetPixelContainer (PixelContainer *container)

virtual void	SetRequestedRegion (const RegionType &region)

virtual void	SetRequestedRegion (const DataObject *data)

virtual void	SetRequestedRegionToLargestPossibleRegion ()

virtual void	SetSpacing (const SpacingType &values)

virtual void	SetSpacing (const double *values)

virtual void	SetSpacing (const float *values)

void	TransformContinuousIndexToPhysicalPoint (const ContinuousIndex< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &index, Point< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &point) const

void	TransformIndexToPhysicalPoint (const IndexType &index, Point< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &point) const

void	TransformLocalVectorToPhysicalVector (const FixedArray< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &inputGradient, FixedArray< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &outputGradient) const

bool	TransformPhysicalPointToContinuousIndex (const Point< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &point, ContinuousIndex< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &index) const

bool	TransformPhysicalPointToIndex (const Point< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &point, IndexType &index) const

void	TransformPhysicalVectorToLocalVector (const FixedArray< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &inputGradient, FixedArray< TCoordRep, itkGetStaticConstMacro(ImageDimension) > &outputGradient) const

virtual void	Update ()

virtual void	UpdateOutputData ()

virtual void	UpdateOutputInformation ()

virtual bool	VerifyRequestedRegion ()

Public Member Functions inherited from itk::ImageBase< VectorImage< TPixelType, Dimension >::ImageDimension >
OffsetValueType	ComputeOffset (const IndexType &ind) const

virtual const DirectionType &	GetDirection ()

virtual const DirectionType &	GetInverseDirection ()

virtual const PointType &	GetOrigin ()

virtual const SpacingType &	GetSpacing ()

virtual bool	RequestedRegionIsOutsideOfTheBufferedRegion ()

virtual void	SetRegions (const SizeType &size)

void	TransformLocalVectorToPhysicalVector (const FixedArray< TCoordRep, VImageDimension > &inputGradient, FixedArray< TCoordRep, VImageDimension > &outputGradient) const

bool	TransformPhysicalPointToContinuousIndex (const Point< TCoordRep, VImageDimension > &point, ContinuousIndex< TCoordRep, VImageDimension > &index) const

bool	TransformPhysicalPointToIndex (const Point< TCoordRep, VImageDimension > &point, IndexType &index) const

void	TransformPhysicalVectorToLocalVector (const FixedArray< TCoordRep, VImageDimension > &inputGradient, FixedArray< TCoordRep, VImageDimension > &outputGradient) const

virtual void	SetOrigin (const double origin[VImageDimension])

virtual void	SetOrigin (const float origin[VImageDimension])

virtual void	SetRegions (const RegionType &region)

const OffsetValueType *	GetOffsetTable () const

IndexType	ComputeIndex (OffsetValueType offset) const

virtual void	SetSpacing (const double spacing[VImageDimension])

virtual void	SetSpacing (const float spacing[VImageDimension])

void	TransformContinuousIndexToPhysicalPoint (const ContinuousIndex< TCoordRep, VImageDimension > &index, Point< TCoordRep, VImageDimension > &point) const

void	TransformIndexToPhysicalPoint (const IndexType &index, Point< TCoordRep, VImageDimension > &point) const

virtual unsigned int	GetNumberOfComponentsPerPixel () const

virtual void	SetNumberOfComponentsPerPixel (unsigned int)

Public Member Functions inherited from itk::DataObject
virtual void	DataHasBeenGenerated ()

void	DisconnectPipeline ()

bool	GetDataReleased () const

virtual const bool &	GetReleaseDataFlag ()

SmartPointerForwardReference < ProcessObject >	GetSource () const

DataObjectPointerArraySizeType	GetSourceOutputIndex () const

const DataObjectIdentifierType &	GetSourceOutputName () const

virtual ModifiedTimeType	GetUpdateMTime () const

virtual void	PrepareForNewData ()

void	ReleaseData ()

virtual void	ReleaseDataFlagOff ()

virtual void	ReleaseDataFlagOn ()

virtual void	ResetPipeline ()

void	SetReleaseDataFlag (bool flag)

bool	ShouldIReleaseData () const

void	SetPipelineMTime (ModifiedTimeType time)

virtual const ModifiedTimeType &	GetPipelineMTime ()

virtual void	SetRealTimeStamp (RealTimeStamp _arg)

virtual const RealTimeStamp &	GetRealTimeStamp ()

Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)

unsigned long	AddObserver (const EventObject &event, Command *) const

virtual void	DebugOff () const

virtual void	DebugOn () const

Command *	GetCommand (unsigned long tag)

bool	GetDebug () const

MetaDataDictionary &	GetMetaDataDictionary (void)

const MetaDataDictionary &	GetMetaDataDictionary (void) const

virtual const TimeStamp &	GetTimeStamp () const

bool	HasObserver (const EventObject &event) const

void	InvokeEvent (const EventObject &)

void	InvokeEvent (const EventObject &) const

virtual void	Register () const

void	RemoveAllObservers ()

void	RemoveObserver (unsigned long tag)

void	SetDebug (bool debugFlag) const

void	SetMetaDataDictionary (const MetaDataDictionary &rhs)

virtual void	SetReferenceCount (int)

virtual void	UnRegister () const

Public Member Functions inherited from itk::LightObject
virtual void	Delete ()

virtual int	GetReferenceCount () const

	itkCloneMacro (Self)

void	Print (std::ostream &os, Indent indent=0) const

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from itk::ImageAdaptor< VectorImage< TPixelType, Dimension >, Accessor::VectorImageToImagePixelAccessor< TPixelType > >
static Pointer	New ()

Static Public Member Functions inherited from itk::ImageBase< VectorImage< TPixelType, Dimension >::ImageDimension >
static unsigned int	GetImageDimension ()

static Pointer	New ()

Static Public Member Functions inherited from itk::DataObject
static bool	GetGlobalReleaseDataFlag ()

static void	GlobalReleaseDataFlagOff ()

static void	GlobalReleaseDataFlagOn ()

static void	SetGlobalReleaseDataFlag (bool val)

Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()

static void	GlobalWarningDisplayOff ()

static void	GlobalWarningDisplayOn ()

static Pointer	New ()

static void	SetGlobalWarningDisplay (bool flag)

Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

static Pointer	New ()

Protected Member Functions
	VectorImageToImageAdaptor ()

virtual	~VectorImageToImageAdaptor ()

Protected Member Functions inherited from itk::ImageAdaptor< VectorImage< TPixelType, Dimension >, Accessor::VectorImageToImagePixelAccessor< TPixelType > >
	ImageAdaptor ()

void	PrintSelf (std::ostream &os, Indent indent) const

virtual	~ImageAdaptor ()

Protected Member Functions inherited from itk::ImageBase< VectorImage< TPixelType, Dimension >::ImageDimension >
virtual void	ComputeIndexToPhysicalPointMatrices ()

void	ComputeOffsetTable ()

	ImageBase ()

virtual void	InitializeBufferedRegion (void)

	~ImageBase ()

Protected Member Functions inherited from itk::DataObject
	DataObject ()

virtual void	PropagateResetPipeline ()

	~DataObject ()

Protected Member Functions inherited from itk::Object
	Object ()

bool	PrintObservers (std::ostream &os, Indent indent) const

virtual void	SetTimeStamp (const TimeStamp &time)

virtual	~Object ()

Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const

	LightObject ()

virtual void	PrintHeader (std::ostream &os, Indent indent) const

virtual void	PrintTrailer (std::ostream &os, Indent indent) const

virtual	~LightObject ()

Private Member Functions
void	operator= (const Self &)

	VectorImageToImageAdaptor (const Self &)

Additional Inherited Members
Static Public Attributes inherited from itk::ImageAdaptor< VectorImage< TPixelType, Dimension >, Accessor::VectorImageToImagePixelAccessor< TPixelType > >
static const unsigned int	ImageDimension

Protected Types inherited from itk::LightObject
typedef int	InternalReferenceCountType

Protected Attributes inherited from itk::ImageBase< VectorImage< TPixelType, Dimension >::ImageDimension >
DirectionType	m_Direction

DirectionType	m_IndexToPhysicalPoint

DirectionType	m_InverseDirection

PointType	m_Origin

DirectionType	m_PhysicalPointToIndex

SpacingType	m_Spacing
