itk::TransformParametersAdaptor< TTransform > Class Template Reference

#include <itkTransformParametersAdaptor.h>

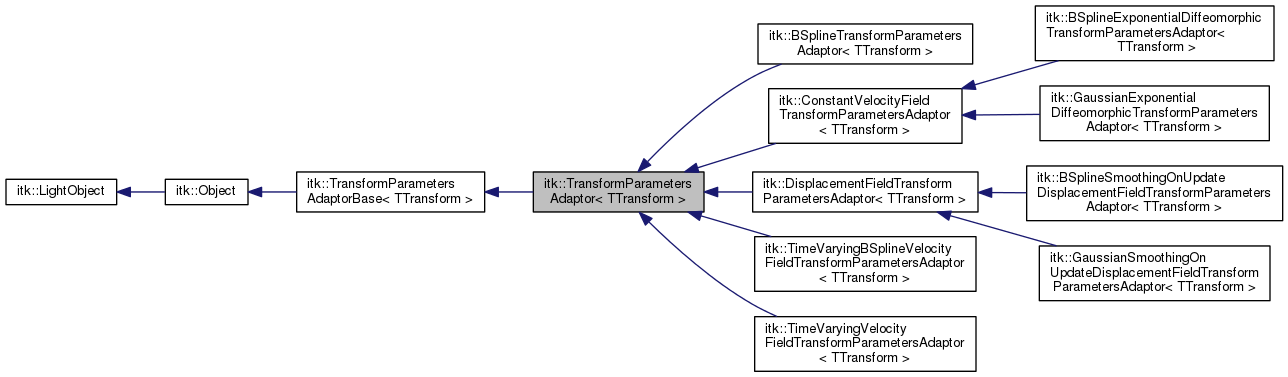

Inheritance diagram for itk::TransformParametersAdaptor< TTransform >:

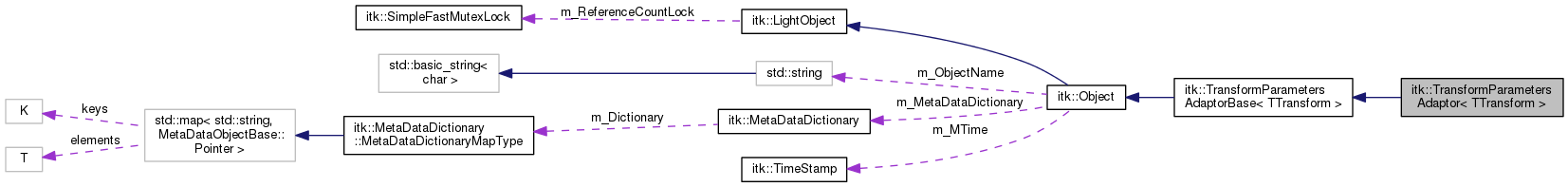

Collaboration diagram for itk::TransformParametersAdaptor< TTransform >:

Detailed Description

template<typename TTransform>
class itk::TransformParametersAdaptor< TTransform >

Base helper class intended for multi-resolution image registration.

During multi-resolution image registration, it is often useful to expand the number of parameters describing the transform when going from one level to the next. For example, in B-spline registration, one often wants to increase the mesh size (or, equivalently, the control point grid size) for increased flexibility in optimizing the transform. This requires the propagation of the current transform solution to the next level where the solution is identical but with an increase in the number of parameters. This base class and those derived classes are meant to handle these types of situations.

Basic usage will involve the user specifying the required fixed parameters, i.e.

*   transformAdaptor->SetTransform( transform );
*   transformAdaptor->SetRequiredFixedParameters( fixedParameters );
*   transformAdaptor->AdaptTransformParameters();
*

which will adjust the transform based on the new fixed parameters.

Author

Nick Tustison

Marius Staring

Definition at line 54 of file itkTransformParametersAdaptor.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::ParametersType	ParametersType
typedef Superclass::ParametersValueType	ParametersValueType
typedef SmartPointer< Self >	Pointer
typedef TransformParametersAdaptor	Self
typedef TransformParametersAdaptorBase < TTransform >	Superclass
typedef Superclass::TransformPointer	TransformPointer
typedef TTransform	TransformType
Public Types inherited from itk::TransformParametersAdaptorBase< TTransform >
typedef SmartPointer< const Self >	ConstPointer
typedef TransformType::ParametersType	ParametersType
typedef ParametersType::ValueType	ParametersValueType
typedef SmartPointer< Self >	Pointer
typedef TransformParametersAdaptorBase	Self
typedef Object	Superclass
typedef TransformType::Pointer	TransformPointer
typedef TTransform	TransformType
Public Types inherited from itk::Object
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef Object	Self
typedef LightObject	Superclass
Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef LightObject	Self

Public Member Functions
virtual void	AdaptTransformParameters ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
virtual const ParametersType &	GetRequiredFixedParameters ()
virtual void	SetRequiredFixedParameters (ParametersType _arg)
virtual void	SetTransform (TransformType *_arg)
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual ModifiedTimeType	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
virtual void	SetObjectName (std::string _arg)
virtual const std::string &	GetObjectName ()
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()
static Pointer	New ()

Protected Member Functions
void	PrintSelf (std::ostream &os, Indent) const
	TransformParametersAdaptor ()
	~TransformParametersAdaptor ()
Protected Member Functions inherited from itk::TransformParametersAdaptorBase< TTransform >
void	PrintSelf (std::ostream &os, Indent indent) const
	TransformParametersAdaptorBase ()
	~TransformParametersAdaptorBase ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Protected Attributes
ParametersType	m_RequiredFixedParameters
TransformPointer	m_Transform
Protected Attributes inherited from itk::TransformParametersAdaptorBase< TTransform >
ParametersType	m_RequiredFixedParameters
TransformPointer	m_Transform
Protected Attributes inherited from itk::LightObject
InternalReferenceCountType	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock

Private Member Functions
void	operator= (const Self &)
	TransformParametersAdaptor (const Self &)

Additional Inherited Members
Protected Types inherited from itk::LightObject
typedef int	InternalReferenceCountType

Member Typedef Documentation

template<typename TTransform >

typedef SmartPointer<const Self> itk::TransformParametersAdaptor< TTransform >::ConstPointer

Definition at line 63 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

typedef Superclass::ParametersType itk::TransformParametersAdaptor< TTransform >::ParametersType

Definition at line 71 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

typedef Superclass::ParametersValueType itk::TransformParametersAdaptor< TTransform >::ParametersValueType

Definition at line 72 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

typedef SmartPointer<Self> itk::TransformParametersAdaptor< TTransform >::Pointer

Definition at line 62 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

typedef TransformParametersAdaptor itk::TransformParametersAdaptor< TTransform >::Self

Standard class typedefs.

Definition at line 60 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

typedef TransformParametersAdaptorBase<TTransform> itk::TransformParametersAdaptor< TTransform >::Superclass

Definition at line 61 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

typedef Superclass::TransformPointer itk::TransformParametersAdaptor< TTransform >::TransformPointer

Definition at line 70 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

typedef TTransform itk::TransformParametersAdaptor< TTransform >::TransformType

Typedefs associated with the transform

Definition at line 66 of file itkTransformParametersAdaptor.h.

Constructor & Destructor Documentation

template<typename TTransform >

itk::TransformParametersAdaptor< TTransform >::TransformParametersAdaptor ( )

inlineprotected

Definition at line 90 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

itk::TransformParametersAdaptor< TTransform >::~TransformParametersAdaptor ( )

inlineprotected

Definition at line 91 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

itk::TransformParametersAdaptor< TTransform >::TransformParametersAdaptor ( const Self &  )

private

Member Function Documentation

template<typename TTransform >

virtual void itk::TransformParametersAdaptor< TTransform >::AdaptTransformParameters ( )

inlinevirtual

Initialize the transform using the specified fixed parameters

Implements itk::TransformParametersAdaptorBase< TTransform >.

Reimplemented in itk::TimeVaryingBSplineVelocityFieldTransformParametersAdaptor< TTransform >, itk::BSplineTransformParametersAdaptor< TTransform >, itk::TimeVaryingVelocityFieldTransformParametersAdaptor< TTransform >, itk::ConstantVelocityFieldTransformParametersAdaptor< TTransform >, itk::DisplacementFieldTransformParametersAdaptor< TTransform >, itk::BSplineExponentialDiffeomorphicTransformParametersAdaptor< TTransform >, itk::BSplineSmoothingOnUpdateDisplacementFieldTransformParametersAdaptor< TTransform >, itk::GaussianExponentialDiffeomorphicTransformParametersAdaptor< TTransform >, and itk::GaussianSmoothingOnUpdateDisplacementFieldTransformParametersAdaptor< TTransform >.

Definition at line 87 of file itkTransformParametersAdaptor.h.

template<typename TTransform >

virtual::itk::LightObject::Pointer itk::TransformParametersAdaptor< TTransform >::CreateAnother ( void  ) const

virtual

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.

Reimplemented from itk::Object.

template<typename TTransform >

virtual const char* itk::TransformParametersAdaptor< TTransform >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::TransformParametersAdaptorBase< TTransform >.

Reimplemented in itk::TimeVaryingBSplineVelocityFieldTransformParametersAdaptor< TTransform >, itk::BSplineTransformParametersAdaptor< TTransform >, itk::ConstantVelocityFieldTransformParametersAdaptor< TTransform >, itk::DisplacementFieldTransformParametersAdaptor< TTransform >, itk::TimeVaryingVelocityFieldTransformParametersAdaptor< TTransform >, itk::BSplineExponentialDiffeomorphicTransformParametersAdaptor< TTransform >, itk::BSplineSmoothingOnUpdateDisplacementFieldTransformParametersAdaptor< TTransform >, itk::GaussianExponentialDiffeomorphicTransformParametersAdaptor< TTransform >, and itk::GaussianSmoothingOnUpdateDisplacementFieldTransformParametersAdaptor< TTransform >.

template<typename TTransform >

virtual const ParametersType& itk::TransformParametersAdaptor< TTransform >::GetRequiredFixedParameters ( )

virtual

Get the fixed parameters

Reimplemented from itk::TransformParametersAdaptorBase< TTransform >.

template<typename TTransform >

static Pointer itk::TransformParametersAdaptor< TTransform >::New ( )

static

New macro for creation of through the object factory.

template<typename TTransform >

void itk::TransformParametersAdaptor< TTransform >::operator= ( const Self &  )

private

template<typename TTransform >

void itk::TransformParametersAdaptor< TTransform >::PrintSelf ( std::ostream &  os, Indent  indent  ) const

inlineprotectedvirtual

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from itk::Object.

Definition at line 93 of file itkTransformParametersAdaptor.h.

References itk::TransformParametersAdaptor< TTransform >::m_RequiredFixedParameters.

template<typename TTransform >

virtual void itk::TransformParametersAdaptor< TTransform >::SetRequiredFixedParameters ( ParametersType  _arg )

virtual

Set the fixed parameters

Reimplemented from itk::TransformParametersAdaptorBase< TTransform >.

Reimplemented in itk::TimeVaryingBSplineVelocityFieldTransformParametersAdaptor< TTransform >.

template<typename TTransform >

virtual void itk::TransformParametersAdaptor< TTransform >::SetTransform ( TransformType *  _arg )

virtual

Set the transform to be adapted

Reimplemented from itk::TransformParametersAdaptorBase< TTransform >.

Member Data Documentation

template<typename TTransform >

ParametersType itk::TransformParametersAdaptor< TTransform >::m_RequiredFixedParameters

protected

Definition at line 99 of file itkTransformParametersAdaptor.h.

Referenced by itk::TimeVaryingBSplineVelocityFieldTransformParametersAdaptor< TTransform >::GetRequiredControlPointLatticeOrigin(), itk::TimeVaryingBSplineVelocityFieldTransformParametersAdaptor< TTransform >::GetRequiredControlPointLatticeSize(), and itk::TransformParametersAdaptor< TTransform >::PrintSelf().

template<typename TTransform >

TransformPointer itk::TransformParametersAdaptor< TTransform >::m_Transform

protected

Definition at line 98 of file itkTransformParametersAdaptor.h.

---

The documentation for this class was generated from the following file:

• itkTransformParametersAdaptor.h
