itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage > Class Template Reference

#include <itkCurvatureAnisotropicDiffusionImageFilter.h>

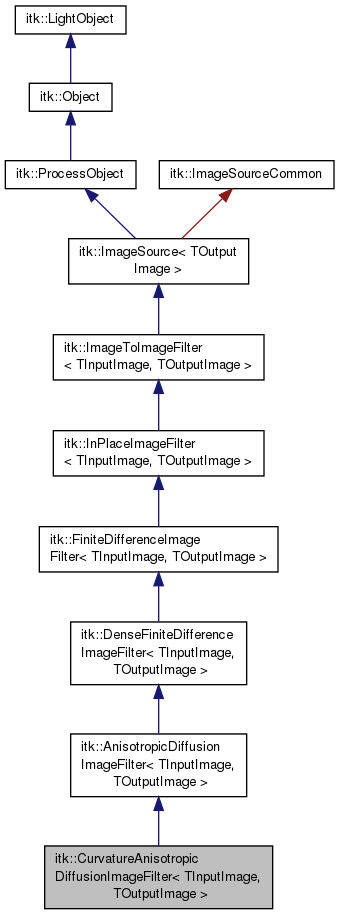

Inheritance diagram for itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >:

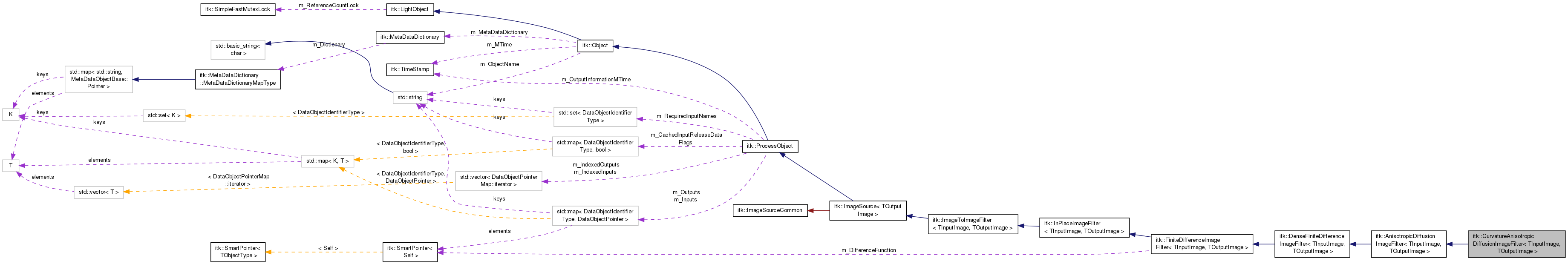

Collaboration diagram for itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >:

Detailed Description

template<typename TInputImage, typename TOutputImage>
class itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >

This filter performs anisotropic diffusion on a scalar itk::Image using the modified curvature diffusion equation (MCDE) implemented in itkCurvatureNDAnisotropicDiffusionFunction. For detailed information on anisotropic diffusion and the MCDE see itkAnisotropicDiffusionFunction and itkCurvatureNDAnisotropicDiffusionFunction.

Inputs and Outputs

The input and output to this filter must be a scalar itk::Image with numerical pixel types (float or double). A user defined type which correctly defines arithmetic operations with floating point accuracy should also give correct results.

Parameters

Please first read all the documentation found in AnisotropicDiffusionImageFilter and AnisotropicDiffusionFunction. Also see CurvatureNDAnisotropicDiffusionFunction.

The default time step for this filter is set to the maximum theoretically stable value: 0.5 / 2^N, where N is the dimensionality of the image. For a 2D image, this means valid time steps are below 0.1250. For a 3D image, valid time steps are below 0.0625.

See Also

AnisotropicDiffusionImageFilter

AnisotropicDiffusionFunction

CurvatureNDAnisotropicDiffusionFunction

Examples:

Filtering/CurvatureAnisotropicDiffusionImageFilter.cxx, Segmentation/CurvesLevelSetImageFilter.cxx, Segmentation/FastMarchingImageFilter.cxx, Segmentation/GeodesicActiveContourImageFilter.cxx, Segmentation/GeodesicActiveContourShapePriorLevelSetImageFilter.cxx, and Segmentation/ShapeDetectionLevelSetFilter.cxx.

Definition at line 58 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef CurvatureAnisotropicDiffusionImageFilter	Self
typedef AnisotropicDiffusionImageFilter < TInputImage, TOutputImage >	Superclass
typedef Superclass::UpdateBufferType	UpdateBufferType
Public Types inherited from itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::InputImageType	InputImageType
typedef Superclass::OutputImageType	OutputImageType
typedef Superclass::PixelType	PixelType
typedef SmartPointer< Self >	Pointer
typedef AnisotropicDiffusionImageFilter	Self
typedef DenseFiniteDifferenceImageFilter < TInputImage, TOutputImage >	Superclass
typedef Superclass::TimeStepType	TimeStepType
typedef Superclass::UpdateBufferType	UpdateBufferType
Public Types inherited from itk::DenseFiniteDifferenceImageFilter< TInputImage, TOutputImage >
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::FiniteDifferenceFunctionType	FiniteDifferenceFunctionType
typedef Superclass::InputImageType	InputImageType
typedef Superclass::OutputImageType	OutputImageType
typedef Superclass::PixelType	PixelType
typedef SmartPointer< Self >	Pointer
typedef DenseFiniteDifferenceImageFilter	Self
typedef FiniteDifferenceImageFilter < TInputImage, TOutputImage >	Superclass
typedef Superclass::TimeStepType	TimeStepType
typedef OutputImageType	UpdateBufferType
Public Types inherited from itk::FiniteDifferenceImageFilter< TInputImage, TOutputImage >
typedef SmartPointer< const Self >	ConstPointer
typedef FiniteDifferenceFunction < TOutputImage >	FiniteDifferenceFunctionType
typedef TInputImage	InputImageType
typedef TInputImage::PixelType	InputPixelType
typedef NumericTraits < InputPixelType >::ValueType	InputPixelValueType
typedef FiniteDifferenceFunctionType::NeighborhoodScalesType	NeighborhoodScalesType
typedef TOutputImage	OutputImageType
typedef TOutputImage::PixelType	OutputPixelType
typedef NumericTraits < OutputPixelType >::ValueType	OutputPixelValueType
typedef OutputPixelType	PixelType
typedef SmartPointer< Self >	Pointer
typedef FiniteDifferenceFunctionType::RadiusType	RadiusType
typedef FiniteDifferenceImageFilter	Self
typedef InPlaceImageFilter < TInputImage, TOutputImage >	Superclass
typedef FiniteDifferenceFunctionType::TimeStepType	TimeStepType
Public Types inherited from itk::InPlaceImageFilter< TInputImage, TOutputImage >
typedef SmartPointer< const Self >	ConstPointer
typedef InputImageType::ConstPointer	InputImageConstPointer
typedef InputImageType::PixelType	InputImagePixelType
typedef InputImageType::Pointer	InputImagePointer
typedef InputImageType::RegionType	InputImageRegionType
typedef TInputImage	InputImageType
typedef Superclass::OutputImagePixelType	OutputImagePixelType
typedef Superclass::OutputImagePointer	OutputImagePointer
typedef Superclass::OutputImageRegionType	OutputImageRegionType
typedef Superclass::OutputImageType	OutputImageType
typedef SmartPointer< Self >	Pointer
typedef InPlaceImageFilter	Self
typedef ImageToImageFilter < TInputImage, TOutputImage >	Superclass
Public Types inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
typedef SmartPointer< const Self >	ConstPointer
typedef InputImageType::ConstPointer	InputImageConstPointer
typedef InputImageType::PixelType	InputImagePixelType
typedef InputImageType::Pointer	InputImagePointer
typedef InputImageType::RegionType	InputImageRegionType
typedef TInputImage	InputImageType
typedef Superclass::OutputImagePixelType	OutputImagePixelType
typedef Superclass::OutputImageRegionType	OutputImageRegionType
typedef SmartPointer< Self >	Pointer
typedef ImageToImageFilter	Self
typedef ImageSource< TOutputImage >	Superclass
Public Types inherited from itk::ImageSource< TOutputImage >
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::DataObjectIdentifierType	DataObjectIdentifierType
typedef DataObject::Pointer	DataObjectPointer
typedef Superclass::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType
typedef OutputImageType::PixelType	OutputImagePixelType
typedef OutputImageType::Pointer	OutputImagePointer
typedef OutputImageType::RegionType	OutputImageRegionType
typedef TOutputImage	OutputImageType
typedef SmartPointer< Self >	Pointer
typedef ImageSource	Self
typedef ProcessObject	Superclass
Public Types inherited from itk::ProcessObject
typedef SmartPointer< const Self >	ConstPointer
typedef DataObject::DataObjectIdentifierType	DataObjectIdentifierType
typedef DataObject::Pointer	DataObjectPointer
typedef std::vector < DataObjectPointer >	DataObjectPointerArray
typedef DataObjectPointerArray::size_type	DataObjectPointerArraySizeType
typedef std::vector < DataObjectIdentifierType >	NameArray
typedef SmartPointer< Self >	Pointer
typedef ProcessObject	Self
typedef Object	Superclass
Public Types inherited from itk::Object
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef Object	Self
typedef LightObject	Superclass
Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef LightObject	Self

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
	typedef (Concept::HasNumericTraits< typename TOutputImage::PixelType >) OutputHasNumericTraitsCheck
Public Member Functions inherited from itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >
virtual double	GetFixedAverageGradientMagnitude () const
virtual void	SetTimeStep (TimeStepType _arg)
virtual TimeStepType	GetTimeStep () const
virtual void	SetConductanceParameter (double _arg)
virtual double	GetConductanceParameter () const
virtual void	SetConductanceScalingUpdateInterval (unsigned int _arg)
virtual unsigned int	GetConductanceScalingUpdateInterval () const
virtual void	SetConductanceScalingParameter (double _arg)
virtual double	GetConductanceScalingParameter () const
void	SetFixedAverageGradientMagnitude (double a)
Public Member Functions inherited from itk::DenseFiniteDifferenceImageFilter< TInputImage, TOutputImage >
	typedef (Concept::MultiplyOperator< PixelType, double >) OutputTimesDoubleCheck
	typedef (Concept::AdditiveOperators< PixelType >) OutputAdditiveOperatorsCheck
	typedef (Concept::AdditiveAndAssignOperators< PixelType >) OutputAdditiveAndAssignOperatorsCheck
	typedef (Concept::Convertible< typename TInputImage::PixelType, PixelType >) InputConvertibleToOutputCheck
Public Member Functions inherited from itk::FiniteDifferenceImageFilter< TInputImage, TOutputImage >
virtual const FiniteDifferenceFunctionType::Pointer &	GetDifferenceFunction () const
virtual const IdentifierType &	GetElapsedIterations () const
virtual bool	GetIsInitialized ()
virtual void	SetDifferenceFunction (FiniteDifferenceFunctionType *_arg)
virtual void	SetIsInitialized (bool _arg)
void	SetStateToInitialized ()
void	SetStateToUninitialized ()
virtual void	SetNumberOfIterations (IdentifierType _arg)
virtual const IdentifierType &	GetNumberOfIterations () const
virtual void	SetUseImageSpacing (bool _arg)
virtual void	UseImageSpacingOn ()
virtual void	UseImageSpacingOff ()
virtual const bool &	GetUseImageSpacing () const
virtual void	SetMaximumRMSError (double _arg)
virtual const double &	GetMaximumRMSError () const
virtual void	SetRMSChange (double _arg)
virtual const double &	GetRMSChange () const
virtual void	SetManualReinitialization (bool _arg)
virtual const bool &	GetManualReinitialization () const
virtual void	ManualReinitializationOn ()
virtual void	ManualReinitializationOff ()
Public Member Functions inherited from itk::InPlaceImageFilter< TInputImage, TOutputImage >
virtual bool	CanRunInPlace () const
virtual void	SetInPlace (bool _arg)
virtual bool	GetInPlace () const
virtual void	InPlaceOn ()
virtual void	InPlaceOff ()
Public Member Functions inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
const InputImageType *	GetInput (void) const
const InputImageType *	GetInput (unsigned int idx) const
virtual void	PopBackInput ()
virtual void	PopFrontInput ()
virtual void	PushBackInput (const InputImageType *image)
virtual void	PushFrontInput (const InputImageType *image)
virtual void	SetInput (const InputImageType *image)
virtual void	SetInput (unsigned int, const TInputImage *image)
virtual void	SetCoordinateTolerance (double _arg)
virtual double	GetCoordinateTolerance () const
virtual void	SetDirectionTolerance (double _arg)
virtual double	GetDirectionTolerance () const
Public Member Functions inherited from itk::ImageSource< TOutputImage >
OutputImageType *	GetOutput (unsigned int idx)
virtual void	GraftNthOutput (unsigned int idx, DataObject *output)
virtual void	GraftOutput (DataObject *output)
virtual void	GraftOutput (const DataObjectIdentifierType &key, DataObject *output)
OutputImageType *	GetOutput (void)
const OutputImageType *	GetOutput (void) const
virtual ProcessObject::DataObjectPointer	MakeOutput (ProcessObject::DataObjectPointerArraySizeType idx) ITK_OVERRIDE
Public Member Functions inherited from itk::ProcessObject
virtual void	AbortGenerateDataOff ()
virtual void	AbortGenerateDataOn ()
virtual void	EnlargeOutputRequestedRegion (DataObject *)
virtual const bool &	GetAbortGenerateData () const
NameArray	GetInputNames () const
MultiThreader *	GetMultiThreader () const
DataObjectPointerArraySizeType	GetNumberOfIndexedInputs () const
DataObjectPointerArraySizeType	GetNumberOfInputs () const
DataObjectPointerArraySizeType	GetNumberOfOutputs () const
virtual DataObjectPointerArraySizeType	GetNumberOfValidRequiredInputs () const
NameArray	GetOutputNames () const
virtual const float &	GetProgress () const
NameArray	GetRequiredInputNames () const
bool	HasInput (const DataObjectIdentifierType &key) const
bool	HasOutput (const DataObjectIdentifierType &key) const
virtual DataObjectPointer	MakeOutput (const DataObjectIdentifierType &)
virtual void	PrepareOutputs ()
virtual void	PropagateRequestedRegion (DataObject *output)
virtual void	ResetPipeline ()
virtual void	SetAbortGenerateData (bool _arg)
virtual void	Update ()
virtual void	UpdateLargestPossibleRegion ()
virtual void	UpdateOutputData (DataObject *output)
virtual void	UpdateOutputInformation ()
void	UpdateProgress (float progress)
DataObjectPointerArray	GetInputs ()
DataObjectPointerArray	GetOutputs ()
DataObjectPointerArray	GetIndexedInputs ()
DataObjectPointerArray	GetIndexedOutputs ()
DataObjectPointerArraySizeType	GetNumberOfIndexedOutputs () const
void	SetProgress (float progress)
virtual void	SetReleaseDataFlag (bool flag)
virtual bool	GetReleaseDataFlag () const
void	ReleaseDataFlagOn ()
void	ReleaseDataFlagOff ()
virtual void	SetReleaseDataBeforeUpdateFlag (bool _arg)
virtual const bool &	GetReleaseDataBeforeUpdateFlag () const
virtual void	ReleaseDataBeforeUpdateFlagOn ()
virtual void	ReleaseDataBeforeUpdateFlagOff ()
virtual void	SetNumberOfThreads (ThreadIdType _arg)
virtual const ThreadIdType &	GetNumberOfThreads () const
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual ModifiedTimeType	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const ITK_OVERRIDE
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int) ITK_OVERRIDE
virtual void	UnRegister () const ITK_OVERRIDE
virtual void	SetObjectName (std::string _arg)
virtual const std::string &	GetObjectName () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()
static Pointer	New ()

Static Public Attributes
static const unsigned int	ImageDimension = Superclass::ImageDimension
Static Public Attributes inherited from itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >
static const unsigned int	ImageDimension = Superclass::ImageDimension
Static Public Attributes inherited from itk::DenseFiniteDifferenceImageFilter< TInputImage, TOutputImage >
static const unsigned int	ImageDimension = Superclass::ImageDimension
Static Public Attributes inherited from itk::FiniteDifferenceImageFilter< TInputImage, TOutputImage >
static const unsigned int	ImageDimension = OutputImageType::ImageDimension
Static Public Attributes inherited from itk::InPlaceImageFilter< TInputImage, TOutputImage >
static const unsigned int	InputImageDimension = TInputImage::ImageDimension
static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension
Static Public Attributes inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
static const unsigned int	InputImageDimension = TInputImage::ImageDimension
static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension
Static Public Attributes inherited from itk::ImageSource< TOutputImage >
static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension

Protected Member Functions
	CurvatureAnisotropicDiffusionImageFilter ()
virtual void	InitializeIteration ()
	~CurvatureAnisotropicDiffusionImageFilter ()
Protected Member Functions inherited from itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >
	AnisotropicDiffusionImageFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
	~AnisotropicDiffusionImageFilter ()
Protected Member Functions inherited from itk::DenseFiniteDifferenceImageFilter< TInputImage, TOutputImage >
virtual void	AllocateUpdateBuffer ()
virtual void	ApplyUpdate (const TimeStepType &dt)
virtual TimeStepType	CalculateChange ()
virtual void	CopyInputToOutput ()
	DenseFiniteDifferenceImageFilter ()
virtual UpdateBufferType *	GetUpdateBuffer ()
virtual void	ThreadedApplyUpdate (const TimeStepType &dt, const ThreadRegionType &regionToProcess, ThreadIdType threadId)
virtual TimeStepType	ThreadedCalculateChange (const ThreadRegionType &regionToProcess, ThreadIdType threadId)
	~DenseFiniteDifferenceImageFilter ()
Protected Member Functions inherited from itk::FiniteDifferenceImageFilter< TInputImage, TOutputImage >
virtual void	ApplyUpdate (const TimeStepType &dt)=0
	FiniteDifferenceImageFilter ()
virtual void	GenerateData ()
virtual void	GenerateInputRequestedRegion ()
virtual bool	Halt ()
virtual void	Initialize ()
virtual void	PostProcessOutput ()
virtual TimeStepType	ResolveTimeStep (const std::vector< TimeStepType > &timeStepList, const std::vector< bool > &valid) const
virtual void	SetElapsedIterations (IdentifierType _arg)
virtual bool	ThreadedHalt (void *)
virtual	~FiniteDifferenceImageFilter ()
Protected Member Functions inherited from itk::InPlaceImageFilter< TInputImage, TOutputImage >
virtual void	AllocateOutputs ()
virtual bool	GetRunningInPlace () const
	InPlaceImageFilter ()
virtual void	ReleaseInputs ()
	~InPlaceImageFilter ()
Protected Member Functions inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
virtual void	CallCopyInputRegionToOutputRegion (OutputImageRegionType &destRegion, const InputImageRegionType &srcRegion)
virtual void	CallCopyOutputRegionToInputRegion (InputImageRegionType &destRegion, const OutputImageRegionType &srcRegion)
	ImageToImageFilter ()
virtual void	VerifyInputInformation ()
	~ImageToImageFilter ()
void	PushBackInput (const DataObject *input)
void	PushFrontInput (const DataObject *input)
Protected Member Functions inherited from itk::ImageSource< TOutputImage >
virtual void	AfterThreadedGenerateData ()
virtual void	BeforeThreadedGenerateData ()
virtual const ImageRegionSplitterBase *	GetImageRegionSplitter (void) const
	ImageSource ()
virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int pieces, OutputImageRegionType &splitRegion)
virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, ThreadIdType threadId)
virtual	~ImageSource ()
Protected Member Functions inherited from itk::ProcessObject
virtual void	AddInput (DataObject *input)
virtual void	AddOutput (DataObject *output)
virtual void	CacheInputReleaseDataFlags ()
virtual void	GenerateOutputInformation ()
virtual void	GenerateOutputRequestedRegion (DataObject *output)
virtual const DataObjectPointerArraySizeType &	GetNumberOfRequiredOutputs () const
bool	IsIndexedInputName (const DataObjectIdentifierType &) const
bool	IsIndexedOutputName (const DataObjectIdentifierType &) const
	itkLegacyMacro (virtual void RemoveOutput(DataObject *output))
	itkLegacyMacro (void SetNumberOfOutputs(DataObjectPointerArraySizeType num))
	itkLegacyMacro (virtual void RemoveInput(DataObject *input))
	itkLegacyMacro (void SetNumberOfInputs(DataObjectPointerArraySizeType num))
DataObjectPointerArraySizeType	MakeIndexFromInputName (const DataObjectIdentifierType &name) const
DataObjectPointerArraySizeType	MakeIndexFromOutputName (const DataObjectIdentifierType &name) const
DataObjectIdentifierType	MakeNameFromInputIndex (DataObjectPointerArraySizeType idx) const
DataObjectIdentifierType	MakeNameFromOutputIndex (DataObjectPointerArraySizeType idx) const
	ProcessObject ()
virtual void	PropagateResetPipeline ()
virtual void	RemoveInput (const DataObjectIdentifierType &key)
virtual void	RemoveInput (DataObjectPointerArraySizeType)
virtual void	RemoveOutput (const DataObjectIdentifierType &key)
virtual void	RemoveOutput (DataObjectPointerArraySizeType idx)
virtual void	RestoreInputReleaseDataFlags ()
virtual void	SetInput (const DataObjectIdentifierType &key, DataObject *input)
virtual void	SetNthInput (DataObjectPointerArraySizeType num, DataObject *input)
virtual void	SetNthOutput (DataObjectPointerArraySizeType num, DataObject *output)
void	SetNumberOfIndexedInputs (DataObjectPointerArraySizeType num)
void	SetNumberOfIndexedOutputs (DataObjectPointerArraySizeType num)
virtual void	SetNumberOfRequiredOutputs (DataObjectPointerArraySizeType _arg)
virtual void	SetOutput (const DataObjectIdentifierType &key, DataObject *output)
virtual void	SetPrimaryInput (DataObject *input)
virtual void	SetPrimaryOutput (DataObject *output)
virtual void	VerifyPreconditions ()
	~ProcessObject ()
DataObject *	GetInput (const DataObjectIdentifierType &key)
const DataObject *	GetInput (const DataObjectIdentifierType &key) const
DataObject *	GetInput (DataObjectPointerArraySizeType idx)
const DataObject *	GetInput (DataObjectPointerArraySizeType idx) const
DataObject *	GetPrimaryInput ()
const DataObject *	GetPrimaryInput () const
virtual void	SetPrimaryInputName (const DataObjectIdentifierType &key)
virtual const char *	GetPrimaryInputName (void) const
virtual void	SetNumberOfRequiredInputs (DataObjectPointerArraySizeType)
virtual const DataObjectPointerArraySizeType &	GetNumberOfRequiredInputs () const
bool	AddRequiredInputName (const DataObjectIdentifierType &)
bool	AddRequiredInputName (const DataObjectIdentifierType &, DataObjectPointerArraySizeType idx)
bool	RemoveRequiredInputName (const DataObjectIdentifierType &)
bool	IsRequiredInputName (const DataObjectIdentifierType &) const
void	SetRequiredInputNames (const NameArray &)
DataObject *	GetOutput (const DataObjectIdentifierType &key)
const DataObject *	GetOutput (const DataObjectIdentifierType &key) const
virtual void	SetPrimaryOutputName (const DataObjectIdentifierType &key)
virtual const char *	GetPrimaryOutputName (void) const
DataObject *	GetOutput (DataObjectPointerArraySizeType idx)
const DataObject *	GetOutput (DataObjectPointerArraySizeType idx) const
DataObject *	GetPrimaryOutput ()
const DataObject *	GetPrimaryOutput () const
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Private Member Functions
	CurvatureAnisotropicDiffusionImageFilter (const Self &)
void	operator= (const Self &)

Additional Inherited Members
Protected Types inherited from itk::DenseFiniteDifferenceImageFilter< TInputImage, TOutputImage >
typedef UpdateBufferType::RegionType	ThreadRegionType
Protected Types inherited from itk::ImageToImageFilter< TInputImage, TOutputImage >
typedef ImageToImageFilterDetail::ImageRegionCopier < itkGetStaticConstMacro(OutputImageDimension), itkGetStaticConstMacro(InputImageDimension) >	InputToOutputRegionCopierType
typedef ImageToImageFilterDetail::ImageRegionCopier < itkGetStaticConstMacro(InputImageDimension), itkGetStaticConstMacro(OutputImageDimension) >	OutputToInputRegionCopierType
Protected Types inherited from itk::LightObject
typedef int	InternalReferenceCountType
Static Protected Member Functions inherited from itk::ImageSource< TOutputImage >
static const ImageRegionSplitterBase *	GetGlobalDefaultSplitter ()
static ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
Protected Attributes inherited from itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >
bool	m_GradientMagnitudeIsFixed
Protected Attributes inherited from itk::FiniteDifferenceImageFilter< TInputImage, TOutputImage >
IdentifierType	m_ElapsedIterations
bool	m_IsInitialized
bool	m_ManualReinitialization
double	m_MaximumRMSError
IdentifierType	m_NumberOfIterations
double	m_RMSChange
Protected Attributes inherited from itk::ProcessObject
TimeStamp	m_OutputInformationMTime
bool	m_Updating
Protected Attributes inherited from itk::LightObject
InternalReferenceCountType	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock

Member Typedef Documentation

template<typename TInputImage , typename TOutputImage >

typedef SmartPointer< const Self > itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::ConstPointer

Definition at line 68 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

template<typename TInputImage , typename TOutputImage >

typedef SmartPointer< Self > itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::Pointer

Definition at line 67 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

template<typename TInputImage , typename TOutputImage >

typedef CurvatureAnisotropicDiffusionImageFilter itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::Self

Standard class typedefs.

Definition at line 64 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

template<typename TInputImage , typename TOutputImage >

typedef AnisotropicDiffusionImageFilter< TInputImage, TOutputImage > itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::Superclass

Definition at line 66 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

template<typename TInputImage , typename TOutputImage >

typedef Superclass::UpdateBufferType itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::UpdateBufferType

Extract superclass information.

Definition at line 75 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

Constructor & Destructor Documentation

template<typename TInputImage , typename TOutputImage >

itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::CurvatureAnisotropicDiffusionImageFilter ( )

inlineprotected

Definition at line 92 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

References itk::CurvatureNDAnisotropicDiffusionFunction< TImage >::New(), and itk::FiniteDifferenceImageFilter< TInputImage, TOutputImage >::SetDifferenceFunction().

template<typename TInputImage , typename TOutputImage >

itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::~CurvatureAnisotropicDiffusionImageFilter ( )

inlineprotected

Definition at line 99 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

template<typename TInputImage , typename TOutputImage >

itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::CurvatureAnisotropicDiffusionImageFilter ( const Self &  )

private

Member Function Documentation

template<typename TInputImage , typename TOutputImage >

virtual::itk::LightObject::Pointer itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::CreateAnother ( void  ) const

virtual

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.

Reimplemented from itk::Object.

template<typename TInputImage , typename TOutputImage >

virtual const char* itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::GetNameOfClass ( ) const

virtual

Run-time information.

Reimplemented from itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >.

template<typename TInputImage , typename TOutputImage >

virtual void itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::InitializeIteration ( )

inlineprotectedvirtual

Supplies the halting criteria for this class of filters. The algorithm will stop after a user-specified number of iterations. Prepare for the iteration process.

Reimplemented from itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >.

Definition at line 101 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

References itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::GetTimeStep(), itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::ImageDimension, and itk::AnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::InitializeIteration().

template<typename TInputImage , typename TOutputImage >

static Pointer itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::New ( )

static

Standard method for creation through object factory.

template<typename TInputImage , typename TOutputImage >

void itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::operator= ( const Self &  )

private

template<typename TInputImage , typename TOutputImage >

itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::typedef

(

Concept::HasNumericTraits< typename TOutputImage::PixelType >

)

This class requires OutputHasNumericTraitsCheck in the form of ( Concept::HasNumericTraits< typename TOutputImage::PixelType > )

Member Data Documentation

template<typename TInputImage , typename TOutputImage >

const unsigned int itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::ImageDimension = Superclass::ImageDimension

static

Extract superclass image dimension.

Definition at line 82 of file itkCurvatureAnisotropicDiffusionImageFilter.h.

Referenced by itk::CurvatureAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >::InitializeIteration().

---

The documentation for this class was generated from the following file:

• itkCurvatureAnisotropicDiffusionImageFilter.h
