itk::WhitakerSparseLevelSetImage< TOutput, VDimension > Class Template Reference

#include <itkWhitakerSparseLevelSetImage.h>

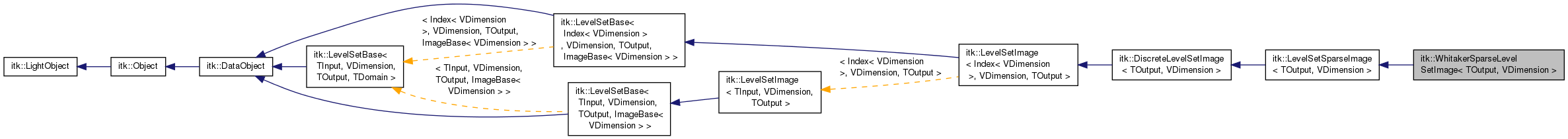

Inheritance diagram for itk::WhitakerSparseLevelSetImage< TOutput, VDimension >:

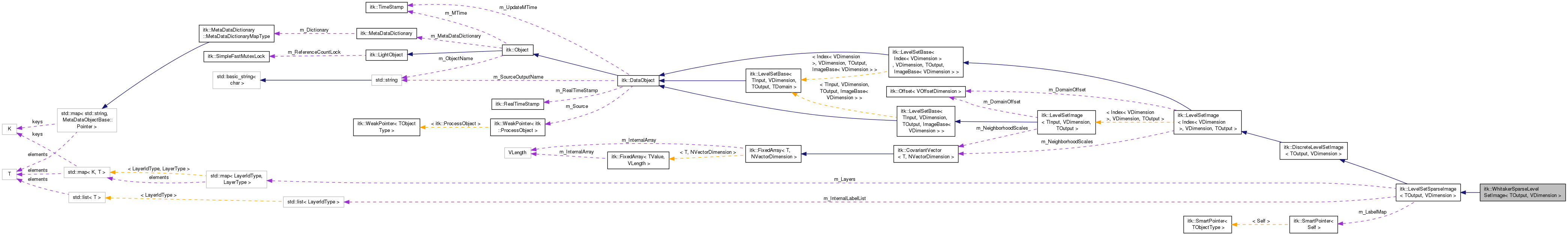

Collaboration diagram for itk::WhitakerSparseLevelSetImage< TOutput, VDimension >:

Detailed Description

template<typename TOutput, unsigned int VDimension>
class itk::WhitakerSparseLevelSetImage< TOutput, VDimension >

Derived class for the sparse-field representation of level-set function.

This representation is a "sparse" level-set function, where values are real in between [ -3, +3 ] and organized into several layers { -2, -1, 0, +1, +2 }.

Template Parameters

TOutput	Output type (float or double) of the level set function
VDimension	Dimension of the input space

Definition at line 41 of file itkWhitakerSparseLevelSetImage.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::GradientType	GradientType
typedef Superclass::HessianType	HessianType
typedef Superclass::InputType	InputType
typedef Superclass::LabelMapPointer	LabelMapPointer
typedef Superclass::LabelMapType	LabelMapType
typedef Superclass::LabelObjectLengthType	LabelObjectLengthType
typedef Superclass::LabelObjectLineType	LabelObjectLineType
typedef Superclass::LabelObjectPointer	LabelObjectPointer
typedef Superclass::LabelObjectType	LabelObjectType
typedef Superclass::LayerConstIterator	LayerConstIterator
typedef Superclass::LayerIdType	LayerIdType
typedef Superclass::LayerIterator	LayerIterator
typedef Superclass::LayerMapConstIterator	LayerMapConstIterator
typedef Superclass::LayerMapIterator	LayerMapIterator
typedef Superclass::LayerMapType	LayerMapType
typedef Superclass::LayerType	LayerType
typedef Superclass::LevelSetDataType	LevelSetDataType
typedef Superclass::OutputRealType	OutputRealType
typedef Superclass::OutputType	OutputType
typedef SmartPointer< Self >	Pointer
typedef Superclass::RegionType	RegionType
typedef WhitakerSparseLevelSetImage	Self
typedef LevelSetSparseImage < TOutput, VDimension >	Superclass
Public Types inherited from itk::LevelSetSparseImage< TOutput, VDimension >
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::GradientType	GradientType
typedef Superclass::HessianType	HessianType
typedef Superclass::InputType	InputType
typedef LabelMapType::Pointer	LabelMapPointer
typedef LabelMap< LabelObjectType >	LabelMapType
typedef LabelObjectType::LengthType	LabelObjectLengthType
typedef LabelObjectType::LineType	LabelObjectLineType
typedef LabelObjectType::Pointer	LabelObjectPointer
typedef LabelObject < LayerIdType, VDimension >	LabelObjectType
typedef LayerType::const_iterator	LayerConstIterator
typedef std::list< LayerIdType >	LayerIdListType
typedef int8_t	LayerIdType
typedef LayerType::iterator	LayerIterator
typedef LayerMapType::const_iterator	LayerMapConstIterator
typedef LayerMapType::iterator	LayerMapIterator
typedef std::map< LayerIdType, LayerType >	LayerMapType
typedef std::map< InputType, OutputType, Functor::IndexLexicographicCompare < VDimension > >	LayerType
typedef Superclass::LevelSetDataType	LevelSetDataType
typedef Superclass::OutputRealType	OutputRealType
typedef Superclass::OutputType	OutputType
typedef SmartPointer< Self >	Pointer
typedef LabelMapType::RegionType	RegionType
typedef LevelSetSparseImage	Self
typedef DiscreteLevelSetImage < TOutput, VDimension >	Superclass
Public Types inherited from itk::DiscreteLevelSetImage< TOutput, VDimension >
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::GradientType	GradientType
typedef Superclass::HessianType	HessianType
typedef Index< VDimension >	IndexType
typedef Superclass::InputType	InputType
typedef Superclass::LevelSetDataType	LevelSetDataType
typedef Superclass::OutputRealType	OutputRealType
typedef Superclass::OutputType	OutputType
typedef SmartPointer< Self >	Pointer
typedef DiscreteLevelSetImage	Self
typedef LevelSetImage < IndexType, VDimension, TOutput >	Superclass
Public Types inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::GradientType	GradientType
typedef Superclass::HessianType	HessianType
typedef ImageBase< VDimension >	ImageBaseType
typedef Superclass::InputType	InputType
typedef Superclass::LevelSetDataType	LevelSetDataType
typedef ImageBaseType::OffsetType	OffsetType
typedef ImageBaseType::OffsetValueType	OffsetValueType
typedef Superclass::OutputRealType	OutputRealType
typedef Superclass::OutputType	OutputType
typedef SmartPointer< Self >	Pointer
typedef LevelSetImage	Self
typedef LevelSetBase< Index < VDimension >, VDimension, TOutput, ImageBaseType >	Superclass
Public Types inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
typedef SmartPointer< const Self >	ConstPointer
typedef ImageBase< VDimension >	DomainType
typedef CovariantVector < OutputRealType, VDimension >	GradientType
typedef Matrix< OutputRealType, VDimension, VDimension >	HessianType
typedef Index< VDimension >	InputType
typedef NumericTraits < OutputType >::RealType	OutputRealType
typedef TOutput	OutputType
typedef SmartPointer< Self >	Pointer
typedef IdentifierType	RegionType
typedef LevelSetBase	Self
typedef DataObject	Superclass
Public Types inherited from itk::DataObject
typedef SmartPointer< const Self >	ConstPointer
typedef std::string	DataObjectIdentifierType
typedef std::vector< Pointer > ::size_type	DataObjectPointerArraySizeType
typedef SmartPointer< Self >	Pointer
typedef DataObject	Self
typedef Object	Superclass
Public Types inherited from itk::Object
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef Object	Self
typedef LightObject	Superclass
Public Types inherited from itk::LightObject
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef LightObject	Self

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual OutputType	Evaluate (const InputType &inputIndex) const
virtual const char *	GetNameOfClass () const
	typedef (Concept::Convertible< OutputRealType, OutputType >) DoubleConvertible
Public Member Functions inherited from itk::LevelSetSparseImage< TOutput, VDimension >
template<typename TLabel >
LabelObject< TLabel, VDimension >::Pointer	GetAsLabelObject ()
const LayerType &	GetLayer (LayerIdType value) const
LayerType &	GetLayer (LayerIdType value)
virtual void	Graft (const DataObject *data)
void	SetLayer (LayerIdType value, const LayerType &iLayer)
virtual LayerIdType	Status (const InputType &inputIndex) const
virtual void	SetLabelMap (LabelMapType *iLabelMap)
virtual LabelMapType *	GetModifiableLabelMap ()
virtual const LabelMapType *	GetLabelMap () const
Public Member Functions inherited from itk::DiscreteLevelSetImage< TOutput, VDimension >
virtual void	Evaluate (const InputType &inputIndex, LevelSetDataType &data) const
virtual GradientType	EvaluateBackwardGradient (const InputType &inputIndex) const
virtual void	EvaluateBackwardGradient (const InputType &inputIndex, LevelSetDataType &data) const
virtual GradientType	EvaluateForwardGradient (const InputType &inputIndex) const
virtual void	EvaluateForwardGradient (const InputType &inputIndex, LevelSetDataType &data) const
virtual GradientType	EvaluateGradient (const InputType &inputIndex) const
virtual void	EvaluateGradient (const InputType &inputIndex, LevelSetDataType &data) const
virtual HessianType	EvaluateHessian (const InputType &inputIndex) const
virtual void	EvaluateHessian (const InputType &inputIndex, LevelSetDataType &data) const
virtual OutputRealType	EvaluateLaplacian (const InputType &inputIndex) const
virtual void	EvaluateLaplacian (const InputType &inputIndex, LevelSetDataType &data) const
virtual OutputRealType	EvaluateMeanCurvature (const InputType &inputIndex) const
virtual void	EvaluateMeanCurvature (const InputType &inputIndex, LevelSetDataType &data) const
Public Member Functions inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
virtual OffsetType	GetDomainOffset () const
virtual void	SetDomainOffset (OffsetType _arg)
Public Member Functions inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
virtual OutputType	Evaluate (const InputType &iP) const =0
virtual GradientType	EvaluateGradient (const InputType &iP) const =0
virtual OutputRealType	EvaluateGradientNorm (const InputType &iP) const
virtual HessianType	EvaluateHessian (const InputType &iP) const =0
virtual OutputRealType	EvaluateLaplacian (const InputType &iP) const =0
virtual OutputRealType	EvaluateMeanCurvature (const InputType &iP) const =0
virtual void	Evaluate (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateGradient (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateHessian (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateLaplacian (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateGradientNorm (const InputType &iP, LevelSetDataType &ioData) const
virtual void	EvaluateMeanCurvature (const InputType &iP, LevelSetDataType &ioData) const
virtual void	EvaluateForwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateBackwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0
virtual bool	IsInside (const InputType &iP) const
virtual RegionType	GetMaximumNumberOfRegions () const
virtual void	UpdateOutputInformation () ITK_OVERRIDE
virtual void	SetRequestedRegionToLargestPossibleRegion () ITK_OVERRIDE
virtual bool	RequestedRegionIsOutsideOfTheBufferedRegion () ITK_OVERRIDE
virtual bool	VerifyRequestedRegion () ITK_OVERRIDE
virtual void	SetRequestedRegion (const DataObject *data) ITK_OVERRIDE
virtual void	SetRequestedRegion (const RegionType &region)
virtual RegionType	GetRequestedRegion () const
virtual void	SetBufferedRegion (const RegionType &region)
virtual RegionType	GetBufferedRegion () const
Public Member Functions inherited from itk::DataObject
virtual void	DataHasBeenGenerated ()
void	DisconnectPipeline ()
bool	GetDataReleased () const
virtual const bool &	GetReleaseDataFlag () const
SmartPointerForwardReference < ProcessObject >	GetSource () const
DataObjectPointerArraySizeType	GetSourceOutputIndex () const
const DataObjectIdentifierType &	GetSourceOutputName () const
virtual ModifiedTimeType	GetUpdateMTime () const
virtual void	PrepareForNewData ()
virtual void	PropagateRequestedRegion ()
void	ReleaseData ()
virtual void	ReleaseDataFlagOff ()
virtual void	ReleaseDataFlagOn ()
virtual void	ResetPipeline ()
void	SetReleaseDataFlag (bool flag)
bool	ShouldIReleaseData () const
virtual void	Update ()
virtual void	UpdateOutputData ()
void	SetPipelineMTime (ModifiedTimeType time)
virtual const ModifiedTimeType &	GetPipelineMTime () const
virtual void	SetRealTimeStamp (RealTimeStamp _arg)
virtual const RealTimeStamp &	GetRealTimeStamp () const
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual ModifiedTimeType	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const ITK_OVERRIDE
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int) ITK_OVERRIDE
virtual void	UnRegister () const ITK_OVERRIDE
virtual void	SetObjectName (std::string _arg)
virtual const std::string &	GetObjectName () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Static Public Member Functions
static LayerIdType	MinusOneLayer ()
static LayerIdType	MinusThreeLayer ()
static LayerIdType	MinusTwoLayer ()
static Pointer	New ()
static LayerIdType	PlusOneLayer ()
static LayerIdType	PlusThreeLayer ()
static LayerIdType	PlusTwoLayer ()
static LayerIdType	ZeroLayer ()
Static Public Member Functions inherited from itk::DataObject
static bool	GetGlobalReleaseDataFlag ()
static void	GlobalReleaseDataFlagOff ()
static void	GlobalReleaseDataFlagOn ()
static void	SetGlobalReleaseDataFlag (bool val)
Static Public Member Functions inherited from itk::Object
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalWarningDisplay (bool flag)
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()
static Pointer	New ()

Static Public Attributes
static const unsigned int	Dimension = VDimension
Static Public Attributes inherited from itk::LevelSetSparseImage< TOutput, VDimension >
static const unsigned int	Dimension = Superclass::Dimension
Static Public Attributes inherited from itk::DiscreteLevelSetImage< TOutput, VDimension >
static const unsigned int	Dimension = Superclass::Dimension
Static Public Attributes inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
static const unsigned int	Dimension
Static Public Attributes inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
static const unsigned int	Dimension
template<typename TLabel >
LabelObject< TLabel, Dimension > ::Pointer	GetAsLabelObject ()
	WhitakerSparseLevelSetImage ()
virtual	~WhitakerSparseLevelSetImage ()
virtual void	InitializeLayers ()
virtual void	InitializeInternalLabelList ()
	WhitakerSparseLevelSetImage (const Self &)
void	operator= (const Self &)

Additional Inherited Members
Protected Types inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
typedef GradientType	ScalingType
Protected Types inherited from itk::LightObject
typedef int	InternalReferenceCountType
Protected Member Functions inherited from itk::LevelSetSparseImage< TOutput, VDimension >
virtual void	CopyInformation (const DataObject *data)
virtual void	Initialize ()
virtual bool	IsInsideDomain (const InputType &inputIndex) const
	LevelSetSparseImage ()
virtual	~LevelSetSparseImage ()
Protected Member Functions inherited from itk::DiscreteLevelSetImage< TOutput, VDimension >
	DiscreteLevelSetImage ()
virtual	~DiscreteLevelSetImage ()
Protected Member Functions inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
virtual bool	IsInsideDomain (const InputType &iP) const =0
	LevelSetImage ()
virtual	~LevelSetImage ()
Protected Member Functions inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
	LevelSetBase ()
virtual	~LevelSetBase ()
Protected Member Functions inherited from itk::DataObject
	DataObject ()
virtual void	PrintSelf (std::ostream &os, Indent indent) const ITK_OVERRIDE
virtual void	PropagateResetPipeline ()
	~DataObject ()
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()
Protected Attributes inherited from itk::LevelSetSparseImage< TOutput, VDimension >
LayerIdListType	m_InternalLabelList
LabelMapPointer	m_LabelMap
LayerMapType	m_Layers
Protected Attributes inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
OffsetType	m_DomainOffset
ScalingType	m_NeighborhoodScales
Protected Attributes inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
RegionType	m_MaximumNumberOfRegions
RegionType	m_NumberOfRegions
RegionType	m_RequestedNumberOfRegions
RegionType	m_BufferedRegion
RegionType	m_RequestedRegion
Protected Attributes inherited from itk::LightObject
InternalReferenceCountType	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock

Member Typedef Documentation

template<typename TOutput , unsigned int VDimension>

typedef SmartPointer< const Self > itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::ConstPointer

Definition at line 47 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::GradientType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::GradientType

Definition at line 61 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::HessianType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::HessianType

Definition at line 62 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::InputType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::InputType

Definition at line 58 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LabelMapPointer itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LabelMapPointer

Definition at line 72 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LabelMapType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LabelMapType

Definition at line 71 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LabelObjectLengthType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LabelObjectLengthType

Definition at line 68 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LabelObjectLineType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LabelObjectLineType

Definition at line 69 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LabelObjectPointer itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LabelObjectPointer

Definition at line 67 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LabelObjectType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LabelObjectType

Definition at line 66 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LayerConstIterator itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LayerConstIterator

Definition at line 77 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LayerIdType

Definition at line 65 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LayerIterator itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LayerIterator

Definition at line 76 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LayerMapConstIterator itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LayerMapConstIterator

Definition at line 81 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LayerMapIterator itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LayerMapIterator

Definition at line 80 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LayerMapType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LayerMapType

Definition at line 79 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LayerType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LayerType

Definition at line 75 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::LevelSetDataType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::LevelSetDataType

Definition at line 63 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::OutputRealType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::OutputRealType

Definition at line 60 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::OutputType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::OutputType

Definition at line 59 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef SmartPointer< Self > itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::Pointer

Definition at line 46 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef Superclass::RegionType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::RegionType

Definition at line 73 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef WhitakerSparseLevelSetImage itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::Self

Definition at line 45 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

typedef LevelSetSparseImage< TOutput, VDimension > itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::Superclass

Definition at line 48 of file itkWhitakerSparseLevelSetImage.h.

Constructor & Destructor Documentation

template<typename TOutput , unsigned int VDimension>

itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::WhitakerSparseLevelSetImage ( )

protected

Return the label object pointer with a given id

template<typename TOutput , unsigned int VDimension>

virtual itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::~WhitakerSparseLevelSetImage ( )

protectedvirtual

Return the label object pointer with a given id

template<typename TOutput , unsigned int VDimension>

itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::WhitakerSparseLevelSetImage ( const Self &  )

private

Return the label object pointer with a given id

Member Function Documentation

template<typename TOutput , unsigned int VDimension>

virtual::itk::LightObject::Pointer itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::CreateAnother ( void  ) const

virtual

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.

Reimplemented from itk::Object.

template<typename TOutput , unsigned int VDimension>

virtual OutputType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::Evaluate ( const InputType &  inputIndex ) const

virtual

Returns the gradient of the level set function at a given location inputIndex

Implements itk::DiscreteLevelSetImage< TOutput, VDimension >.

template<typename TOutput , unsigned int VDimension>

template<typename TLabel >

LabelObject< TLabel, Dimension >::Pointer itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::GetAsLabelObject ( )

inline

Return the label object pointer with a given id

Definition at line 107 of file itkWhitakerSparseLevelSetImage.h.

References itk::LevelSetSparseImage< TOutput, VDimension >::m_LabelMap, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::MinusThreeLayer(), and itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::PlusOneLayer().

template<typename TOutput , unsigned int VDimension>

virtual const char* itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::LevelSetSparseImage< TOutput, VDimension >.

template<typename TOutput , unsigned int VDimension>

virtual void itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::InitializeInternalLabelList ( )

protectedvirtual

Return the label object pointer with a given id

Implements itk::LevelSetSparseImage< TOutput, VDimension >.

template<typename TOutput , unsigned int VDimension>

virtual void itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::InitializeLayers ( )

protectedvirtual

Initialize the sparse field layers

Implements itk::LevelSetSparseImage< TOutput, VDimension >.

template<typename TOutput , unsigned int VDimension>

static LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::MinusOneLayer ( )

inlinestatic

Definition at line 98 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

static LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::MinusThreeLayer ( )

inlinestatic

Definition at line 96 of file itkWhitakerSparseLevelSetImage.h.

Referenced by itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::GetAsLabelObject().

template<typename TOutput , unsigned int VDimension>

static LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::MinusTwoLayer ( )

inlinestatic

Definition at line 97 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

static Pointer itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::New ( )

static

Method for creation through the object factory.

template<typename TOutput , unsigned int VDimension>

void itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::operator= ( const Self &  )

private

Return the label object pointer with a given id

template<typename TOutput , unsigned int VDimension>

static LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::PlusOneLayer ( )

inlinestatic

Definition at line 100 of file itkWhitakerSparseLevelSetImage.h.

Referenced by itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::GetAsLabelObject().

template<typename TOutput , unsigned int VDimension>

static LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::PlusThreeLayer ( )

inlinestatic

Definition at line 102 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

static LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::PlusTwoLayer ( )

inlinestatic

Definition at line 101 of file itkWhitakerSparseLevelSetImage.h.

template<typename TOutput , unsigned int VDimension>

itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::typedef

(

Concept::Convertible< OutputRealType, OutputType >

)

This class requires DoubleConvertible in the form of ( Concept::Convertible< OutputRealType, OutputType > )

template<typename TOutput , unsigned int VDimension>

static LayerIdType itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::ZeroLayer ( )

inlinestatic

Definition at line 99 of file itkWhitakerSparseLevelSetImage.h.

Member Data Documentation

template<typename TOutput , unsigned int VDimension>

const unsigned int itk::WhitakerSparseLevelSetImage< TOutput, VDimension >::Dimension = VDimension

static

Definition at line 56 of file itkWhitakerSparseLevelSetImage.h.

---

The documentation for this class was generated from the following file:

• itkWhitakerSparseLevelSetImage.h
