#include <itkColormapFunction.h>

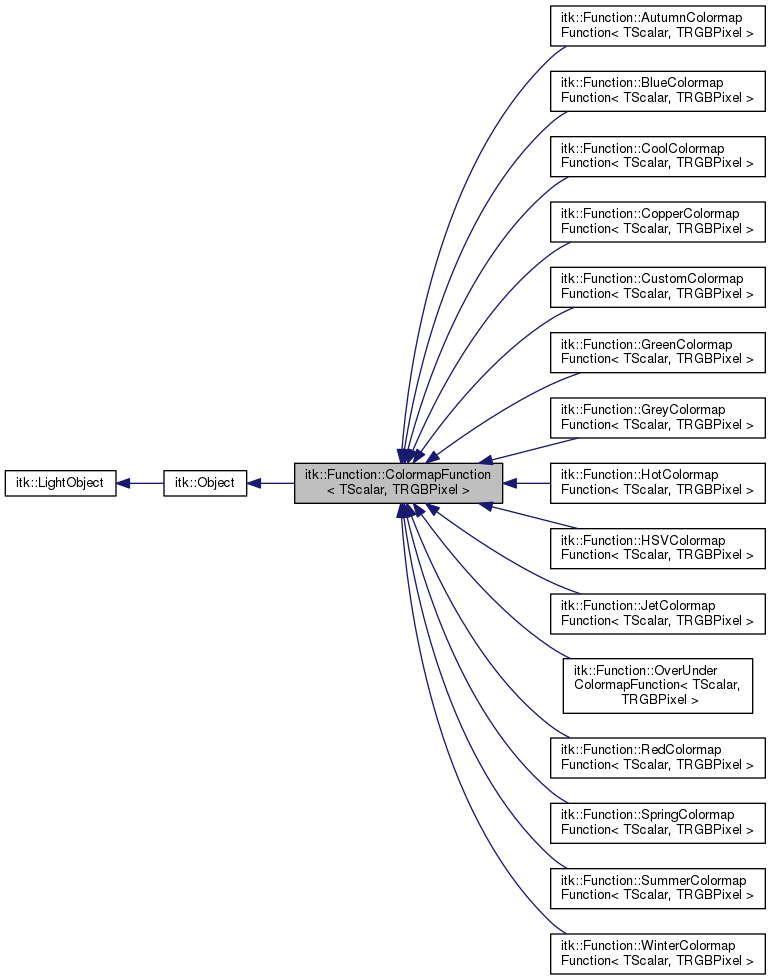

Inheritance diagram for itk::Function::ColormapFunction< TScalar, TRGBPixel >: Collaboration diagram for itk::Function::ColormapFunction< TScalar, TRGBPixel >:Function object which maps a scalar value into an RGB colormap value.
This code was contributed in the Insight Journal paper:
"Meeting Andy Warhol Somewhere Over the Rainbow: RGB Colormapping and ITK" http://www.insight-journal.org/browse/publication/285 https://hdl.handle.net/1926/1452
Definition at line 46 of file itkColormapFunction.h.
Public Types | |
| using | ConstPointer = SmartPointer< const Self > |
| using | Pointer = SmartPointer< Self > |
| using | RealType = typename NumericTraits< ScalarType >::RealType |
| using | RGBComponentType = typename TRGBPixel::ComponentType |
| using | RGBPixelType = TRGBPixel |
| using | ScalarType = TScalar |
| using | Self = ColormapFunction |
| using | Superclass = Object |
| Public Types inherited from itk::Object | |
| using | ConstPointer = SmartPointer< const Self > |
| using | Pointer = SmartPointer< Self > |
| using | Self = Object |
| using | Superclass = LightObject |
| Public Types inherited from itk::LightObject | |
| using | ConstPointer = SmartPointer< const Self > |
| using | Pointer = SmartPointer< Self > |
| using | Self = LightObject |
Public Member Functions | |
| virtual ScalarType | GetMaximumInputValue () const |
| virtual RGBComponentType | GetMaximumRGBComponentValue () const |
| virtual ScalarType | GetMinimumInputValue () const |
| virtual RGBComponentType | GetMinimumRGBComponentValue () const |
| virtual const char * | GetNameOfClass () const |
| virtual bool | operator!= (const ColormapFunction &) const |
| virtual RGBPixelType | operator() (const ScalarType &) const =0 |
| virtual bool | operator== (const ColormapFunction &other) const |
| virtual void | SetMaximumInputValue (ScalarType _arg) |
| virtual void | SetMaximumRGBComponentValue (RGBComponentType _arg) |
| virtual void | SetMinimumInputValue (ScalarType _arg) |
| virtual void | SetMinimumRGBComponentValue (RGBComponentType _arg) |
| Public Member Functions inherited from itk::Object | |
| unsigned long | AddObserver (const EventObject &event, Command *) |
| unsigned long | AddObserver (const EventObject &event, Command *) const |
| LightObject::Pointer | CreateAnother () const override |
| virtual void | DebugOff () const |
| virtual void | DebugOn () const |
| Command * | GetCommand (unsigned long tag) |
| bool | GetDebug () const |
| MetaDataDictionary & | GetMetaDataDictionary () |
| const MetaDataDictionary & | GetMetaDataDictionary () const |
| virtual ModifiedTimeType | GetMTime () const |
| virtual const TimeStamp & | GetTimeStamp () const |
| bool | HasObserver (const EventObject &event) const |
| void | InvokeEvent (const EventObject &) |
| void | InvokeEvent (const EventObject &) const |
| virtual void | Modified () const |
| void | Register () const override |
| void | RemoveAllObservers () |
| void | RemoveObserver (unsigned long tag) |
| void | SetDebug (bool debugFlag) const |
| void | SetReferenceCount (int) override |
| void | UnRegister () const noexceptoverride |
| void | SetMetaDataDictionary (const MetaDataDictionary &rhs) |
| void | SetMetaDataDictionary (MetaDataDictionary &&rrhs) |
| virtual void | SetObjectName (std::string _arg) |
| virtual const std::string & | GetObjectName () const |
| Public Member Functions inherited from itk::LightObject | |
| virtual void | Delete () |
| virtual int | GetReferenceCount () const |
| itkCloneMacro (Self) | |
| void | Print (std::ostream &os, Indent indent=0) const |
Protected Member Functions | |
| ColormapFunction () | |
| ~ColormapFunction () override=default | |
| Protected Member Functions inherited from itk::Object | |
| Object () | |
| bool | PrintObservers (std::ostream &os, Indent indent) const |
| virtual void | SetTimeStamp (const TimeStamp &time) |
| ~Object () override | |
| Protected Member Functions inherited from itk::LightObject | |
| virtual LightObject::Pointer | InternalClone () const |
| LightObject () | |
| virtual void | PrintHeader (std::ostream &os, Indent indent) const |
| virtual void | PrintTrailer (std::ostream &os, Indent indent) const |
| virtual | ~LightObject () |
| ScalarType | m_MinimumInputValue |
| ScalarType | m_MaximumInputValue |
| RGBComponentType | m_MinimumRGBComponentValue |
| RGBComponentType | m_MaximumRGBComponentValue |
| RealType | RescaleInputValue (ScalarType v) const |
| RGBComponentType | RescaleRGBComponentValue (RealType v) const |
| void | PrintSelf (std::ostream &os, Indent indent) const override |
Additional Inherited Members | |
| Static Public Member Functions inherited from itk::Object | |
| static bool | GetGlobalWarningDisplay () |
| static void | GlobalWarningDisplayOff () |
| static void | GlobalWarningDisplayOn () |
| static Pointer | New () |
| static void | SetGlobalWarningDisplay (bool flag) |
| Static Public Member Functions inherited from itk::LightObject | |
| static void | BreakOnError () |
| static Pointer | New () |
| Protected Attributes inherited from itk::LightObject | |
| std::atomic< int > | m_ReferenceCount |
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::ConstPointer = SmartPointer< const Self > |
Definition at line 54 of file itkColormapFunction.h.
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::Pointer = SmartPointer< Self > |
Definition at line 53 of file itkColormapFunction.h.
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::RealType = typename NumericTraits< ScalarType >::RealType |
Definition at line 62 of file itkColormapFunction.h.
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::RGBComponentType = typename TRGBPixel::ComponentType |
Definition at line 60 of file itkColormapFunction.h.
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::RGBPixelType = TRGBPixel |
Definition at line 59 of file itkColormapFunction.h.
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::ScalarType = TScalar |
Definition at line 61 of file itkColormapFunction.h.
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::Self = ColormapFunction |
Definition at line 51 of file itkColormapFunction.h.
| using itk::Function::ColormapFunction< TScalar, TRGBPixel >::Superclass = Object |
Definition at line 52 of file itkColormapFunction.h.
|
inlineprotected |
Definition at line 89 of file itkColormapFunction.h.
References itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MaximumInputValue, itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MaximumRGBComponentValue, itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MinimumInputValue, and itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MinimumRGBComponentValue.
|
overrideprotecteddefault |
|
virtual |
|
virtual |
|
virtual |
|
virtual |
|
virtual |
Run-time type information (and related methods).
Reimplemented from itk::Object.
|
inlinevirtual |
Definition at line 76 of file itkColormapFunction.h.
|
pure virtual |
Implemented in itk::Function::CustomColormapFunction< TScalar, TRGBPixel >, itk::Function::GreyColormapFunction< TScalar, TRGBPixel >, itk::Function::HotColormapFunction< TScalar, TRGBPixel >, itk::Function::HSVColormapFunction< TScalar, TRGBPixel >, itk::Function::JetColormapFunction< TScalar, TRGBPixel >, itk::Function::OverUnderColormapFunction< TScalar, TRGBPixel >, itk::Function::RedColormapFunction< TScalar, TRGBPixel >, itk::Function::SpringColormapFunction< TScalar, TRGBPixel >, itk::Function::SummerColormapFunction< TScalar, TRGBPixel >, itk::Function::WinterColormapFunction< TScalar, TRGBPixel >, itk::Function::AutumnColormapFunction< TScalar, TRGBPixel >, itk::Function::BlueColormapFunction< TScalar, TRGBPixel >, itk::Function::CoolColormapFunction< TScalar, TRGBPixel >, itk::Function::CopperColormapFunction< TScalar, TRGBPixel >, and itk::Function::GreenColormapFunction< TScalar, TRGBPixel >.
|
inlinevirtual |
Definition at line 81 of file itkColormapFunction.h.
|
inlineoverrideprotectedvirtual |
Map [min, max] input values to [0, 1].
Reimplemented from itk::Object.
Definition at line 131 of file itkColormapFunction.h.
References itk::Function::ColormapFunction< TScalar, TRGBPixel >::GetMaximumInputValue(), itk::Function::ColormapFunction< TScalar, TRGBPixel >::GetMaximumRGBComponentValue(), itk::Function::ColormapFunction< TScalar, TRGBPixel >::GetMinimumInputValue(), itk::Function::ColormapFunction< TScalar, TRGBPixel >::GetMinimumRGBComponentValue(), and itk::Object::PrintSelf().
|
inlineprotected |
Map [min, max] input values to [0, 1].
Definition at line 102 of file itkColormapFunction.h.
References itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MaximumInputValue, and itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MinimumInputValue.
|
inlineprotected |
Map [0, 1] value to [min, max] rgb component values.
Definition at line 120 of file itkColormapFunction.h.
References itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MaximumRGBComponentValue, and itk::Function::ColormapFunction< TScalar, TRGBPixel >::m_MinimumRGBComponentValue.
|
virtual |
|
virtual |
|
virtual |
|
virtual |
|
private |
Map [min, max] input values to [0, 1].
Definition at line 151 of file itkColormapFunction.h.
Referenced by itk::Function::ColormapFunction< TScalar, TRGBPixel >::ColormapFunction(), and itk::Function::ColormapFunction< TScalar, TRGBPixel >::RescaleInputValue().
|
private |
Map [min, max] input values to [0, 1].
Definition at line 154 of file itkColormapFunction.h.
Referenced by itk::Function::ColormapFunction< TScalar, TRGBPixel >::ColormapFunction(), and itk::Function::ColormapFunction< TScalar, TRGBPixel >::RescaleRGBComponentValue().
|
private |
Map [min, max] input values to [0, 1].
Definition at line 150 of file itkColormapFunction.h.
Referenced by itk::Function::ColormapFunction< TScalar, TRGBPixel >::ColormapFunction(), and itk::Function::ColormapFunction< TScalar, TRGBPixel >::RescaleInputValue().
|
private |
Map [min, max] input values to [0, 1].
Definition at line 153 of file itkColormapFunction.h.
Referenced by itk::Function::ColormapFunction< TScalar, TRGBPixel >::ColormapFunction(), and itk::Function::ColormapFunction< TScalar, TRGBPixel >::RescaleRGBComponentValue().
