#include <itkScalarChanAndVeseLevelSetFunction.h>

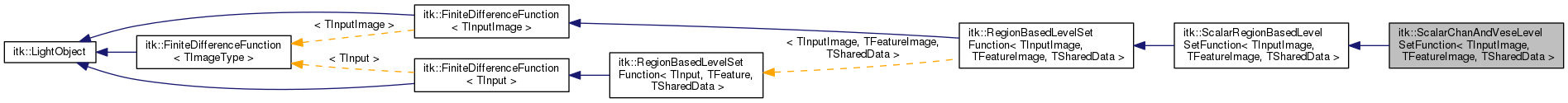

Inheritance diagram for itk::ScalarChanAndVeseLevelSetFunction< TInputImage, TFeatureImage, TSharedData >:

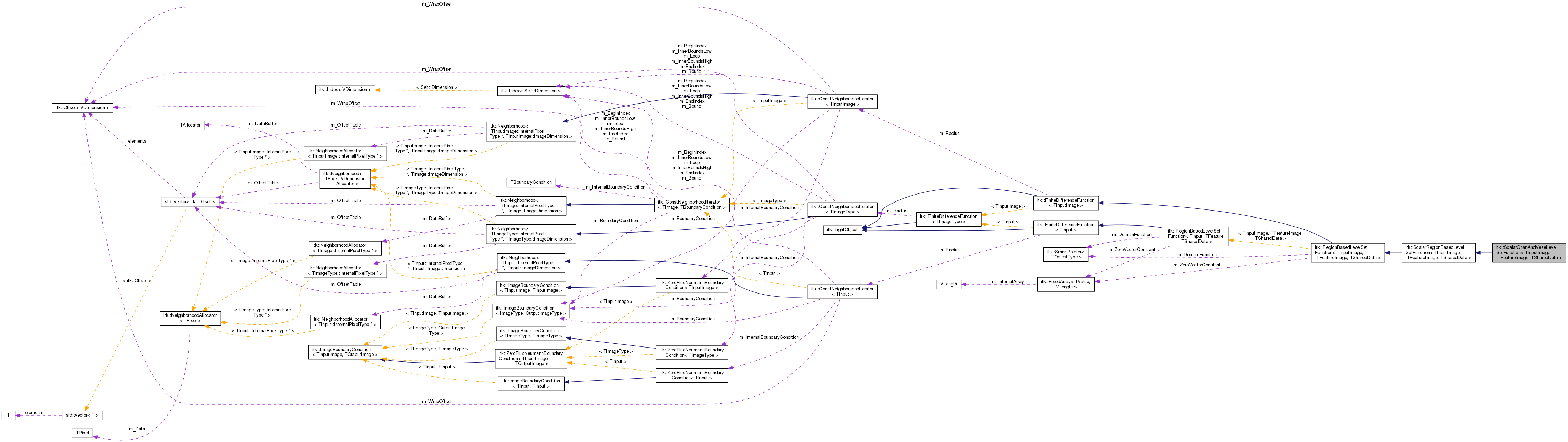

Collaboration diagram for itk::ScalarChanAndVeseLevelSetFunction< TInputImage, TFeatureImage, TSharedData >:

Detailed Description

template<typename TInputImage, typename TFeatureImage, typename TSharedData = ConstrainedRegionBasedLevelSetFunctionSharedData< TInputImage, TFeatureImage, ScalarChanAndVeseLevelSetFunctionData< TInputImage, TFeatureImage > >>
class itk::ScalarChanAndVeseLevelSetFunction< TInputImage, TFeatureImage, TSharedData >

LevelSet function that computes a speed image based on regional integrals of probabilities.

This class implements a level set function that computes the speed image by integrating values on the image domain.

Author: Mosaliganti K., Smith B., Gelas A., Gouaillard A., Megason S.

Based on the papers:

   "An active contour model without edges"
    T. Chan and L. Vese.
    In Scale-Space Theories in Computer Vision, pages 141-151, 1999.

    "Segmenting and Tracking Fluorescent Cells in Dynamic 3-D
     Microscopy With Coupled Active Surfaces"
     Dufour, Shinin, Tajbakhsh, Guillen-Aghion, Olivo-Marin
     In IEEE Transactions on Image Processing, vol. 14, No 9, Sep. 2005

This code was taken from the Insight Journal paper:

"Cell Tracking using Coupled Active Surfaces for Nuclei and Membranes"
http://www.insight-journal.org/browse/publication/642
https://hdl.handle.net/10380/3055

That is based on the papers:

"Level Set Segmentation: Active Contours without edge"
http://www.insight-journal.org/browse/publication/322
https://hdl.handle.net/1926/1532

and

"Level set segmentation using coupled active surfaces"
http://www.insight-journal.org/browse/publication/323
https://hdl.handle.net/1926/1533

Wiki Examples:

Definition at line 78 of file itkScalarChanAndVeseLevelSetFunction.h.

Public Types
using	ConstFeatureIteratorType = typename Superclass::ConstFeatureIteratorType

using	ConstImageIteratorType = typename Superclass::ConstImageIteratorType

using	ConstPointer = SmartPointer< const Self >

using	FeatureImageConstPointer = typename FeatureImageType::ConstPointer

using	FeatureImageIteratorType = typename Superclass::FeatureImageIteratorType

using	FeatureImageType = TFeatureImage

using	FeatureIndexType = typename Superclass::FeatureIndexType

using	FeatureOffsetType = typename Superclass::FeatureOffsetType

using	FeaturePixelType = typename Superclass::FeaturePixelType

using	FloatOffsetType = typename Superclass::FloatOffsetType

using	GlobalDataStruct = typename Superclass::GlobalDataStruct

using	ImageIteratorType = typename Superclass::ImageIteratorType

using	InputImageConstPointer = typename Superclass::InputImageConstPointer

using	InputImagePointer = typename Superclass::InputImagePointer

using	InputImageType = TInputImage

using	InputIndexType = typename Superclass::InputIndexType

using	InputIndexValueType = typename Superclass::InputIndexValueType

using	InputPixelType = typename Superclass::InputPixelType

using	InputPointType = typename Superclass::InputPointType

using	InputRegionType = typename Superclass::InputRegionType

using	InputSizeType = typename Superclass::InputSizeType

using	InputSizeValueType = typename Superclass::InputSizeValueType

using	ListImageType = typename Superclass::ListImageType

using	ListPixelConstIterator = typename Superclass::ListPixelConstIterator

using	ListPixelIterator = typename Superclass::ListPixelIterator

using	ListPixelType = typename Superclass::ListPixelType

using	NeighborhoodType = typename Superclass::NeighborhoodType

using	PixelType = typename Superclass::PixelType

using	Pointer = SmartPointer< Self >

using	RadiusType = typename Superclass::RadiusType

using	ScalarValueType = typename Superclass::ScalarValueType

using	Self = ScalarChanAndVeseLevelSetFunction

using	SharedDataPointer = typename Superclass::SharedDataPointer

using	SharedDataType = typename Superclass::SharedDataType

using	Superclass = ScalarRegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >

using	TimeStepType = typename Superclass::TimeStepType

using	VectorType = typename Superclass::VectorType

Public Types inherited from itk::ScalarRegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
using	ConstFeatureIteratorType = ImageRegionConstIterator< FeatureImageType >

using	ConstImageIteratorType = ImageRegionConstIteratorWithIndex< InputImageType >

using	ConstPointer = SmartPointer< const Self >

using	FeatureImageConstPointer = typename FeatureImageType::ConstPointer

using	FeatureImageIteratorType = ImageRegionIteratorWithIndex< FeatureImageType >

using	FeatureImageType = typename Superclass::FeatureImageType

using	FeatureIndexType = typename Superclass::FeatureIndexType

using	FeatureOffsetType = typename Superclass::FeatureOffsetType

using	FeaturePixelType = typename Superclass::FeaturePixelType

using	FloatOffsetType = typename Superclass::FloatOffsetType

using	GlobalDataStruct = typename Superclass::GlobalDataStruct

using	ImageIteratorType = ImageRegionIteratorWithIndex< InputImageType >

using	InputImageConstPointer = typename Superclass::InputImageConstPointer

using	InputImagePointer = typename Superclass::InputImagePointer

using	InputImageType = typename Superclass::InputImageType

using	InputIndexType = typename Superclass::InputIndexType

using	InputIndexValueType = typename Superclass::InputIndexValueType

using	InputPixelType = typename Superclass::InputPixelType

using	InputPointType = typename Superclass::InputPointType

using	InputRegionType = typename Superclass::InputRegionType

using	InputSizeType = typename Superclass::InputSizeType

using	InputSizeValueType = typename Superclass::InputSizeValueType

using	ListImageType = Image< ListPixelType, Self::ImageDimension >

using	ListPixelConstIterator = typename ListPixelType::const_iterator

using	ListPixelIterator = typename ListPixelType::iterator

using	ListPixelType = std::list< unsigned int >

using	NeighborhoodType = typename Superclass::NeighborhoodType

using	PixelType = typename Superclass::PixelType

using	Pointer = SmartPointer< Self >

using	RadiusType = typename Superclass::RadiusType

using	ScalarValueType = typename Superclass::ScalarValueType

using	Self = ScalarRegionBasedLevelSetFunction

using	SharedDataPointer = typename Superclass::SharedDataPointer

using	SharedDataType = typename Superclass::SharedDataType

using	Superclass = RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >

using	TimeStepType = typename Superclass::TimeStepType

using	VectorType = typename Superclass::VectorType

Public Types inherited from itk::RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
using	ConstPointer = SmartPointer< const Self >

using	FeatureImageConstPointer = typename FeatureImageType::ConstPointer

using	FeatureImageType = TFeatureImage

using	FeatureIndexType = typename FeatureImageType::IndexType

using	FeatureOffsetType = typename FeatureImageType::OffsetType

using	FeaturePixelType = typename FeatureImageType::PixelType

using	FeatureSpacingType = typename FeatureImageType::SpacingType

using	FloatOffsetType = typename Superclass::FloatOffsetType

using	HeavisideFunctionConstPointer = typename HeavisideFunctionType::ConstPointer

using	HeavisideFunctionType = HeavisideStepFunctionBase< InputPixelType, InputPixelType >

using	ImageType = typename Superclass::ImageType

using	InputImageConstPointer = typename InputImageType::ConstPointer

using	InputImagePointer = typename InputImageType::Pointer

using	InputImageType = TInputImage

using	InputIndexType = typename InputImageType::IndexType

using	InputIndexValueType = typename InputImageType::IndexValueType

using	InputPixelType = typename InputImageType::PixelType

using	InputPointType = typename InputImageType::PointType

using	InputRegionType = typename InputImageType::RegionType

using	InputSizeType = typename InputImageType::SizeType

using	InputSizeValueType = typename InputImageType::SizeValueType

using	NeighborhoodScalesType = typename Superclass::NeighborhoodScalesType

using	NeighborhoodType = typename Superclass::NeighborhoodType

using	PixelType = typename Superclass::PixelType

using	Pointer = SmartPointer< Self >

using	RadiusType = typename Superclass::RadiusType

using	ScalarValueType = PixelType

using	Self = RegionBasedLevelSetFunction

using	SharedDataPointer = typename SharedDataType::Pointer

using	SharedDataType = TSharedData

using	Superclass = FiniteDifferenceFunction< TInputImage >

using	TimeStepType = double

using	VectorType = FixedArray< ScalarValueType, Self::ImageDimension >

Public Types inherited from itk::FiniteDifferenceFunction< TInputImage >
using	ConstPointer = SmartPointer< const Self >

using	DefaultBoundaryConditionType = ZeroFluxNeumannBoundaryCondition< ImageType >

using	FloatOffsetType = Vector< float, Self::ImageDimension >

using	ImageType = TInputImage

using	NeighborhoodScalesType = Vector< PixelRealType, Self::ImageDimension >

using	NeighborhoodType = ConstNeighborhoodIterator< TInputImage, DefaultBoundaryConditionType >

using	PixelRealType = double

using	PixelType = typename ImageType::PixelType

using	Pointer = SmartPointer< Self >

using	RadiusType = typename ConstNeighborhoodIterator< TInputImage >::RadiusType

using	Self = FiniteDifferenceFunction

using	Superclass = LightObject

using	TimeStepType = double

Public Types inherited from itk::LightObject
using	ConstPointer = SmartPointer< const Self >

using	Pointer = SmartPointer< Self >

using	Self = LightObject

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother () const

virtual const char *	GetNameOfClass () const

Public Member Functions inherited from itk::ScalarRegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
void	UpdatePixel (const unsigned int &idx, NeighborhoodIterator< TInputImage > &iterator, InputPixelType &newValue, bool &status)

Public Member Functions inherited from itk::RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
virtual VectorType	AdvectionField (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *=0) const

virtual void	CalculateAdvectionImage ()

virtual ScalarValueType	ComputeCurvature (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *gd)

TimeStepType	ComputeGlobalTimeStep (void *GlobalData) const override

PixelType	ComputeUpdate (const NeighborhoodType &neighborhood, void *globalData, const FloatOffsetType &=FloatOffsetType(0.0)) override

virtual ScalarValueType	CurvatureSpeed (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *=0) const

ScalarValueType	GetAdvectionWeight () const

virtual const FeatureImageType *	GetFeatureImage () const

void *	GetGlobalDataPointer () const override

virtual void	Initialize (const RadiusType &r)

virtual ScalarValueType	LaplacianSmoothingSpeed (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *=0) const

void	ReleaseGlobalDataPointer (void *GlobalData) const override

void	SetAdvectionWeight (const ScalarValueType &iA)

void	SetDomainFunction (const HeavisideFunctionType *f)

virtual void	SetFeatureImage (const FeatureImageType *f)

void	SetFunctionId (const unsigned int &iFid)

void	SetInitialImage (InputImageType *f)

void	SetSharedData (SharedDataPointer sharedDataIn)

void	UpdateSharedData (bool forceUpdate)

void	SetAreaWeight (const ScalarValueType &nu)

ScalarValueType	GetAreaWeight () const

void	SetLambda1 (const ScalarValueType &lambda1)

ScalarValueType	GetLambda1 () const

void	SetLambda2 (const ScalarValueType &lambda2)

ScalarValueType	GetLambda2 () const

void	SetOverlapPenaltyWeight (const ScalarValueType &gamma)

ScalarValueType	GetOverlapPenaltyWeight () const

virtual void	SetCurvatureWeight (const ScalarValueType c)

ScalarValueType	GetCurvatureWeight () const

void	SetReinitializationSmoothingWeight (const ScalarValueType c)

ScalarValueType	GetReinitializationSmoothingWeight () const

void	SetVolumeMatchingWeight (const ScalarValueType &tau)

ScalarValueType	GetVolumeMatchingWeight () const

void	SetVolume (const ScalarValueType &volume)

ScalarValueType	GetVolume () const

Public Member Functions inherited from itk::FiniteDifferenceFunction< TInputImage >
const NeighborhoodScalesType	ComputeNeighborhoodScales () const

const RadiusType &	GetRadius () const

void	GetScaleCoefficients (PixelRealType vals[ImageDimension]) const

virtual void	InitializeIteration ()

void	SetRadius (const RadiusType &r)

void	SetScaleCoefficients (PixelRealType vals[ImageDimension])

Public Member Functions inherited from itk::LightObject
virtual void	Delete ()

virtual int	GetReferenceCount () const

	itkCloneMacro (Self)

void	Print (std::ostream &os, Indent indent=0) const

virtual void	Register () const

virtual void	SetReferenceCount (int)

virtual void	UnRegister () const noexcept

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

static Pointer	New ()

Static Public Attributes
static constexpr unsigned int	ImageDimension = TFeatureImage::ImageDimension

Static Public Attributes inherited from itk::ScalarRegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
static constexpr unsigned int	ImageDimension = TFeatureImage::ImageDimension

Static Public Attributes inherited from itk::RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
static constexpr unsigned int	ImageDimension

Static Public Attributes inherited from itk::FiniteDifferenceFunction< TInputImage >
static constexpr unsigned int	ImageDimension

Protected Member Functions
ScalarValueType	ComputeExternalTerm (const FeaturePixelType &iValue, const FeatureIndexType &iIdx) override

ScalarValueType	ComputeInternalTerm (const FeaturePixelType &iValue, const FeatureIndexType &iIdx) override

void	ComputeParameters () override

	ScalarChanAndVeseLevelSetFunction ()

void	UpdateSharedDataInsideParameters (const unsigned int &iId, const FeaturePixelType &iVal, const ScalarValueType &iChange) override

void	UpdateSharedDataOutsideParameters (const unsigned int &iId, const FeaturePixelType &iVal, const ScalarValueType &iChange) override

void	UpdateSharedDataParameters () override

	~ScalarChanAndVeseLevelSetFunction () override

Protected Member Functions inherited from itk::ScalarRegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
ScalarValueType	ComputeOverlapParameters (const FeatureIndexType &featIndex, ScalarValueType &product) override

	ScalarRegionBasedLevelSetFunction ()

	~ScalarRegionBasedLevelSetFunction () override

Protected Member Functions inherited from itk::RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
virtual ScalarValueType	ComputeExternalTerm (const FeaturePixelType &iValue, const FeatureIndexType &iIdx)=0

ScalarValueType	ComputeGlobalTerm (const ScalarValueType &imagePixel, const InputIndexType &inputIndex)

void	ComputeHessian (const NeighborhoodType &it, GlobalDataStruct *globalData)

void	ComputeHImage ()

virtual ScalarValueType	ComputeInternalTerm (const FeaturePixelType &iValue, const FeatureIndexType &iIdx)=0

ScalarValueType	ComputeLaplacian (GlobalDataStruct *gd)

virtual ScalarValueType	ComputeOverlapParameters (const FeatureIndexType &featIndex, ScalarValueType &pr)=0

ScalarValueType	ComputeVolumeRegularizationTerm ()

	RegionBasedLevelSetFunction ()

	~RegionBasedLevelSetFunction () override

Protected Member Functions inherited from itk::FiniteDifferenceFunction< TInputImage >
	FiniteDifferenceFunction ()

void	PrintSelf (std::ostream &os, Indent indent) const override

	~FiniteDifferenceFunction () override=default

Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const

	LightObject ()

virtual void	PrintHeader (std::ostream &os, Indent indent) const

virtual void	PrintTrailer (std::ostream &os, Indent indent) const

virtual	~LightObject ()

Additional Inherited Members
Static Protected Member Functions inherited from itk::RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
static VectorType	InitializeZeroVectorConstant ()

Protected Attributes inherited from itk::RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
ScalarValueType	m_AdvectionWeight

ScalarValueType	m_AreaWeight

OffsetValueType	m_Center

ScalarValueType	m_CurvatureWeight

HeavisideFunctionConstPointer	m_DomainFunction

FeatureImageConstPointer	m_FeatureImage

unsigned int	m_FunctionId

InputImageConstPointer	m_InitialImage

double	m_InvSpacing [Self::ImageDimension]

ScalarValueType	m_Lambda1

ScalarValueType	m_Lambda2

ScalarValueType	m_OverlapPenaltyWeight

ScalarValueType	m_ReinitializationSmoothingWeight

SharedDataPointer	m_SharedData

bool	m_UpdateC

ScalarValueType	m_Volume

ScalarValueType	m_VolumeMatchingWeight

OffsetValueType	m_xStride [Self::ImageDimension]

std::slice	x_slice [Self::ImageDimension]

Protected Attributes inherited from itk::FiniteDifferenceFunction< TInputImage >
RadiusType	m_Radius

PixelRealType	m_ScaleCoefficients [ImageDimension]

Protected Attributes inherited from itk::LightObject
std::atomic< int >	m_ReferenceCount

Static Protected Attributes inherited from itk::RegionBasedLevelSetFunction< TInputImage, TFeatureImage, TSharedData >
static double	m_DT

static double	m_WaveDT

static VectorType	m_ZeroVectorConstant
