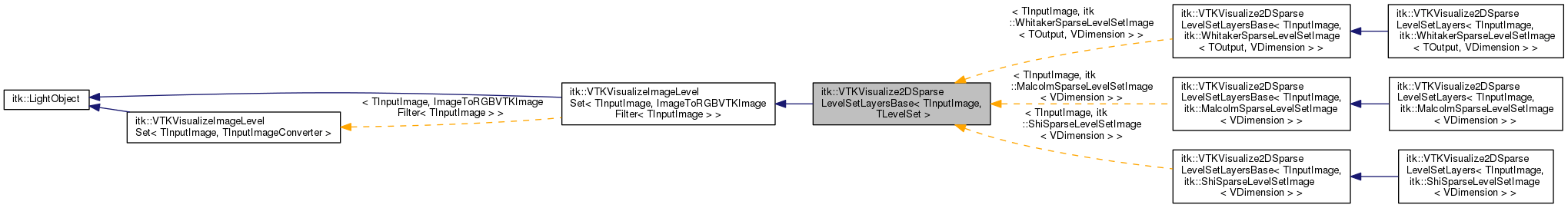

Inheritance diagram for itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, TLevelSet >:

Collaboration diagram for itk::VTKVisualize2DSparseLevelSetLayersBase< TInputImage, TLevelSet >:

Detailed Description

Template Parameters

TInputImage	Input Image Type
TLevelSet	Level Set Type

Public Types
using	ConstPointer = itk::SmartPointer< const Self >

using	ConverterPointer = typename ConverterType::Pointer

using	ConverterType = ImageToRGBVTKImageFilter< TInputImage >

using	InputImageType = TInputImage

using	InputPixelType = typename InputImageType::PixelType

using	LevelSetPointer = typename LevelSetType::Pointer

using	LevelSetType = TLevelSet

using	Pointer = itk::SmartPointer< Self >

using	Self = VTKVisualize2DSparseLevelSetLayersBase

using	Superclass = VTKVisualizeImageLevelSet< TInputImage, ConverterType >

Public Types inherited from itk::VTKVisualizeImageLevelSet< TInputImage, ImageToRGBVTKImageFilter< TInputImage > >
using	ConstPointer = SmartPointer< const Self >

using	InputImageConverterType = ImageToRGBVTKImageFilter< TInputImage >

using	InputImageType = TInputImage

using	Pointer = SmartPointer< Self >

using	Self = VTKVisualizeImageLevelSet

using	Superclass = LightObject

Public Types inherited from itk::LightObject
using	ConstPointer = SmartPointer< const Self >

using	Pointer = SmartPointer< Self >

using	Self = LightObject

Public Member Functions
virtual const char *	GetNameOfClass () const

void	SetInputImage (const InputImageType *image) override

void	SetLevelSet (LevelSetType *levelSet)

Public Member Functions inherited from itk::VTKVisualizeImageLevelSet< TInputImage, ImageToRGBVTKImageFilter< TInputImage > >
vtkRenderer *	GetRenderer ()

void	SetScreenCapturePrefix (const char *prefix)

virtual void	Update ()

void	SetScreenCapture (const bool iCapture)

bool	GetScreenCapture () const

vtkRenderWindow *	GetRenderWindow ()

void	SetRenderWindow (vtkRenderWindow *renderWindow)

void	SetCurrentIteration (const IdentifierType iteration)

IdentifierType	GetCurrentIteration () const

Public Member Functions inherited from itk::LightObject
virtual Pointer	CreateAnother () const

virtual void	Delete ()

virtual int	GetReferenceCount () const

	itkCloneMacro (Self)

void	Print (std::ostream &os, Indent indent=0) const

virtual void	Register () const

virtual void	SetReferenceCount (int)

virtual void	UnRegister () const noexcept

Protected Member Functions
virtual void	AddLayers ()=0

virtual std::string	GetLevelSetRepresentationName () const =0

void	PrepareVTKPipeline () override

	VTKVisualize2DSparseLevelSetLayersBase ()

	~VTKVisualize2DSparseLevelSetLayersBase () override

Protected Member Functions inherited from itk::VTKVisualizeImageLevelSet< TInputImage, ImageToRGBVTKImageFilter< TInputImage > >
	VTKVisualizeImageLevelSet ()

	~VTKVisualizeImageLevelSet () override

Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const

	LightObject ()

virtual void	PrintHeader (std::ostream &os, Indent indent) const

virtual void	PrintSelf (std::ostream &os, Indent indent) const

virtual void	PrintTrailer (std::ostream &os, Indent indent) const

virtual	~LightObject ()

Protected Attributes
LevelSetPointer	m_LevelSet

vtkSmartPointer< vtkImageData >	m_VTKImage

vtkSmartPointer< vtkImageActor >	m_VTKImageActor

Protected Attributes inherited from itk::VTKVisualizeImageLevelSet< TInputImage, ImageToRGBVTKImageFilter< TInputImage > >
InputImageConverterType::Pointer	m_InputImageConverter

vtkSmartPointer< vtkRenderer >	m_Renderer

Protected Attributes inherited from itk::LightObject
std::atomic< int >	m_ReferenceCount

Additional Inherited Members
Static Public Member Functions inherited from itk::LightObject
static void	BreakOnError ()

static Pointer	New ()
