itk::BSplineDeformableTransform

itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder > Class Template Reference
[Transforms]

#include <itkBSplineDeformableTransform.h>

Inheritance diagram for itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >:

Inheritance graph
[legend]

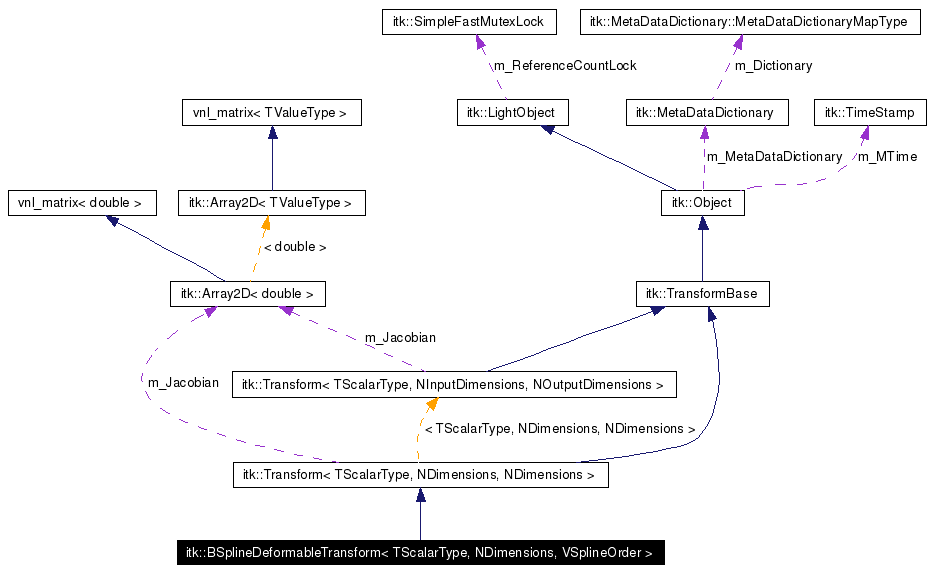

Collaboration diagram for itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >:

Collaboration graph
[legend]
List of all members.

Detailed Description

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
class itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >

Deformable transform using a BSpline representation.

This class encapsulates a deformable transform of points from one N-dimensional one space to another N-dimensional space. The deformation field is modeled using B-splines. A deformation is defined on a sparse regular grid of control points $ \vec{\lambda}_j $ and is varied by defining a deformation $ \vec{g}(\vec{\lambda}_j) $ of each control point. The deformation $ D(\vec{x}) $ at any point $ \vec{x} $ is obtained by using a B-spline interpolation kernel.

The deformation field grid is defined by a user specified GridRegion, GridSpacing and GridOrigin. Each grid/control point has associated with it N deformation coefficients $ \vec{\delta}_j $ , representing the N directional components of the deformation. Deformation outside the grid plus support region for the BSpline interpolation is assumed to be zero.

Additionally, the user can specified an addition bulk transform $ B $ such that the transformed point is given by:

\[ \vec{y} = B(\vec{x}) + D(\vec{x}) \]

The parameters for this transform is N x N-D grid of spline coefficients. The user specifies the parameters as one flat array: each N-D grid is represented by an array in the same way an N-D image is represented in the buffer; the N arrays are then concatentated together on form a single array.

For efficiency, this transform does not make a copy of the parameters. It only keeps a pointer to the input parameters and assumes that the memory is managed by the caller.

The following illustrates the typical usage of this class:

 * typedef BSplineDeformableTransform<double,2,3> TransformType;
 * TransformType::Pointer transform = TransformType::New();
 *
 * transform->SetGridRegion( region );
 * transform->SetGridSpacing( spacing );
 * transform->SetGridOrigin( origin );
 *
 * // NB: the region must be set first before setting the parameters
 *
 * TransformType::ParametersType parameters(
 *                                       transform->GetNumberOfParameters() );
 *
 * // Fill the parameters with values
 *
 * transform->SetParameters( parameters )
 *
 * outputPoint = transform->TransformPoint( inputPoint );
 *
 *

An alternative way to set the B-spline coefficients is via array of images. The grid region, spacing and origin information is taken directly from the first image. It is assumed that the subsequent images are the same buffered region. The following illustrates the API:

 *
 * TransformType::ImageConstPointer images[2];
 *
 * // Fill the images up with values
 *
 * transform->SetCoefficientImages( images );
 * outputPoint = transform->TransformPoint( inputPoint );
 *
 *

Warning: use either the SetParameters() or SetCoefficientImage() API. Mixing the two modes may results in unexpected results.

The class is templated coordinate representation type (float or double), the space dimension and the spline order.

Definition at line 111 of file itkBSplineDeformableTransform.h.

Public Types

typedef BulkTransformType::ConstPointer BulkTransformPointer
typedef SmartPointer< const
Self > 		ConstPointer
typedef WeightsFunctionType::ContinuousIndexType ContinuousIndexType
typedef ImageType::Pointer ImagePointer
typedef Image< PixelType,
itkGetStaticConstMacro(SpaceDimension) 		ImageType )
typedef RegionType::IndexType IndexType
typedef Superclass::JacobianType JacobianType
typedef ImageType::PointType OriginType
typedef CovariantVector< TScalarType,
itkGetStaticConstMacro(SpaceDimension) 		OutputCovariantVectorType )
typedef Point< TScalarType,
itkGetStaticConstMacro(SpaceDimension) 		OutputPointType )
typedef Vector< TScalarType,
itkGetStaticConstMacro(SpaceDimension) 		OutputVectorType )
typedef vnl_vector_fixed<
TScalarType, itkGetStaticConstMacro(SpaceDimension) 		OutputVnlVectorType )
typedef Array< unsigned long > ParameterIndexArrayType
typedef Superclass::ParametersType ParametersType
typedef ParametersType::ValueType PixelType
typedef SmartPointer< Self > Pointer
typedef ImageRegion< itkGetStaticConstMacro(SpaceDimension) RegionType )
typedef Superclass::ScalarType ScalarType
typedef BSplineDeformableTransform Self
typedef RegionType::SizeType SizeType
typedef ImageType::SpacingType SpacingType
typedef Transform< TScalarType,
NDimensions, NDimensions > 		Superclass
typedef WeightsFunctionType::WeightsType WeightsType

Public Member Functions

virtual LightObject::Pointer CreateAnother () const
virtual void DebugOff () const
virtual void DebugOn () const
virtual void Delete ()
virtual const BulkTransformType * GetBulkTransform ()
virtual ImagePointer * GetCoefficientImage ()
Command * GetCommand (unsigned long tag)
bool GetDebug () const
virtual const ParametersType & GetFixedParameters (void) const
virtual OriginType GetGridOrigin () const
virtual OriginType GetGridOrigin ()
virtual RegionType GetGridRegion () const
virtual RegionType GetGridRegion ()
virtual SpacingType GetGridSpacing () const
virtual SpacingType GetGridSpacing ()
unsigned int GetInputSpaceDimension (void) const
bool GetInverse (Self *) const
virtual const JacobianType & GetJacobian (const InputPointType &point) const
const MetaDataDictionary & GetMetaDataDictionary (void) const
MetaDataDictionary & GetMetaDataDictionary (void)
virtual unsigned long GetMTime () const
virtual const char * GetNameOfClass () const
virtual unsigned int GetNumberOfParameters (void) const
unsigned int GetNumberOfParametersPerDimension (void) const
unsigned long GetNumberOfWeights () const
unsigned int GetOutputSpaceDimension (void) const
virtual const ParametersType & GetParameters (void) const
virtual int GetReferenceCount () const
virtual std::string GetTransformTypeAsString () const
virtual const RegionType & GetValidRegion ()
bool HasObserver (const EventObject &event) const
void InvokeEvent (const EventObject &) const
void InvokeEvent (const EventObject &)
 itkStaticConstMacro (OutputSpaceDimension, unsigned int, NOutputDimensions)
Dimension of the domain space * itkStaticConstMacro (InputSpaceDimension, unsigned int, NInputDimensions)
 itkStaticConstMacro (SplineOrder, unsigned int, VSplineOrder)
 itkStaticConstMacro (SpaceDimension, unsigned int, NDimensions)
virtual void Modified () const
void Print (std::ostream &os, Indent indent=0) const
virtual void Register () const
void RemoveAllObservers ()
void RemoveObserver (unsigned long tag)
This method specifies the
bulk transform to be applied
*The default is the identity
transform *virtual void 		SetBulkTransform (const BulkTransformType *_arg)
virtual void SetCoefficientImage (ImagePointer images[])
void SetDebug (bool debugFlag) const
**This function was added
to allow the transform to
work with the *itkTransformReader
Writer I O filters **void 		SetFixedParameters (const ParametersType &parameters)
This method specifies the
grid origin *virtual void 		SetGridOrigin (const OriginType &origin)
*transform SetGridOrigin (origin)
This method specifies the
region over which the grid
resides *virtual void 		SetGridRegion (const RegionType &region)
*transform SetGridRegion (bsplineRegion)
This method specifies the
grid spacing or resolution
*virtual void 		SetGridSpacing (const SpacingType &spacing)
void SetIdentity ()
void SetMetaDataDictionary (const MetaDataDictionary &rhs)
void SetParameters (const ParametersType &parameters)
void SetParametersByValue (const ParametersType &parameters)
virtual void SetReferenceCount (int)
Method to transform a CovariantVector
*not applicable for this type
of transform *virtual OutputCovariantVectorType 		TransformCovariantVector (const InputCovariantVectorType &) const
virtual void TransformPoint (const InputPointType &inputPoint, OutputPointType &outputPoint, WeightsType &weights, ParameterIndexArrayType &indices, bool &inside) const
OutputPointType TransformPoint (const InputPointType &point) const
Method to transform a vnl_vector
*not applicable for this type
of transform *virtual OutputVnlVectorType 		TransformVector (const InputVnlVectorType &) const
Method to transform a vector
*not applicable for this type
of transform *virtual OutputVectorType 		TransformVector (const InputVectorType &) const
virtual void UnRegister () const

Static Public Member Functions

static void BreakOnError ()
static bool GetGlobalWarningDisplay ()
static void GlobalWarningDisplayOff ()
static void GlobalWarningDisplayOn ()
static Pointer New ()
This is a global flag that
controls whether any warning
*or error messages are displayed
*static void 		SetGlobalWarningDisplay (bool flag)

Public Attributes

Allow people to add remove
invoke observers(callbacks)
to any ITK *object.This is
an implementation of the subject/observer design *pattern.An
observer is added by specifying
an event to respond to *and
an itk unsigned lon 		AddObserver )(const EventObject &event, Command *) const
Typedef of the bulk transform
*typedef Transform< ScalarType,
itkGetStaticConstMacro(SpaceDimension),
itkGetStaticConstMacro(SpaceDimension) 		BulkTransformType )
This method sets the fixed
parameters of the transform
*For a BSpline deformation
the parameters are the Grid
and Grid Spacing **The fixed
parameters are the three times
the size of the templated
*dimensions *This function
has the effect of make the
following 		calls: * transform->SetGridSpacing( spacing )
This is a global flag that
controls whether any 		debug
This method sets the fixed
parameters of the transform
*For a BSpline deformation
the parameters are the 		following: * Grid Size
Standard covariant vector
type for this class *typedef
CovariantVector< TScalarType,
itkGetStaticConstMacro(SpaceDimension) 		InputCovariantVectorType )
Standard coordinate point
type for this class *typedef
Point< TScalarType, itkGetStaticConstMacro(SpaceDimension) 		InputPointType )
Standard vector type for this
class *typedef Vector< TScalarType,
itkGetStaticConstMacro(SpaceDimension) 		InputVectorType )
Standard vnl_vector type for
this class *typedef vnl_vector_fixed<
TScalarType, itkGetStaticConstMacro(SpaceDimension) 		InputVnlVectorType )
return m_Jacobian
This method sets the fixed
parameters of the transform
*For a BSpline deformation
the parameters are the Grid 		Origin
This method sets the fixed
parameters of the transform
*For a BSpline deformation 		transform
Interpolation weights function
type *typedef BSplineInterpolationWeightFunction<
ScalarType, itkGetStaticConstMacro(SpaceDimension), itkGetStaticConstMacro(SplineOrder) 		WeightsFunctionType )

Protected Member Functions

 BSplineDeformableTransform ()
virtual WeightsFunctionType * GetWeightsFunction ()
bool PrintObservers (std::ostream &os, Indent indent) const
void PrintSelf (std::ostream &os, Indent indent) const
virtual void PrintTrailer (std::ostream &os, Indent indent) const
Allow subclasses to access
and manipulate the weights
function *virtual void 		SetWeightsFunction (WeightsFunctionType *_arg)
 Transform (unsigned int Dimension, unsigned int NumberOfParameters)
 Transform ()
void WrapAsImages ()
virtual ~BSplineDeformableTransform ()

Protected Attributes

ParametersType m_FixedParameters
JacobianType m_Jacobian
ParametersType m_Parameters
int m_ReferenceCount
SimpleFastMutexLock m_ReferenceCountLock
Methods invoked by virtual
Print() to print information
about the object *including
superclasses.Typically not
called by the user(use Print()*instead) but used in the
hierarchical print process
to combine the *output of
several classes.*/virtual
void PrintSelf(std voi 		PrintHeader )(std::ostream &os, Indent indent) const

Member Typedef Documentation

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef BulkTransformType::ConstPointer itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::BulkTransformPointer


Definition at line 296 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef SmartPointer<const Self> itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::ConstPointer


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 119 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef WeightsFunctionType::ContinuousIndexType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::ContinuousIndexType


Definition at line 315 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef ImageType::Pointer itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::ImagePointer


Definition at line 247 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Image<PixelType,itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::ImageType)


Definition at line 246 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef RegionType::IndexType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::IndexType


Definition at line 270 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Superclass::JacobianType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::JacobianType


Standard Jacobian container.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 140 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef ImageType::PointType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::OriginType


Definition at line 273 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef CovariantVector<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::OutputCovariantVectorType)


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 153 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Point<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::OutputPointType)


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 167 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Vector<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::OutputVectorType)


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 146 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef vnl_vector_fixed<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::OutputVnlVectorType)


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 160 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Array<unsigned long> itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::ParameterIndexArrayType


Parameter index array type.

Definition at line 319 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Superclass::ParametersType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::ParametersType


Standard parameters container.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 137 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef ParametersType::ValueType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::PixelType


Parameters as SpaceDimension number of images.

Definition at line 245 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef SmartPointer<Self> itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::Pointer


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 118 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef ImageRegion<itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::RegionType)


Typedefs for specifying the extend to the grid.

Definition at line 268 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Superclass::ScalarType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::ScalarType


Standard scalar type for this class.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 134 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef BSplineDeformableTransform itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::Self


Standard class typedefs.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 116 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef RegionType::SizeType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SizeType


Definition at line 271 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef ImageType::SpacingType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SpacingType


Definition at line 272 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef Transform< TScalarType, NDimensions, NDimensions > itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::Superclass


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 117 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
typedef WeightsFunctionType::WeightsType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::WeightsType


Definition at line 313 of file itkBSplineDeformableTransform.h.

Constructor & Destructor Documentation

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::BSplineDeformableTransform (   )  [protected]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::~BSplineDeformableTransform (   )  [protected, virtual]


Member Function Documentation

static void itk::LightObject::BreakOnError (   )  [static, inherited]


This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

virtual LightObject::Pointer itk::Object::CreateAnother (   )  const [virtual, inherited]


Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.

Reimplemented from itk::LightObject.

virtual void itk::Object::DebugOff (   )  const [virtual, inherited]


Turn debugging output off.

virtual void itk::Object::DebugOn (   )  const [virtual, inherited]


Turn debugging output on.

virtual void itk::LightObject::Delete (   )  [virtual, inherited]


Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual const BulkTransformType* itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetBulkTransform (   )  [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual ImagePointer* itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetCoefficientImage (   )  [inline, virtual]


Get the array of coefficient images.

Definition at line 250 of file itkBSplineDeformableTransform.h.

Command* itk::Object::GetCommand (  unsigned long  tag  )  [inherited]


Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used.

bool itk::Object::GetDebug (   )  const [inherited]


Get the value of the debug flag.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual const ParametersType& itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetFixedParameters (  void   )  const [virtual]


Get the Transformation Fixed Parameters.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

static bool itk::Object::GetGlobalWarningDisplay (   )  [static, inherited]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual OriginType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetGridOrigin (   )  const [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual OriginType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetGridOrigin (   )  [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual RegionType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetGridRegion (   )  const [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual RegionType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetGridRegion (   )  [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual SpacingType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetGridSpacing (   )  const [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual SpacingType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetGridSpacing (   )  [virtual]


unsigned int itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::GetInputSpaceDimension (  void   )  const [inline, virtual, inherited]


Get the size of the input space

Implements itk::TransformBase.

Definition at line 87 of file itkTransform.h.

bool itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::GetInverse (  Self *   )  const [inline, inherited]


Return the inverse of the transform. The inverse is recomputed if it has been modified

Reimplemented in itk::ScaleTransform< TScalarType, NDimensions >, and itk::TranslationTransform< TScalarType, NDimensions >.

Definition at line 209 of file itkTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual const JacobianType& itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetJacobian (  const InputPointType &  point  )  const [virtual]


Compute the Jacobian Matrix of the transformation at one point

const MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  const [inherited]


Returns:
A constant reference to this objects MetaDataDictionary.

MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  [inherited]


Returns:
A reference to this objects MetaDataDictionary.
Warning:
This reference may be changed.

virtual unsigned long itk::Object::GetMTime (   )  const [virtual, inherited]


Return this objects modified time.

Reimplemented in itk::ImageRegistrationMethod< TFixedImage, TMovingImage >, itk::DeformationFieldSource< TOutputImage >, itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >, itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::BoundingBox< TPointIdentifier, VPointDimension, TCoordRep, TPointsContainer >, itk::SceneSpatialObject< SpaceDimension >, and itk::SceneSpatialObject< NDimensions >.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual const char* itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetNameOfClass (   )  const [virtual]


Run-time type information (and related methods).

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual unsigned int itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetNumberOfParameters (  void   )  const [virtual]


Return the number of parameters that completely define the Transfom

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
unsigned int itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetNumberOfParametersPerDimension (  void   )  const


Return the number of parameters per dimension

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
unsigned long itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetNumberOfWeights (   )  const [inline]


Get number of weights.

Definition at line 335 of file itkBSplineDeformableTransform.h.

unsigned int itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::GetOutputSpaceDimension (  void   )  const [inline, virtual, inherited]


Get the size of the output space

Implements itk::TransformBase.

Definition at line 90 of file itkTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual const ParametersType& itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetParameters (  void   )  const [virtual]


Get the Transformation Parameters.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

virtual int itk::LightObject::GetReferenceCount (   )  const [inline, virtual, inherited]


Gets the reference count on this object.

Definition at line 98 of file itkLightObject.h.

virtual std::string itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::GetTransformTypeAsString (   )  const [virtual, inherited]


Generate a platform independant name

Implements itk::TransformBase.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual const RegionType& itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetValidRegion (   )  [virtual]


Return the region of the grid wholly within the support region

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual WeightsFunctionType* itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::GetWeightsFunction (   )  [protected, virtual]


static void itk::Object::GlobalWarningDisplayOff (   )  [inline, static, inherited]


Definition at line 100 of file itkObject.h.

References itk::Object::SetGlobalWarningDisplay().

static void itk::Object::GlobalWarningDisplayOn (   )  [inline, static, inherited]


Definition at line 98 of file itkObject.h.

References itk::Object::SetGlobalWarningDisplay().

bool itk::Object::HasObserver (  const EventObject &  event  )  const [inherited]


Return true if an observer is registered for this event.

void itk::Object::InvokeEvent (  const EventObject &   )  const [inherited]


Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object.

void itk::Object::InvokeEvent (  const EventObject &   )  [inherited]


Call Execute on all the Commands observing this event id.

itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::itkStaticConstMacro (  OutputSpaceDimension  ,
unsigned  int,
NOutputDimensions
)  [inherited]


Dimension of the domain space* itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::itkStaticConstMacro (  InputSpaceDimension  ,
unsigned  int,
NInputDimensions
)  [inherited]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::itkStaticConstMacro (  SplineOrder  ,
unsigned  int,
VSplineOrder
)


The BSpline order.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::itkStaticConstMacro (  SpaceDimension  ,
unsigned  int,
NDimensions
)


Dimension of the domain space.

virtual void itk::Object::Modified (   )  const [virtual, inherited]


Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data.

Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetCenter(), itk::HistogramAlgorithmBase< TInputHistogram >::SetInputHistogram(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetOffset(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetRealThresholds(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints1(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints2(), itk::NonUniformBSpline< TDimension >::SetSplineOrder(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetThresholds(), itk::Statistics::GoodnessOfFitFunctionBase< typename ComponentType::HistogramType >::SetTotalObservedScale(), and itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetTranslation().

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
static Pointer itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::New (   )  [static]


New macro for creation of through the object factory.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

void itk::LightObject::Print (  std::ostream &  os,
Indent  indent = 0
)  const [inherited]


Cause the object to print itself out.

bool itk::Object::PrintObservers (  std::ostream &  os,
Indent  indent
)  const [protected, inherited]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::PrintSelf (  std::ostream &  os,
Indent  indent
)  const [protected, virtual]


Print contents of an BSplineDeformableTransform.

Reimplemented from itk::Object.

virtual void itk::LightObject::PrintTrailer (  std::ostream &  os,
Indent  indent
)  const [protected, virtual, inherited]


virtual void itk::Object::Register (   )  const [virtual, inherited]


Increase the reference count (mark as used by another object).

Reimplemented from itk::LightObject.

void itk::Object::RemoveAllObservers (   )  [inherited]


Remove all observers .

void itk::Object::RemoveObserver (  unsigned long  tag  )  [inherited]


Remove the observer with this tag value.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method specifies the bulk transform to be applied* The default is the identity transform* virtual void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetBulkTransform (  const BulkTransformType *  _arg  )  [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetCoefficientImage (  ImagePointer  images[]  )  [virtual]


Set the array of coefficient images.

This is an alternative API for setting the BSpline coefficients as an array of SpaceDimension images. The grid region spacing and origin is taken from the first image. It is assume that the buffered region of all the subsequent images are the same as the first image. Note that no error checking is done.

Warning: use either the SetParameters() or SetCoefficientImage() API. Mixing the two modes may results in unexpected results.

void itk::Object::SetDebug (  bool  debugFlag  )  const [inherited]


Set the value of the debug flag. A non-zero value turns debugging on.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
* * This function was added to allow the transform to work with the* itkTransformReader Writer I O filters* * void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetFixedParameters (  const ParametersType &  parameters  )  [virtual]


Set the fixed parameters and update internal transformation.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

This is a global flag that controls whether any warning* or error messages are displayed* static void itk::Object::SetGlobalWarningDisplay (  bool  flag  )  [static, inherited]


Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn().

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method specifies the grid origin* virtual void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetGridOrigin (  const OriginType &  origin  )  [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
* transform itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetGridOrigin (  origin   )


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method specifies the region over which the grid resides* virtual void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetGridRegion (  const RegionType &  region  )  [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
* transform itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetGridRegion (  bsplineRegion   )


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method specifies the grid spacing or resolution* virtual void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetGridSpacing (  const SpacingType &  spacing  )  [virtual]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetIdentity (   )


This method can ONLY be invoked AFTER calling SetParameters(). This restriction is due to the fact that the BSplineDeformableTransform does not copy the array of paramters internally, instead it keeps a pointer to the user-provided array of parameters. This method is also in violation of the const-correctness of the parameters since the parameter array has been passed to the transform on a 'const' basis but the values get modified when the user invokes SetIdentity().

void itk::Object::SetMetaDataDictionary (  const MetaDataDictionary &  rhs  )  [inherited]


Returns:
Set the MetaDataDictionary

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetParameters (  const ParametersType &  parameters  )  [virtual]


This method sets the parameters of the transform. For a BSpline deformation transform, the parameters are the BSpline coefficients on a sparse grid.

The parameters are N number of N-D grid of coefficients. Each N-D grid is represented as a flat array of doubles (in the same configuration as an itk::Image). The N arrays are then concatenated to form one parameter array.

For efficiency, this transform does not make a copy of the parameters. It only keeps a pointer to the input parameters. It assumes that the memory is managed by the caller. Use SetParametersByValue to force the transform to call copy the parameters.

This method wraps each grid as itk::Image's using the user specified grid region, spacing and origin. NOTE: The grid region, spacing and origin must be set first.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetParametersByValue (  const ParametersType &  parameters  )  [virtual]


This method sets the parameters of the transform. For a BSpline deformation transform, the parameters are the BSpline coefficients on a sparse grid.

The parameters are N number of N-D grid of coefficients. Each N-D grid is represented as a flat array of doubles (in the same configuration as an itk::Image). The N arrays are then concatenated to form one parameter array.

This methods makes a copy of the parameters while for efficiency the SetParameters method does not.

This method wraps each grid as itk::Image's using the user specified grid region, spacing and origin. NOTE: The grid region, spacing and origin must be set first.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

virtual void itk::Object::SetReferenceCount (  int   )  [virtual, inherited]


Sets the reference count (use with care)

Reimplemented from itk::LightObject.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Allow subclasses to access and manipulate the weights function* virtual void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::SetWeightsFunction (  WeightsFunctionType *  _arg  )  [protected, virtual]


itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::Transform (  unsigned int  Dimension,
unsigned int  NumberOfParameters
)  [protected, inherited]


itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::Transform (   )  [protected, inherited]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Method to transform a CovariantVector* not applicable for this type of transform* virtual OutputCovariantVectorType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::TransformCovariantVector (  const InputCovariantVectorType &   )  const [inline, virtual]


Method to transform a CovariantVector.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 358 of file itkBSplineDeformableTransform.h.

References itkExceptionMacro.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
virtual void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::TransformPoint (  const InputPointType &  inputPoint,
OutputPointType &  outputPoint,
WeightsType &  weights,
ParameterIndexArrayType &  indices,
bool &  inside
)  const [virtual]


Transform points by a BSpline deformable transformation. On return, weights contains the interpolation weights used to compute the deformation and indices of the x (zeroth) dimension coefficient parameters in the support region used to compute the deformation. Parameter indices for the i-th dimension can be obtained by adding ( i * this->GetNumberOfParametersPerDimension() ) to the indices array.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
OutputPointType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::TransformPoint (  const InputPointType &  point  )  const [virtual]


Transform points by a BSpline deformable transformation.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Method to transform a vnl_vector* not applicable for this type of transform* virtual OutputVnlVectorType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::TransformVector (  const InputVnlVectorType &   )  const [inline, virtual]


Method to transform a vnl_vector.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 349 of file itkBSplineDeformableTransform.h.

References itkExceptionMacro.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Method to transform a vector* not applicable for this type of transform* virtual OutputVectorType itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::TransformVector (  const InputVectorType &   )  const [inline, virtual]


Method to transform a vector.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 340 of file itkBSplineDeformableTransform.h.

References itkExceptionMacro.

virtual void itk::Object::UnRegister (   )  const [virtual, inherited]


Decrease the reference count (release by another object).

Reimplemented from itk::LightObject.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
void itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::WrapAsImages (   )  [protected]


Wrap flat array into images of coefficients.

Member Data Documentation

Allow people to add remove invoke observers (callbacks) to any ITK * object. This is an implementation of the subject/observer design * pattern. An observer is added by specifying an event to respond to * and an itk unsigned lon itk::Object::AddObserver)(const EventObject &event, Command *) const [inherited]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Typedef of the bulk transform* typedef Transform<ScalarType,itkGetStaticConstMacro(SpaceDimension), itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::BulkTransformType)


Definition at line 290 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method sets the fixed parameters of the transform* For a BSpline deformation the parameters are the Grid and Grid Spacing* * The fixed parameters are the three times the size of the templated* dimensions* This function has the effect of make the following itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::calls


Definition at line 192 of file itkBSplineDeformableTransform.h.

This is a global flag that controls whether any itk::Object::debug [inherited]


Definition at line 94 of file itkObject.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method sets the fixed parameters of the transform* For a BSpline deformation the parameters are the itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::following


Definition at line 192 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Standard covariant vector type for this class* typedef CovariantVector<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::InputCovariantVectorType)


Standard covariant vector type for this class

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 151 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Standard coordinate point type for this class* typedef Point<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::InputPointType)


Standard coordinate point type for this class

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 165 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Standard vector type for this class* typedef Vector<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::InputVectorType)


Standard vector type for this class.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 144 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Standard vnl_vector type for this class* typedef vnl_vector_fixed<TScalarType, itkGetStaticConstMacro(SpaceDimension) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::InputVnlVectorType)


Standard vnl_vector type for this class.

Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 158 of file itkBSplineDeformableTransform.h.

ParametersType itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::m_FixedParameters [mutable, protected, inherited]


Definition at line 221 of file itkTransform.h.

JacobianType itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::m_Jacobian [mutable, protected, inherited]


Reimplemented in itk::IdentityTransform< TScalarType, NDimensions >.

Definition at line 222 of file itkTransform.h.

return itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::m_Jacobian [inherited]


Reimplemented in itk::IdentityTransform< TScalarType, NDimensions >.

Definition at line 199 of file itkTransform.h.

ParametersType itk::Transform< TScalarType , NInputDimensions, NOutputDimensions >::m_Parameters [mutable, protected, inherited]


Definition at line 217 of file itkTransform.h.

int itk::LightObject::m_ReferenceCount [mutable, protected, inherited]


Number of uses of this object by other objects.

Definition at line 119 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock [mutable, protected, inherited]


Mutex lock to protect modification to the reference count

Definition at line 122 of file itkLightObject.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method sets the fixed parameters of the transform* For a BSpline deformation the parameters are the Grid itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::Origin


Definition at line 192 of file itkBSplineDeformableTransform.h.

Methods invoked by virtual Print () to print information about the object * including superclasses. Typically not called by the user (use Print() * instead) but used in the hierarchical print process to combine the * output of several classes. */ virtual void PrintSelf(std voi itk::LightObject::PrintHeader)(std::ostream &os, Indent indent) const [protected, inherited]


template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
This method sets the fixed parameters of the transform* For a BSpline deformation itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::transform


Reimplemented from itk::Transform< TScalarType, NDimensions, NDimensions >.

Definition at line 192 of file itkBSplineDeformableTransform.h.

template<class TScalarType = double, unsigned int NDimensions = 3, unsigned int VSplineOrder = 3>
Interpolation weights function type* typedef BSplineInterpolationWeightFunction<ScalarType, itkGetStaticConstMacro(SpaceDimension), itkGetStaticConstMacro(SplineOrder) itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >::WeightsFunctionType)


Definition at line 312 of file itkBSplineDeformableTransform.h.

The documentation for this class was generated from the following file:
Generated at Sun Jul 9 19:06:48 2006 for ITK by doxygen 1.4.2 written by Dimitri van Heesch, © 1997-2000
