itk::GeodesicActiveContourShapePriorLevelSetFunction

itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType > Class Template Reference
[Finite Difference Functions]

#include <itkGeodesicActiveContourShapePriorLevelSetFunction.h>

Inheritance diagram for itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >:

Inheritance graph
[legend]

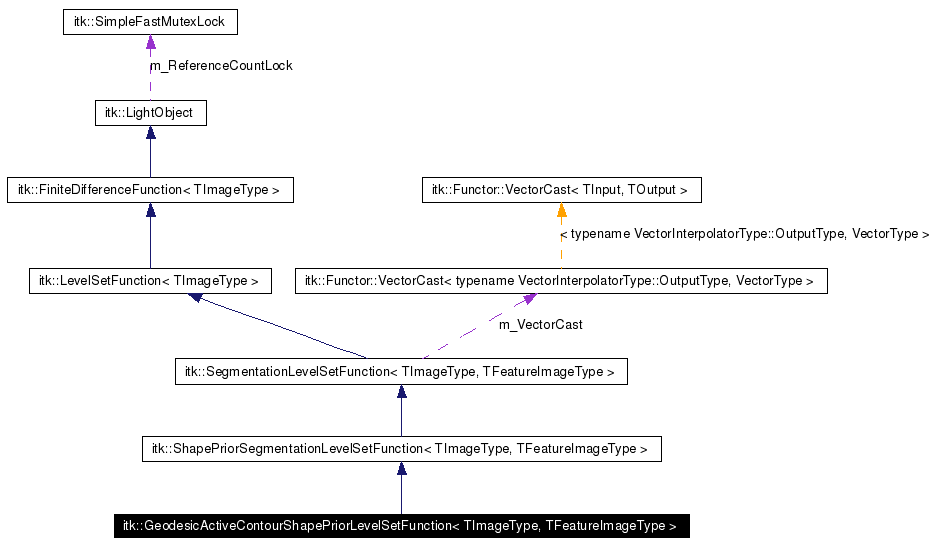

Collaboration diagram for itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >:

Collaboration graph
[legend]
List of all members.

Detailed Description

template<class TImageType, class TFeatureImageType = TImageType>
class itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >

This function is used in GeodesicActiveContourShapePriorSegmentationLevelSetFilter to segment structures in an image based on user supplied edge potential map and shape model.

IMPORTANT
The LevelSetFunction, SegmentationLevelSetFunction and ShapePriorSegmentationLevelSetFunction classes contain additional information necessary to gain full understanding of how to use this function.
GeodesicActiveContourShapePriorLevelSetFunction is a subclass of the generic LevelSetFunction. It is used to segment structures in an image based on a user supplied edge potential map $ g(I) $ , which has values close to zero in regions near edges (or high image gradient) and values close to one in regions with relatively constant intensity. Typically, the edge potential map is a function of the gradient, for example:

\[ g(I) = 1 / ( 1 + | (\nabla * G)(I)| ) \]

\[ g(I) = \exp^{-|(\nabla * G)(I)|} \]

where $ I $ is image intensity and $ (\nabla * G) $ is the derivative of Gaussian operator.

The edge potential image is set via the SetFeatureImage() method.

In this function both the propagation term $ P(\mathbf{x}) $ and the curvature spatial modifier term $ Z(\mathbf{x}) $ are taken directly from the edge potential image such that:

\[ P(\mathbf{x}) = g(\mathbf{x}) \]

\[ Z(\mathbf{x}) = g(\mathbf{x}) \]

An advection term $ \mathbf{A}(\mathbf{x}) $ is constructed from the negative gradient of the edge potential image.

\[ \mathbf{A}(\matbf{x}) = -\nabla g(\mathbf{x}) \]

This term behaves like a doublet attracting the contour to the edges.

This class extends the basic LevelSetFunction with a shape prior term as developed in [1].

$ \zeta( \phi^{*} - \phi) $

where $ \phi^{*} $ is the signed distance function from a target shape and $ \zeta $ is a scalar constant.

The target shape signed distance function is supplied through a ShapeSignedDistanceFunction object. Typically, the shape is a function of a set of parameters.

See also:
LevelSetFunction

SegmentationLevelSetFunction

ShapePriorSegmentationLevelSetFunction

ShapeSignedDistanceFunction

REFERENCES
[1] Leventon, M.E. et al. "Statistical Shape Influence in Geodesic Active Contours", CVPR 2000.

Definition at line 91 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

Public Types

typedef SmartPointer< const
Self > 		ConstPointer
typedef Superclass::ContinuousIndexType ContinuousIndexType
typedef ZeroFluxNeumannBoundaryCondition<
ImageType > 		DefaultBoundaryConditionType
typedef TFeatureImageType FeatureImageType
typedef Superclass::FeatureScalarType FeatureScalarType
typedef Superclass::FloatOffsetType FloatOffsetType
typedef Superclass::GlobalDataStruct GlobalDataStruct
typedef Superclass::ImageType ImageType
typedef Superclass::IndexType IndexType
typedef LinearInterpolateImageFunction<
ImageType > 		InterpolatorType
typedef Superclass::NeighborhoodType NeighborhoodType
typedef double PixelRealType
typedef Superclass::PixelType PixelType
typedef SmartPointer< Self > Pointer
typedef Superclass::RadiusType RadiusType
typedef Superclass::ScalarValueType ScalarValueType
typedef GeodesicActiveContourShapePriorLevelSetFunction Self
typedef ShapeFunctionType::ConstPointer ShapeFunctionPointer
typedef ShapeSignedDistanceFunction<
double, itkGetStaticConstMacro(ImageDimension) 		ShapeFunctionType )
typedef ShapePriorSegmentationLevelSetFunction<
TImageType, TFeatureImageType > 		Superclass
typedef Superclass::TimeStepType TimeStepType
typedef Superclass::VectorImageType VectorImageType
typedef VectorLinearInterpolateImageFunction<
VectorImageType > 		VectorInterpolatorType
typedef Superclass::VectorType VectorType

Public Member Functions

virtual void AllocateAdvectionImage ()
virtual void AllocateSpeedImage ()
virtual void CalculateAdvectionImage ()
virtual void CalculateSpeedImage ()
virtual ScalarValueType Compute3DMinimalCurvature (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *gd=0)
*virtual ScalarValueType ComputeCurvatureTerm (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *gd=0)
virtual TimeStepType ComputeGlobalTimeStep (void *globalData) const
virtual ScalarValueType ComputeMeanCurvature (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *gd=0)
virtual ScalarValueType ComputeMinimalCurvature (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *gd=0)
virtual PixelType ComputeUpdate (const NeighborhoodType &neighborhood, void *globalData, const FloatOffsetType &=FloatOffsetType(0.0))
virtual Pointer CreateAnother () const
virtual ScalarValueType CurvatureSpeed (const NeighborhoodType &neighborhood, const FloatOffsetType &offset, GlobalDataStruct *gd) const
virtual void Delete ()
Get Set the image used as
the advection field in the
level set equation *virtual
VectorImageType * 		GetAdvectionImage () const
ScalarValueType GetAdvectionWeight () const
ScalarValueType GetCurvatureWeight () const
double GetDerivativeSigma ()
ScalarValueType GetEpsilonMagnitude () const
Set Get the image which will
be used to calculate the speed
function *virtual const FeatureImageType * 		GetFeatureImage () const
Returns a pointer to a global
data structure for computing
time step *virtual void * 		GetGlobalDataPointer () const
ScalarValueType GetLaplacianSmoothingWeight () const
virtual const char * GetNameOfClass () const
ScalarValueType GetPropagationWeight () const
const RadiusType & GetRadius () const
virtual int GetReferenceCount () const
const ShapeFunctionType * GetShapeFunction () const
ScalarValueType GetShapePriorWeight () const
Get Set the image used as
the speed function in the
level set equation *virtual
ImageType * 		GetSpeedImage ()
bool GetUseMinimalCurvature () const
virtual void Initialize (const RadiusType &r)
virtual void InitializeIteration ()
 itkStaticConstMacro (ImageDimension, unsigned int, ImageType::ImageDimension)
 itkStaticConstMacro (ImageDimension, unsigned int, Superclass::ImageDimension)
virtual ScalarValueType LaplacianSmoothingSpeed (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *=0) const
void Print (std::ostream &os, Indent indent=0) const
virtual void Register () const
virtual void ReleaseGlobalDataPointer (void *GlobalData) const
virtual void ReverseExpansionDirection ()
void SetAdvectionImage (VectorImageType *s)
Alpha Scales all advection
term values *virtual void 		SetAdvectionWeight (const ScalarValueType a)
Gamma Scales all curvature
weight values *virtual void 		SetCurvatureWeight (const ScalarValueType c)
Set Get the sigma for the
Gaussian kernel used to compute
the gradient *of the feature
image needed for the advection
term of the equation *void 		SetDerivativeSigma (const double v)
Epsilon *void SetEpsilonMagnitude (const ScalarValueType e)
virtual void SetFeatureImage (const FeatureImageType *f)
Weight of the laplacian smoothing
term *void 		SetLaplacianSmoothingWeight (const ScalarValueType c)
Beta Scales all propagation
term values *virtual void 		SetPropagationWeight (const ScalarValueType p)
void SetRadius (const RadiusType &r)
virtual void SetReferenceCount (int)
Set the ScaleCoefficients
for the difference *operators
The defaults a These can be
set to take the image *spacing
into account *void 		SetScaleCoefficients (PixelRealType vals[ImageDimension])
The ShapeFunction encapsulates
the signed distance to the
shape used to *influence the
evolution of the level set
*void 		SetShapeFunction (const ShapeFunctionType *ptr)
Zeta The ShapePriorWeight
scales the shape prior term
values *void 		SetShapePriorWeight (const ScalarValueType p)
void SetSpeedImage (ImageType *s)
*void SetUseMinimalCurvature (bool b)
virtual void UnRegister () const
void UseMinimalCurvatureOff ()
void UseMinimalCurvatureOn ()

Static Public Member Functions

static void BreakOnError ()
static double GetMaximumCurvatureTimeStep ()
static double GetMaximumPropagationTimeStep ()
static Pointer New ()
Set Get the maximum constraint
for the curvature term factor
in the time step calculation
Changing this value from the
default is not recommended
or but can be used to speed
up the surface evolution at
the risk of creating an unstable
solution *static void 		SetMaximumCurvatureTimeStep (double n)
Set Get the maximum constraint
for the scalar vector term
factor of the time step calculation
Changing this value from the
default is not recommended
or but can be used to speed
up the surface evolution at
the risk of creating an unstable
solution *static void 		SetMaximumPropagationTimeStep (double n)

Public Attributes

Set Get the maximum constraint
for the scalar vector term
factor of the time step calculation
Changing this value from the
default is not recommended
or 		necessary
Set Get the maximum constraint
for the curvature term factor
in the time step calculation
Changing this value from the
default is not recommended
or 		necessary
Returns a pointer to a global
data structure that is passed
to this *object from the solver
at each calculation The idea
is that the solver *holds
the state of any global values
needed to calculate the time 		step

Protected Member Functions

virtual VectorType AdvectionField (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *gd) const
 GeodesicActiveContourShapePriorLevelSetFunction (const Self &)
 GeodesicActiveContourShapePriorLevelSetFunction ()
void operator= (const Self &)
void PrintSelf (std::ostream &os, Indent indent) const
virtual void PrintTrailer (std::ostream &os, Indent indent) const
virtual ScalarValueType PropagationSpeed (const NeighborhoodType &, const FloatOffsetType &, GlobalDataStruct *gd) const
virtual ~GeodesicActiveContourShapePriorLevelSetFunction ()

Static Protected Member Functions

static VectorType InitializeZeroVectorConstant ()

Protected Attributes

VectorImageType::Pointer m_AdvectionImage
ScalarValueType m_AdvectionWeight
::vcl_size_t m_Center
ScalarValueType m_CurvatureWeight
ScalarValueType m_EpsilonMagnitude
FeatureImageType::ConstPointer m_FeatureImage
InterpolatorType::Pointer m_Interpolator
ScalarValueType m_LaplacianSmoothingWeight
ScalarValueType m_PropagationWeight
RadiusType m_Radius
int m_ReferenceCount
SimpleFastMutexLock m_ReferenceCountLock
PixelRealType m_ScaleCoefficients [ImageDimension]
ImageType::Pointer m_SpeedImage
bool m_UseMinimalCurvature
Functor::VectorCast< typename
VectorInterpolatorType::OutputType,
VectorType > 		m_VectorCast
VectorInterpolatorType::Pointer m_VectorInterpolator
::vcl_size_t m_xStride [itkGetStaticConstMacro(ImageDimension)]
Methods invoked by virtual
Print() to print information
about the object *including
superclasses.Typically not
called by the user(use Print()*instead) but used in the
hierarchical print process
to combine the *output of
several classes.*/virtual
void PrintSelf(std voi 		PrintHeader )(std::ostream &os, Indent indent) const
std::slice x_slice [itkGetStaticConstMacro(ImageDimension)]

Static Protected Attributes

static double m_DT
static double m_WaveDT
static VectorType m_ZeroVectorConstant

Member Typedef Documentation

template<class TImageType, class TFeatureImageType = TImageType>
typedef SmartPointer<const Self> itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::ConstPointer


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 99 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::ContinuousIndexType itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::ContinuousIndexType [inherited]


Continuous index type recognized by the interpolator

Reimplemented from itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 81 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType>
typedef ZeroFluxNeumannBoundaryCondition<ImageType> itk::FiniteDifferenceFunction< TImageType >::DefaultBoundaryConditionType [inherited]


The default boundary condition for finite difference functions that is used unless overridden in the Evaluate() method.

Definition at line 93 of file itkFiniteDifferenceFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef TFeatureImageType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::FeatureImageType


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 100 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::FeatureScalarType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::FeatureScalarType


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 113 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::FloatOffsetType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::FloatOffsetType


A floating point offset from an image grid location. Used for interpolation among grid values in a neighborhood.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 115 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::GlobalDataStruct itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::GlobalDataStruct


A global data type used to store values needed to compute the time step.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 117 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::ImageType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::ImageType


Extract some parameters from the superclass.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 107 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::IndexType itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::IndexType [inherited]


Reimplemented from itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 80 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef LinearInterpolateImageFunction<ImageType> itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::InterpolatorType [inherited]


Define a scalar interpolator

Definition at line 78 of file itkSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::NeighborhoodType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::NeighborhoodType


The type of data structure that is passed to this function object to evaluate at a pixel that does not lie on a data set boundary.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 111 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType>
typedef double itk::FiniteDifferenceFunction< TImageType >::PixelRealType [inherited]


Definition at line 82 of file itkFiniteDifferenceFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::PixelType itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::PixelType [inherited]


Reimplemented from itk::LevelSetFunction< TImageType >.

Definition at line 78 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef SmartPointer<Self> itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::Pointer


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 98 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::RadiusType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::RadiusType


Neighborhood radius type

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 114 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::ScalarValueType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::ScalarValueType


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 112 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef GeodesicActiveContourShapePriorLevelSetFunction itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::Self


Standard class typedefs.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 96 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef ShapeFunctionType::ConstPointer itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::ShapeFunctionPointer [inherited]


Definition at line 90 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef ShapeSignedDistanceFunction<double, itkGetStaticConstMacro(ImageDimension) itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::ShapeFunctionType) [inherited]


ShapeFunction typedef support.

Definition at line 89 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef ShapePriorSegmentationLevelSetFunction<TImageType,TFeatureImageType> itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::Superclass


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 97 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::TimeStepType itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::TimeStepType [inherited]


Convenient typedefs.

Reimplemented from itk::LevelSetFunction< TImageType >.

Definition at line 79 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::VectorImageType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::VectorImageType


Define an image type for the advection field.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 116 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef VectorLinearInterpolateImageFunction<VectorImageType> itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::VectorInterpolatorType [inherited]


Define a vector interpolator

Definition at line 81 of file itkSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
typedef Superclass::VectorType itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::VectorType [inherited]


The vector type that will be used in the calculations.

Reimplemented from itk::LevelSetFunction< TImageType >.

Definition at line 67 of file itkSegmentationLevelSetFunction.h.

Constructor & Destructor Documentation

template<class TImageType, class TFeatureImageType = TImageType>
itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::GeodesicActiveContourShapePriorLevelSetFunction (   )  [inline, protected]


Definition at line 153 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
virtual itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::~GeodesicActiveContourShapePriorLevelSetFunction (   )  [inline, protected, virtual]


Definition at line 163 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::GeodesicActiveContourShapePriorLevelSetFunction (  const Self &   )  [protected]


Member Function Documentation

template<class TImageType, class TFeatureImageType = TImageType>
virtual VectorType itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::AdvectionField (  const NeighborhoodType &  ,
const FloatOffsetType &  ,
GlobalDataStruct *  gd
)  const [protected, virtual, inherited]


Advection field. Returns a vector from the computed advectionfield.

Reimplemented from itk::LevelSetFunction< TImageType >.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::AllocateAdvectionImage (   )  [virtual, inherited]


Allocates the image that will be used for the level set function's Advection field term. See LevelSetFunction for more information.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::AllocateSpeedImage (   )  [virtual, inherited]


Allocates the image that will be used for the level set function's Propagation Speed term. See LevelSetFunction for more information.

static void itk::LightObject::BreakOnError (   )  [static, inherited]


This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::CalculateAdvectionImage (   )  [virtual]


Compute the advection field from feature image.

Reimplemented from itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::CalculateSpeedImage (   )  [virtual]


Compute speed image from feature image.

Reimplemented from itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >.

template<class TImageType>
virtual ScalarValueType itk::LevelSetFunction< TImageType >::Compute3DMinimalCurvature (  const NeighborhoodType &  ,
const FloatOffsetType &  ,
GlobalDataStruct *  gd = 0
)  [virtual, inherited]


template<class TImageType>
* virtual ScalarValueType itk::LevelSetFunction< TImageType >::ComputeCurvatureTerm (  const NeighborhoodType &  ,
const FloatOffsetType &  ,
GlobalDataStruct *  gd = 0
)  [virtual, inherited]


template<class TImageType, class TFeatureImageType = TImageType>
virtual TimeStepType itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::ComputeGlobalTimeStep (  void *  globalData  )  const [virtual, inherited]


Compute global time step from the global data structure.

Reimplemented from itk::LevelSetFunction< TImageType >.

template<class TImageType>
virtual ScalarValueType itk::LevelSetFunction< TImageType >::ComputeMeanCurvature (  const NeighborhoodType &  ,
const FloatOffsetType &  ,
GlobalDataStruct *  gd = 0
)  [virtual, inherited]


template<class TImageType>
virtual ScalarValueType itk::LevelSetFunction< TImageType >::ComputeMinimalCurvature (  const NeighborhoodType &  ,
const FloatOffsetType &  ,
GlobalDataStruct *  gd = 0
)  [virtual, inherited]


template<class TImageType, class TFeatureImageType = TImageType>
virtual PixelType itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::ComputeUpdate (  const NeighborhoodType &  neighborhood,
void *  globalData,
const FloatOffsetType &  = FloatOffsetType(0.0)
)  [virtual, inherited]


Compute the equation value with the additional shape prior term.

Reimplemented from itk::LevelSetFunction< TImageType >.

virtual Pointer itk::LightObject::CreateAnother (   )  const [virtual, inherited]


Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.

Reimplemented in itk::Object.

template<class TImageType, class TFeatureImageType = TImageType>
virtual ScalarValueType itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::CurvatureSpeed (  const NeighborhoodType &  neighborhood,
const FloatOffsetType &  offset,
GlobalDataStruct *  gd
)  const [inline, virtual]


The curvature speed is same as the propagation speed.

Reimplemented from itk::LevelSetFunction< TImageType >.

Definition at line 130 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

virtual void itk::LightObject::Delete (   )  [virtual, inherited]


Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

template<class TImageType, class TFeatureImageType = TImageType>
Get Set the image used as the advection field in the level set equation* virtual VectorImageType* itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::GetAdvectionImage (   )  const [inline, virtual, inherited]


Definition at line 100 of file itkSegmentationLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::GetAdvectionWeight (   )  const [inline, inherited]


Definition at line 150 of file itkLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::GetCurvatureWeight (   )  const [inline, inherited]


Definition at line 164 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
double itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::GetDerivativeSigma (   )  [inline]


Definition at line 138 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::GetEpsilonMagnitude (   )  const [inline, inherited]


Definition at line 178 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
Set Get the image which will be used to calculate the speed function* virtual const FeatureImageType* itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::GetFeatureImage (   )  const [inline, virtual, inherited]


Definition at line 87 of file itkSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
Returns a pointer to a global data structure for computing time step* virtual void* itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::GetGlobalDataPointer (   )  const [inline, virtual, inherited]


Returns a pointer to a global data structure that is passed to this object from the solver at each calculation. The idea is that the solver holds the state of any global values needed to calculate the time step, while the equation object performs the actual calculations.

The global data should also be initialized in this method.

Reimplemented from itk::LevelSetFunction< TImageType >.

Definition at line 124 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::GetLaplacianSmoothingWeight (   )  const [inline, inherited]


Definition at line 171 of file itkLevelSetFunction.h.

template<class TImageType>
static double itk::LevelSetFunction< TImageType >::GetMaximumCurvatureTimeStep (   )  [inline, static, inherited]


Definition at line 272 of file itkLevelSetFunction.h.

template<class TImageType>
static double itk::LevelSetFunction< TImageType >::GetMaximumPropagationTimeStep (   )  [inline, static, inherited]


Definition at line 286 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
virtual const char* itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::GetNameOfClass (   )  const [virtual]


Run-time type information (and related methods)

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::GetPropagationWeight (   )  const [inline, inherited]


Definition at line 157 of file itkLevelSetFunction.h.

template<class TImageType>
const RadiusType& itk::FiniteDifferenceFunction< TImageType >::GetRadius (  void   )  const [inline, inherited]


Returns the radius of the neighborhood this FiniteDifferenceFunction needs to perform its calculations.

Definition at line 142 of file itkFiniteDifferenceFunction.h.

virtual int itk::LightObject::GetReferenceCount (   )  const [inline, virtual, inherited]


Gets the reference count on this object.

Definition at line 98 of file itkLightObject.h.

template<class TImageType, class TFeatureImageType = TImageType>
const ShapeFunctionType* itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::GetShapeFunction (   )  const [inline, inherited]


Definition at line 103 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
ScalarValueType itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::GetShapePriorWeight (   )  const [inline, inherited]


Definition at line 95 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
Get Set the image used as the speed function in the level set equation* virtual ImageType* itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::GetSpeedImage (   )  [inline, virtual, inherited]


Definition at line 94 of file itkSegmentationLevelSetFunction.h.

template<class TImageType>
bool itk::LevelSetFunction< TImageType >::GetUseMinimalCurvature (   )  const [inline, inherited]


Definition at line 250 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::Initialize (  const RadiusType &  r  )  [inline, virtual]


This method creates the appropriate member variable operators for the level-set calculations. The argument to this function is a the radius necessary for performing the level-set calculations.

Reimplemented from itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 142 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType>
virtual void itk::FiniteDifferenceFunction< TImageType >::InitializeIteration (   )  [inline, virtual, inherited]


This method allows the function to set its state before each iteration of the finite difference solver (image filter) that uses it. This is a thread-safe time to manipulate the object's state.

An example of how this can be used: the Anisotropic diffusion class of FiniteDifferenceFunctions use this method to pre-calculate an average gradient magnitude across the entire image region. This value is set in the function object and used by the ComputeUpdate methods that are called at each pixel as a constant.

Reimplemented in itk::DemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::FastSymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::LevelSetMotionRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MeanSquareRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::MIRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::NCCRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::SymmetricForcesDemonsRegistrationFunction< TFixedImage, TMovingImage, TDeformationField >, itk::CurvatureNDAnisotropicDiffusionFunction< TImage >, itk::GradientNDAnisotropicDiffusionFunction< TImage >, itk::VectorCurvatureNDAnisotropicDiffusionFunction< TImage >, and itk::VectorGradientNDAnisotropicDiffusionFunction< TImage >.

Definition at line 115 of file itkFiniteDifferenceFunction.h.

template<class TImageType>
static VectorType itk::LevelSetFunction< TImageType >::InitializeZeroVectorConstant (   )  [static, protected, inherited]


This method's only purpose is to initialize the zero vector constant.

template<class TImageType>
itk::FiniteDifferenceFunction< TImageType >::itkStaticConstMacro (  ImageDimension  ,
unsigned  int,
ImageType::ImageDimension
)  [inherited]


Save image dimension.

template<class TImageType, class TFeatureImageType = TImageType>
itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::itkStaticConstMacro (  ImageDimension  ,
unsigned  int,
Superclass::ImageDimension
)


Extract some parameters from the superclass.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

template<class TImageType>
virtual ScalarValueType itk::LevelSetFunction< TImageType >::LaplacianSmoothingSpeed (  const NeighborhoodType &  ,
const FloatOffsetType &  ,
GlobalDataStruct *  = 0
)  const [inline, virtual, inherited]


Laplacian smoothing speed. Can be used to spatially modify the effects of laplacian smoothing of the level set function

Definition at line 142 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
static Pointer itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::New (   )  [static]


Method for creation through the object factory.

Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

template<class TImageType, class TFeatureImageType = TImageType>
void itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::operator= (  const Self &   )  [protected]


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

void itk::LightObject::Print (  std::ostream &  os,
Indent  indent = 0
)  const [inherited]


Cause the object to print itself out.

template<class TImageType, class TFeatureImageType = TImageType>
void itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::PrintSelf (  std::ostream &  os,
Indent  indent
)  const [inline, protected]


Reimplemented from itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 168 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

References HardConnectedComponentImageFilter::PrintSelf().

virtual void itk::LightObject::PrintTrailer (  std::ostream &  os,
Indent  indent
)  const [protected, virtual, inherited]


template<class TImageType, class TFeatureImageType = TImageType>
virtual ScalarValueType itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::PropagationSpeed (  const NeighborhoodType &  ,
const FloatOffsetType &  ,
GlobalDataStruct *  gd
)  const [protected, virtual, inherited]


Returns the propagation speed from the precalculated speed image.

Reimplemented from itk::LevelSetFunction< TImageType >.

virtual void itk::LightObject::Register (   )  const [virtual, inherited]


Increase the reference count (mark as used by another object).

Reimplemented in itk::Object.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::ReleaseGlobalDataPointer (  void *  GlobalData  )  const [inline, virtual, inherited]


Release the global data structure.

Reimplemented from itk::LevelSetFunction< TImageType >.

Definition at line 136 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::ReverseExpansionDirection (   )  [virtual, inherited]


Determines whether Positive or Negative speed terms will cause surface expansion. This method flips the sign of all of the speed, advection, etc terms. By convention, filters should be written so that POSITIVE speed terms cause surface expansion. Calling this method will toggle between the standard POSITIVE EXPANSION convention and the nonstandard NEGATIVE EXPANSION convention.

IMPORTANT: When adding terms to the level-set equation through subclassing you may need to override this function so that your new terms will be properly adjusted.

template<class TImageType, class TFeatureImageType = TImageType>
void itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::SetAdvectionImage (  VectorImageType *  s  )  [inherited]


template<class TImageType>
Alpha Scales all advection term values* virtual void itk::LevelSetFunction< TImageType >::SetAdvectionWeight (  const ScalarValueType  a  )  [inline, virtual, inherited]


Reimplemented in itk::LaplacianSegmentationLevelSetFunction< TImageType, TFeatureImageType >.

Definition at line 148 of file itkLevelSetFunction.h.

template<class TImageType>
Gamma Scales all curvature weight values* virtual void itk::LevelSetFunction< TImageType >::SetCurvatureWeight (  const ScalarValueType  c  )  [inline, virtual, inherited]


Definition at line 162 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
Set Get the sigma for the Gaussian kernel used to compute the gradient* of the feature image needed for the advection term of the equation* void itk::GeodesicActiveContourShapePriorLevelSetFunction< TImageType, TFeatureImageType >::SetDerivativeSigma (  const double  v  )  [inline]


Definition at line 136 of file itkGeodesicActiveContourShapePriorLevelSetFunction.h.

template<class TImageType>
Epsilon* void itk::LevelSetFunction< TImageType >::SetEpsilonMagnitude (  const ScalarValueType  e  )  [inline, inherited]


Definition at line 176 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
virtual void itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::SetFeatureImage (  const FeatureImageType *  f  )  [inline, virtual, inherited]


Definition at line 89 of file itkSegmentationLevelSetFunction.h.

template<class TImageType>
Weight of the laplacian smoothing term* void itk::LevelSetFunction< TImageType >::SetLaplacianSmoothingWeight (  const ScalarValueType  c  )  [inline, inherited]


Definition at line 169 of file itkLevelSetFunction.h.

template<class TImageType>
Set Get the maximum constraint for the curvature term factor in the time step calculation Changing this value from the default is not recommended or but can be used to speed up the surface evolution at the risk of creating an unstable solution* static void itk::LevelSetFunction< TImageType >::SetMaximumCurvatureTimeStep (  double  n  )  [inline, static, inherited]


Definition at line 268 of file itkLevelSetFunction.h.

template<class TImageType>
Set Get the maximum constraint for the scalar vector term factor of the time step calculation Changing this value from the default is not recommended or but can be used to speed up the surface evolution at the risk of creating an unstable solution* static void itk::LevelSetFunction< TImageType >::SetMaximumPropagationTimeStep (  double  n  )  [inline, static, inherited]


Definition at line 282 of file itkLevelSetFunction.h.

template<class TImageType>
Beta Scales all propagation term values* virtual void itk::LevelSetFunction< TImageType >::SetPropagationWeight (  const ScalarValueType  p  )  [inline, virtual, inherited]


Definition at line 155 of file itkLevelSetFunction.h.

template<class TImageType>
void itk::FiniteDifferenceFunction< TImageType >::SetRadius (  const RadiusType &  r  )  [inline, inherited]


Sets the radius of the neighborhood this FiniteDifferenceFunction needs to perform its calculations.

Definition at line 137 of file itkFiniteDifferenceFunction.h.

virtual void itk::LightObject::SetReferenceCount (  int   )  [virtual, inherited]


Sets the reference count on this object. This is a dangerous method, use it with care.

Reimplemented in itk::Object.

template<class TImageType>
Set the ScaleCoefficients for the difference* operators The defaults a These can be set to take the image* spacing into account* void itk::FiniteDifferenceFunction< TImageType >::SetScaleCoefficients (  PixelRealType  vals[ImageDimension]  )  [inline, inherited]


Definition at line 148 of file itkFiniteDifferenceFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
The ShapeFunction encapsulates the signed distance to the shape used to* influence the evolution of the level set* void itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::SetShapeFunction (  const ShapeFunctionType *  ptr  )  [inline, inherited]


Definition at line 101 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
Zeta The ShapePriorWeight scales the shape prior term values* void itk::ShapePriorSegmentationLevelSetFunction< TImageType, TFeatureImageType >::SetShapePriorWeight (  const ScalarValueType  p  )  [inline, inherited]


Definition at line 93 of file itkShapePriorSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
void itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::SetSpeedImage (  ImageType *  s  )  [inherited]


template<class TImageType>
* void itk::LevelSetFunction< TImageType >::SetUseMinimalCurvature (  bool  b  )  [inline, inherited]


Definition at line 246 of file itkLevelSetFunction.h.

virtual void itk::LightObject::UnRegister (   )  const [virtual, inherited]


Decrease the reference count (release by another object).

Reimplemented in itk::Object.

template<class TImageType>
void itk::LevelSetFunction< TImageType >::UseMinimalCurvatureOff (   )  [inline, inherited]


Definition at line 258 of file itkLevelSetFunction.h.

template<class TImageType>
void itk::LevelSetFunction< TImageType >::UseMinimalCurvatureOn (   )  [inline, inherited]


Definition at line 254 of file itkLevelSetFunction.h.

Member Data Documentation

template<class TImageType, class TFeatureImageType = TImageType>
VectorImageType::Pointer itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::m_AdvectionImage [protected, inherited]


The image holding the advection field for front propation

Definition at line 151 of file itkSegmentationLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::m_AdvectionWeight [protected, inherited]


Alpha.

Definition at line 330 of file itkLevelSetFunction.h.

template<class TImageType>
:: vcl_size_t itk::LevelSetFunction< TImageType >::m_Center [protected, inherited]


The offset of the center pixel in the neighborhood.

Definition at line 312 of file itkLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::m_CurvatureWeight [protected, inherited]


Gamma.

Definition at line 336 of file itkLevelSetFunction.h.

template<class TImageType>
double itk::LevelSetFunction< TImageType >::m_DT [static, protected, inherited]


Definition at line 306 of file itkLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::m_EpsilonMagnitude [protected, inherited]


Epsilon magnitude controls the lower limit for gradient magnitude.

Definition at line 327 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
FeatureImageType::ConstPointer itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::m_FeatureImage [protected, inherited]


The image whose features will be used to create a speed image

Definition at line 145 of file itkSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
InterpolatorType::Pointer itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::m_Interpolator [protected, inherited]


Definition at line 175 of file itkSegmentationLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::m_LaplacianSmoothingWeight [protected, inherited]


Laplacean smoothing term

Definition at line 339 of file itkLevelSetFunction.h.

template<class TImageType>
ScalarValueType itk::LevelSetFunction< TImageType >::m_PropagationWeight [protected, inherited]


Beta.

Definition at line 333 of file itkLevelSetFunction.h.

template<class TImageType>
RadiusType itk::FiniteDifferenceFunction< TImageType >::m_Radius [protected, inherited]


Definition at line 194 of file itkFiniteDifferenceFunction.h.

int itk::LightObject::m_ReferenceCount [mutable, protected, inherited]


Number of uses of this object by other objects.

Definition at line 119 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock [mutable, protected, inherited]


Mutex lock to protect modification to the reference count

Definition at line 122 of file itkLightObject.h.

template<class TImageType>
PixelRealType itk::FiniteDifferenceFunction< TImageType >::m_ScaleCoefficients[ImageDimension] [protected, inherited]


Definition at line 195 of file itkFiniteDifferenceFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
ImageType::Pointer itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::m_SpeedImage [protected, inherited]


The image holding the speed values for front propagation

Definition at line 148 of file itkSegmentationLevelSetFunction.h.

template<class TImageType>
bool itk::LevelSetFunction< TImageType >::m_UseMinimalCurvature [protected, inherited]


Definition at line 317 of file itkLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
Functor::VectorCast< typename VectorInterpolatorType::OutputType, VectorType > itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::m_VectorCast [protected, inherited]


A casting functor to convert between vector types.

Definition at line 155 of file itkSegmentationLevelSetFunction.h.

template<class TImageType, class TFeatureImageType = TImageType>
VectorInterpolatorType::Pointer itk::SegmentationLevelSetFunction< TImageType, TFeatureImageType >::m_VectorInterpolator [protected, inherited]


Definition at line 176 of file itkSegmentationLevelSetFunction.h.

template<class TImageType>
double itk::LevelSetFunction< TImageType >::m_WaveDT [static, protected, inherited]


Constants used in the time step calculation.

Definition at line 305 of file itkLevelSetFunction.h.

template<class TImageType>
:: vcl_size_t itk::LevelSetFunction< TImageType >::m_xStride[itkGetStaticConstMacro(ImageDimension)] [protected, inherited]


Stride length along the y-dimension.

Definition at line 315 of file itkLevelSetFunction.h.

template<class TImageType>
VectorType itk::LevelSetFunction< TImageType >::m_ZeroVectorConstant [static, protected, inherited]


Zero vector constant.

Definition at line 324 of file itkLevelSetFunction.h.

template<class TImageType>
Set Get the maximum constraint for the scalar vector term factor of the time step calculation Changing this value from the default is not recommended or itk::LevelSetFunction< TImageType >::necessary [inherited]


Definition at line 280 of file itkLevelSetFunction.h.

template<class TImageType>
Set Get the maximum constraint for the curvature term factor in the time step calculation Changing this value from the default is not recommended or itk::LevelSetFunction< TImageType >::necessary [inherited]


Definition at line 266 of file itkLevelSetFunction.h.

Methods invoked by virtual Print () to print information about the object * including superclasses. Typically not called by the user (use Print() * instead) but used in the hierarchical print process to combine the * output of several classes. */ virtual void PrintSelf(std voi itk::LightObject::PrintHeader)(std::ostream &os, Indent indent) const [protected, inherited]


template<class TImageType>
Returns a pointer to a global data structure that is passed to this* object from the solver at each calculation The idea is that the solver* holds the state of any global values needed to calculate the time itk::LevelSetFunction< TImageType >::step [inherited]


Definition at line 197 of file itkLevelSetFunction.h.

template<class TImageType>
std::slice itk::LevelSetFunction< TImageType >::x_slice[itkGetStaticConstMacro(ImageDimension)] [protected, inherited]


Slices for the ND neighborhood.

Definition at line 309 of file itkLevelSetFunction.h.

The documentation for this class was generated from the following file:
Generated at Sun Jul 9 19:52:09 2006 for ITK by doxygen 1.4.2 written by Dimitri van Heesch, © 1997-2000
