#include <itkLevelSetMotionRegistrationFilter.h>

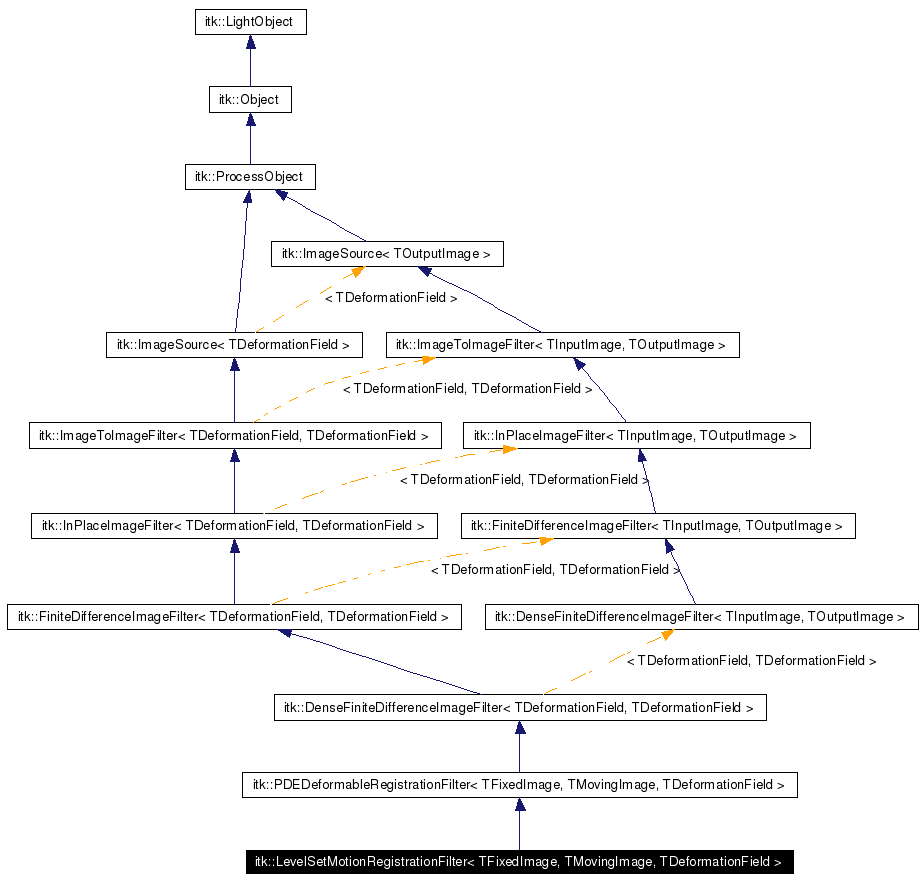

Inheritance diagram for itk::LevelSetMotionRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >:
LevelSetMotionFilter implements a deformable registration algorithm that aligns a fixed and a moving image under level set motion. The equations of motion are similar to those of the DemonsRegistrationFilter. The main differences are: (1) Gradients of the moving image are calculated on a smoothed image while intensity difference are measured on the original images (2) Magnitude of the motion vector is a function of the differences in intensity between the fixed and moving pixel. An adaptive timestep is calculated based on the maximum motion vector over the entire field to ensure stability. The timestep also implictly converts the motion vector measured in units of intensity to a vector measured in physical units. Demons, on the other hand, defines its motion vectors as function of both the intensity differences and gradient magnitude at each respective pixel. Consider two separate pixels with the same intensity differences between the corresponding fixed and moving pixel pairs. In demons, the motion vector of the pixel over a low gradient region will be larger than the motion vector of the pixel over a large gradient region. This leads to an unstable vector field. In the levelset approach, the motion vectors will be proportional to the gradients, scaled by the maximum gradient over the entire field. The pixel with at the lower gradient position will more less than the pixel at the higher gradient position. (3) Gradients are calculated using minmod finite difference instead of using central differences.
A deformation field is represented as a image whose pixel type is some vector type with at least N elements, where N is the dimension of the fixed image. The vector type must support element access via operator []. It is assumed that the vector elements behave like floating point scalars.
This class is templated over the fixed image type, moving image type and the deformation field type.
The input fixed and moving images are set via methods SetFixedImage and SetMovingImage respectively. An initial deformation field maybe set via SetInitialDeformationField or SetInput. If no initial field is set, a zero field is used as the initial condition.
The algorithm has one parameters: the number of iteration to be performed.
The output deformation field can be obtained via methods GetOutput or GetDeformationField.
This class make use of the finite difference solver hierarchy. Update for each iteration is computed in LevelSetMotionFunction.
DemonsRegistrationFilter MultiThreaded
Definition at line 89 of file itkLevelSetMotionRegistrationFilter.h.
Public Types | |
| typedef SmartPointer< const Self > | ConstPointer |
| typedef DataObject::Pointer | DataObjectPointer |
| typedef std::vector< DataObjectPointer > | DataObjectPointerArray |
| typedef Superclass::DeformationFieldPointer | DeformationFieldPointer |
| typedef Superclass::DeformationFieldType | DeformationFieldType |
| typedef Superclass::FiniteDifferenceFunctionType | FiniteDifferenceFunctionType |
| typedef FixedImageType::ConstPointer | FixedImageConstPointer |
| typedef Superclass::FixedImagePointer | FixedImagePointer |
| typedef Superclass::FixedImageType | FixedImageType |
| typedef InputImageType::ConstPointer | InputImageConstPointer |
| typedef InputImageType::PixelType | InputImagePixelType |
| typedef InputImageType::Pointer | InputImagePointer |
| typedef InputImageType::RegionType | InputImageRegionType |
| typedef Superclass::InputImageType | InputImageType |
| typedef LevelSetMotionRegistrationFunction< FixedImageType, MovingImageType, DeformationFieldType > | LevelSetMotionFunctionType |
| typedef MovingImageType::ConstPointer | MovingImageConstPointer |
| typedef Superclass::MovingImagePointer | MovingImagePointer |
| typedef Superclass::MovingImageType | MovingImageType |
| typedef Superclass::OutputImagePixelType | OutputImagePixelType |
| typedef Superclass::OutputImagePointer | OutputImagePointer |
| typedef Superclass::OutputImageRegionType | OutputImageRegionType |
| typedef Superclass::OutputImageType | OutputImageType |
| typedef PDEDeformableRegistrationFunction< FixedImageType, MovingImageType, DeformationFieldType > | PDEDeformableRegistrationFunctionType |
| typedef Superclass::PixelType | PixelType |
| typedef SmartPointer< Self > | Pointer |
| typedef LevelSetMotionRegistrationFilter | Self |
| typedef PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField > | Superclass |
| typedef Superclass::TimeStepType | TimeStepType |
| typedef OutputImageType | UpdateBufferType |
Public Member Functions | |
| virtual void | AbortGenerateDataOff () |
| virtual void | AbortGenerateDataOn () |
| Set Get the parameter alpha Alpha is added to the calculated *gradient magnitude prior to normalizing the gradient to protect *against numerical instability as the gradient magnitude *approaches zero This should be set as a small fraction of the *intensity dynamic for instance Default is the * | absolute (not percentage) value of 0.1.*/virtual void SetAlpha(double) |
| Can the filter run in place To do the filter s first input *and output must have the same dimension and pixel type This *method can be used in conjunction with the InPlace ivar to *determine whether a particular use of the filter is really *running in place Some filters may be able to optimize their *operation if the InPlace is true and CanRunInPlace is true *bool | CanRunInPlace () const |
| virtual LightObject::Pointer | CreateAnother () const |
| virtual void | DebugOff () const |
| virtual void | DebugOn () const |
| virtual void | Delete () |
| virtual void | EnlargeOutputRequestedRegion (DataObject *) |
| virtual const bool & | GetAbortGenerateData () |
| virtual double | GetAlpha () const |
| Command * | GetCommand (unsigned long tag) |
| bool | GetDebug () const |
| DeformationFieldType * | GetDeformationField () |
| virtual const FiniteDifferenceFunctionType::Pointer & | GetDifferenceFunction () const |
| virtual const unsigned int & | GetElapsedIterations () |
| const FixedImageType * | GetFixedImage (void) const |
| virtual double | GetGradientMagnitudeThreshold () const |
| virtual bool | GetInPlace () |
| const InputImageType * | GetInput (unsigned int idx) |
| const InputImageType * | GetInput (void) |
| DataObjectPointerArray & | GetInputs () |
| virtual double | GetIntensityDifferenceThreshold () const |
| virtual double | GetMaximumError () |
| virtual unsigned int | GetMaximumKernelWidth () |
| virtual const double & | GetMaximumRMSError () |
| const MetaDataDictionary & | GetMetaDataDictionary (void) const |
| MetaDataDictionary & | GetMetaDataDictionary (void) |
| virtual double | GetMetric () const |
| const MovingImageType * | GetMovingImage (void) const |
| virtual unsigned long | GetMTime () const |
| MultiThreader * | GetMultiThreader () |
| virtual const char * | GetNameOfClass () const |
| std::vector< DataObjectPointer >::size_type | GetNumberOfInputs () const |
| virtual const unsigned int & | GetNumberOfIterations () |
| std::vector< DataObjectPointer >::size_type | GetNumberOfOutputs () const |
| virtual const int & | GetNumberOfThreads () |
| virtual std::vector< SmartPointer< DataObject > >::size_type | GetNumberOfValidRequiredInputs () const |
| OutputImageType * | GetOutput (unsigned int idx) |
| Get the output data of this process object The output of this *function is not valid until an appropriate either explicitly or implicitly Both the filter *itself and the data object have and both *methods update the data Here are three ways to use * | GetOutput () and make sure the data is valid.In these *examples |
| Return an array with all the outputs of this process object *This is useful for tracing forward in the pipeline to contruct *graphs etc *DataObjectPointerArray & | GetOutputs () |
| virtual const float & | GetProgress () |
| virtual int | GetReferenceCount () const |
| virtual const bool & | GetReleaseDataBeforeUpdateFlag () |
| virtual bool | GetReleaseDataFlag () const |
| virtual const double & | GetRMSChange () |
| virtual bool | GetSmoothDeformationField () |
| virtual bool | GetSmoothUpdateField () |
| const double * | GetStandardDeviations (void) |
| virtual const FilterStateType & | GetState () |
| const double * | GetUpdateFieldStandardDeviations (void) |
| virtual const bool & | GetUseImageSpacing () |
| virtual void | GraftNthOutput (unsigned int idx, DataObject *output) |
| virtual void | GraftOutput (DataObject *output) |
| bool | HasObserver (const EventObject &event) const |
| Get the output data of this process object The output of this *function is not valid until an appropriate either explicitly or implicitly Both the filter *itself and the data object have and both *methods update the data Here are three ways to use *a image is a pointer to some Image and the *particular ProcessObjects involved are filters The same *examples apply to non | image (e.g.Mesh) data as well.**\code *anotherFilter->SetInput(someFilter->GetOutput()) |
| virtual void | InPlaceOff () |
| virtual void | InPlaceOn () |
| void | InvokeEvent (const EventObject &) const |
| void | InvokeEvent (const EventObject &) |
| itkStaticConstMacro (OutputImageDimension, unsigned int, TDeformationField::ImageDimension) | |
| ImageDimension constants * | itkStaticConstMacro (InputImageDimension, unsigned int, TDeformationField::ImageDimension) |
| itkStaticConstMacro (ImageDimension, unsigned int, OutputImageType::ImageDimension) | |
| itkStaticConstMacro (ImageDimension, unsigned int, Superclass::ImageDimension) | |
| virtual DataObjectPointer | MakeOutput (unsigned int idx) |
| virtual void | Modified () const |
| virtual void | PopBackInput () |
| virtual void | PopFrontInput () |
| virtual void | PrepareOutputs () |
| void | Print (std::ostream &os, Indent indent=0) const |
| virtual void | PropagateRequestedRegion (DataObject *output) |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL **The routines are useful for applications that need to process *rolling sets of images For if an application has *images and they need to run a filter on then *run the filter on then run the filter on the application can accomplish this by popping *an input off the front of the input list and push a new image *onto the back of input list this only makes sense for *filters that single type of input **Other uses are also possible For a single input pushing *and popping inputs allow the application to temporarily replace *an input to a filter **virtual void | PushBackInput (const InputImageType *image) |
| virtual void | PushFrontInput (const InputImageType *image) |
| virtual void | Register () const |
| virtual void | ReleaseDataBeforeUpdateFlagOff () |
| virtual void | ReleaseDataBeforeUpdateFlagOn () |
| void | ReleaseDataFlagOff () |
| void | ReleaseDataFlagOn () |
| void | RemoveAllObservers () |
| void | RemoveObserver (unsigned long tag) |
| virtual void | ResetPipeline () |
| virtual void | SetAbortGenerateData (bool _arg) |
| void | SetDebug (bool debugFlag) const |
| virtual void | SetDifferenceFunction (FiniteDifferenceFunctionType *_arg) |
| void | SetFixedImage (const FixedImageType *ptr) |
| Set Get the threshold below which the gradient magnitude is *considered the zero vector Default is e *virtual void | SetGradientMagnitudeThreshold (double) |
| void | SetInitialDeformationField (DeformationFieldType *ptr) |
| In place operation can be turned on and off This only has an *effect when the input and output image type match *virtual void | SetInPlace (bool _arg) |
| virtual void | SetInput (unsigned int, const TDeformationField *image) |
| Set Get the image input of this process object *virtual void | SetInput (const InputImageType *image) |
| Set Get the desired maximum error of the Guassian kernel approximate *sa GaussianOperator *virtual void | SetMaximumError (double _arg) |
| Set Get the desired limits of the Gaussian kernel width *sa GaussianOperator *virtual void | SetMaximumKernelWidth (unsigned int _arg) |
| Set Get the maximum error allowed in the solution This may not be defined for all solvers and its meaning may change with the application *virtual void | SetMaximumRMSError (double _arg) |
| void | SetMetaDataDictionary (const MetaDataDictionary &rhs) |
| void | SetMovingImage (const MovingImageType *ptr) |
| Set Get the number of iterations that the filter will run *virtual void | SetNumberOfIterations (unsigned int _arg) |
| Get Set the number of threads to create when executing *virtual void | SetNumberOfThreads (int _arg) |
| virtual void | SetProgress (float _arg) |
| virtual void | SetReferenceCount (int) |
| Turn on off the flags to control whether the bulk data belonging *to the outputs of this ProcessObject are released after being *used by a downstream ProcessObject Default value is off Another *options for controlling memory utilization is the *ReleaseDataBeforeUpdateFlag *virtual void | SetReleaseDataFlag (bool flag) |
| Set Get the root mean squared change of the previous iteration May not be used by all solvers *virtual void | SetRMSChange (double _arg) |
| virtual void | SetStandardDeviations (double value) |
| Set the Gaussian smoothing standard deviations for the *deformation field The values are set with respect to pixel *coordinates *virtual void | SetStandardDeviations (double data[]) |
| Set Get whether the deformation field is smoothed *regularized Smoothing the deformation yields a solution *elastic in nature If SmoothDeformationField is then the *deformation field is smoothed with a Gaussian whose standard *deviations are specified with | SetStandardDeviations ()*/virtual void SetSmoothDeformationField(bool _arg) |
| Set Get the state of the filter *virtual void | SetState (FilterStateType _arg) |
| void | SetStateToInitialized () |
| void | SetStateToUninitialized () |
| virtual void | SetUpdateFieldStandardDeviations (double value) |
| Set the Gaussian smoothing standard deviations for the update *field The values are set with respect to pixel coordinates *virtual void | SetUpdateFieldStandardDeviations (double data[]) |
| Set Get whether the update field is smoothed *regularized Smoothing the update field yields a solution *viscous in nature If SmoothUpdateField is then the *update field is smoothed with a Gaussian whose standard *deviations are specified with | SetUpdateFieldStandardDeviations ()*/virtual void SetSmoothUpdateField(bool _arg) |
| Use the image spacing information in calculations Use this option if you *want derivatives in physical space Default is UseImageSpacingOff *virtual void | SetUseImageSpacing (bool _arg) |
| virtual void | SmoothDeformationFieldOff () |
| virtual void | SmoothDeformationFieldOn () |
| virtual void | SmoothUpdateFieldOff () |
| virtual void | SmoothUpdateFieldOn () |
| virtual void | StopRegistration () |
| virtual void | UnRegister () const |
| *endcode *In the above the two lines of code can be in *either order **Note that it may be more efficient to *use a pipeline than to call | Update () once for each filter in *turn.**For an image |
| *endcode *In the above the two lines of code can be in *either order **Note that | Update () is not called automatically except within a *pipeline as in the first example.When\b streaming(using a *StreamingImageFilter) is activated |
| *endcode **code *someFilter | Update () |
| *image | Update () |
| *anotherFilter | Update () |
| Get the output data of this process object The output of this *function is not valid until an appropriate either explicitly or implicitly Both the filter *itself and the data object have | Update () methods |
| Get the output data of this process object The output of this *function is not valid until an appropriate | Update () method has *been called |
| virtual void | UpdateLargestPossibleRegion () |
| virtual void | UpdateOutputData (DataObject *output) |
| virtual void | UpdateOutputInformation () |
| void | UpdateProgress (float amount) |
| virtual void | UseImageSpacingOff () |
| virtual void | UseImageSpacingOn () |
| Set Get the threshold below which the absolute difference of *intensity yields a match When the intensities match between a *moving and fixed image the update | vector (for that *iteration) will be the zero vector.Default is 0.001.*/virtual void SetIntensityDifferenceThreshold(double) |
Static Public Member Functions | |
| static void | BreakOnError () |
| static bool | GetGlobalWarningDisplay () |
| static void | GlobalWarningDisplayOff () |
| static void | GlobalWarningDisplayOn () |
| static Pointer | New () |
| This is a global flag that controls whether any warning *or error messages are displayed *static void | SetGlobalWarningDisplay (bool flag) |
Public Attributes | |
| Allow people to add remove invoke observers(callbacks) to any ITK *object.This is an implementation of the subject/observer design *pattern.An observer is added by specifying an event to respond to *and an itk unsigned lon | AddObserver )(const EventObject &event, Command *) const |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL **The routines are useful for applications that need to process *rolling sets of images For if an application has *images and they need to run a filter on then *run the filter on then run the filter on the application can accomplish this by popping *an input off the front of the input list and push a new image *onto the back of input list | Again |
| This is a global flag that controls whether any | debug |
| *endcode *In the above | example |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL **The routines are useful for applications that need to process *rolling sets of images For if an application has *images and they need to run a filter on then *run the filter on then run the filter on the application can accomplish this by popping *an input off the front of the input list and push a new image *onto the back of input list this only makes sense for *filters that single type of input **Other uses are also possible For a single input | filter |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all | filters |
| Set Get the standard deviation used for smoothing the moving *image prior to calculating gradients The standard deviation is *measured in physical virtual units(for instance mm).Note that this *smoothing value is not to be confused with the *PDEDeformableRegistrationFilter doubl | GetGradientSmoothingStandardDeviations )() const |
| * | image |
| *endcode **In this a someFilter and a anotherFilter are said *to constitute a b pipeline **code * | image |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL **The routines are useful for applications that need to process *rolling sets of images For if an application has *images and they need to run a filter on then *run the filter on then run the filter on * | images |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL **The routines are useful for applications that need to process *rolling sets of images For if an application has *images and they need to run a filter on then *run the filter on | images |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL **The routines are useful for applications that need to process *rolling sets of images For if an application has *images and they need to run a filter on | images |
| Push Pop the input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL **The routines are useful for applications that need to process *rolling sets of images For | instance |
| Get the output data of this process object The output of this *function is not valid until an appropriate either explicitly or implicitly Both the filter *itself and the data object have and both *methods update the data Here are three ways to use *a image is a pointer to some Image | object |
| Set Get whether the update field is smoothed *regularized Smoothing the update field yields a solution *viscous in nature If SmoothUpdateField is | on |
| Set Get whether the deformation field is smoothed *regularized Smoothing the deformation yields a solution *elastic in nature If SmoothDeformationField is | on |
| Set Get the threshold below which the absolute difference of *intensity yields a match When the intensities match between a *moving and fixed image | pixel |
| Set Get the parameter alpha Alpha is added to the calculated *gradient magnitude prior to normalizing the gradient to protect *against numerical instability as the gradient magnitude *approaches zero This should be set as a small fraction of the *intensity dynamic | range |
| *endcode *In the above the two lines of code can be in *either order **Note that it may be more efficient to *use a pipeline than to call the data generated is for the requested * | Region |
| *endcode **In this | situation |
| Can the filter run in place To do | so |
Protected Types | |
| typedef ImageToImageFilterDetail::ImageRegionCopier< itkGetStaticConstMacro(OutputImageDimension), itkGetStaticConstMacro(InputImageDimension) | InputToOutputRegionCopierType ) |
| typedef ImageToImageFilterDetail::ImageRegionCopier< itkGetStaticConstMacro(InputImageDimension), itkGetStaticConstMacro(OutputImageDimension) | OutputToInputRegionCopierType ) |
Protected Member Functions | |
| virtual void | AddInput (DataObject *input) |
| virtual void | AddOutput (DataObject *output) |
| virtual void | AfterThreadedGenerateData () |
| virtual void | AllocateOutputs () |
| virtual void | ApplyUpdate (TimeStepType dt) |
| virtual void | BeforeThreadedGenerateData () |
| virtual void | CacheInputReleaseDataFlags () |
| virtual void | CallCopyInputRegionToOutputRegion (OutputImageRegionType &destRegion, const InputImageRegionType &srcRegion) |
| virtual void | CallCopyOutputRegionToInputRegion (InputImageRegionType &destRegion, const OutputImageRegionType &srcRegion) |
| virtual void | CopyInputToOutput () |
| DenseFiniteDifferenceImageFilter () | |
| virtual void | GenerateData () |
| virtual void | GenerateInputRequestedRegion () |
| virtual void | GenerateOutputInformation () |
| virtual void | GenerateOutputRequestedRegion (DataObject *output) |
| const DataObject * | GetInput (unsigned int idx) const |
| virtual const unsigned int & | GetNumberOfRequiredInputs () |
| virtual const unsigned int & | GetNumberOfRequiredOutputs () |
| const DataObject * | GetOutput (unsigned int idx) const |
| virtual UpdateBufferType * | GetUpdateBuffer () |
| virtual bool | Halt () |
| ImageSource () | |
| ImageToImageFilter () | |
| virtual void | Initialize () |
| virtual void | InitializeIteration () |
| InPlaceImageFilter () | |
| LevelSetMotionRegistrationFilter () | |
| virtual void | PostProcessOutput () |
| bool | PrintObservers (std::ostream &os, Indent indent) const |
| void | PrintSelf (std::ostream &os, Indent indent) const |
| virtual void | PrintTrailer (std::ostream &os, Indent indent) const |
| virtual void | PropagateResetPipeline () |
| **these methods end of hiding the versions from the superclass *ProcessObject whose arguments are DataObjects we re expose *the versions from ProcessObject to avoid warnings about hiding *methods from the superclass *void | PushBackInput (const DataObject *input) |
| * | PushBackInput () |
| * | PushFronInput () in the public section force the *input to be the type expected by an ImageToImageFilter.However |
| void | PushFrontInput (const DataObject *input) |
| virtual void | ReleaseInputs () |
| virtual void | RemoveInput (DataObject *input) |
| virtual void | RemoveOutput (DataObject *output) |
| virtual void | RestoreInputReleaseDataFlags () |
| Protected methods for setting inputs *Subclasses make use of them for setting input *virtual void | SetNthInput (unsigned int num, DataObject *input) |
| Protected methods for setting outputs *Subclasses make use of them for getting output *virtual void | SetNthOutput (unsigned int num, DataObject *output) |
| void | SetNumberOfInputs (unsigned int num) |
| void | SetNumberOfOutputs (unsigned int num) |
| virtual void | SetNumberOfRequiredInputs (unsigned int _arg) |
| virtual void | SetNumberOfRequiredOutputs (unsigned int _arg) |
| virtual void | SmoothDeformationField () |
| virtual void | SmoothUpdateField () |
| virtual int | SplitRequestedRegion (int i, int num, OutputImageRegionType &splitRegion) |
| virtual void | ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, int threadId) |
| ~LevelSetMotionRegistrationFilter () | |
Static Protected Member Functions | |
| static ITK_THREAD_RETURN_TYPE | ThreaderCallback (void *arg) |
Protected Attributes | |
| **these methods end of hiding the versions from the superclass *ProcessObject whose arguments are DataObjects | Here |
| TimeStamp | m_OutputInformationMTime |
| int | m_ReferenceCount |
| SimpleFastMutexLock | m_ReferenceCountLock |
| bool | m_Updating |
| Methods invoked by virtual Print() to print information about the object *including superclasses.Typically not called by the user(use Print()*instead) but used in the hierarchical print process to combine the *output of several classes.*/virtual void PrintSelf(std voi | PrintHeader )(std::ostream &os, Indent indent) const |
|
|||||
|
Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 99 of file itkLevelSetMotionRegistrationFilter.h. |
|
|
Smart Pointer type to a DataObject. Reimplemented from itk::ProcessObject. Definition at line 62 of file itkImageSource.h. |
|
|
STL Array of SmartPointers to DataObjects Definition at line 103 of file itkProcessObject.h. |
|
|||||
|
Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 123 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
Deformation field type. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 121 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
FiniteDifferenceFunction type. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 127 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
Definition at line 93 of file itkPDEDeformableRegistrationFilter.h. |
|
|||||
|
Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 113 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
FixedImage image type. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 112 of file itkLevelSetMotionRegistrationFilter.h. |
|
|
Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. Definition at line 84 of file itkInPlaceImageFilter.h. |
|
|
Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. Definition at line 86 of file itkInPlaceImageFilter.h. |
|
|
Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. Definition at line 83 of file itkInPlaceImageFilter.h. |
|
|
Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. Definition at line 85 of file itkInPlaceImageFilter.h. |
|
|
Convenient typedefs Reimplemented from itk::FiniteDifferenceImageFilter< TDeformationField, TDeformationField >. Definition at line 78 of file itkDenseFiniteDifferenceImageFilter.h. |
|
|
Typedef for the region copier function object that converts an input region to an output region. Definition at line 163 of file itkImageToImageFilter.h. |
|
|||||
|
LevelSetMotionFilterFunction type. Definition at line 131 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
Definition at line 98 of file itkPDEDeformableRegistrationFilter.h. |
|
|||||
|
Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 117 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
MovingImage image type. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 116 of file itkLevelSetMotionRegistrationFilter.h. |
|
|
Reimplemented from itk::ImageSource< TDeformationField >. Definition at line 79 of file itkInPlaceImageFilter.h. |
|
|
Reimplemented from itk::ImageSource< TDeformationField >. Definition at line 77 of file itkInPlaceImageFilter.h. |
|
|
Superclass typedefs. Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. Definition at line 78 of file itkInPlaceImageFilter.h. |
|
|||||
|
Types inherithed from the superclass Reimplemented from itk::DenseFiniteDifferenceImageFilter< TDeformationField, TDeformationField >. Definition at line 105 of file itkPDEDeformableRegistrationFilter.h. |
|
|
Typedef for the region copier function object that converts an output region to an input region. Definition at line 168 of file itkImageToImageFilter.h. |
|
|||||
|
PDEDeformableRegistrationFilterFunction type. Definition at line 113 of file itkPDEDeformableRegistrationFilter.h. |
|
|
The pixel type of the output image will be used in computations. Inherited from the superclass. Reimplemented from itk::FiniteDifferenceImageFilter< TDeformationField, TDeformationField >. Definition at line 92 of file itkDenseFiniteDifferenceImageFilter.h. |
|
|||||
|
Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 98 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
Standard class typedefs. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 95 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. Definition at line 97 of file itkLevelSetMotionRegistrationFilter.h. |
|
|||||
|
Inherit types from superclass. Reimplemented from itk::DenseFiniteDifferenceImageFilter< TDeformationField, TDeformationField >. Definition at line 106 of file itkLevelSetMotionRegistrationFilter.h. |
|
|
The container type for the update buffer. Definition at line 98 of file itkDenseFiniteDifferenceImageFilter.h. |
|
|||||||||
|
|
|
|||||||||
|
Definition at line 182 of file itkLevelSetMotionRegistrationFilter.h. |
|
|
|
|
|
Turn on and off the AbortGenerateData flag. |
|
||||||||||
|
|
|
|
|
|
|
|
|
|
If an imaging filter needs to perform processing after all processing threads have completed, the filter can can provide an implementation for AfterThreadedGenerateData(). The execution flow in the default GenerateData() method will be: 1) Allocate the output buffer 2) Call BeforeThreadedGenerateData() 3) Spawn threads, calling ThreadedGenerateData() in each thread. 4) Call AfterThreadedGenerateData() Note that this flow of control is only available if a filter provides a ThreadedGenerateData() method and NOT a GenerateData() method. Definition at line 254 of file itkImageSource.h. |
|
|
The GenerateData method normally allocates the buffers for all of the outputs of a filter. Since InPlaceImageFilter's can use an overwritten version of the input for its output, the output buffer should not be allocated. When possible, we graft the input to the filter to the output. If an InPlaceFilter has multiple outputs, then it would need to override this method to graft one of its outputs and allocate the remaining. If a filter is threaded (i.e. it provides an implementation of ThreadedGenerateData()), this method is called automatically. If an InPlaceFilter is not threaded (i.e. it provides an implementation of GenerateData()), then this method (or equivalent) must be called in GenerateData(). Reimplemented from itk::ImageSource< TDeformationField >. |
|
||||||||||
|
Apply update. Reimplemented from itk::DenseFiniteDifferenceImageFilter< TDeformationField, TDeformationField >. |
|
|
If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can can provide an implementation for BeforeThreadedGenerateData(). The execution flow in the default GenerateData() method will be: 1) Allocate the output buffer 2) Call BeforeThreadedGenerateData() 3) Spawn threads, calling ThreadedGenerateData() in each thread. 4) Call AfterThreadedGenerateData() Note that this flow of control is only available if a filter provides a ThreadedGenerateData() method and NOT a GenerateData() method. Definition at line 242 of file itkImageSource.h. |
|
|
This method is called when itkExceptionMacro executes. It allows the debugger to break on error. |
|
|
Cache the state of any ReleaseDataFlag's on the inputs. While the filter is executing, we need to set the ReleaseDataFlag's on the inputs to false in case the current filter is implemented using a mini-pipeline (which will try to release the inputs). After the filter finishes, we restore the state of the ReleaseDataFlag's before the call to ReleaseInputs(). |
|
||||||||||||
|
This function calls the actual region copier to do the mapping from input image space to output image space. It uses a Function object used for dispatching to various routines to copy an input region (start index and size) to an output region. For most filters, this is a trivial copy because most filters require the input dimension to match the output dimension. However, some filters like itk::UnaryFunctorImageFilter can support output images of a higher dimension that the input. This function object is used by the default implementation of GenerateOutputInformation(). It can also be used in routines like ThreadedGenerateData() where a filter may need to map an input region to an output region. The default copier uses a "dispatch pattern" to call one of three overloaded functions depending on whether the input and output images are the same dimension, the input is a higher dimension that the output, or the input is of a lower dimension than the output. The use of an overloaded function is required for proper compilation of the various cases. For the latter two cases, trivial implementations are used. If the input image is a higher dimension than the output, the first portion of the input region is copied to the output region. If the input region is a lower dimension than the output, the input region information is copied into the first portion of the output region and the rest of the output region is set to zero. If a filter needs a different default behavior, it can override this method. |
|
||||||||||||
|
This function calls the actual region copier to do the mapping from output image space to input image space. It uses a Function object used for dispatching to various routines to copy an output region (start index and size) to an input region. For most filters, this is a trivial copy because most filters require the input dimension to match the output dimension. However, some filters like itk::ExtractImageFilter can support output images of a lower dimension that the input. This function object can be used by GenerateOutputInformation() to copy the input LargestPossibleRegion to the output LargestPossibleRegion and can also be used in GenerateData or ThreadedGenerateData() where a filter may need to map an output region to an input region. The default copier uses a "dispatch pattern" to call one of three overloaded functions depending on whether the input and output images are the same dimension, the input is a higher dimension that the output, or the input is of a lower dimension than the output. The use of an overloaded function is required for proper compilation of the various cases. For the latter two cases, trivial implementations are used. If the input image is a higher dimension than the output, the output region information is copied into the first portion of the input region and the rest of the input region is set to zero. If the input region is a lower dimension than the output, the first portion of the output region is copied to the input region. If a filter needs a different default behavior, it can override this method. The ExtractImageFilter overrides this function object so that if the input image is a higher dimension than the output image, the filter can control "where" in the input image the output subimage is extracted (as opposed to mapping to first few dimensions of the input). |
|
|
Definition at line 108 of file itkInPlaceImageFilter.h. |
|
|||||||||
|
A simple method to copy the data from the input to the output. If the input does not exist, a zero field is written to the output. Reimplemented from itk::DenseFiniteDifferenceImageFilter< TDeformationField, TDeformationField >. |
|
|
Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class. Reimplemented from itk::LightObject. |
|
|
Turn debugging output off. |
|
|
Turn debugging output on. |
|
|
Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting. |
|
|
Definition at line 113 of file itkDenseFiniteDifferenceImageFilter.h. References HardConnectedComponentImageFilter::New(). |
|
|
|
A version of GenerateData() specific for image processing filters. This implementation will split the processing across multiple threads. The buffer is allocated by this method. Then the BeforeThreadedGenerateData() method is called (if provided). Then, a series of threads are spawned each calling ThreadedGenerateData(). After all the threads have completed processing, the AfterThreadedGenerateData() method is called (if provided). If an image processing filter cannot be threaded, the filter should provide an implementation of GenerateData(). That implementation is responsible for allocating the output buffer. If a filter an be threaded, it should NOT provide a GenerateData() method but should provide a ThreadedGenerateData() instead.
Reimplemented from itk::ProcessObject. Reimplemented in itk::MultiResolutionPDEDeformableRegistration< TFixedImage, TMovingImage, TDeformationField >. |
|
|||||||||
|
It is difficult to compute in advance the input moving image region required to compute the requested output region. Thus the safest thing to do is to request for the whole moving image. For the fixed image and deformation field, the input requested region set to be the same as that of the output requested region. Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. |
|
|||||||||
|
By default the output deformation field has the same Spacing, Origin and LargestPossibleRegion as the input/initial deformation field. If the initial deformation field is not set, the output information is copied from the fixed image. Reimplemented from itk::ProcessObject. |
|
|
Given one output whose requested region has been set, how should the requested regions for the remaining outputs of the process object be set? By default, all the outputs are set to the same requested region. If a filter needs to produce different requested regions for each output, for instance an image processing filter producing several outputs at different resolutions, then that filter may override this method and set the requested regions appropriatedly. Note that a filter producing multiple outputs of different types is required to override this method. The default implementation can only correctly handle multiple outputs of the same type. Reimplemented in itk::MultiResolutionPyramidImageFilter< TInputImage, TOutputImage >, itk::RecursiveMultiResolutionPyramidImageFilter< TInputImage, TOutputImage >, itk::watershed::BoundaryResolver< TPixelType, TDimension >, itk::watershed::EquivalenceRelabeler< TScalarType, TImageDimension >, itk::watershed::Relabeler< TScalarType, TImageDimension >, itk::watershed::Segmenter< TInputImage >, itk::watershed::SegmentTreeGenerator< TScalarType >, itk::watershed::Relabeler< ScalarType, itkGetStaticConstMacro(ImageDimension)>, and itk::watershed::SegmentTreeGenerator< ScalarType >. |
|
|
Get the AbortGenerateData flag for the process object. Process objects may handle premature termination of execution in different ways. |
|
|||||||||
|
|
|
|
Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used. |
|
|
Get the value of the debug flag. |
|
||||||||||
|
Get output deformation field. Definition at line 136 of file itkPDEDeformableRegistrationFilter.h. |
|
|
This method returns a pointer to a FiniteDifferenceFunction object that will be used by the filter to calculate updates at image pixels.
|
|
|
Get the number of elapsed iterations of the filter. |
|
||||||||||
|
Get the fixed image. |
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
Reimplemented from itk::ProcessObject. |
|
|
|
|
|
Return an array with all the inputs of this process object. This is useful for tracing back in the pipeline to construct graphs etc. Definition at line 108 of file itkProcessObject.h. |
|
|||||||||
|
|
|
|||||||||
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Get the metric value. The metric value is the mean square difference in intensity between the fixed image and transforming moving image computed over the the overlapping region between the two images. This is value is only available for the previous iteration and NOT the current iteration. |
|
||||||||||
|
Get the moving image. |
|
|
|
Return the multithreader used by this class. Definition at line 281 of file itkProcessObject.h. |
|
|||||||||
|
Run-time type information (and related methods). Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. |
|
|
Get the size of the input vector. This is merely the size of the input vector, not the number of inputs that have valid DataObject's assigned. Use GetNumberOfValidRequiredInputs() to determine how many inputs are non-null. Definition at line 115 of file itkProcessObject.h. |
|
|
|
|
|
Definition at line 132 of file itkProcessObject.h. |
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Get the number of valid inputs. For PDEDeformableRegistration, this checks whether the fixed and moving images have been set. While PDEDeformableRegistration can take a third input as an initial deformation field, this input is not a required input. Reimplemented from itk::ProcessObject. |
|
|
|
|
|
Reimplemented from itk::ProcessObject. |
|
|
|
|
|
Definition at line 130 of file itkProcessObject.h. |
|
|
Get the execution progress of a process object. The progress is a floating number in [0,1] with 0 meaning no progress and 1 meaning the filter has completed execution. |
|
|
Gets the reference count on this object. Definition at line 98 of file itkLightObject.h. |
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|||||||||
|
|
|
||||||||||
|
Get the Gaussian smoothing standard deviations use for smoothing the deformation field. Definition at line 165 of file itkPDEDeformableRegistrationFilter.h. |
|
|
|
|
|
Method to allow subclasses to get direct access to the update buffer Definition at line 130 of file itkDenseFiniteDifferenceImageFilter.h. |
|
||||||||||
|
Get the Gaussian smoothing standard deviations used for smoothing the update field. Definition at line 186 of file itkPDEDeformableRegistrationFilter.h. |
|
|
|
|
|
Definition at line 100 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay(). |
|
|
Definition at line 98 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay(). |
|
||||||||||||
|
Graft the specified data object onto this ProcessObject's idx'th output. This is the similar to GraftOutput method except is allows you specify which output is affected. The specified index must be a valid output number (less than ProcessObject::GetNumberOfOutputs()). See the GraftOutput for general usage information. |
|
|
Graft the specified DataObject onto this ProcessObject's output. This method grabs a handle to the specified DataObject's bulk data to used as its output's own bulk data. It also copies the region ivars (RequestedRegion, BufferedRegion, LargestPossibleRegion) and meta-data (Spacing, Origin) from the specified data object into this filter's output data object. Most importantly, however, it leaves the Source ivar untouched so the original pipeline routing is intact. This method is used when a process object is implemented using a mini-pipeline which is defined in its GenerateData() method. The usage is:
// setup the mini-pipeline to process the input to this filter firstFilterInMiniPipeline->SetInput( this->GetInput() ); // setup the mini-pipeline to calculate the correct regions // and write to the appropriate bulk data block lastFilterInMiniPipeline->GraftOutput( this->GetOutput() ); // execute the mini-pipeline lastFilterInMiniPipeline->Update(); // graft the mini-pipeline output back onto this filter's output. // this is needed to get the appropriate regions passed back. this->GraftOutput( lastFilterInMiniPipeline->GetOutput() ); For proper pipeline execution, a filter using a mini-pipeline must implement the GenerateInputRequestedRegion(), GenerateOutputRequestedRegion(), GenerateOutputInformation() and EnlargeOutputRequestedRegion() methods as necessary to reflect how the mini-pipeline will execute (in other words, the outer filter's pipeline mechanism must be consistent with what the mini-pipeline will do). |
|
|||||||||
|
This method returns true when the current iterative solution of the equation has met the criteria to stop solving. This version calls the superclass' version but also Halts if the RMSChange is zero. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. |
|
|
Return true if an observer is registered for this event. |
|
|
|
|
|
|
|
|
|
|
|||||||||
|
This method is called before iterating the solution. |
|
|||||||||
|
Initialize the state of filter and equation before each iteration. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. |
|
|
|
|
|
|
|
|
|
|
|
Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object. |
|
|
Call Execute on all the Commands observing this event id. |
|
||||||||||||||||
|
Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. |
|
||||||||||||||||
|
Reimplemented from itk::ImageToImageFilter< TDeformationField, TDeformationField >. |
|
||||||||||||||||
|
Dimensionality of input and output data is assumed to be the same. |
|
||||||||||||||||||||
|
Inherit some enums and typedefs from the superclass. Reimplemented from itk::DenseFiniteDifferenceImageFilter< TDeformationField, TDeformationField >. |
|
|
Make a DataObject of the correct type to used as the specified output. Every ProcessObject subclass must be able to create a DataObject that can be used as a specified output. This method is automatically called when DataObject::DisconnectPipeline() is called. DataObject::DisconnectPipeline, disconnects a data object from being an output of its current source. When the data object is disconnected, the ProcessObject needs to construct a replacement output data object so that the ProcessObject is in a valid state. So DataObject::DisconnectPipeline eventually calls ProcessObject::MakeOutput. Note that MakeOutput always returns a SmartPointer to a DataObject. If a subclass of ImageSource has multiple outputs of different types, then that class must provide an implementation of MakeOutput(). Reimplemented from itk::ProcessObject. |
|
|
|||||||||
|
Method for creation through the object factory. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. |
|
|
Reimplemented from itk::ProcessObject. |
|
|
Reimplemented from itk::ProcessObject. |
|
|||||||||
|
This method is called after the solution has been generated. In this case, the filter release the memory of the internal buffers. |
|
|
An opportunity to deallocate a ProcessObject's bulk data storage. Some filters may wish to reuse existing bulk data storage to avoid unnecessary deallocation/allocation sequences. The default implementation calls Initialize() on each output. DataObject::Initialize() frees its bulk data by default. Reimplemented in itk::WatershedImageFilter< TInputImage >. |
|
||||||||||||
|
Cause the object to print itself out. |
|
||||||||||||
|
|
|
||||||||||||||||
|
Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >. |
|
||||||||||||
|
|
|
|
Send the requested region information back up the pipeline (to the filters that preceed this one). Reimplemented in itk::VTKImageImport< TOutputImage >. |
|
|
Propagate a call to ResetPipeline() up the pipeline. Called only from DataObject. |
|
|
Reimplemented from itk::ProcessObject. Definition at line 250 of file itkImageToImageFilter.h. |
|
|
|
|
|
|
|
|
|
|
|
Reimplemented from itk::ProcessObject. Definition at line 252 of file itkImageToImageFilter.h. |
|
|
|
|
|
Increase the reference count (mark as used by another object). Reimplemented from itk::LightObject. |
|
|
|
|
|
|
|
|
Definition at line 254 of file itkProcessObject.h. |
|
|
Definition at line 253 of file itkProcessObject.h. |
|
|
InPlaceImageFilter may transfer ownership of the input bulk data to the output object. Once the output object owns the bulk data (done in AllocateOutputs()), the input object must release its hold on the bulk data. ProcessObject::ReleaseInputs() only releases the input bulk data when the user has set the ReleaseDataFlag. InPlaceImageFilter::ReleaseInputs() also releases the input that it has overwritten.
Reimplemented from itk::ProcessObject. |
|
|
Remove all observers . |
|
|
|
|
|
Remove the observer with this tag value. |
|
|
|
|
|
Reset the pipeline. If an exception is thrown during an Update(), the pipeline may be in an inconsistent state. This method clears the internal state of the pipeline so Update() can be called. |
|
|
Restore the cached input ReleaseDataFlags. |
|
|
Set the AbortGenerateData flag for the process object. Process objects may handle premature termination of execution in different ways. |
|
|
Set the value of the debug flag. A non-zero value turns debugging on. |
|
|
This method sets the pointer to a FiniteDifferenceFunction object that will be used by the filter to calculate updates at image pixels.
|
|
||||||||||
|
Set the fixed image. |
|
|
Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn(). |
|
||||||||||
|
|
|
||||||||||
|
Set initial deformation field. Definition at line 132 of file itkPDEDeformableRegistrationFilter.h. |
|
|
|
|
||||||||||||
|
|
|
|
|
|
||||||||||
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
||||||||||
|
Set the moving image. |
|
||||||||||||
|
||||||||||||
|
|
Called to allocate the input array. Copies old inputs. |
|
|
|
|
|
Called to allocate the output array. Copies old outputs. |
|
|
|
|
|
|
|
|
|
|
|
Set the execution progress of a process object. The progress is a floating number in [0,1] with 0 meaning no progress and 1 meaning the filter has completed execution. The ProgressEvent is NOT invoked. |
|
|
Sets the reference count (use with care) Reimplemented from itk::LightObject. |
|
|
|
|
|
|
|
||||||||||
|
|
|
||||||||||
|
|
|
|||||||||
|
|
|
|
|
|
|
Set the state of the filter to INITIALIZED Definition at line 195 of file itkFiniteDifferenceImageFilter.h. |
|
|
Set the state of the filter to UNINITIALIZED Definition at line 201 of file itkFiniteDifferenceImageFilter.h. |
|
||||||||||
|
|
|
||||||||||
|
|
|
|||||||||
|
|
|
|
|
|
|||||||||
|
Utility to smooth the deformation field (represented in the Output) using a Guassian operator. The amount of smoothing can be specified by setting the StandardDeviations. |
|
|||||||||
|
|
|
|||||||||
|
|
|
|||||||||
|
Utility to smooth the UpdateBuffer using a Gaussian operator. The amount of smoothing can be specified by setting the UpdateFieldStandardDeviations. |
|
|||||||||
|
|
|
|||||||||
|
|
|
||||||||||||||||
|
Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". This method is called "num" times. The regions must not overlap. The method returns the number of pieces that the routine is capable of splitting the output RequestedRegion, i.e. return value is less than or equal to "num". |
|
|||||||||
|
Stop the registration after the current iteration. Definition at line 192 of file itkPDEDeformableRegistrationFilter.h. |
|
||||||||||||
|
If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). This superclass will automatically split the output image into a number of pieces, spawn multiple threads, and call ThreadedGenerateData() in each thread. Prior to spawning threads, the BeforeThreadedGenerateData() method is called. After all the threads have completed, the AfterThreadedGenerateData() method is called. If an image processing filter cannot support threading, that filter should provide an implementation of the GenerateData() method instead of providing an implementation of ThreadedGenerateData(). If a filter provides a GenerateData() method as its implementation, then the filter is responsible for allocating the output data. If a filter provides a ThreadedGenerateData() method as its implementation, then the output memory will allocated automatically by this superclass. The ThreadedGenerateData() method should only produce the output specified by "outputThreadRegion" parameter. ThreadedGenerateData() cannot write to any other portion of the output image (as this is responsibility of a different thread).
|
|
|
Static function used as a "callback" by the MultiThreader. The threading library will call this routine for each thread, which will delegate the control to ThreadedGenerateData(). |
|
|
Decrease the reference count (release by another object). Reimplemented from itk::LightObject. |
|
|
Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject. |
|
|
Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject. |
|
|
Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject. |
|
|
Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject. |
|
|
Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject. |
|
|
Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject. |
|
|
Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject. |
|
|
Like Update(), but sets the output requested region to the largest possible region for the output. This is the method users should call if they want the entire dataset to be processed. If a user wants to update the same output region as a previous call to Update() or a previous call to UpdateLargestPossibleRegion(), then they should call the method Update(). |
|
|
Actually generate new output Reimplemented in itk::StreamingImageFilter< TInputImage, TOutputImage >. |
|
|
Update the information decribing the output data. This method transverses up the pipeline gathering modified time information. On the way back down the pipeline, this method calls GenerateOutputInformation() to set any necessary information about the output data objects. For instance, a filter that shrinks an image will need to provide an implementation for GenerateOutputInformation() that changes the spacing of the pixels. Such filters should call their superclass' implementation of GenerateOutputInformation prior to changing the information values they need (i.e. GenerateOutputInformation() should call Superclass::GenerateOutputInformation() prior to changing the information. Reimplemented in itk::watershed::Segmenter< TInputImage >, and itk::VTKImageImport< TOutputImage >. |
|
|
Update the progress of the process object. Sets the Progress ivar to amount and invokes any observers for the ProgressEvent. The parameter amount should be in [0,1] and is the cumulative (not incremental) progress. |
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
Definition at line 103 of file itkImageToImageFilter.h. |
|
|
Definition at line 94 of file itkObject.h. |
|
|
Definition at line 100 of file itkImageSource.h. |
|
|
Definition at line 103 of file itkImageToImageFilter.h. |
|
|
Reimplemented from itk::ProcessObject. Definition at line 103 of file itkImageToImageFilter.h. |
|
|||||
|
|
|
|
Definition at line 246 of file itkImageToImageFilter.h. |
|
|
Definition at line 98 of file itkImageSource.h. |
|
|
Definition at line 92 of file itkImageSource.h. |
|
|
Definition at line 103 of file itkImageToImageFilter.h. |
|
|
Definition at line 103 of file itkImageToImageFilter.h. |
|
|
Definition at line 103 of file itkImageToImageFilter.h. |
|
|
Definition at line 103 of file itkImageToImageFilter.h. |
|
|
Time when GenerateOutputInformation was last called. Definition at line 428 of file itkProcessObject.h. |
|
|
Number of uses of this object by other objects. Definition at line 119 of file itkLightObject.h. |
|
|
Mutex lock to protect modification to the reference count Definition at line 122 of file itkLightObject.h. |
|
|
This flag indicates when the pipeline is executing. It prevents infinite recursion when pipelines have loops. Definition at line 425 of file itkProcessObject.h. |
|
|
Definition at line 79 of file itkImageSource.h. |
|
|||||
|
Definition at line 170 of file itkPDEDeformableRegistrationFilter.h. |
|
|||||
|
Definition at line 148 of file itkPDEDeformableRegistrationFilter.h. |
|
|||||
|
Definition at line 152 of file itkLevelSetMotionRegistrationFilter.h. |
|
|
|
|
|||||
|
Definition at line 144 of file itkLevelSetMotionRegistrationFilter.h. |
|
|
Definition at line 110 of file itkImageSource.h. |
|
|
Definition at line 88 of file itkImageSource.h. |
|
|
Definition at line 99 of file itkInPlaceImageFilter.h. |
1.4.2 written by Dimitri van Heesch,
© 1997-2000
