itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType > Class Template Reference

#include <itkSegmentationLevelSetImageFilter.h>

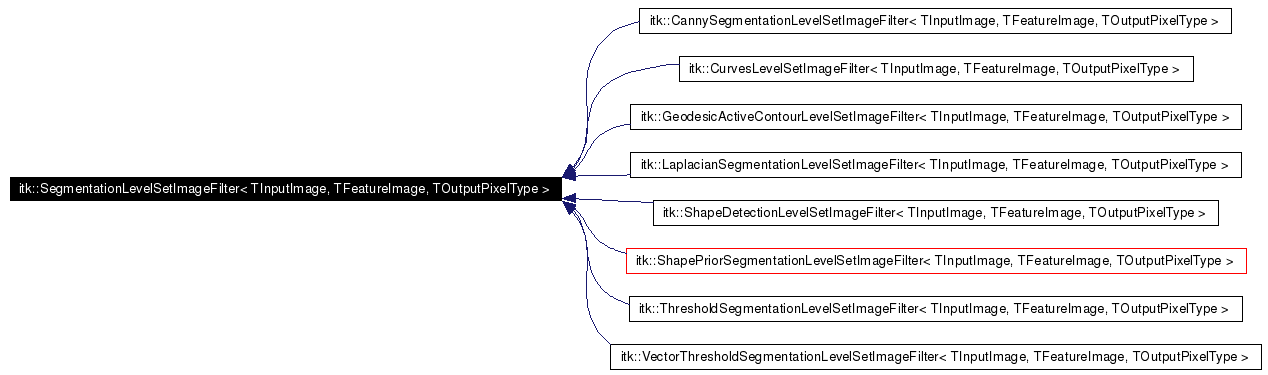

Inheritance diagram for itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >:

[legend]Collaboration diagram for itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >:

[legend]List of all members.

Detailed Description

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>
class itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >

A base class which defines the API for implementing a special class of image segmentation filters using level set methods.

OVERVIEW: This object defines the framework for a class of segmentation filters which use level set methods. These filters work by constructing a ``feature image'' onto which the evolving level set locks as it moves. In the feature image, values that are close to zero are associated with object boundaries. An original (or preprocessed) image is given to the filter as the feature image and a seed for the level set is given as the input of the filter. The seed is converted into a level set embedding which propagates according to the features calculated from the original image.

TEMPLATE PARAMETERS: There are two required and one optional template parameter for these filters.

TInputImage is the image type of the initial model you will input to the filter using SetInput() or SetInitialImage().

TFeatureImage is the image type of the image from which the filter will calculate the speed term for segmentation (see INPUTS).

TOutputPixelType is the data type used for the output image phi, the implicit level set image. This should really only ever be set as float (default) or double.

INPUTS: The input to any subclass of this filter is the seed image for the initial level set embedding. As with other subclasses of the SparseLevelSetImageFilter, the type of the input image is is not important. The (RequestedRegion) size of the seed image must, however, match the (RequestedRegion) size of the feature image.

You must identify the initial front (surface) in the input image. You do this by specifying its isovalue through the method SetIsoSurfaceValue(float f). The algorithm will then initialize its solution using the front represented by value f. Note that the front is always represented by isosurface zero in the output and not the isosurface you specified for the input. This is because, for simplicity, the filter will shift your input image so that the active front has zero values.

A NOTE ON DATA SPACING: Input data with anisotropic spacing should be resampled to isotropic voxels for use in this filter. Interpolation has not been built into the underlying p.d.e. solver.

: Depending on the particular application and filter that you are using, the feature image should be preprocessed with some type of noise reduction filtering. The feature image input can be of any type, but it will be cast to floating point before calculations are done.

OUTPUTS: The output of any subclass of this filter is a level set embedding as described in SparseFieldLevelSetImageFilter. The zero crossings of the output image give the pixels closest to the level set boundary. By ITK convention, NEGATIVE values are pixels INSIDE the segmented region and POSITIVE values are pixels OUTSIDE the segmented region.

PARAMETERS: The MaximumRMSChange parameter is used to determine when the solution has converged. A lower value will result in a tighter-fitting solution, but will require more computations. Too low a value could put the solver into an infinite loop unless a reasonable NumberOfIterations parameter is set. Values should always be greater than 0.0 and less than 1.0.

: The NumberOfIterations parameter can be used to halt the solution after a specified number of iterations, overriding the MaximumRMSChange halting criteria.

: The standard convention for ITK level-set segmentation filters is that POSITIVE propagation (speed) and advection terms cause the surface to EXPAND while negative terms cause the surface to CONTRACT. When the ReverseExpansionDirection parameter is set to TRUE (on), it tells the function object to reverse the standard ITK convention so that NEGATIVE terms cause EXPANSION and positive terms cause CONTRACTION.

This parameter can be safely changed as appropriate for a particular application or data set to achieve the desired behavior.

: The FeatureScaling parameter controls the magnitude of the features calculated for use in the level set propagation and advection speeds. This value simply sets both parameters to equal values at once. Some filters may only use on of these two terms and this method is a generic way to set either or both without having to know which is in use.

: The CurvatureScaling parameter controls the magnitude of the curvature values which are calculated on the evolving isophote. This is important in controlling the relative effect of curvature in the calculation. Default value is 1.0. Higher values relative to the other level set equation terms (propagation and advection) will give a smoother result.

: The PropagationScaling parameter controls the scaling of the scalar propagation (speed) term relative to other terms in the level set equation. Setting this value will override any value already set by FeatureScaling.

: The AdvectionScaling parameter controls the scaling of the vector advection field term relative to other terms in the level set equation. Setting this value will override any value already set by FeatureScaling.

: See LevelSetFunction for more information.

Definition at line 143 of file itkSegmentationLevelSetImageFilter.h.

Public Types

typedef SmartPointer< const
Self > ConstPointer

typedef TFeatureImage FeatureImageType

typedef Superclass::IndexType IndexType

typedef Superclass::InputImageType InputImageType

typedef Image< TOutputPixelType,
itkGetStaticConstMacro(InputImageDimension) OutputImageType )

typedef SmartPointer< Self > Pointer

typedef SegmentationLevelSetFunction<
OutputImageType, FeatureImageType > SegmentationFunctionType

typedef SegmentationLevelSetImageFilter Self

typedef SegmentationFunctionType::ImageType SpeedImageType

typedef SparseFieldLevelSetImageFilter<
TInputImage, OutputImageType > Superclass

typedef Superclass::TimeStepType TimeStepType

typedef Superclass::ValueType ValueType

typedef SegmentationFunctionType::VectorImageType VectorImageType

Public Member Functions

virtual void AutoGenerateSpeedAdvectionOff ()

virtual void AutoGenerateSpeedAdvectionOn ()

Turn On Off the flag which
determines whether Positive
or Negative speed *terms will
cause surface expansion If
set to TRUE then negative
speed *terms will cause the
surface to expand and positive
speed terms will cause *the
surface to contract If set
to FALSE (default) then positive speed terms will *cause the surface to expand and negative speed terms will cause the *surface to contract.This method can be safely used to reverse the *expansion/contraction as appropriate to a particular application or data *set.*/virtual void SetReverseExpansionDirection(bool _arg)

void GenerateAdvectionImage ()

void GenerateSpeedImage ()

virtual const VectorImageType * GetAdvectionImage () const

ValueType GetAdvectionScaling () const

virtual bool GetAutoGenerateSpeedAdvection ()

ValueType GetCurvatureScaling () const

virtual FeatureImageType * GetFeatureImage ()

Set Get the feature image
to be used for speed function
of the level set *equation
Equivalent to calling Set GetInput (1,..)*/virtual void SetFeatureImage(const FeatureImageType *f)

double GetMaximumCurvatureTimeStep () const

unsigned int GetMaximumIterations ()

double GetMaximumPropagationTimeStep () const

virtual const char * GetNameOfClass () const

ValueType GetPropagationScaling () const

virtual bool GetReverseExpansionDirection ()

virtual SegmentationFunctionType * GetSegmentationFunction ()

virtual const SpeedImageType * GetSpeedImage () const

bool GetUseMinimalCurvature () const

bool GetUseNegativeFeatures () const

itkStaticConstMacro (InputImageDimension, unsigned int, TInputImage::ImageDimension)

virtual void ReverseExpansionDirectionOff ()

virtual void ReverseExpansionDirectionOn ()

void SetAdvectionImage (VectorImageType *v)

Set Get the scaling of the
advection field Setting the
FeatureScaling parameter will
override any existing value
for AdvectionScaling *void SetAdvectionScaling (ValueType v)

Combined scaling of the propagation
and advection speed terms
You should use either this
or Get SetPropagationScaling
and Get SetAdvectionScaling (if appropriate).See subclasses for details on when and whether to set these parameters.*/void SetFeatureScaling(ValueType v)

Set Get the scaling of the
curvature Use this parameter
to increase the influence
of curvature on the movement
of the surface Higher values
relative to Advection and
Propagation values will give
smoother surfaces *void SetCurvatureScaling (ValueType v)

virtual void SetInitialImage (InputImageType *f)

Set Get the maximum constraint
for the curvature term factor
in the time step *calculation
Changing this value from the
default is not recommended
or *necessary but could be
used to speed up the surface
evolution at the risk *of
creating an unstable solution
*void SetMaximumCurvatureTimeStep (double n)

Set Get the maximum number
of iterations allowed for
the solver This *prevents
infinite loops if a solution
bounces *void SetMaximumIterations (unsigned int i)

Set Get the maximum constraint
for the scalar vector term
factor of the time step *calculation
Changing this value from the
default is not recommended
or *necessary but could be
used to speed up the surface
evolution at the risk *of
creating an unstable solution
*void SetMaximumPropagationTimeStep (double n)

Set Get the scaling of the
propagation speed Setting
the FeatureScaling parameter
overrides any previous values
set for PropagationScaling
*void SetPropagationScaling (ValueType v)

virtual void SetSegmentationFunction (SegmentationFunctionType *s)

void SetSpeedImage (SpeedImageType *s)

*void SetUseMinimalCurvature (bool b)

THIS METHOD IS DEPRECATED
AND SHOULD NOT BE USED Set
Get the value of the UseNegativeFeatures
flag This method is *deprecated
Use Set Get ReverseExpansionDirection
instead *void SetUseNegativeFeatures (bool u)

void SetUseNegativeFeaturesOff ()

THIS METHOD IS DEPRECATED
AND SHOULD NOT BE USED This
method reverses *the speed
function effectively changing
inside feature values to
*outside feature values and
vice versa *void SetUseNegativeFeaturesOn ()

void UseMinimalCurvatureOff ()

void UseMinimalCurvatureOn ()

Public Attributes

THIS METHOD IS DEPRECATED
AND SHOULD NOT BE USED This
method reverses *the speed
function direction

Turn On Off automatic generation
of Speed and Advection terms
when Update is called If set
to Off

Protected Member Functions

void GenerateData ()

Overrides parent implementation
*virtual void InitializeIteration ()

virtual void PrintSelf (std::ostream &os, Indent indent) const

SegmentationLevelSetImageFilter ()

SegmentationLevelSetImageFilter (const Self &)

virtual ~SegmentationLevelSetImageFilter ()

Protected Attributes

bool m_AutoGenerateSpeedAdvection

bool m_ReverseExpansionDirection

Member Typedef Documentation

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

typedef Superclass::IndexType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::IndexType

Definition at line 167 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

typedef Superclass::InputImageType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::InputImageType

Definition at line 169 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

typedef SegmentationLevelSetFunction<OutputImageType, FeatureImageType> itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SegmentationFunctionType

The generic level set function type
Definition at line 176 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

typedef SegmentationFunctionType::ImageType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SpeedImageType

Reimplemented in itk::CannySegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >.
Definition at line 180 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

typedef Superclass::TimeStepType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::TimeStepType

Definition at line 168 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

typedef SegmentationFunctionType::VectorImageType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::VectorImageType

The type used for the advection field
Reimplemented in itk::CannySegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >.
Definition at line 179 of file itkSegmentationLevelSetImageFilter.h.

Constructor & Destructor Documentation

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::~SegmentationLevelSetImageFilter ( ) [inline, protected, virtual]

Definition at line 472 of file itkSegmentationLevelSetImageFilter.h.

Member Function Documentation

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Turn On Off the flag which determines whether Positive or Negative speed* terms will cause surface expansion If set to TRUE then negative speed* terms will cause the surface to expand and positive speed terms will cause* the surface to contract If set to itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::FALSE ( default )

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GenerateAdvectionImage ( )

Allocate and calculate the advection term image in the SegmentationFunction object This method is called automatically on filter execution unless AutoGenerateSpeedAdvection is set to Off.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GenerateData ( ) [protected]

Overridden from ProcessObject to set certain values before starting the finite difference solver and then create an appropriate output
Reimplemented in itk::GeodesicActiveContourLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >, itk::GeodesicActiveContourShapePriorLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >, itk::ShapeDetectionLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >, and itk::ShapePriorSegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GenerateSpeedImage ( )

Allocate and calculate the speed term image in the SegmentationFunction object. This method is called automatically on filter execution unless AutoGenerateSpeedAdvection is set to Off.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual const VectorImageType* itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetAdvectionImage ( ) const [inline, virtual]

Return a pointer to the image sampled as the advection term of the segmentation algorithm.
Definition at line 236 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

ValueType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetAdvectionScaling ( ) const [inline]

Definition at line 348 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual bool itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetAutoGenerateSpeedAdvection ( ) [virtual]

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

ValueType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetCurvatureScaling ( ) const [inline]

Definition at line 365 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual FeatureImageType* itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetFeatureImage ( ) [inline, virtual]

Definition at line 206 of file itkSegmentationLevelSetImageFilter.h.
References itk::fem::this.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Set Get the feature image to be used for speed function of the level set* equation Equivalent to calling Set itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetInput ( 1 ,

..

) const [inline]

Definition at line 200 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

double itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetMaximumCurvatureTimeStep ( ) const [inline]

Definition at line 429 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

unsigned int itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetMaximumIterations ( ) [inline]

Definition at line 192 of file itkSegmentationLevelSetImageFilter.h.
References itkWarningMacro.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

double itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetMaximumPropagationTimeStep ( ) const [inline]

Definition at line 447 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

ValueType itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetPropagationScaling ( ) const [inline]

Definition at line 332 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual SegmentationFunctionType* itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetSegmentationFunction ( ) [inline, virtual]

Definition at line 413 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual const SpeedImageType* itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetSpeedImage ( ) const [inline, virtual]

Return a pointer to the image sampled as the speed term of the segmentation algorithm.
Definition at line 231 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

bool itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::GetUseNegativeFeatures ( ) const [inline]

Definition at line 268 of file itkSegmentationLevelSetImageFilter.h.
References itkWarningMacro.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Overrides parent implementation* virtual void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::InitializeIteration ( ) [inline, protected, virtual]

Reimplemented in itk::ShapePriorSegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >.
Definition at line 479 of file itkSegmentationLevelSetImageFilter.h.
References itk::fem::this.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::itkStaticConstMacro ( InputImageDimension ,

unsigned int,

TInputImage::ImageDimension

)

Repeat definition from Superclass to satisfy Borland compiler quirks

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetAdvectionImage ( VectorImageType * v ) [inline]

This function is for advanced applications. Set the image sampled as the advection term of this segmentation method. In general, the advection image is generated automatically by a subclass of this filter.
Definition at line 226 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Set Get the scaling of the advection field Setting the FeatureScaling parameter will override any existing value for AdvectionScaling* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetAdvectionScaling ( ValueType v ) [inline]

Definition at line 340 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Combined scaling of the propagation and advection speed terms You should use either this or Get SetPropagationScaling and Get itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetAdvectionScaling ( if appropriate ) [inline]

Definition at line 307 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Set Get the scaling of the curvature Use this parameter to increase the influence of curvature on the movement of the surface Higher values relative to Advection and Propagation values will give smoother surfaces* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetCurvatureScaling ( ValueType v ) [inline]

Definition at line 357 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetInitialImage ( InputImageType * f ) [inline, virtual]

Set/Get the initial level set model. Equivalent to calling SetInput(..)
Definition at line 212 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Set Get the maximum constraint for the curvature term factor in the time step* calculation Changing this value from the default is not recommended or* necessary but could be used to speed up the surface evolution at the risk* of creating an unstable solution* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetMaximumCurvatureTimeStep ( double n ) [inline]

Definition at line 421 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Set Get the maximum number of iterations allowed for the solver This* prevents infinite loops if a solution bounces* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetMaximumIterations ( unsigned int i ) [inline]

Definition at line 187 of file itkSegmentationLevelSetImageFilter.h.
References itkWarningMacro.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Set Get the maximum constraint for the scalar vector term factor of the time step* calculation Changing this value from the default is not recommended or* necessary but could be used to speed up the surface evolution at the risk* of creating an unstable solution* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetMaximumPropagationTimeStep ( double n ) [inline]

Definition at line 439 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Set Get the scaling of the propagation speed Setting the FeatureScaling parameter overrides any previous values set for PropagationScaling* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetPropagationScaling ( ValueType v ) [inline]

Definition at line 324 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

virtual void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetSegmentationFunction ( SegmentationFunctionType * s ) [inline, virtual]

Set the segmentation function. In general, this should only be called by a subclass of this object. It is made public to allow itk::Command objects access. The method is inline to avoid a problem with the gcc 2.95 compiler matching the declaration with the definition.
Definition at line 401 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetSpeedImage ( SpeedImageType * s ) [inline]

This function is for advanced applications. Set the image sampled as the speed term of this segmentation method. In general, the speed image is generated automatically by a subclass of this filter.
Definition at line 220 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetUseMinimalCurvature ( bool b ) [inline]

Definition at line 373 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

THIS METHOD IS DEPRECATED AND SHOULD NOT BE USED Set Get the value of the UseNegativeFeatures flag This method is* deprecated Use Set Get ReverseExpansionDirection instead* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetUseNegativeFeatures ( bool u ) [inline]

Definition at line 256 of file itkSegmentationLevelSetImageFilter.h.
References itkWarningMacro.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetUseNegativeFeaturesOff ( ) [inline]

Definition at line 247 of file itkSegmentationLevelSetImageFilter.h.
References itkWarningMacro.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

THIS METHOD IS DEPRECATED AND SHOULD NOT BE USED This method reverses* the speed function effectively changing inside feature values to* outside feature values and vice versa* void itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::SetUseNegativeFeaturesOn ( ) [inline]

Definition at line 242 of file itkSegmentationLevelSetImageFilter.h.
References itkWarningMacro.

Member Data Documentation

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

THIS METHOD IS DEPRECATED AND SHOULD NOT BE USED This method reverses* the speed function itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::direction

Definition at line 240 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

bool itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::m_AutoGenerateSpeedAdvection [protected]

Flag to indicate whether Speed and Advection images are automatically generated when running the filter. Otherwise, a pointer to images must be explicitly set or GenerateSpeedImage() and/or GenerateAdvectionImage() called directly before updating the filter
Definition at line 500 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

bool itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::m_ReverseExpansionDirection [protected]

Flag which sets the inward/outward direction of propagation speed. See SetReverseExpansionDirection for more information.
Definition at line 494 of file itkSegmentationLevelSetImageFilter.h.

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>

Turn On Off automatic generation of Speed and Advection terms when Update is called If set to itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >::Off

Definition at line 292 of file itkSegmentationLevelSetImageFilter.h.

The documentation for this class was generated from the following file:

itkSegmentationLevelSetImageFilter.h

Generated at Sun Jul 9 21:23:02 2006 for ITK by


Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef TFeatureImage	FeatureImageType
typedef Superclass::IndexType	IndexType
typedef Superclass::InputImageType	InputImageType
typedef Image< TOutputPixelType, itkGetStaticConstMacro(InputImageDimension)	OutputImageType )
typedef SmartPointer< Self >	Pointer
typedef SegmentationLevelSetFunction< OutputImageType, FeatureImageType >	SegmentationFunctionType
typedef SegmentationLevelSetImageFilter	Self
typedef SegmentationFunctionType::ImageType	SpeedImageType
typedef SparseFieldLevelSetImageFilter< TInputImage, OutputImageType >	Superclass
typedef Superclass::TimeStepType	TimeStepType
typedef Superclass::ValueType	ValueType
typedef SegmentationFunctionType::VectorImageType	VectorImageType
Public Member Functions
virtual void	AutoGenerateSpeedAdvectionOff ()
virtual void	AutoGenerateSpeedAdvectionOn ()
Turn On Off the flag which determines whether Positive or Negative speed terms will cause surface expansion If set to TRUE then negative speed terms will cause the surface to expand and positive speed terms will cause *the surface to contract If set to	FALSE (default) then positive speed terms will cause the surface to expand and negative speed terms will cause the surface to contract.This method can be safely used to reverse the expansion/contraction as appropriate to a particular application or data set.*/virtual void SetReverseExpansionDirection(bool _arg)
void	GenerateAdvectionImage ()
void	GenerateSpeedImage ()
virtual const VectorImageType *	GetAdvectionImage () const
ValueType	GetAdvectionScaling () const
virtual bool	GetAutoGenerateSpeedAdvection ()
ValueType	GetCurvatureScaling () const
virtual FeatureImageType *	GetFeatureImage ()
Set Get the feature image to be used for speed function of the level set *equation Equivalent to calling Set	GetInput (1,..)/virtual void SetFeatureImage(const FeatureImageType f)
double	GetMaximumCurvatureTimeStep () const
unsigned int	GetMaximumIterations ()
double	GetMaximumPropagationTimeStep () const
virtual const char *	GetNameOfClass () const
ValueType	GetPropagationScaling () const
virtual bool	GetReverseExpansionDirection ()
virtual SegmentationFunctionType *	GetSegmentationFunction ()
virtual const SpeedImageType *	GetSpeedImage () const
bool	GetUseMinimalCurvature () const
bool	GetUseNegativeFeatures () const
	itkStaticConstMacro (InputImageDimension, unsigned int, TInputImage::ImageDimension)
virtual void	ReverseExpansionDirectionOff ()
virtual void	ReverseExpansionDirectionOn ()
void	SetAdvectionImage (VectorImageType *v)
Set Get the scaling of the advection field Setting the FeatureScaling parameter will override any existing value for AdvectionScaling *void	SetAdvectionScaling (ValueType v)
Combined scaling of the propagation and advection speed terms You should use either this or Get SetPropagationScaling and Get	SetAdvectionScaling (if appropriate).See subclasses for details on when and whether to set these parameters.*/void SetFeatureScaling(ValueType v)
Set Get the scaling of the curvature Use this parameter to increase the influence of curvature on the movement of the surface Higher values relative to Advection and Propagation values will give smoother surfaces *void	SetCurvatureScaling (ValueType v)
virtual void	SetInitialImage (InputImageType *f)
Set Get the maximum constraint for the curvature term factor in the time step calculation Changing this value from the default is not recommended or necessary but could be used to speed up the surface evolution at the risk of creating an unstable solution void	SetMaximumCurvatureTimeStep (double n)
Set Get the maximum number of iterations allowed for the solver This prevents infinite loops if a solution bounces void	SetMaximumIterations (unsigned int i)
Set Get the maximum constraint for the scalar vector term factor of the time step calculation Changing this value from the default is not recommended or necessary but could be used to speed up the surface evolution at the risk of creating an unstable solution void	SetMaximumPropagationTimeStep (double n)
Set Get the scaling of the propagation speed Setting the FeatureScaling parameter overrides any previous values set for PropagationScaling *void	SetPropagationScaling (ValueType v)
virtual void	SetSegmentationFunction (SegmentationFunctionType *s)
void	SetSpeedImage (SpeedImageType *s)
*void	SetUseMinimalCurvature (bool b)
THIS METHOD IS DEPRECATED AND SHOULD NOT BE USED Set Get the value of the UseNegativeFeatures flag This method is deprecated Use Set Get ReverseExpansionDirection instead void	SetUseNegativeFeatures (bool u)
void	SetUseNegativeFeaturesOff ()
THIS METHOD IS DEPRECATED AND SHOULD NOT BE USED This method reverses the speed function effectively changing inside feature values to outside feature values and vice versa *void	SetUseNegativeFeaturesOn ()
void	UseMinimalCurvatureOff ()
void	UseMinimalCurvatureOn ()
Public Attributes
THIS METHOD IS DEPRECATED AND SHOULD NOT BE USED This method reverses *the speed function	direction
Turn On Off automatic generation of Speed and Advection terms when Update is called If set to	Off
Protected Member Functions
void	GenerateData ()
Overrides parent implementation *virtual void	InitializeIteration ()
virtual void	PrintSelf (std::ostream &os, Indent indent) const
	SegmentationLevelSetImageFilter ()
	SegmentationLevelSetImageFilter (const Self &)
virtual	~SegmentationLevelSetImageFilter ()
Protected Attributes
bool	m_AutoGenerateSpeedAdvection
bool	m_ReverseExpansionDirection

itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType > Class Template Reference

Detailed Description

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float> class itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class TInputImage, class TFeatureImage, class TOutputPixelType = float>
class itk::SegmentationLevelSetImageFilter< TInputImage, TFeatureImage, TOutputPixelType >
