itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh > Class Template Reference

#include <itkTriangleMeshToSimplexMeshFilter.h>

Inheritance diagram for itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >:

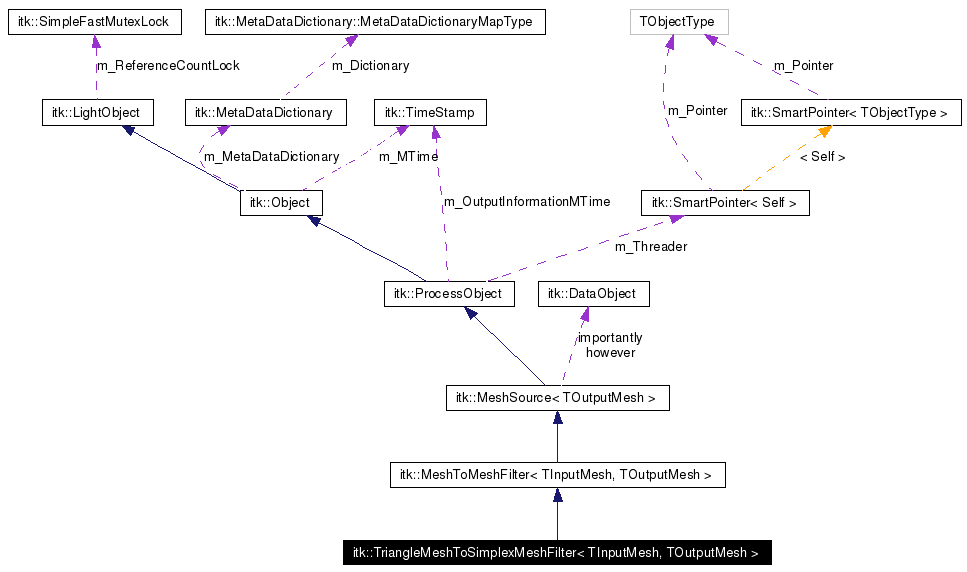

[legend]Collaboration diagram for itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >:

[legend]List of all members.

---

Detailed Description

template<class TInputMesh, class TOutputMesh>
class itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >

This filter converts a triangle mesh into a 2-simplex mesh.

The triangle cell centers build the points of the dual simplex mesh each center is connected with the center of each neighboring triangle. This creates the simplex structure.

Finally the neighbors of the points are reordered counter-clockwise for geometry computation.

Author:

Thomas Boettger. Division Medical and Biological Informatics, German Cancer Research Center, Heidelberg.

Definition at line 48 of file itkTriangleMeshToSimplexMeshFilter.h.

Public Types
typedef TInputMesh::CellAutoPointer	CellAutoPointer
typedef SmartPointer< const Self >	ConstPointer
typedef DataObject::Pointer	DataObjectPointer
typedef std::vector< DataObjectPointer >	DataObjectPointerArray
typedef std::pair< unsigned long, unsigned long >	EdgeIdentifierType
typedef EdgeMapType::Pointer	EdgeMapPointer
typedef itk::MapContainer< EdgeIdentifierType, unsigned long >	EdgeMapType
typedef itk::MapContainer< unsigned long, EdgeIdentifierType >	EdgeNeighborListType
typedef IdVectorType::Pointer	IdVectorPointer
typedef itk::VectorContainer< unsigned long, unsigned long >	IdVectorType
typedef std::set< unsigned long >	IndexSetType
typedef TInputMesh::BoundaryAssignmentsContainerPointer	InputBoundaryAssignmentsContainerPointer
typedef TInputMesh::BoundaryAssignmentIdentifier	InputBoundnaryAssignmentIdentifier
typedef InputCellType::CellAutoPointer	InputCellAutoPointer
typedef TInputMesh::CellType	InputCellType
typedef TInputMesh::Pointer	InputMeshPointer
typedef TInputMesh	InputMeshType
typedef TInputMesh::PointsContainer	InputPointsContainer
typedef InputPointsContainer::Iterator	InputPointsContainerIterator
typedef InputPointsContainer::Pointer	InputPointsContainerPointer
typedef TInputMesh::PointType	InputPointType
typedef itk::MapContainer< EdgeIdentifierType, unsigned long >	LineCellIndexType
typedef itk::LineCell< InputCellType >	LineType
typedef TOutputMesh::CellAutoPointer	OutputCellAutoPointer
typedef TOutputMesh::CellType	OutputCellType
typedef itk::LineCell< OutputCellType >	OutputLineType
typedef TOutputMesh::Pointer	OutputMeshPointer
typedef TOutputMesh	OutputMeshType
typedef TOutputMesh::PixelType	OutputPixelType
typedef TOutputMesh::PointsContainer	OutputPointsContainer
typedef TOutputMesh::PointsContainer::Iterator	OutputPointsContainerIterator
typedef OutputPointsContainer::Pointer	OutputPointsContainerPointer
typedef TOutputMesh::PointType	OutputPointType
typedef itk::PolygonCell< OutputCellType >	OutputPolygonType
typedef SmartPointer< Self >	Pointer
typedef itk::PolygonCell< InputCellType >	PolygonType
typedef TriangleMeshToSimplexMeshFilter	Self
typedef MeshToMeshFilter< TInputMesh, TOutputMesh >	Superclass
typedef itk::TriangleCell< InputCellType >	TriangleType
typedef itk::MapContainer< unsigned long, IndexSetType >	VertexNeighborListType
typedef itk::VertexCell< InputCellType >	VertexType
Public Member Functions
virtual void	AbortGenerateDataOff ()
virtual void	AbortGenerateDataOn ()
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
virtual void	Delete ()
virtual void	EnlargeOutputRequestedRegion (DataObject *)
virtual const bool &	GetAbortGenerateData ()
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
InputMeshType *	GetInput (unsigned int idx)
Get the mesh input of this process object *InputMeshType *	GetInput (void)
DataObjectPointerArray &	GetInputs ()
const MetaDataDictionary &	GetMetaDataDictionary (void) const
MetaDataDictionary &	GetMetaDataDictionary (void)
virtual unsigned long	GetMTime () const
MultiThreader *	GetMultiThreader ()
virtual const char *	GetNameOfClass () const
std::vector< DataObjectPointer >::size_type	GetNumberOfInputs () const
std::vector< DataObjectPointer >::size_type	GetNumberOfOutputs () const
virtual const int &	GetNumberOfThreads ()
virtual std::vector< DataObjectPointer >::size_type	GetNumberOfValidRequiredInputs () const
OutputMeshType *	GetOutput (unsigned int idx)
Get the mesh output of this process object *OutputMeshType *	GetOutput (void)
Return an array with all the outputs of this process object *This is useful for tracing forward in the pipeline to contruct *graphs etc *DataObjectPointerArray &	GetOutputs ()
virtual const float &	GetProgress ()
virtual int	GetReferenceCount () const
virtual const bool &	GetReleaseDataBeforeUpdateFlag ()
virtual bool	GetReleaseDataFlag () const
virtual void	GraftNthOutput (unsigned int idx, DataObject *output)
****this	GraftOutput (lastFilterInMiniPipeline->GetOutput())
****lastFilterInMiniPipeline	GraftOutput (this->GetOutput())
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &) const
void	InvokeEvent (const EventObject &)
Graft the specified DataObject onto this ProcessObject s output *This method grabs a handle to the specified DataObject s bulk *data to used as its output s own bulk data It also copies the *region	ivars (RequestedRegion, BufferedRegion,*LargestPossibleRegion) and meta-data(Spacing
virtual DataObjectPointer	MakeOutput (unsigned int idx)
virtual void	Modified () const
virtual void	PrepareOutputs ()
void	Print (std::ostream &os, Indent indent=0) const
virtual void	PropagateRequestedRegion (DataObject *output)
virtual void	Register () const
virtual void	ReleaseDataBeforeUpdateFlagOff ()
virtual void	ReleaseDataBeforeUpdateFlagOn ()
void	ReleaseDataFlagOff ()
void	ReleaseDataFlagOn ()
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
virtual void	ResetPipeline ()
virtual void	SetAbortGenerateData (bool _arg)
void	SetDebug (bool debugFlag) const
void	SetInput (InputMeshType *input)
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
Get Set the number of threads to create when executing *virtual void	SetNumberOfThreads (int _arg)
void	SetOutput (TOutputMesh *output)
virtual void	SetProgress (float _arg)
virtual void	SetReferenceCount (int)
Turn on off the flags to control whether the bulk data belonging *to the outputs of this ProcessObject are released after being *used by a downstream ProcessObject Default value is off Another *options for controlling memory utilization is the *ReleaseDataBeforeUpdateFlag *virtual void	SetReleaseDataFlag (bool flag)
virtual void	UnRegister () const
***lastFilterInMiniPipeline	Update ()
virtual void	UpdateLargestPossibleRegion ()
virtual void	UpdateOutputData (DataObject *output)
virtual void	UpdateOutputInformation ()
void	UpdateProgress (float amount)
Static Public Member Functions
static void	BreakOnError ()
static bool	GetGlobalWarningDisplay ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
This is a global flag that controls whether any warning *or error messages are displayed *static void	SetGlobalWarningDisplay (bool flag)
Public Attributes
Allow people to add remove invoke observers(callbacks) to any ITK *object.This is an implementation of the subject/observer design *pattern.An observer is added by specifying an event to respond to *and an itk unsigned lon	AddObserver )(const EventObject &event, Command *) const
This is a global flag that controls whether any	debug
*endcode **For proper pipeline	execution
Graft the specified DataObject onto this ProcessObject s output *This method grabs a handle to the specified DataObject s bulk *data to used as its output s own bulk data It also copies the *region Origin from the *specified data object into this filter s output data object Most	however
Graft the specified DataObject onto this ProcessObject s output *This method grabs a handle to the specified DataObject s bulk *data to used as its output s own bulk data It also copies the *region Origin from the *specified data object into this filter s output data object Most *	importantly
Protected Member Functions
virtual void	AddInput (DataObject *input)
virtual void	AddOutput (DataObject *output)
virtual void	CacheInputReleaseDataFlags ()
InputPointType	ComputeFaceCenter (unsigned long faceId)
void	CreateCells ()
void	CreateEdgeForTrianglePair (unsigned long pointIndex, unsigned long boundaryId)
void	CreateNewEdge (unsigned long currentCellId, unsigned int featureId, unsigned long startPointId, unsigned long endPointId)
void	CreateSimplexNeighbors ()
void	CreateSimplexPoints ()
virtual void	GenerateData ()
void	GenerateInputRequestedRegion ()
virtual void	GenerateOutputInformation ()
virtual void	GenerateOutputRequestedRegion (DataObject *output)
const DataObject *	GetInput (unsigned int idx) const
virtual const unsigned int &	GetNumberOfRequiredInputs ()
virtual const unsigned int &	GetNumberOfRequiredOutputs ()
const DataObject *	GetOutput (unsigned int idx) const
void	Initialize ()
void	operator= (const Self &)
virtual void	PopBackInput ()
virtual void	PopFrontInput ()
bool	PrintObservers (std::ostream &os, Indent indent) const
void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual void	PropagateResetPipeline ()
Push Pop an input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all especially *filters with different types of inputs These routines follow *the semantics of STL *virtual void	PushBackInput (const DataObject *input)
virtual void	PushFrontInput (const DataObject *input)
virtual void	ReleaseInputs ()
virtual void	RemoveInput (DataObject *input)
virtual void	RemoveOutput (DataObject *output)
virtual void	RestoreInputReleaseDataFlags ()
Protected methods for setting inputs *Subclasses make use of them for setting input *virtual void	SetNthInput (unsigned int num, DataObject *input)
Protected methods for setting outputs *Subclasses make use of them for getting output *virtual void	SetNthOutput (unsigned int num, DataObject *output)
void	SetNumberOfInputs (unsigned int num)
void	SetNumberOfOutputs (unsigned int num)
virtual void	SetNumberOfRequiredInputs (unsigned int _arg)
virtual void	SetNumberOfRequiredOutputs (unsigned int _arg)
	TriangleMeshToSimplexMeshFilter (const Self &)
	TriangleMeshToSimplexMeshFilter ()
	~TriangleMeshToSimplexMeshFilter ()
Protected Attributes
Push Pop an input of this process object These methods allow a *filter to model its input vector as a queue or stack These *routines may not be appropriate for all	filters
unsigned long	m_CellIdxOffset
unsigned long	m_EdgeCellId
EdgeNeighborListType::Pointer	m_EdgeNeighborList
EdgeMapPointer	m_Edges
IndexSetType *	m_FaceSet
IdVectorPointer	m_HandledEdgeIds
unsigned long	m_IdOffset
LineCellIndexType::Pointer	m_LineCellIndices
TimeStamp	m_OutputInformationMTime
int	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock
bool	m_Updating
VertexNeighborListType::Pointer	m_VertexNeighborList
InputCellAutoPointer	NewInputMeshCellPointer
OutputCellAutoPointer	NewSimplexCellPointer
Methods invoked by virtual Print() to print information about the object *including superclasses.Typically not called by the user(use Print()*instead) but used in the hierarchical print process to combine the *output of several classes.*/virtual void PrintSelf(std voi	PrintHeader )(std::ostream &os, Indent indent) const

---

Member Typedef Documentation

template<class TInputMesh, class TOutputMesh> typedef TInputMesh::CellAutoPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::CellAutoPointer

Definition at line 87 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef SmartPointer<const Self> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::ConstPointer

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 60 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TOutputMesh> typedef DataObject::Pointer itk::MeshSource< TOutputMesh >::DataObjectPointer [inherited]

Some convenient typedefs. Reimplemented from itk::ProcessObject. Reimplemented in itk::SpatialObjectToPointSetFilter< TInputSpatialObject, TOutputPointSet >. Definition at line 56 of file itkMeshSource.h.

typedef std::vector<DataObjectPointer> itk::ProcessObject::DataObjectPointerArray [inherited]

STL Array of SmartPointers to DataObjects Definition at line 103 of file itkProcessObject.h.

template<class TInputMesh, class TOutputMesh> typedef std::pair<unsigned long,unsigned long> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::EdgeIdentifierType

Definition at line 93 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef EdgeMapType::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::EdgeMapPointer

Definition at line 100 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::MapContainer<EdgeIdentifierType,unsigned long> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::EdgeMapType

Definition at line 99 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::MapContainer<unsigned long, EdgeIdentifierType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::EdgeNeighborListType

Definition at line 95 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef IdVectorType::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::IdVectorPointer

Definition at line 103 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::VectorContainer<unsigned long,unsigned long> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::IdVectorType

Definition at line 102 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef std::set<unsigned long> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::IndexSetType

Definition at line 94 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh::BoundaryAssignmentsContainerPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputBoundaryAssignmentsContainerPointer

Definition at line 71 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh::BoundaryAssignmentIdentifier itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputBoundnaryAssignmentIdentifier

Definition at line 83 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef InputCellType::CellAutoPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputCellAutoPointer

Definition at line 86 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh::CellType itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputCellType

Definition at line 85 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputMeshPointer

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 69 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputMeshType

Some convenient typedefs. Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 66 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh::PointsContainer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputPointsContainer

Definition at line 72 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef InputPointsContainer::Iterator itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputPointsContainerIterator

Definition at line 74 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef InputPointsContainer::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputPointsContainerPointer

Definition at line 73 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh::PointType itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::InputPointType

Definition at line 70 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::MapContainer<EdgeIdentifierType, unsigned long> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::LineCellIndexType

Definition at line 96 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::LineCell<InputCellType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::LineType

Definition at line 88 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh::CellAutoPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputCellAutoPointer

Definition at line 106 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh::CellType itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputCellType

Definition at line 105 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::LineCell<OutputCellType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputLineType

Definition at line 107 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputMeshPointer

Reimplemented from itk::MeshSource< TOutputMesh >. Definition at line 76 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TOutputMesh> typedef TOutputMesh itk::MeshSource< TOutputMesh >::OutputMeshType [inherited]

Reimplemented in itk::BalloonForceFilter< TInputMesh, TOutputMesh >, itk::BinaryMask3DMeshSource< TInputImage, TOutputMesh >, itk::ConnectedRegionsMeshFilter< TInputMesh, TOutputMesh >, itk::DeformableMesh3DFilter< TInputMesh, TOutputMesh >, itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >, itk::DeformableSimplexMesh3DGradientConstraintForceFilter, itk::RegularSphereMeshSource< TOutputMesh >, itk::SphereMeshSource< TOutputMesh >, itk::BinaryMaskToNarrowBandPointSetFilter< TInputImage, TOutputMesh >, itk::ImageToMeshFilter< TInputImage, TOutputMesh >, itk::ImageToParametricSpaceFilter< TInputImage, TOutputMesh >, itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >, itk::ParametricSpaceToImageSpaceMeshFilter< TInputMesh, TOutputMesh >, itk::SimplexMeshAdaptTopologyFilter< TInputMesh, TOutputMesh >, itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >, and itk::WarpMeshFilter< TInputMesh, TOutputMesh, TDeformationField >. Definition at line 60 of file itkMeshSource.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh::PixelType itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputPixelType

Definition at line 78 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh::PointsContainer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputPointsContainer

Definition at line 79 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh::PointsContainer::Iterator itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputPointsContainerIterator

Definition at line 81 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef OutputPointsContainer::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputPointsContainerPointer

Definition at line 80 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh::PointType itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputPointType

Definition at line 77 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::PolygonCell<OutputCellType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::OutputPolygonType

Definition at line 108 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef SmartPointer<Self> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::Pointer

Smart pointer typedef support Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 59 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::PolygonCell<InputCellType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::PolygonType

Definition at line 89 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TriangleMeshToSimplexMeshFilter itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::Self

Standard "Self" typedef. Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 53 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef MeshToMeshFilter<TInputMesh, TOutputMesh> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::Superclass

Standard "Superclass" typedef. Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 56 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::TriangleCell<InputCellType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::TriangleType

Definition at line 90 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::MapContainer<unsigned long, IndexSetType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::VertexNeighborListType

Definition at line 98 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> typedef itk::VertexCell<InputCellType> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::VertexType

Definition at line 91 of file itkTriangleMeshToSimplexMeshFilter.h.

---

Constructor & Destructor Documentation

template<class TInputMesh, class TOutputMesh> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::TriangleMeshToSimplexMeshFilter (   )  [protected]

template<class TInputMesh, class TOutputMesh> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::~TriangleMeshToSimplexMeshFilter (   )  [protected]

template<class TInputMesh, class TOutputMesh> itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::TriangleMeshToSimplexMeshFilter (  const Self &   )  [inline, protected]

Definition at line 116 of file itkTriangleMeshToSimplexMeshFilter.h.

---

Member Function Documentation

virtual void itk::ProcessObject::AbortGenerateDataOff (   )  [virtual, inherited]

virtual void itk::ProcessObject::AbortGenerateDataOn (   )  [virtual, inherited]

Turn on and off the AbortGenerateData flag.

virtual void itk::ProcessObject::AddInput (  DataObject *  input  )  [protected, virtual, inherited]

virtual void itk::ProcessObject::AddOutput (  DataObject *  output  )  [protected, virtual, inherited]

static void itk::LightObject::BreakOnError (   )  [static, inherited]

This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

virtual void itk::ProcessObject::CacheInputReleaseDataFlags (   )  [protected, virtual, inherited]

Cache the state of any ReleaseDataFlag's on the inputs. While the filter is executing, we need to set the ReleaseDataFlag's on the inputs to false in case the current filter is implemented using a mini-pipeline (which will try to release the inputs). After the filter finishes, we restore the state of the ReleaseDataFlag's before the call to ReleaseInputs().

template<class TInputMesh, class TOutputMesh> InputPointType itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::ComputeFaceCenter (  unsigned long  faceId  )  [protected]

Computes the center of a face

virtual LightObject::Pointer itk::Object::CreateAnother (   )  const [virtual, inherited]

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class. Reimplemented from itk::LightObject.

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::CreateCells (   )  [protected]

This method creates all the cells of the dual simplex mesh

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::CreateEdgeForTrianglePair (  unsigned long  pointIndex, unsigned long  boundaryId )  [protected]

Method creates a new edge, which from the centers of two neighboring triangles of the input mesh over the edge the both triangles have in common.

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::CreateNewEdge (  unsigned long  currentCellId, unsigned int  featureId, unsigned long  startPointId, unsigned long  endPointId )  [protected]

add edge cells to the input mesh

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::CreateSimplexNeighbors (   )  [protected]

Constructs the neighborhood relations for all simplex mesh points It also reorders the neighbors for easy normals computation

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::CreateSimplexPoints (   )  [protected]

Method inserts the new computed simplex points into the output mesh

virtual void itk::Object::DebugOff (   )  const [virtual, inherited]

Turn debugging output off.

virtual void itk::Object::DebugOn (   )  const [virtual, inherited]

Turn debugging output on.

virtual void itk::LightObject::Delete (   )  [virtual, inherited]

Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

virtual void itk::ProcessObject::EnlargeOutputRequestedRegion (  DataObject *   )  [inline, virtual, inherited]

Give the process object a chance to indictate that it will produce more output than it was requested to produce. For example, many imaging filters must compute the entire output at once or can only produce output in complete slices. Such filters cannot handle smaller requested regions. These filters must provide an implementation of this method, setting the output requested region to the size they will produce. By default, a process object does not modify the size of the output requested region. Reimplemented in itk::CurvatureFlowImageFilter< TInputImage, TOutputImage >, itk::ExtensionVelocitiesImageFilter< TLevelSet, TAuxValue, VAuxDimension >, itk::FastMarchingExtensionImageFilter< TLevelSet, TAuxValue, VAuxDimension, TSpeedImage >, itk::FastMarchingImageFilter< TLevelSet, TSpeedImage >, itk::ImagePCAShapeModelEstimator< TInputImage, TOutputImage >, itk::IsoContourDistanceImageFilter< TInputImage, TOutputImage >, itk::IsolatedWatershedImageFilter< TInputImage, TOutputImage >, itk::KLMRegionGrowImageFilter< TInputImage, TOutputImage >, itk::MRFImageFilter< TInputImage, TClassifiedImage >, itk::MultiResolutionPDEDeformableRegistration< TFixedImage, TMovingImage, TDeformationField >, itk::ReinitializeLevelSetImageFilter< TLevelSet >, itk::VoronoiSegmentationImageFilterBase< TInputImage, TOutputImage, TBinaryPriorImage >, itk::WatershedImageFilter< TInputImage >, itk::BlackTopHatImageFilter< TInputImage, TOutputImage, TKernel >, itk::BSplineDecompositionImageFilter< TInputImage, TOutputImage >, itk::ClosingByReconstructionImageFilter< TInputImage, TOutputImage, TKernel >, itk::ConfidenceConnectedImageFilter< TInputImage, TOutputImage >, itk::ConnectedComponentImageFilter< TInputImage, TOutputImage, TMaskImage >, itk::ConnectedThresholdImageFilter< TInputImage, TOutputImage >, itk::ContourDirectedMeanDistanceImageFilter< TInputImage1, TInputImage2 >, itk::ContourMeanDistanceImageFilter< TInputImage1, TInputImage2 >, itk::DirectedHausdorffDistanceImageFilter< TInputImage1, TInputImage2 >, itk::DoubleThresholdImageFilter< TInputImage, TOutputImage >, itk::ExtractOrthogonalSwath2DImageFilter< TImage >, itk::GradientMagnitudeRecursiveGaussianImageFilter< TInputImage, TOutputImage >, itk::GradientRecursiveGaussianImageFilter< TInputImage, TOutputImage >, itk::GrayscaleConnectedClosingImageFilter< TInputImage, TOutputImage >, itk::GrayscaleConnectedOpeningImageFilter< TInputImage, TOutputImage >, itk::GrayscaleFillholeImageFilter< TInputImage, TOutputImage >, itk::GrayscaleGeodesicDilateImageFilter< TInputImage, TOutputImage >, itk::GrayscaleGeodesicErodeImageFilter< TInputImage, TOutputImage >, itk::GrayscaleGrindPeakImageFilter< TInputImage, TOutputImage >, itk::GrayscaleMorphologicalClosingImageFilter< TInputImage, TOutputImage, TKernel >, itk::GrayscaleMorphologicalOpeningImageFilter< TInputImage, TOutputImage, TKernel >, itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >, itk::HConcaveImageFilter< TInputImage, TOutputImage >, itk::HConvexImageFilter< TInputImage, TOutputImage >, itk::HessianRecursiveGaussianImageFilter< TInputImage, TOutputImage >, itk::HMaximaImageFilter< TInputImage, TOutputImage >, itk::HMinimaImageFilter< TInputImage, TOutputImage >, itk::HoughTransform2DCirclesImageFilter< TInputPixelType, TOutputPixelType >, itk::HoughTransform2DLinesImageFilter< TInputPixelType, TOutputPixelType >, itk::ImportImageFilter< TPixel, VImageDimension >, itk::IsolatedConnectedImageFilter< TInputImage, TOutputImage >, itk::LabelStatisticsImageFilter< TInputImage, TLabelImage >, itk::LaplacianRecursiveGaussianImageFilter< TInputImage, TOutputImage >, itk::MinimumMaximumImageFilter< TInputImage >, itk::NeighborhoodConnectedImageFilter< TInputImage, TOutputImage >, itk::OpeningByReconstructionImageFilter< TInputImage, TOutputImage, TKernel >, itk::OrientImageFilter< TInputImage, TOutputImage >, itk::ReconstructionByDilationImageFilter< TInputImage, TOutputImage >, itk::ReconstructionByErosionImageFilter< TInputImage, TOutputImage >, itk::RecursiveSeparableImageFilter< TInputImage, TOutputImage >, itk::RegionOfInterestImageFilter< TInputImage, TOutputImage >, itk::SimilarityIndexImageFilter< TInputImage1, TInputImage2 >, itk::SmoothingRecursiveGaussianImageFilter< TInputImage, TOutputImage >, itk::StatisticsImageFilter< TInputImage >, itk::TobogganImageFilter< TInputImage >, itk::VectorConfidenceConnectedImageFilter< TInputImage, TOutputImage >, itk::WhiteTopHatImageFilter< TInputImage, TOutputImage, TKernel >, itk::ImageFileReader< TOutputImage, ConvertPixelTraits >, itk::ImageSeriesReader< TOutputImage >, and itk::VoronoiSegmentationImageFilterBase< TInputImage, TOutputImage >. Definition at line 222 of file itkProcessObject.h.

template<class TInputMesh, class TOutputMesh> virtual void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::GenerateData (   )  [protected, virtual]

Override from ProcessObject Reimplemented from itk::ProcessObject.

template<class TOutputMesh> void itk::MeshSource< TOutputMesh >::GenerateInputRequestedRegion (   )  [protected, virtual, inherited]

Requested region of Mesh is specified as i of N unstructured regions. Since all DataObjects should be able to set the requested region in unstructured form, just copy output->RequestedRegion all inputs. Reimplemented from itk::ProcessObject.

virtual void itk::ProcessObject::GenerateOutputInformation (   )  [protected, virtual, inherited]

Generate the information decribing the output data. The default implementation of this method will copy information from the input to the output. A filter may override this method if its output will have different information than its input. For instance, a filter that shrinks an image will need to provide an implementation for this method that changes the spacing of the pixels. Such filters should call their superclass' implementation of this method prior to changing the information values they need (i.e. GenerateOutputInformation() should call Superclass::GenerateOutputInformation() prior to changing the information. Reimplemented in itk::BayesianClassifierInitializationImageFilter< TInputImage, TProbabilityPrecisionType >, itk::BinaryMask3DMeshSource< TInputImage, TOutputMesh >, itk::FastMarchingExtensionImageFilter< TLevelSet, TAuxValue, VAuxDimension, TSpeedImage >, itk::FastMarchingImageFilter< TLevelSet, TSpeedImage >, itk::FFTComplexConjugateToRealImageFilter< TPixel, Dimension >, itk::FFTRealToComplexConjugateImageFilter< TPixel, Dimension >, itk::MRFImageFilter< TInputImage, TClassifiedImage >, itk::MultiResolutionPDEDeformableRegistration< TFixedImage, TMovingImage, TDeformationField >, itk::MultiResolutionPyramidImageFilter< TInputImage, TOutputImage >, itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >, itk::VoronoiDiagram2DGenerator< TCoordType >, itk::AccumulateImageFilter< TInputImage, TOutputImage >, itk::BinaryMaskToNarrowBandPointSetFilter< TInputImage, TOutputMesh >, itk::ChangeInformationImageFilter< TInputImage >, itk::CropImageFilter< TInputImage, TOutputImage >, itk::DeformationFieldSource< TOutputImage >, itk::ExpandImageFilter< TInputImage, TOutputImage >, itk::ExtractImageFilter< TInputImage, TOutputImage >, itk::ExtractOrthogonalSwath2DImageFilter< TImage >, itk::FlipImageFilter< TImage >, itk::GaussianImageSource< TOutputImage >, itk::GradientImageToBloxBoundaryPointImageFilter< TInputImage >, itk::HoughTransform2DLinesImageFilter< TInputPixelType, TOutputPixelType >, itk::ImageToMeshFilter< TInputImage, TOutputMesh >, itk::ImageToParametricSpaceFilter< TInputImage, TOutputMesh >, itk::ImportImageFilter< TPixel, VImageDimension >, itk::InterpolateImagePointsFilter< TInputImage, TOutputImage, TCoordType, InterpolatorType >, itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >, itk::JoinSeriesImageFilter< TInputImage, TOutputImage >, itk::NonThreadedShrinkImageFilter< TInputImage, TOutputImage >, itk::OrientImageFilter< TInputImage, TOutputImage >, itk::PadImageFilter< TInputImage, TOutputImage >, itk::ParametricSpaceToImageSpaceMeshFilter< TInputMesh, TOutputMesh >, itk::PathToImageFilter< TInputPath, TOutputImage >, itk::PermuteAxesImageFilter< TImage >, itk::PointSetToImageFilter< TInputPointSet, TOutputImage >, itk::RandomImageSource< TOutputImage >, itk::RegionOfInterestImageFilter< TInputImage, TOutputImage >, itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::ShrinkImageFilter< TInputImage, TOutputImage >, itk::SpatialObjectToImageFilter< TInputSpatialObject, TOutputImage >, itk::SpatialObjectToPointSetFilter< TInputSpatialObject, TOutputPointSet >, itk::TileImageFilter< TInputImage, TOutputImage >, itk::TriangleMeshToBinaryImageFilter, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >, itk::VectorExpandImageFilter< TInputImage, TOutputImage >, itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::VTKImageImport< TOutputImage >, itk::WarpImageFilter< TInputImage, TOutputImage, TDeformationField >, itk::WarpVectorImageFilter< TInputImage, TOutputImage, TDeformationField >, itk::ImageFileReader< TOutputImage, ConvertPixelTraits >, itk::ImageSeriesReader< TOutputImage >, itk::HistogramToImageFilter< THistogram, TFunction >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::Atan< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::Cos< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::Acos< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::InvertIntensityTransform< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::ChangeLabel< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< FeatureImageType, ImageType, Functor::Cast< FeatureImageType::PixelType, ImageType::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Log< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Abs< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Exp< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::ComplexToReal< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::Cast< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::BoundedReciprocal< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Sigmoid< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::VectorCast< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::VectorMagnitudeLinearTransform< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::IntensityLinearTransform< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::ComplexToModulus< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::IntensityWindowingTransform< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::NOT< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Tan< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::ExpNegative< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::ComplexToPhase< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::ThresholdLabeler< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::SymmetricEigenAnalysisFunction< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Sin< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::RGBToLuminance< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::TensorRelativeAnisotropyFunction< TInputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::MatrixIndexSelection< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Sqrt< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::BinaryThreshold< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Log10< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::AccessorFunctor< TInputImage::PixelType, TAccessor > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::ModulusTransform< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::TensorFractionalAnisotropyFunction< TInputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::Asin< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::EdgePotential< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::Square< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::VectorIndexSelectionCast< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::GradientMagnitude< TInputImage::PixelType, TOutputImage::PixelType > >, itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, Function::ComplexToImaginary< TInputImage::PixelType, TOutputImage::PixelType > >, itk::HistogramToImageFilter< THistogram, Function::HistogramEntropyFunction< unsigned long > >, itk::HistogramToImageFilter< THistogram, Function::HistogramLogProbabilityFunction< unsigned long > >, itk::HistogramToImageFilter< THistogram, Function::HistogramProbabilityFunction< unsigned long > >, and itk::HistogramToImageFilter< THistogram, Function::HistogramIntensityFunction< unsigned long > >.

virtual void itk::ProcessObject::GenerateOutputRequestedRegion (  DataObject *  output  )  [protected, virtual, inherited]

Given one output whose requested region has been set, how should the requested regions for the remaining outputs of the process object be set? By default, all the outputs are set to the same requested region. If a filter needs to produce different requested regions for each output, for instance an image processing filter producing several outputs at different resolutions, then that filter may override this method and set the requested regions appropriatedly. Note that a filter producing multiple outputs of different types is required to override this method. The default implementation can only correctly handle multiple outputs of the same type. Reimplemented in itk::MultiResolutionPyramidImageFilter< TInputImage, TOutputImage >, itk::RecursiveMultiResolutionPyramidImageFilter< TInputImage, TOutputImage >, itk::watershed::BoundaryResolver< TPixelType, TDimension >, itk::watershed::EquivalenceRelabeler< TScalarType, TImageDimension >, itk::watershed::Relabeler< TScalarType, TImageDimension >, itk::watershed::Segmenter< TInputImage >, itk::watershed::SegmentTreeGenerator< TScalarType >, itk::watershed::Relabeler< ScalarType, itkGetStaticConstMacro(ImageDimension)>, and itk::watershed::SegmentTreeGenerator< ScalarType >.

virtual const bool& itk::ProcessObject::GetAbortGenerateData (   )  [virtual, inherited]

Get the AbortGenerateData flag for the process object. Process objects may handle premature termination of execution in different ways.

Command* itk::Object::GetCommand (  unsigned long  tag  )  [inherited]

Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used.

bool itk::Object::GetDebug (   )  const [inherited]

Get the value of the debug flag.

static bool itk::Object::GetGlobalWarningDisplay (   )  [static, inherited]

const DataObject* itk::ProcessObject::GetInput (  unsigned int  idx  )  const [protected, inherited]

template<class TInputMesh, class TOutputMesh> InputMeshType* itk::MeshToMeshFilter< TInputMesh, TOutputMesh >::GetInput (  unsigned int  idx  )  [inherited]

Reimplemented from itk::ProcessObject.

template<class TInputMesh, class TOutputMesh> Get the mesh input of this process object* InputMeshType* itk::MeshToMeshFilter< TInputMesh, TOutputMesh >::GetInput (  void   )  [inherited]

DataObjectPointerArray& itk::ProcessObject::GetInputs (   )  [inline, inherited]

Return an array with all the inputs of this process object. This is useful for tracing back in the pipeline to construct graphs etc. Definition at line 108 of file itkProcessObject.h.

const MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  const [inherited]

Returns: A constant reference to this objects MetaDataDictionary.

MetaDataDictionary& itk::Object::GetMetaDataDictionary (  void   )  [inherited]

Returns: A reference to this objects MetaDataDictionary. Warning: This reference may be changed.

virtual unsigned long itk::Object::GetMTime (   )  const [virtual, inherited]

Return this objects modified time. Reimplemented in itk::ImageRegistrationMethod< TFixedImage, TMovingImage >, itk::DeformationFieldSource< TOutputImage >, itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >, itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::BoundingBox< TPointIdentifier, VPointDimension, TCoordRep, TPointsContainer >, itk::SceneSpatialObject< SpaceDimension >, and itk::SceneSpatialObject< NDimensions >.

MultiThreader* itk::ProcessObject::GetMultiThreader (   )  [inline, inherited]

Return the multithreader used by this class. Definition at line 281 of file itkProcessObject.h.

template<class TInputMesh, class TOutputMesh> virtual const char* itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

std::vector<DataObjectPointer>::size_type itk::ProcessObject::GetNumberOfInputs (   )  const [inline, inherited]

Get the size of the input vector. This is merely the size of the input vector, not the number of inputs that have valid DataObject's assigned. Use GetNumberOfValidRequiredInputs() to determine how many inputs are non-null. Definition at line 115 of file itkProcessObject.h.

std::vector<DataObjectPointer>::size_type itk::ProcessObject::GetNumberOfOutputs (   )  const [inline, inherited]

Definition at line 132 of file itkProcessObject.h.

virtual const unsigned int& itk::ProcessObject::GetNumberOfRequiredInputs (   )  [protected, virtual, inherited]

virtual const unsigned int& itk::ProcessObject::GetNumberOfRequiredOutputs (   )  [protected, virtual, inherited]

virtual const int& itk::ProcessObject::GetNumberOfThreads (   )  [virtual, inherited]

virtual std::vector<DataObjectPointer>::size_type itk::ProcessObject::GetNumberOfValidRequiredInputs (   )  const [virtual, inherited]

Get the number of valid inputs. This is the number of non-null entries in the input vector in the first NumberOfRequiredInputs slots. This method is used to determine whether the necessary required inputs have been set. Subclasses of ProcessObject may override this implementation if the required inputs are not the first slots in input vector. Reimplemented in itk::MultiResolutionPDEDeformableRegistration< TFixedImage, TMovingImage, TDeformationField >, and itk::PDEDeformableRegistrationFilter< TFixedImage, TMovingImage, TDeformationField >.

const DataObject* itk::ProcessObject::GetOutput (  unsigned int  idx  )  const [protected, inherited]

template<class TOutputMesh> OutputMeshType* itk::MeshSource< TOutputMesh >::GetOutput (  unsigned int  idx  )  [inherited]

Reimplemented from itk::ProcessObject.

template<class TOutputMesh> Get the mesh output of this process object* OutputMeshType* itk::MeshSource< TOutputMesh >::GetOutput (  void   )  [inherited]

Reimplemented in itk::ImageToMeshFilter< TInputImage, TOutputMesh >.

Return an array with all the outputs of this process object* This is useful for tracing forward in the pipeline to contruct* graphs etc* DataObjectPointerArray& itk::ProcessObject::GetOutputs (   )  [inline, inherited]

Definition at line 130 of file itkProcessObject.h.

virtual const float& itk::ProcessObject::GetProgress (   )  [virtual, inherited]

Get the execution progress of a process object. The progress is a floating number in [0,1] with 0 meaning no progress and 1 meaning the filter has completed execution.

virtual int itk::LightObject::GetReferenceCount (   )  const [inline, virtual, inherited]

Gets the reference count on this object. Definition at line 98 of file itkLightObject.h.

virtual const bool& itk::ProcessObject::GetReleaseDataBeforeUpdateFlag (   )  [virtual, inherited]

virtual bool itk::ProcessObject::GetReleaseDataFlag (   )  const [virtual, inherited]

static void itk::Object::GlobalWarningDisplayOff (   )  [inline, static, inherited]

Definition at line 100 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay().

static void itk::Object::GlobalWarningDisplayOn (   )  [inline, static, inherited]

Definition at line 98 of file itkObject.h. References itk::Object::SetGlobalWarningDisplay().

template<class TOutputMesh> virtual void itk::MeshSource< TOutputMesh >::GraftNthOutput (  unsigned int  idx, DataObject *  output )  [virtual, inherited]

template<class TOutputMesh> * * * * this itk::MeshSource< TOutputMesh >::GraftOutput (  lastFilterInMiniPipeline->  GetOutput()  )  [inherited]

template<class TOutputMesh> * * * * lastFilterInMiniPipeline itk::MeshSource< TOutputMesh >::GraftOutput (  this->  GetOutput()  )  [inherited]

bool itk::Object::HasObserver (  const EventObject &  event  )  const [inherited]

Return true if an observer is registered for this event.

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::Initialize (   )  [protected]

Initializes all necessary datastructures

void itk::Object::InvokeEvent (  const EventObject &   )  const [inherited]

Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object.

void itk::Object::InvokeEvent (  const EventObject &   )  [inherited]

Call Execute on all the Commands observing this event id.

template<class TOutputMesh> Graft the specified DataObject onto this ProcessObject s output* This method grabs a handle to the specified DataObject s bulk* data to used as its output s own bulk data It also copies the* region itk::MeshSource< TOutputMesh >::ivars (  RequestedRegion  , BufferedRegion  , *  LargestPossibleRegion )  [inherited]

template<class TOutputMesh> virtual DataObjectPointer itk::MeshSource< TOutputMesh >::MakeOutput (  unsigned int  idx  )  [virtual, inherited]

Make a DataObject of the correct type to used as the specified output. Every ProcessObject subclass must be able to create a DataObject that can be used as a specified output. This method is automatically called when DataObject::DisconnectPipeline() is called. DataObject::DisconnectPipeline, disconnects a data object from being an output of its current source. When the data object is disconnected, the ProcessObject needs to construct a replacement output data object so that the ProcessObject is in a valid state. So DataObject::DisconnectPipeline eventually calls ProcessObject::MakeOutput. Note that MakeOutput always returns a SmartPointer to a DataObject. If a subclass of MeshSource has multiple outputs of different types, then that class must provide an implementation of MakeOutput(). Reimplemented from itk::ProcessObject. Reimplemented in itk::ImageToMeshFilter< TInputImage, TOutputMesh >.

virtual void itk::Object::Modified (   )  const [virtual, inherited]

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data. Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetCenter(), itk::HistogramAlgorithmBase< TInputHistogram >::SetInputHistogram(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetOffset(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetRealThresholds(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints1(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints2(), itk::NonUniformBSpline< TDimension >::SetSplineOrder(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetThresholds(), itk::Statistics::GoodnessOfFitFunctionBase< typename ComponentType::HistogramType >::SetTotalObservedScale(), and itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetTranslation().

template<class TInputMesh, class TOutputMesh> static Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::New (   )  [static]

Method of creation through the object factory. Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::operator= (  const Self &   )  [inline, protected]

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 118 of file itkTriangleMeshToSimplexMeshFilter.h.

virtual void itk::ProcessObject::PopBackInput (   )  [protected, virtual, inherited]

Reimplemented in itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TSpeedImage, TLevelSet >, itk::ImageToImageFilter< TDeformationField, TDeformationField >, itk::ImageToImageFilter< TInputImage, TInputImage >, itk::ImageToImageFilter< TInputImage1, Functor::MakeJoin< TInputImage1, TInputImage2 >::ImageType >, itk::ImageToImageFilter< TInputImage, TSparseOutputImage >, itk::ImageToImageFilter< Image< TReferenceImagePixelType, 3 >, Image< DiffusionTensor3D< TTensorPixelType >, 3 > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TDataType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, BloxBoundaryPointImage< ::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< Image< SymmetricSecondRankTensor< double, 3 >, 3 >, Image< TPixel, 3 > >, itk::ImageToImageFilter< TInputImage, Image< unsigned long,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TSourceImage, BloxBoundaryProfileImage< ::itk::GetImageDimension< TSourceImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TOutputImage >, itk::ImageToImageFilter< FeatureImageType, ImageType >, itk::ImageToImageFilter< TImageType, TImageType >, itk::ImageToImageFilter< TInputImage, Image< unsigned char,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< BloxBoundaryPointImage< dim >, BloxCoreAtomImage< dim > >, itk::ImageToImageFilter< TInputImage, VectorImage< TProbabilityPrecisionType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TOutputValueType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, TClassifiedImage >, itk::ImageToImageFilter< TInputImage, TEigenValueImage >, itk::ImageToImageFilter< TInputVectorImage, Image< TLabelsType,::itk::GetImageDimension< TInputVectorImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TInputImage1 >, itk::ImageToImageFilter< ImageType, ImageType >, itk::ImageToImageFilter< TInputImage, Image< TOutputPixelType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TLevelSet, TLevelSet >, itk::ImageToImageFilter< TMovingImage, TFixedImage >, itk::ImageToImageFilter< Image< TPixel, Dimension >, Image< std::complex< TPixel >, Dimension > >, itk::ImageToImageFilter< TImage, TImage >, itk::ImageToImageFilter< Image< std::complex< TPixel >, Dimension >, Image< TPixel, Dimension > >, itk::ImageToImageFilter< TInputImageType, TSparseOutputImageType >, itk::ImageToImageFilter< Image< TInputPixelType, 2 >, Image< TOutputPixelType, 2 > >, itk::ImageToImageFilter< TImage, TImage >, and itk::ImageToImageFilter< ImageType, ImageType >.

virtual void itk::ProcessObject::PopFrontInput (   )  [protected, virtual, inherited]

Reimplemented in itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TSpeedImage, TLevelSet >, itk::ImageToImageFilter< TDeformationField, TDeformationField >, itk::ImageToImageFilter< TInputImage, TInputImage >, itk::ImageToImageFilter< TInputImage1, Functor::MakeJoin< TInputImage1, TInputImage2 >::ImageType >, itk::ImageToImageFilter< TInputImage, TSparseOutputImage >, itk::ImageToImageFilter< Image< TReferenceImagePixelType, 3 >, Image< DiffusionTensor3D< TTensorPixelType >, 3 > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TDataType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, BloxBoundaryPointImage< ::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< Image< SymmetricSecondRankTensor< double, 3 >, 3 >, Image< TPixel, 3 > >, itk::ImageToImageFilter< TInputImage, Image< unsigned long,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TSourceImage, BloxBoundaryProfileImage< ::itk::GetImageDimension< TSourceImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TOutputImage >, itk::ImageToImageFilter< FeatureImageType, ImageType >, itk::ImageToImageFilter< TImageType, TImageType >, itk::ImageToImageFilter< TInputImage, Image< unsigned char,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< BloxBoundaryPointImage< dim >, BloxCoreAtomImage< dim > >, itk::ImageToImageFilter< TInputImage, VectorImage< TProbabilityPrecisionType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TOutputValueType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, TClassifiedImage >, itk::ImageToImageFilter< TInputImage, TEigenValueImage >, itk::ImageToImageFilter< TInputVectorImage, Image< TLabelsType,::itk::GetImageDimension< TInputVectorImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TInputImage1 >, itk::ImageToImageFilter< ImageType, ImageType >, itk::ImageToImageFilter< TInputImage, Image< TOutputPixelType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TLevelSet, TLevelSet >, itk::ImageToImageFilter< TMovingImage, TFixedImage >, itk::ImageToImageFilter< Image< TPixel, Dimension >, Image< std::complex< TPixel >, Dimension > >, itk::ImageToImageFilter< TImage, TImage >, itk::ImageToImageFilter< Image< std::complex< TPixel >, Dimension >, Image< TPixel, Dimension > >, itk::ImageToImageFilter< TInputImageType, TSparseOutputImageType >, itk::ImageToImageFilter< Image< TInputPixelType, 2 >, Image< TOutputPixelType, 2 > >, itk::ImageToImageFilter< TImage, TImage >, and itk::ImageToImageFilter< ImageType, ImageType >.

virtual void itk::ProcessObject::PrepareOutputs (   )  [virtual, inherited]

An opportunity to deallocate a ProcessObject's bulk data storage. Some filters may wish to reuse existing bulk data storage to avoid unnecessary deallocation/allocation sequences. The default implementation calls Initialize() on each output. DataObject::Initialize() frees its bulk data by default. Reimplemented in itk::WatershedImageFilter< TInputImage >.

void itk::LightObject::Print (  std::ostream &  os, Indent  indent = 0 )  const [inherited]

Cause the object to print itself out.

bool itk::Object::PrintObservers (  std::ostream &  os, Indent  indent )  const [protected, inherited]

template<class TInputMesh, class TOutputMesh> void itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::MeshSource< TOutputMesh >.

virtual void itk::LightObject::PrintTrailer (  std::ostream &  os, Indent  indent )  const [protected, virtual, inherited]

virtual void itk::ProcessObject::PropagateRequestedRegion (  DataObject *  output  )  [virtual, inherited]

Send the requested region information back up the pipeline (to the filters that preceed this one). Reimplemented in itk::VTKImageImport< TOutputImage >.

virtual void itk::ProcessObject::PropagateResetPipeline (   )  [protected, virtual, inherited]

Propagate a call to ResetPipeline() up the pipeline. Called only from DataObject.

Push Pop an input of this process object These methods allow a* filter to model its input vector as a queue or stack These* routines may not be appropriate for all especially* filters with different types of inputs These routines follow* the semantics of STL* virtual void itk::ProcessObject::PushBackInput (  const DataObject *  input  )  [protected, virtual, inherited]

Reimplemented in itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TSpeedImage, TLevelSet >, itk::ImageToImageFilter< TDeformationField, TDeformationField >, itk::ImageToImageFilter< TInputImage, TInputImage >, itk::ImageToImageFilter< TInputImage1, Functor::MakeJoin< TInputImage1, TInputImage2 >::ImageType >, itk::ImageToImageFilter< TInputImage, TSparseOutputImage >, itk::ImageToImageFilter< Image< TReferenceImagePixelType, 3 >, Image< DiffusionTensor3D< TTensorPixelType >, 3 > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TDataType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, BloxBoundaryPointImage< ::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< Image< SymmetricSecondRankTensor< double, 3 >, 3 >, Image< TPixel, 3 > >, itk::ImageToImageFilter< TInputImage, Image< unsigned long,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TSourceImage, BloxBoundaryProfileImage< ::itk::GetImageDimension< TSourceImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TOutputImage >, itk::ImageToImageFilter< FeatureImageType, ImageType >, itk::ImageToImageFilter< TImageType, TImageType >, itk::ImageToImageFilter< TInputImage, Image< unsigned char,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< BloxBoundaryPointImage< dim >, BloxCoreAtomImage< dim > >, itk::ImageToImageFilter< TInputImage, VectorImage< TProbabilityPrecisionType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TOutputValueType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, TClassifiedImage >, itk::ImageToImageFilter< TInputImage, TEigenValueImage >, itk::ImageToImageFilter< TInputVectorImage, Image< TLabelsType,::itk::GetImageDimension< TInputVectorImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TInputImage1 >, itk::ImageToImageFilter< ImageType, ImageType >, itk::ImageToImageFilter< TInputImage, Image< TOutputPixelType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TLevelSet, TLevelSet >, itk::ImageToImageFilter< TMovingImage, TFixedImage >, itk::ImageToImageFilter< Image< TPixel, Dimension >, Image< std::complex< TPixel >, Dimension > >, itk::ImageToImageFilter< TImage, TImage >, itk::ImageToImageFilter< Image< std::complex< TPixel >, Dimension >, Image< TPixel, Dimension > >, itk::ImageToImageFilter< TInputImageType, TSparseOutputImageType >, itk::ImageToImageFilter< Image< TInputPixelType, 2 >, Image< TOutputPixelType, 2 > >, itk::ImageToImageFilter< TImage, TImage >, and itk::ImageToImageFilter< ImageType, ImageType >.

virtual void itk::ProcessObject::PushFrontInput (  const DataObject *  input  )  [protected, virtual, inherited]

Reimplemented in itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TSpeedImage, TLevelSet >, itk::ImageToImageFilter< TDeformationField, TDeformationField >, itk::ImageToImageFilter< TInputImage, TInputImage >, itk::ImageToImageFilter< TInputImage1, Functor::MakeJoin< TInputImage1, TInputImage2 >::ImageType >, itk::ImageToImageFilter< TInputImage, TSparseOutputImage >, itk::ImageToImageFilter< Image< TReferenceImagePixelType, 3 >, Image< DiffusionTensor3D< TTensorPixelType >, 3 > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TDataType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, BloxBoundaryPointImage< ::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< Image< SymmetricSecondRankTensor< double, 3 >, 3 >, Image< TPixel, 3 > >, itk::ImageToImageFilter< TInputImage, Image< unsigned long,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TSourceImage, BloxBoundaryProfileImage< ::itk::GetImageDimension< TSourceImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TOutputImage >, itk::ImageToImageFilter< FeatureImageType, ImageType >, itk::ImageToImageFilter< TImageType, TImageType >, itk::ImageToImageFilter< TInputImage, Image< unsigned char,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< BloxBoundaryPointImage< dim >, BloxCoreAtomImage< dim > >, itk::ImageToImageFilter< TInputImage, VectorImage< TProbabilityPrecisionType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TOutputValueType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, TClassifiedImage >, itk::ImageToImageFilter< TInputImage, TEigenValueImage >, itk::ImageToImageFilter< TInputVectorImage, Image< TLabelsType,::itk::GetImageDimension< TInputVectorImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TInputImage1 >, itk::ImageToImageFilter< ImageType, ImageType >, itk::ImageToImageFilter< TInputImage, Image< TOutputPixelType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TLevelSet, TLevelSet >, itk::ImageToImageFilter< TMovingImage, TFixedImage >, itk::ImageToImageFilter< Image< TPixel, Dimension >, Image< std::complex< TPixel >, Dimension > >, itk::ImageToImageFilter< TImage, TImage >, itk::ImageToImageFilter< Image< std::complex< TPixel >, Dimension >, Image< TPixel, Dimension > >, itk::ImageToImageFilter< TInputImageType, TSparseOutputImageType >, itk::ImageToImageFilter< Image< TInputPixelType, 2 >, Image< TOutputPixelType, 2 > >, itk::ImageToImageFilter< TImage, TImage >, and itk::ImageToImageFilter< ImageType, ImageType >.

virtual void itk::Object::Register (   )  const [virtual, inherited]

Increase the reference count (mark as used by another object). Reimplemented from itk::LightObject.

virtual void itk::ProcessObject::ReleaseDataBeforeUpdateFlagOff (   )  [virtual, inherited]

virtual void itk::ProcessObject::ReleaseDataBeforeUpdateFlagOn (   )  [virtual, inherited]

void itk::ProcessObject::ReleaseDataFlagOff (   )  [inline, inherited]

Definition at line 254 of file itkProcessObject.h.

void itk::ProcessObject::ReleaseDataFlagOn (   )  [inline, inherited]

Definition at line 253 of file itkProcessObject.h.

virtual void itk::ProcessObject::ReleaseInputs (   )  [protected, virtual, inherited]

A filter may need to release its input's bulk data after it has finished calculating a new output. The filter may need to release the inputs because the user has turned on the ReleaseDataFlag or it may need to release the inputs because the filter is an "in place" filter and it has overwritten its input with its output data. The implementation here simply checks the ReleaseDataFlag of the inputs. InPlaceImageFilter overrides this method so release the input it has overwritten. See also: InPlaceImageFilter::ReleaseInputs() Reimplemented in itk::InPlaceImageFilter< TInputImage, TOutputImage >, itk::InPlaceImageFilter< TInputImage, TOutputImage >, itk::InPlaceImageFilter< TDeformationField, TDeformationField >, itk::InPlaceImageFilter< TInputImage >, itk::InPlaceImageFilter< TInputImage, TSparseOutputImage >, itk::InPlaceImageFilter< TInputImage1, TOutputImage >, itk::InPlaceImageFilter< TInputImage, Image< TOutputPixelType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::InPlaceImageFilter< FeatureImageType, ImageType >, itk::InPlaceImageFilter< TInputImage1, Functor::MakeJoin< TInputImage1, TInputImage2 >::ImageType >, itk::InPlaceImageFilter< TInputImageType, TSparseOutputImageType >, and itk::InPlaceImageFilter< TImage, TImage >.

void itk::Object::RemoveAllObservers (   )  [inherited]

Remove all observers .

virtual void itk::ProcessObject::RemoveInput (  DataObject *  input  )  [protected, virtual, inherited]

void itk::Object::RemoveObserver (  unsigned long  tag  )  [inherited]

Remove the observer with this tag value.

virtual void itk::ProcessObject::RemoveOutput (  DataObject *  output  )  [protected, virtual, inherited]

virtual void itk::ProcessObject::ResetPipeline (   )  [virtual, inherited]

Reset the pipeline. If an exception is thrown during an Update(), the pipeline may be in an inconsistent state. This method clears the internal state of the pipeline so Update() can be called.

virtual void itk::ProcessObject::RestoreInputReleaseDataFlags (   )  [protected, virtual, inherited]

Restore the cached input ReleaseDataFlags.

virtual void itk::ProcessObject::SetAbortGenerateData (  bool  _arg  )  [virtual, inherited]

Set the AbortGenerateData flag for the process object. Process objects may handle premature termination of execution in different ways.

void itk::Object::SetDebug (  bool  debugFlag  )  const [inherited]

Set the value of the debug flag. A non-zero value turns debugging on.

This is a global flag that controls whether any warning* or error messages are displayed* static void itk::Object::SetGlobalWarningDisplay (  bool  flag  )  [static, inherited]

Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn().

template<class TInputMesh, class TOutputMesh> void itk::MeshToMeshFilter< TInputMesh, TOutputMesh >::SetInput (  InputMeshType *  input  )  [inherited]

Set the mesh input of this process object.

void itk::Object::SetMetaDataDictionary (  const MetaDataDictionary &  rhs  )  [inherited]

Returns: Set the MetaDataDictionary

Protected methods for setting inputs* Subclasses make use of them for setting input* virtual void itk::ProcessObject::SetNthInput (  unsigned int  num, DataObject *  input )  [protected, virtual, inherited]

Referenced by itk::watershed::BoundaryResolver< TPixelType, TDimension >::SetBoundaryA(), itk::watershed::BoundaryResolver< TPixelType, TDimension >::SetBoundaryB(), itk::watershed::EquivalenceRelabeler< TScalarType, TImageDimension >::SetEquivalencyTable(), itk::WatershedImageFilter< TInputImage >::SetInput(), itk::watershed::SegmentTreeGenerator< ScalarType >::SetInputEquivalencyTable(), itk::watershed::Segmenter< TInputImage >::SetInputImage(), itk::watershed::Relabeler< ScalarType, itkGetStaticConstMacro(ImageDimension)>::SetInputImage(), itk::watershed::EquivalenceRelabeler< TScalarType, TImageDimension >::SetInputImage(), itk::watershed::SegmentTreeGenerator< ScalarType >::SetInputSegmentTable(), itk::watershed::Relabeler< ScalarType, itkGetStaticConstMacro(ImageDimension)>::SetInputSegmentTree(), itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >::SetReferenceImage(), itk::DiffusionTensor3DReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TTensorPixelType >::SetReferenceImage(), and itk::ChangeInformationImageFilter< TInputImage >::SetReferenceImage().

Protected methods for setting outputs* Subclasses make use of them for getting output* virtual void itk::ProcessObject::SetNthOutput (  unsigned int  num, DataObject *  output )  [protected, virtual, inherited]

Referenced by itk::watershed::BoundaryResolver< TPixelType, TDimension >::BoundaryResolver(), itk::watershed::EquivalenceRelabeler< TScalarType, TImageDimension >::EquivalenceRelabeler(), itk::watershed::Segmenter< TInputImage >::SetBoundary(), itk::watershed::BoundaryResolver< TPixelType, TDimension >::SetEquivalencyTable(), itk::watershed::Segmenter< TInputImage >::SetOutputImage(), itk::watershed::Relabeler< ScalarType, itkGetStaticConstMacro(ImageDimension)>::SetOutputImage(), itk::watershed::EquivalenceRelabeler< TScalarType, TImageDimension >::SetOutputImage(), and itk::watershed::Segmenter< TInputImage >::SetSegmentTable().

void itk::ProcessObject::SetNumberOfInputs (  unsigned int  num  )  [protected, inherited]

Called to allocate the input array. Copies old inputs.

void itk::ProcessObject::SetNumberOfOutputs (  unsigned int  num  )  [protected, inherited]

Called to allocate the output array. Copies old outputs.

virtual void itk::ProcessObject::SetNumberOfRequiredInputs (  unsigned int  _arg  )  [protected, virtual, inherited]

virtual void itk::ProcessObject::SetNumberOfRequiredOutputs (  unsigned int  _arg  )  [protected, virtual, inherited]

Get Set the number of threads to create when executing* virtual void itk::ProcessObject::SetNumberOfThreads (  int  _arg  )  [virtual, inherited]

template<class TOutputMesh> void itk::MeshSource< TOutputMesh >::SetOutput (  TOutputMesh *  output  )  [inherited]

Set the mesh output of this process object. This call is slated to be removed from ITK. You should GraftOutput() and possible DataObject::DisconnectPipeline() to properly change the output.

virtual void itk::ProcessObject::SetProgress (  float  _arg  )  [virtual, inherited]

Set the execution progress of a process object. The progress is a floating number in [0,1] with 0 meaning no progress and 1 meaning the filter has completed execution. The ProgressEvent is NOT invoked.

virtual void itk::Object::SetReferenceCount (  int   )  [virtual, inherited]

Sets the reference count (use with care) Reimplemented from itk::LightObject.

Turn on off the flags to control whether the bulk data belonging* to the outputs of this ProcessObject are released after being* used by a downstream ProcessObject Default value is off Another* options for controlling memory utilization is the* ReleaseDataBeforeUpdateFlag* virtual void itk::ProcessObject::SetReleaseDataFlag (  bool  flag  )  [virtual, inherited]

virtual void itk::Object::UnRegister (   )  const [virtual, inherited]

Decrease the reference count (release by another object). Reimplemented from itk::LightObject.

template<class TOutputMesh> * * * lastFilterInMiniPipeline itk::MeshSource< TOutputMesh >::Update (   )  [virtual, inherited]

Bring this filter up-to-date. Update() checks modified times against last execution times, and re-executes objects if necessary. A side effect of this method is that the whole pipeline may execute in order to bring this filter up-to-date. This method updates the currently prescribed requested region. If no requested region has been set on the output, then the requested region will be set to the largest possible region. Once the requested region is set, Update() will make sure the specified requested region is up-to-date. This is a confusing side effect to users who are just calling Update() on a filter. A first call to Update() will cause the largest possible region to be updated. A second call to Update() will update that same region. If a modification to the upstream pipeline cause a filter to have a different largest possible region, this second call to Update() will not cause the output requested region to be reset to the new largest possible region. Instead, the output requested region will be the same as the last time Update() was called. To have a filter always to produce its largest possible region, users should call UpdateLargestPossibleRegion() instead. Reimplemented from itk::ProcessObject.

virtual void itk::ProcessObject::UpdateLargestPossibleRegion (   )  [virtual, inherited]

Like Update(), but sets the output requested region to the largest possible region for the output. This is the method users should call if they want the entire dataset to be processed. If a user wants to update the same output region as a previous call to Update() or a previous call to UpdateLargestPossibleRegion(), then they should call the method Update().

virtual void itk::ProcessObject::UpdateOutputData (  DataObject *  output  )  [virtual, inherited]

Actually generate new output Reimplemented in itk::StreamingImageFilter< TInputImage, TOutputImage >.

virtual void itk::ProcessObject::UpdateOutputInformation (   )  [virtual, inherited]

Update the information decribing the output data. This method transverses up the pipeline gathering modified time information. On the way back down the pipeline, this method calls GenerateOutputInformation() to set any necessary information about the output data objects. For instance, a filter that shrinks an image will need to provide an implementation for GenerateOutputInformation() that changes the spacing of the pixels. Such filters should call their superclass' implementation of GenerateOutputInformation prior to changing the information values they need (i.e. GenerateOutputInformation() should call Superclass::GenerateOutputInformation() prior to changing the information. Reimplemented in itk::watershed::Segmenter< TInputImage >, and itk::VTKImageImport< TOutputImage >.

void itk::ProcessObject::UpdateProgress (  float  amount  )  [inherited]

Update the progress of the process object. Sets the Progress ivar to amount and invokes any observers for the ProgressEvent. The parameter amount should be in [0,1] and is the cumulative (not incremental) progress.

---

Member Data Documentation

Allow people to add remove invoke observers (callbacks) to any ITK * object. This is an implementation of the subject/observer design * pattern. An observer is added by specifying an event to respond to * and an itk unsigned lon itk::Object::AddObserver)(const EventObject &event, Command *) const [inherited]

This is a global flag that controls whether any itk::Object::debug [inherited]

Definition at line 94 of file itkObject.h.

template<class TOutputMesh> * endcode* * For proper pipeline itk::MeshSource< TOutputMesh >::execution [inherited]

Definition at line 100 of file itkMeshSource.h.

Push Pop an input of this process object These methods allow a* filter to model its input vector as a queue or stack These* routines may not be appropriate for all itk::ProcessObject::filters [protected, inherited]

Reimplemented in itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TInputImage, TOutputImage >, itk::ImageToImageFilter< TSpeedImage, TLevelSet >, itk::ImageToImageFilter< TDeformationField, TDeformationField >, itk::ImageToImageFilter< TInputImage, TInputImage >, itk::ImageToImageFilter< TInputImage1, Functor::MakeJoin< TInputImage1, TInputImage2 >::ImageType >, itk::ImageToImageFilter< TInputImage, TSparseOutputImage >, itk::ImageToImageFilter< Image< TReferenceImagePixelType, 3 >, Image< DiffusionTensor3D< TTensorPixelType >, 3 > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TDataType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, BloxBoundaryPointImage< ::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< Image< SymmetricSecondRankTensor< double, 3 >, 3 >, Image< TPixel, 3 > >, itk::ImageToImageFilter< TInputImage, Image< unsigned long,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TSourceImage, BloxBoundaryProfileImage< ::itk::GetImageDimension< TSourceImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TOutputImage >, itk::ImageToImageFilter< FeatureImageType, ImageType >, itk::ImageToImageFilter< TImageType, TImageType >, itk::ImageToImageFilter< TInputImage, Image< unsigned char,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< BloxBoundaryPointImage< dim >, BloxCoreAtomImage< dim > >, itk::ImageToImageFilter< TInputImage, VectorImage< TProbabilityPrecisionType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, Image< CovariantVector< TOutputValueType,::itk::GetImageDimension< TInputImage >::ImageDimension >,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage, TClassifiedImage >, itk::ImageToImageFilter< TInputImage, TEigenValueImage >, itk::ImageToImageFilter< TInputVectorImage, Image< TLabelsType,::itk::GetImageDimension< TInputVectorImage >::ImageDimension > >, itk::ImageToImageFilter< TInputImage1, TInputImage1 >, itk::ImageToImageFilter< ImageType, ImageType >, itk::ImageToImageFilter< TInputImage, Image< TOutputPixelType,::itk::GetImageDimension< TInputImage >::ImageDimension > >, itk::ImageToImageFilter< TLevelSet, TLevelSet >, itk::ImageToImageFilter< TMovingImage, TFixedImage >, itk::ImageToImageFilter< Image< TPixel, Dimension >, Image< std::complex< TPixel >, Dimension > >, itk::ImageToImageFilter< TImage, TImage >, itk::ImageToImageFilter< Image< std::complex< TPixel >, Dimension >, Image< TPixel, Dimension > >, itk::ImageToImageFilter< TInputImageType, TSparseOutputImageType >, itk::ImageToImageFilter< Image< TInputPixelType, 2 >, Image< TOutputPixelType, 2 > >, itk::ImageToImageFilter< TImage, TImage >, and itk::ImageToImageFilter< ImageType, ImageType >. Definition at line 303 of file itkProcessObject.h.

template<class TOutputMesh> Graft the specified DataObject onto this ProcessObject s output* This method grabs a handle to the specified DataObject s bulk* data to used as its output s own bulk data It also copies the* region Origin from the* specified data object into this filter s output data object Most itk::MeshSource< TOutputMesh >::however [inherited]

Definition at line 79 of file itkMeshSource.h.

template<class TOutputMesh> Graft the specified DataObject onto this ProcessObject s output* This method grabs a handle to the specified DataObject s bulk* data to used as its output s own bulk data It also copies the* region Origin from the* specified data object into this filter s output data object Most* itk::MeshSource< TOutputMesh >::importantly [inherited]

Definition at line 79 of file itkMeshSource.h.

template<class TInputMesh, class TOutputMesh> unsigned long itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_CellIdxOffset [protected]

offset for ids of new simplex polygon cells Definition at line 202 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> unsigned long itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_EdgeCellId [protected]

offset for edge cell ids Definition at line 213 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> EdgeNeighborListType::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_EdgeNeighborList [protected]

stores the two neighboring cells (faces) of an edge Definition at line 186 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> EdgeMapPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_Edges [protected]

stores all edges of the input mesh. the key is the index of the edge cell, and the element is the index pair of the two points of the edge. Definition at line 181 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> IndexSetType* itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_FaceSet [protected]

stores all faces (triangles) of the input mesh Definition at line 173 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> IdVectorPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_HandledEdgeIds [protected]

stores algorithmic data Definition at line 218 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> unsigned long itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_IdOffset [protected]

offset for point ids Definition at line 207 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> LineCellIndexType::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_LineCellIndices [protected]

stores line indices for conversion algorithm Definition at line 196 of file itkTriangleMeshToSimplexMeshFilter.h.

TimeStamp itk::ProcessObject::m_OutputInformationMTime [protected, inherited]

Time when GenerateOutputInformation was last called. Definition at line 428 of file itkProcessObject.h.

int itk::LightObject::m_ReferenceCount [mutable, protected, inherited]

Number of uses of this object by other objects. Definition at line 119 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock [mutable, protected, inherited]

Mutex lock to protect modification to the reference count Definition at line 122 of file itkLightObject.h.

bool itk::ProcessObject::m_Updating [protected, inherited]

This flag indicates when the pipeline is executing. It prevents infinite recursion when pipelines have loops. Definition at line 425 of file itkProcessObject.h.

template<class TInputMesh, class TOutputMesh> VertexNeighborListType::Pointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::m_VertexNeighborList [protected]

stores all edges starting from a vertex Definition at line 191 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> InputCellAutoPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::NewInputMeshCellPointer [protected]

autopointer definition for creation of new cells in the input mesh Definition at line 223 of file itkTriangleMeshToSimplexMeshFilter.h.

template<class TInputMesh, class TOutputMesh> OutputCellAutoPointer itk::TriangleMeshToSimplexMeshFilter< TInputMesh, TOutputMesh >::NewSimplexCellPointer [protected]

autopointer definition for creation of new simplex cells Definition at line 228 of file itkTriangleMeshToSimplexMeshFilter.h.

Methods invoked by virtual Print () to print information about the object * including superclasses. Typically not called by the user (use Print() * instead) but used in the hierarchical print process to combine the * output of several classes. */ virtual void PrintSelf(std voi itk::LightObject::PrintHeader)(std::ostream &os, Indent indent) const [protected, inherited]

---

The documentation for this class was generated from the following file:

• itkTriangleMeshToSimplexMeshFilter.h

---
