#include <itkDiscreteLevelSetImage.h>

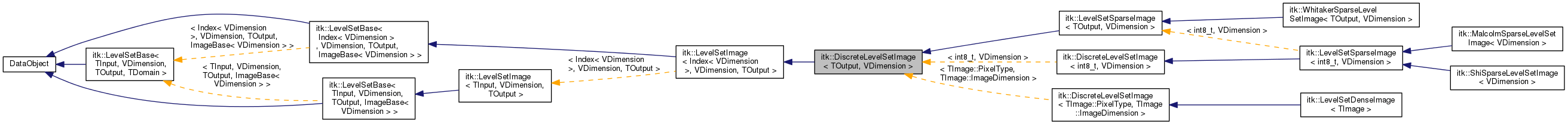

Inheritance diagram for itk::DiscreteLevelSetImage< TOutput, VDimension >:

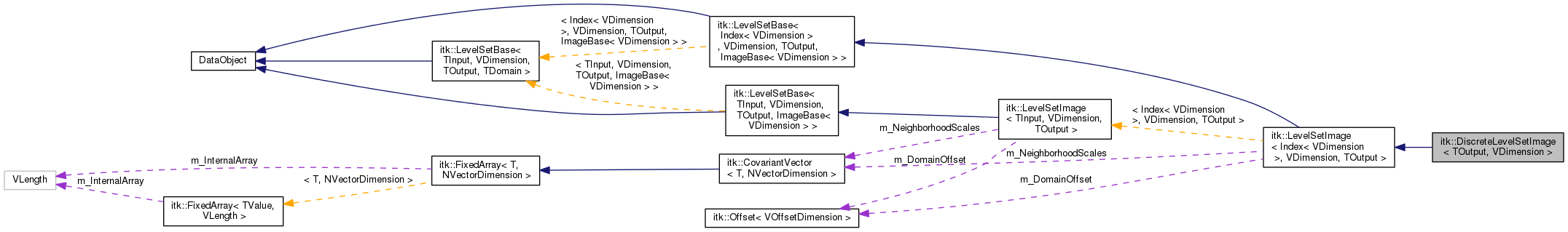

Collaboration diagram for itk::DiscreteLevelSetImage< TOutput, VDimension >:

Detailed Description

template<typename TOutput, unsigned int VDimension>
class itk::DiscreteLevelSetImage< TOutput, VDimension >

Abstract class for a level-set function on one Image.

Template Parameters

TOutput	OutputType of the level-set function value
VDimension	Dimension of the underlying Image.

Definition at line 36 of file itkDiscreteLevelSetImage.h.

Public Types
typedef SmartPointer< const Self >	ConstPointer

typedef Superclass::GradientType	GradientType

typedef Superclass::HessianType	HessianType

typedef Index< VDimension >	IndexType

typedef Superclass::InputType	InputType

typedef Superclass::LevelSetDataType	LevelSetDataType

typedef Superclass::OutputRealType	OutputRealType

typedef Superclass::OutputType	OutputType

typedef SmartPointer< Self >	Pointer

typedef DiscreteLevelSetImage	Self

typedef LevelSetImage < IndexType, VDimension, TOutput >	Superclass

Public Types inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
typedef SmartPointer< const Self >	ConstPointer

typedef Superclass::GradientType	GradientType

typedef Superclass::HessianType	HessianType

typedef ImageBase< VDimension >	ImageBaseType

typedef Superclass::InputType	InputType

typedef Superclass::LevelSetDataType	LevelSetDataType

typedef ImageBaseType::OffsetType	OffsetType

typedef ImageBaseType::OffsetValueType	OffsetValueType

typedef Superclass::OutputRealType	OutputRealType

typedef Superclass::OutputType	OutputType

typedef SmartPointer< Self >	Pointer

typedef LevelSetImage	Self

typedef LevelSetBase< Index < VDimension >, VDimension, TOutput, ImageBaseType >	Superclass

Public Types inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
typedef SmartPointer< const Self >	ConstPointer

typedef ImageBase< VDimension >	DomainType

typedef CovariantVector < OutputRealType, VDimension >	GradientType

typedef Matrix< OutputRealType, VDimension, VDimension >	HessianType

typedef Index< VDimension >	InputType

typedef NumericTraits < OutputType >::RealType	OutputRealType

typedef TOutput	OutputType

typedef SmartPointer< Self >	Pointer

typedef IdentifierType	RegionType

typedef LevelSetBase	Self

typedef DataObject	Superclass

Public Member Functions
virtual OutputType	Evaluate (const InputType &inputIndex) const override=0

virtual void	Evaluate (const InputType &inputIndex, LevelSetDataType &data) const override

virtual GradientType	EvaluateBackwardGradient (const InputType &inputIndex) const

virtual void	EvaluateBackwardGradient (const InputType &inputIndex, LevelSetDataType &data) const override

virtual GradientType	EvaluateForwardGradient (const InputType &inputIndex) const

virtual void	EvaluateForwardGradient (const InputType &inputIndex, LevelSetDataType &data) const override

virtual GradientType	EvaluateGradient (const InputType &inputIndex) const override

virtual void	EvaluateGradient (const InputType &inputIndex, LevelSetDataType &data) const override

virtual HessianType	EvaluateHessian (const InputType &inputIndex) const override

virtual void	EvaluateHessian (const InputType &inputIndex, LevelSetDataType &data) const override

virtual OutputRealType	EvaluateLaplacian (const InputType &inputIndex) const override

virtual void	EvaluateLaplacian (const InputType &inputIndex, LevelSetDataType &data) const override

virtual OutputRealType	EvaluateMeanCurvature (const InputType &inputIndex) const override

virtual void	EvaluateMeanCurvature (const InputType &inputIndex, LevelSetDataType &data) const override

virtual const char *	GetNameOfClass () const

Public Member Functions inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
virtual OffsetType	GetDomainOffset () const

virtual void	SetDomainOffset (OffsetType _arg)

Public Member Functions inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
virtual OutputType	Evaluate (const InputType &iP) const =0

virtual GradientType	EvaluateGradient (const InputType &iP) const =0

virtual OutputRealType	EvaluateGradientNorm (const InputType &iP) const

virtual HessianType	EvaluateHessian (const InputType &iP) const =0

virtual OutputRealType	EvaluateLaplacian (const InputType &iP) const =0

virtual OutputRealType	EvaluateMeanCurvature (const InputType &iP) const =0

virtual void	Evaluate (const InputType &iP, LevelSetDataType &ioData) const =0

virtual void	EvaluateGradient (const InputType &iP, LevelSetDataType &ioData) const =0

virtual void	EvaluateHessian (const InputType &iP, LevelSetDataType &ioData) const =0

virtual void	EvaluateLaplacian (const InputType &iP, LevelSetDataType &ioData) const =0

virtual void	EvaluateGradientNorm (const InputType &iP, LevelSetDataType &ioData) const

virtual void	EvaluateMeanCurvature (const InputType &iP, LevelSetDataType &ioData) const

virtual void	EvaluateForwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0

virtual void	EvaluateBackwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0

virtual bool	IsInside (const InputType &iP) const

virtual RegionType	GetMaximumNumberOfRegions () const

virtual void	UpdateOutputInformation () override

virtual void	SetRequestedRegionToLargestPossibleRegion () override

virtual bool	RequestedRegionIsOutsideOfTheBufferedRegion () override

virtual bool	VerifyRequestedRegion () override

virtual void	SetRequestedRegion (const DataObject *data) override

virtual void	SetRequestedRegion (const RegionType &region)

virtual RegionType	GetRequestedRegion () const

virtual void	SetBufferedRegion (const RegionType &region)

virtual RegionType	GetBufferedRegion () const

Static Public Attributes
static const unsigned int	Dimension = Superclass::Dimension

Static Public Attributes inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
static const unsigned int	Dimension

Static Public Attributes inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
static const unsigned int	Dimension

Protected Member Functions
virtual void	CopyInformation (const DataObject *data) override

	DiscreteLevelSetImage ()

virtual void	Graft (const DataObject *data) override

virtual void	Initialize () override

virtual	~DiscreteLevelSetImage ()

Protected Member Functions inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
virtual bool	IsInsideDomain (const InputType &iP) const =0

	LevelSetImage ()

virtual	~LevelSetImage ()

Protected Member Functions inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
	LevelSetBase ()

virtual	~LevelSetBase ()

Additional Inherited Members
Protected Types inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
typedef GradientType	ScalingType

Protected Attributes inherited from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >
OffsetType	m_DomainOffset

ScalingType	m_NeighborhoodScales

Protected Attributes inherited from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >
RegionType	m_MaximumNumberOfRegions

RegionType	m_NumberOfRegions

RegionType	m_RequestedNumberOfRegions

RegionType	m_BufferedRegion

RegionType	m_RequestedRegion

Member Typedef Documentation

template<typename TOutput, unsigned int VDimension>

typedef SmartPointer< const Self > itk::DiscreteLevelSetImage< TOutput, VDimension >::ConstPointer

Definition at line 44 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef Superclass::GradientType itk::DiscreteLevelSetImage< TOutput, VDimension >::GradientType

Definition at line 55 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef Superclass::HessianType itk::DiscreteLevelSetImage< TOutput, VDimension >::HessianType

Definition at line 56 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef Index< VDimension > itk::DiscreteLevelSetImage< TOutput, VDimension >::IndexType

Definition at line 40 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef Superclass::InputType itk::DiscreteLevelSetImage< TOutput, VDimension >::InputType

Definition at line 52 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef Superclass::LevelSetDataType itk::DiscreteLevelSetImage< TOutput, VDimension >::LevelSetDataType

Definition at line 57 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef Superclass::OutputRealType itk::DiscreteLevelSetImage< TOutput, VDimension >::OutputRealType

Definition at line 54 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef Superclass::OutputType itk::DiscreteLevelSetImage< TOutput, VDimension >::OutputType

Definition at line 53 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef SmartPointer< Self > itk::DiscreteLevelSetImage< TOutput, VDimension >::Pointer

Definition at line 43 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef DiscreteLevelSetImage itk::DiscreteLevelSetImage< TOutput, VDimension >::Self

Definition at line 42 of file itkDiscreteLevelSetImage.h.

template<typename TOutput, unsigned int VDimension>

typedef LevelSetImage< IndexType, VDimension, TOutput > itk::DiscreteLevelSetImage< TOutput, VDimension >::Superclass

Definition at line 45 of file itkDiscreteLevelSetImage.h.

Constructor & Destructor Documentation

template<typename TOutput, unsigned int VDimension>

itk::DiscreteLevelSetImage< TOutput, VDimension >::DiscreteLevelSetImage ( )

protected

template<typename TOutput, unsigned int VDimension>

virtual itk::DiscreteLevelSetImage< TOutput, VDimension >::~DiscreteLevelSetImage ( )

protectedvirtual

Member Function Documentation

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::CopyInformation ( const DataObject * data )

overrideprotectedvirtual

Copy level set information from data object

Reimplemented from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, and itk::LevelSetDenseImage< TImage >.

template<typename TOutput, unsigned int VDimension>

virtual OutputType itk::DiscreteLevelSetImage< TOutput, VDimension >::Evaluate ( const InputType & inputIndex ) const

overridepure virtual

Returns the gradient of the level set function at a given location inputIndex

Implemented in itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, and itk::LevelSetDenseImage< TImage >.

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::Evaluate	(	const InputType &	inputIndex,
		LevelSetDataType &	data
	)		const

overridevirtual

Returns the value of the level set function at a given location inputIndex

Reimplemented in itk::LevelSetDenseImage< TImage >.

template<typename TOutput, unsigned int VDimension>

virtual GradientType itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateBackwardGradient ( const InputType & inputIndex ) const

virtual

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateBackwardGradient	(	const InputType &	inputIndex,
		LevelSetDataType &	data
	)		const

overridevirtual

Returns the gradient of the level set function at a given location inputIndex as part of the LevelSetDataType

template<typename TOutput, unsigned int VDimension>

virtual GradientType itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateForwardGradient ( const InputType & inputIndex ) const

virtual

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateForwardGradient	(	const InputType &	inputIndex,
		LevelSetDataType &	data
	)		const

overridevirtual

Returns the gradient of the level set function at a given location inputIndex as part of the LevelSetDataType

template<typename TOutput, unsigned int VDimension>

virtual GradientType itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateGradient ( const InputType & inputIndex ) const

overridevirtual

Returns the image gradient of the level set function at a given location inputIndex

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateGradient	(	const InputType &	inputIndex,
		LevelSetDataType &	data
	)		const

overridevirtual

Returns the gradient of the level set function at a given location inputIndex as part of the LevelSetDataType

template<typename TOutput, unsigned int VDimension>

virtual HessianType itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateHessian ( const InputType & inputIndex ) const

overridevirtual

Returns the image hessian of the level set function at a given location inputIndex

Reimplemented in itk::MalcolmSparseLevelSetImage< VDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateHessian	(	const InputType &	inputIndex,
		LevelSetDataType &	data
	)		const

overridevirtual

Returns the Hessian of the level set function at a given location inputIndex as part of the LevelSetDataType

Reimplemented in itk::MalcolmSparseLevelSetImage< VDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

template<typename TOutput, unsigned int VDimension>

virtual OutputRealType itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateLaplacian ( const InputType & inputIndex ) const

overridevirtual

Returns the image Laplacian of the level set function at a given location inputIndex

Reimplemented in itk::MalcolmSparseLevelSetImage< VDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateLaplacian	(	const InputType &	inputIndex,
		LevelSetDataType &	data
	)		const

overridevirtual

Returns the Laplacian of the level set function at a given location inputIndex as part of the LevelSetDataType

Reimplemented in itk::MalcolmSparseLevelSetImage< VDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

template<typename TOutput, unsigned int VDimension>

virtual OutputRealType itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateMeanCurvature ( const InputType & inputIndex ) const

overridevirtual

Returns the mean curvature of the level set function at a given location inputIndex

Reimplemented in itk::MalcolmSparseLevelSetImage< VDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::EvaluateMeanCurvature	(	const InputType &	inputIndex,
		LevelSetDataType &	data
	)		const

overridevirtual

Returns the Hessian of the level set function at a given location inputIndex as part of the LevelSetDataType

Reimplemented in itk::MalcolmSparseLevelSetImage< VDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

template<typename TOutput, unsigned int VDimension>

virtual const char* itk::DiscreteLevelSetImage< TOutput, VDimension >::GetNameOfClass ( ) const

virtual

Run-time type information

Reimplemented from itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, and itk::LevelSetSparseImage< int8_t, VDimension >.

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::Graft ( const DataObject * data )

overrideprotectedvirtual

Graft data object as level set object

Reimplemented from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, and itk::LevelSetDenseImage< TImage >.

template<typename TOutput, unsigned int VDimension>

virtual void itk::DiscreteLevelSetImage< TOutput, VDimension >::Initialize ( )

overrideprotectedvirtual

Initial the level set pointer

Reimplemented from itk::LevelSetBase< Index< VDimension >, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, and itk::LevelSetDenseImage< TImage >.

Member Data Documentation

template<typename TOutput, unsigned int VDimension>

const unsigned int itk::DiscreteLevelSetImage< TOutput, VDimension >::Dimension = Superclass::Dimension

static

Definition at line 50 of file itkDiscreteLevelSetImage.h.

The documentation for this class was generated from the following file:

itkDiscreteLevelSetImage.h

Detailed Description

template<typename TOutput, unsigned int VDimension> class itk::DiscreteLevelSetImage< TOutput, VDimension >

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename TOutput, unsigned int VDimension>
class itk::DiscreteLevelSetImage< TOutput, VDimension >
