#include <itkDTITubeSpatialObjectPoint.h>

Inheritance diagram for itk::DTITubeSpatialObjectPoint< TPointDimension >:

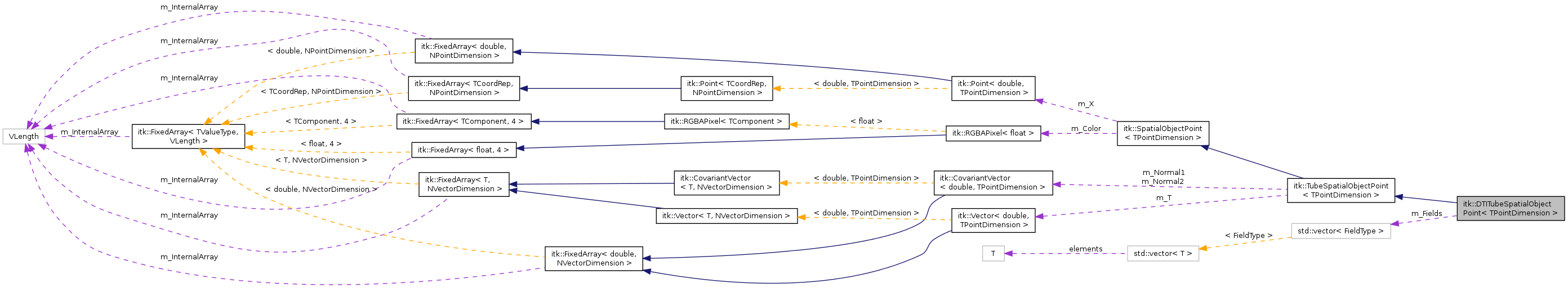

Collaboration diagram for itk::DTITubeSpatialObjectPoint< TPointDimension >:

Public Types
typedef CovariantVector < double, TPointDimension >	CovariantVectorType
enum	FieldEnumType { FA, ADC, GA }
typedef std::vector< FieldType >	FieldListType
typedef std::pair< std::string, float >	FieldType
typedef Point< double, TPointDimension >	PointType
typedef DTITubeSpatialObjectPoint	Self
typedef SpatialObjectPoint < TPointDimension >	Superclass
typedef Vector< double, TPointDimension >	VectorType
Public Types inherited from itk::TubeSpatialObjectPoint< TPointDimension >
Public Types inherited from itk::SpatialObjectPoint< TPointDimension >
typedef PixelType	ColorType
typedef RGBAPixel< float >	PixelType

Public Member Functions
void	AddField (const char *name, float value)
void	AddField (FieldEnumType name, float value)
	DTITubeSpatialObjectPoint (void)
float	GetField (const char *name) const
float	GetField (FieldEnumType name) const
const FieldListType &	GetFields () const
const float *	GetTensorMatrix () const
Self &	operator= (const DTITubeSpatialObjectPoint &rhs)
void	SetField (FieldEnumType name, float value)
void	SetField (const char *name, float value)
void	SetTensorMatrix (const DiffusionTensor3D< double > &matrix)
void	SetTensorMatrix (const DiffusionTensor3D< float > &matrix)
void	SetTensorMatrix (const float *matrix)
virtual	~DTITubeSpatialObjectPoint (void)
Public Member Functions inherited from itk::TubeSpatialObjectPoint< TPointDimension >
const CovariantVectorType &	GetNormal1 (void) const
const CovariantVectorType &	GetNormal2 (void) const
unsigned short int	GetNumDimensions (void) const
float	GetRadius (void) const
const VectorType &	GetTangent (void) const
Self &	operator= (const TubeSpatialObjectPoint &rhs)
void	SetNormal1 (const CovariantVectorType &newV1)
void	SetNormal1 (const double v10, const double v11)
void	SetNormal1 (const double v10, const double v11, const double v12)
void	SetNormal2 (const CovariantVectorType &newV2)
void	SetNormal2 (const double v20, const double v21)
void	SetNormal2 (const double v20, const double v21, const double v22)
void	SetRadius (const float newR)
void	SetTangent (const VectorType &newT)
void	SetTangent (const double t0, const double t1)
void	SetTangent (const double t0, const double t1, const double t2)
	TubeSpatialObjectPoint (void)
virtual	~TubeSpatialObjectPoint (void)
Public Member Functions inherited from itk::SpatialObjectPoint< TPointDimension >
float	GetAlpha (void) const
float	GetBlue (void) const
const PixelType &	GetColor (void) const
float	GetGreen (void) const
int	GetID (void) const
const PointType &	GetPosition (void) const
float	GetRed (void) const
Self &	operator= (const SpatialObjectPoint &rhs)
void	Print (std::ostream &os) const
void	SetAlpha (float a)
void	SetBlue (float b)
void	SetColor (const PixelType &color)
void	SetColor (float r, float g, float b, float a=1)
void	SetGreen (float g)
void	SetID (const int newID)
void	SetPosition (const PointType &newX)
void	SetPosition (const double x0, const double x1)
void	SetPosition (const double x0, const double x1, const double x2)
void	SetRed (float r)
	SpatialObjectPoint (void)
virtual	~SpatialObjectPoint (void)

Protected Member Functions
void	PrintSelf (std::ostream &os, Indent indent) const
std::string	TranslateEnumToChar (FieldEnumType name) const

Protected Attributes
FieldListType	m_Fields
float	m_TensorMatrix [6]
Protected Attributes inherited from itk::TubeSpatialObjectPoint< TPointDimension >
CovariantVectorType	m_Normal1
CovariantVectorType	m_Normal2
unsigned short int	m_NumDimensions
float	m_R
VectorType	m_T
Protected Attributes inherited from itk::SpatialObjectPoint< TPointDimension >
PixelType	m_Color
int	m_ID
PointType	m_X

Detailed Description

template<unsigned int TPointDimension = 3>
class itk::DTITubeSpatialObjectPoint< TPointDimension >

Point used for a tube definition.

This class contains all the functions necessary to define a point that can be used to build tubes.

See also:: DTITubeSpatialObject

Definition at line 37 of file itkDTITubeSpatialObjectPoint.h.
