itk::TubeSpatialObjectPoint< TPointDimension > Class Template Reference
Module ITKSpatialObjects

#include <itkTubeSpatialObjectPoint.h>

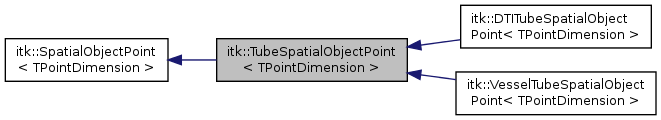

+ Inheritance diagram for itk::TubeSpatialObjectPoint< TPointDimension >:

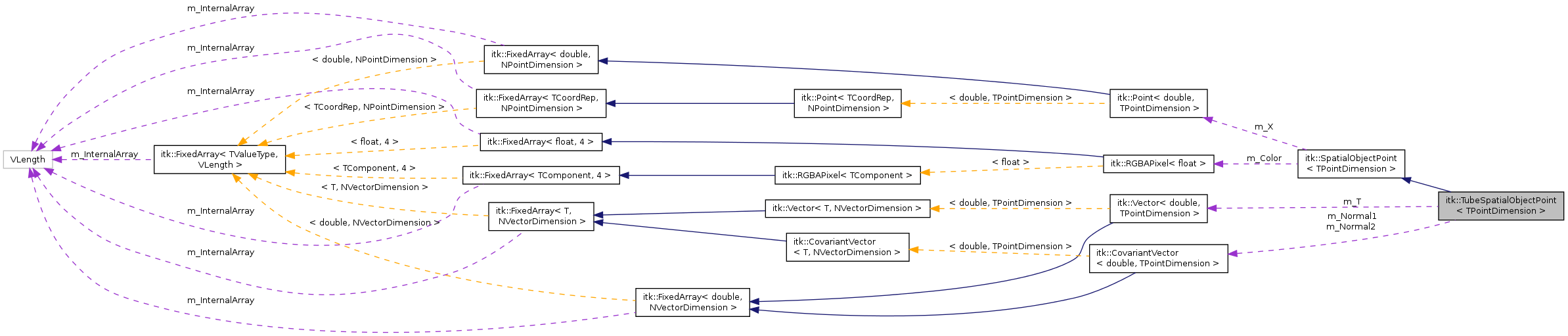

+ Collaboration diagram for itk::TubeSpatialObjectPoint< TPointDimension >:

List of all members.

Public Types

typedef CovariantVector
< double, TPointDimension > 		CovariantVectorType
typedef Point< double,
TPointDimension > 		PointType
typedef TubeSpatialObjectPoint Self
typedef SpatialObjectPoint
< TPointDimension > 		Superclass
typedef Vector< double,
TPointDimension > 		VectorType
- Public Types inherited from itk::SpatialObjectPoint< TPointDimension >
typedef PixelType ColorType
typedef RGBAPixel< float > PixelType

Public Member Functions

const CovariantVectorType & GetNormal1 (void) const
const CovariantVectorType & GetNormal2 (void) const
unsigned short int GetNumDimensions (void) const
float GetRadius (void) const
const VectorType & GetTangent (void) const
Self & operator= (const TubeSpatialObjectPoint &rhs)
void SetNormal1 (const CovariantVectorType &newV1)
void SetNormal1 (const double v10, const double v11)
void SetNormal1 (const double v10, const double v11, const double v12)
void SetNormal2 (const CovariantVectorType &newV2)
void SetNormal2 (const double v20, const double v21)
void SetNormal2 (const double v20, const double v21, const double v22)
void SetRadius (const float newR)
void SetTangent (const VectorType &newT)
void SetTangent (const double t0, const double t1)
void SetTangent (const double t0, const double t1, const double t2)
 TubeSpatialObjectPoint (void)
virtual ~TubeSpatialObjectPoint (void)
- Public Member Functions inherited from itk::SpatialObjectPoint< TPointDimension >
float GetAlpha (void) const
float GetBlue (void) const
const PixelType & GetColor (void) const
float GetGreen (void) const
int GetID (void) const
const PointType & GetPosition (void) const
float GetRed (void) const
Self & operator= (const SpatialObjectPoint &rhs)
void Print (std::ostream &os) const
void SetAlpha (float a)
void SetBlue (float b)
void SetColor (const PixelType &color)
void SetColor (float r, float g, float b, float a=1)
void SetGreen (float g)
void SetID (const int newID)
void SetPosition (const PointType &newX)
void SetPosition (const double x0, const double x1)
void SetPosition (const double x0, const double x1, const double x2)
void SetRed (float r)
 SpatialObjectPoint (void)
virtual ~SpatialObjectPoint (void)

Protected Member Functions

void PrintSelf (std::ostream &os, Indent indent) const

Protected Attributes

CovariantVectorType m_Normal1
CovariantVectorType m_Normal2
unsigned short int m_NumDimensions
float m_R
VectorType m_T
- Protected Attributes inherited from itk::SpatialObjectPoint< TPointDimension >
PixelType m_Color
int m_ID
PointType m_X

Detailed Description

template<unsigned int TPointDimension = 3>
class itk::TubeSpatialObjectPoint< TPointDimension >

Point used for a tube definition.

This class contains all the functions necessary to define a point that can be used to build tubes.

See also:
TubeSpatialObject

Definition at line 38 of file itkTubeSpatialObjectPoint.h.

Member Typedef Documentation

template<unsigned int TPointDimension = 3>
typedef CovariantVector< double, TPointDimension > itk::TubeSpatialObjectPoint< TPointDimension >::CovariantVectorType

Reimplemented in itk::DTITubeSpatialObjectPoint< TPointDimension >, and itk::VesselTubeSpatialObjectPoint< TPointDimension >.

Definition at line 47 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
typedef Point< double, TPointDimension > itk::TubeSpatialObjectPoint< TPointDimension >::PointType

Reimplemented from itk::SpatialObjectPoint< TPointDimension >.

Reimplemented in itk::DTITubeSpatialObjectPoint< TPointDimension >, and itk::VesselTubeSpatialObjectPoint< TPointDimension >.

Definition at line 45 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
typedef TubeSpatialObjectPoint itk::TubeSpatialObjectPoint< TPointDimension >::Self

Reimplemented from itk::SpatialObjectPoint< TPointDimension >.

Reimplemented in itk::DTITubeSpatialObjectPoint< TPointDimension >, and itk::VesselTubeSpatialObjectPoint< TPointDimension >.

Definition at line 43 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
typedef SpatialObjectPoint< TPointDimension > itk::TubeSpatialObjectPoint< TPointDimension >::Superclass

Reimplemented in itk::DTITubeSpatialObjectPoint< TPointDimension >, and itk::VesselTubeSpatialObjectPoint< TPointDimension >.

Definition at line 44 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
typedef Vector< double, TPointDimension > itk::TubeSpatialObjectPoint< TPointDimension >::VectorType

Reimplemented from itk::SpatialObjectPoint< TPointDimension >.

Reimplemented in itk::DTITubeSpatialObjectPoint< TPointDimension >, and itk::VesselTubeSpatialObjectPoint< TPointDimension >.

Definition at line 46 of file itkTubeSpatialObjectPoint.h.

Constructor & Destructor Documentation

template<unsigned int TPointDimension = 3>
itk::TubeSpatialObjectPoint< TPointDimension >::TubeSpatialObjectPoint ( void  )

Constructor. This one defines the number of dimensions in the TubeSpatialObjectPoint

template<unsigned int TPointDimension = 3>
virtual itk::TubeSpatialObjectPoint< TPointDimension >::~TubeSpatialObjectPoint ( void  )
virtual

Default destructor.

Member Function Documentation

template<unsigned int TPointDimension = 3>
const CovariantVectorType& itk::TubeSpatialObjectPoint< TPointDimension >::GetNormal1 ( void  ) const

Get V1

template<unsigned int TPointDimension = 3>
const CovariantVectorType& itk::TubeSpatialObjectPoint< TPointDimension >::GetNormal2 ( void  ) const

Get V2

template<unsigned int TPointDimension = 3>
unsigned short int itk::TubeSpatialObjectPoint< TPointDimension >::GetNumDimensions ( void  ) const

Get number of dimensions

template<unsigned int TPointDimension = 3>
float itk::TubeSpatialObjectPoint< TPointDimension >::GetRadius ( void  ) const

Get R

template<unsigned int TPointDimension = 3>
const VectorType& itk::TubeSpatialObjectPoint< TPointDimension >::GetTangent ( void  ) const

Get the tangent

template<unsigned int TPointDimension = 3>
Self& itk::TubeSpatialObjectPoint< TPointDimension >::operator= ( const TubeSpatialObjectPoint< TPointDimension > &  rhs)

Copy one TubeSpatialObjectPoint to another

template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::PrintSelf ( std::ostream &  os,
Indent  indent
) const
protectedvirtual

Print the object

Reimplemented from itk::SpatialObjectPoint< TPointDimension >.

Reimplemented in itk::VesselTubeSpatialObjectPoint< TPointDimension >, and itk::DTITubeSpatialObjectPoint< TPointDimension >.

template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetNormal1 ( const CovariantVectorType &  newV1)

Set V1

template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetNormal1 ( const double  v10,
const double  v11
)
template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetNormal1 ( const double  v10,
const double  v11,
const double  v12
)
template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetNormal2 ( const CovariantVectorType &  newV2)

Set V2

template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetNormal2 ( const double  v20,
const double  v21
)
template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetNormal2 ( const double  v20,
const double  v21,
const double  v22
)
template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetRadius ( const float  newR)

Set R

template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetTangent ( const VectorType &  newT)

Set T. Couldn't use macros for these methods

template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetTangent ( const double  t0,
const double  t1
)
template<unsigned int TPointDimension = 3>
void itk::TubeSpatialObjectPoint< TPointDimension >::SetTangent ( const double  t0,
const double  t1,
const double  t2
)

Member Data Documentation

template<unsigned int TPointDimension = 3>
CovariantVectorType itk::TubeSpatialObjectPoint< TPointDimension >::m_Normal1
protected

Definition at line 101 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
CovariantVectorType itk::TubeSpatialObjectPoint< TPointDimension >::m_Normal2
protected

Definition at line 102 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
unsigned short int itk::TubeSpatialObjectPoint< TPointDimension >::m_NumDimensions
protected

number of dimensions

Definition at line 108 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
float itk::TubeSpatialObjectPoint< TPointDimension >::m_R
protected

The radius of the tube point

Definition at line 105 of file itkTubeSpatialObjectPoint.h.

template<unsigned int TPointDimension = 3>
VectorType itk::TubeSpatialObjectPoint< TPointDimension >::m_T
protected

Definition at line 100 of file itkTubeSpatialObjectPoint.h.

The documentation for this class was generated from the following file:
