itk::LevelSetBase< TInput, VDimension, TOutput, TDomain > Class Template Reference
Module ITKLevelSetsv4

#include <itkLevelSetBase.h>

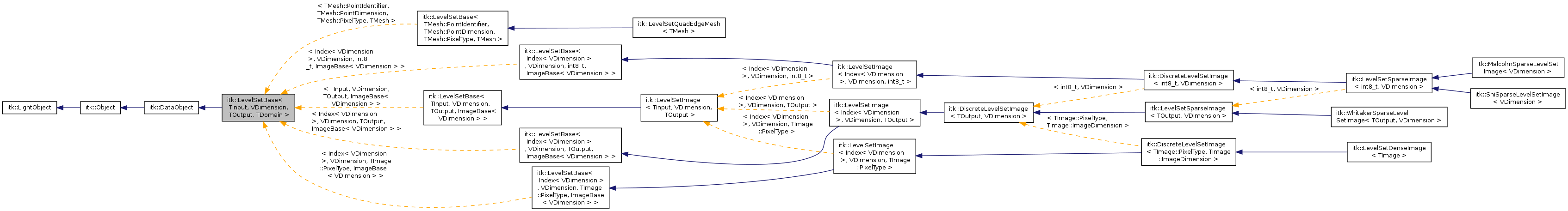

+ Inheritance diagram for itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >:

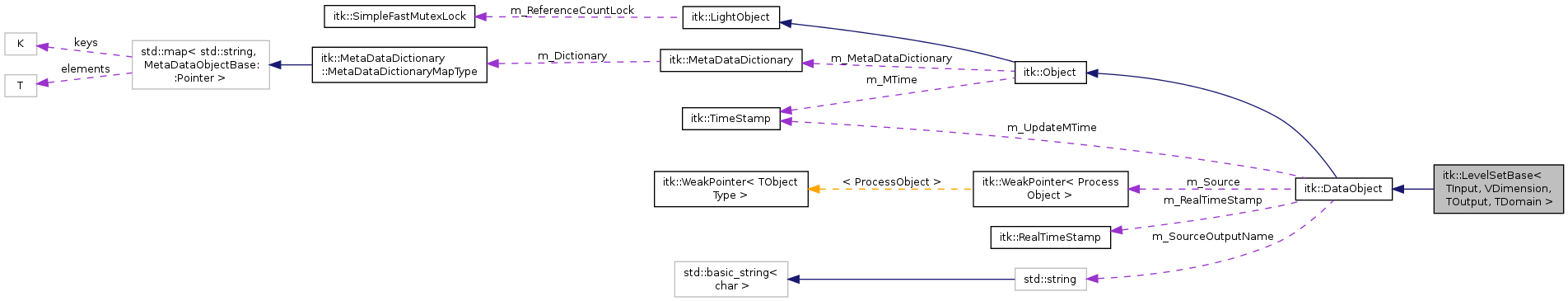

+ Collaboration diagram for itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >:

List of all members.

Classes

class  DataType
 Internal class used for one computed characteritic. More...
struct  LevelSetDataType
 Convenient data structure to cache computed characteristics

.  More...





Public Types


typedef SmartPointer< const Self > ConstPointer


typedef TDomain DomainType


typedef CovariantVector

< OutputRealType, VDimension > 		GradientType


typedef Matrix< OutputRealType,

VDimension, VDimension > 		HessianType


typedef TInput InputType


typedef NumericTraits

< OutputType >::RealType 		OutputRealType


typedef TOutput OutputType


typedef SmartPointer< Self > Pointer


typedef IdentifierType RegionType


typedef LevelSetBase Self


typedef DataObject Superclass


- Public Types inherited from itk::DataObject


typedef std::string DataObjectIdentifierType


typedef std::vector< Pointer >

::size_type 		DataObjectPointerArraySizeType


- Public Types inherited from itk::Object


- Public Types inherited from itk::LightObject





Public Member Functions


virtual OutputType Evaluate (const InputType &iP) const =0


virtual GradientType EvaluateGradient (const InputType &iP) const =0


virtual OutputRealType EvaluateGradientNorm (const InputType &iP) const


virtual HessianType EvaluateHessian (const InputType &iP) const =0


virtual OutputRealType EvaluateLaplacian (const InputType &iP) const =0


virtual OutputRealType EvaluateMeanCurvature (const InputType &iP) const =0


virtual const char * GetNameOfClass () const


- Public Member Functions inherited from itk::DataObject


virtual void DataHasBeenGenerated ()


void DisconnectPipeline ()


bool GetDataReleased () const


virtual const bool & GetReleaseDataFlag ()


SmartPointerForwardReference

< ProcessObject > 		GetSource () const


DataObjectPointerArraySizeType GetSourceOutputIndex () const


const DataObjectIdentifierType & GetSourceOutputName () const


virtual unsigned long GetUpdateMTime () const


virtual void PrepareForNewData ()


virtual void PropagateRequestedRegion ()


void ReleaseData ()


virtual void ReleaseDataFlagOff ()


virtual void ReleaseDataFlagOn ()


virtual void ResetPipeline ()


void SetReleaseDataFlag (bool flag)


bool ShouldIReleaseData () const


virtual void Update ()


virtual void UpdateOutputData ()


void SetPipelineMTime (unsigned long time)


virtual const unsigned long & GetPipelineMTime ()


virtual void SetRealTimeStamp (RealTimeStamp _arg)


virtual const RealTimeStamp & GetRealTimeStamp ()


- Public Member Functions inherited from itk::Object


unsigned long AddObserver (const EventObject &event, Command *)


unsigned long AddObserver (const EventObject &event, Command *) const


virtual LightObject::Pointer CreateAnother () const


virtual void DebugOff () const


virtual void DebugOn () const


Command * GetCommand (unsigned long tag)


bool GetDebug () const


MetaDataDictionary & GetMetaDataDictionary (void)


const MetaDataDictionary & GetMetaDataDictionary (void) const


virtual unsigned long GetMTime () const


virtual const TimeStamp & GetTimeStamp () const


bool HasObserver (const EventObject &event) const


void InvokeEvent (const EventObject &)


void InvokeEvent (const EventObject &) const


virtual void Modified () const


virtual void Register () const


void RemoveAllObservers ()


void RemoveObserver (unsigned long tag)


void SetDebug (bool debugFlag) const


void SetMetaDataDictionary (const MetaDataDictionary &rhs)


virtual void SetReferenceCount (int)


virtual void UnRegister () const


- Public Member Functions inherited from itk::LightObject


virtual void Delete ()


virtual int GetReferenceCount () const


 itkCloneMacro (Self)


void Print (std::ostream &os, Indent indent=0) const





Static Public Attributes


static const unsigned int Dimension = VDimension


- Protected Member Functions inherited from itk::DataObject


virtual void PropagateResetPipeline ()


 DataObject ()


 ~DataObject ()


void PrintSelf (std::ostream &os, Indent indent) const


- Protected Member Functions inherited from itk::Object


 Object ()


bool PrintObservers (std::ostream &os, Indent indent) const


virtual void SetTimeStamp (const TimeStamp &time)


virtual ~Object ()


- Protected Member Functions inherited from itk::LightObject


virtual LightObject::Pointer InternalClone () const


 LightObject ()


virtual void PrintHeader (std::ostream &os, Indent indent) const


virtual void PrintTrailer (std::ostream &os, Indent indent) const


virtual ~LightObject ()


RegionType m_MaximumNumberOfRegions


RegionType m_NumberOfRegions


RegionType m_RequestedNumberOfRegions


RegionType m_BufferedRegion


RegionType m_RequestedRegion


virtual void Evaluate (const InputType &iP, LevelSetDataType &ioData) const =0


virtual void EvaluateGradient (const InputType &iP, LevelSetDataType &ioData) const =0


virtual void EvaluateHessian (const InputType &iP, LevelSetDataType &ioData) const =0


virtual void EvaluateLaplacian (const InputType &iP, LevelSetDataType &ioData) const =0


virtual void EvaluateGradientNorm (const InputType &iP, LevelSetDataType &ioData) const


virtual void EvaluateMeanCurvature (const InputType &iP, LevelSetDataType &ioData) const


virtual void EvaluateForwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0


virtual void EvaluateBackwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0


virtual bool IsInside (const InputType &iP) const


virtual RegionType GetMaximumNumberOfRegions () const


virtual void Initialize ()


virtual void UpdateOutputInformation ()


virtual void SetRequestedRegionToLargestPossibleRegion ()


virtual void CopyInformation (const DataObject *data)


virtual void Graft (const DataObject *data)


virtual bool RequestedRegionIsOutsideOfTheBufferedRegion ()


virtual bool VerifyRequestedRegion ()


virtual void SetRequestedRegion (const DataObject *data)


virtual void SetRequestedRegion (const RegionType &region)


virtual RegionType GetRequestedRegion () const


virtual void SetBufferedRegion (const RegionType &region)


virtual RegionType GetBufferedRegion () const


 LevelSetBase ()


virtual ~LevelSetBase ()


 LevelSetBase (const Self &)


void operator= (const Self &)





Additional Inherited Members


- Static Public Member Functions inherited from itk::DataObject


static bool GetGlobalReleaseDataFlag ()


static void GlobalReleaseDataFlagOff ()


static void GlobalReleaseDataFlagOn ()


static void SetGlobalReleaseDataFlag (bool val)


- Static Public Member Functions inherited from itk::Object


static bool GetGlobalWarningDisplay ()


static void GlobalWarningDisplayOff ()


static void GlobalWarningDisplayOn ()


static Pointer New ()


static void SetGlobalWarningDisplay (bool flag)


- Static Public Member Functions inherited from itk::LightObject


static void BreakOnError ()




Detailed Description


template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>

class itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >



Abstract base class for the representation of a level-set function.


Template Parameters:




TInputInput type where the level set function will be evaluated


VDimensionDimension of the input space


TOutputReturned type when evaluating the level set function


TDomainSupport of the level-set function (e.g. Image or QuadEdgeMesh)









Definition at line 41 of file itkLevelSetBase.h.


Member Typedef Documentation








template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef SmartPointer< const Self > itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::ConstPointer








Reimplemented from itk::DataObject.



Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, and itk::ShiSparseLevelSetImage< VDimension >.



Definition at line 47 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef TDomain itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::DomainType








Definition at line 60 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef CovariantVector< OutputRealType, VDimension > itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::GradientType








Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.



Definition at line 57 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef Matrix< OutputRealType, VDimension, VDimension > itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::HessianType








Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.



Definition at line 58 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef TInput itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::InputType








Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.



Definition at line 54 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef NumericTraits< OutputType >::RealType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::OutputRealType








Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.



Definition at line 56 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef TOutput itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::OutputType








Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.



Definition at line 55 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef SmartPointer< Self > itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Pointer








Reimplemented from itk::DataObject.



Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, and itk::ShiSparseLevelSetImage< VDimension >.



Definition at line 46 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef IdentifierType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::RegionType







Type used to define Regions



Reimplemented in itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, and itk::LevelSetDenseImage< TImage >.



Definition at line 63 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef LevelSetBase itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Self







Standard class typedefs.



Reimplemented from itk::DataObject.



Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, and itk::ShiSparseLevelSetImage< VDimension >.



Definition at line 44 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>





          typedef DataObject itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Superclass








Reimplemented from itk::DataObject.



Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.



Definition at line 45 of file itkLevelSetBase.h.







Constructor & Destructor Documentation








template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::LevelSetBase
          (
          )







protected







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::~LevelSetBase
          (
          )







inlineprotectedvirtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Definition at line 217 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::LevelSetBase
          (
          const Self &
          )







private







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $







Member Function Documentation








template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::CopyInformation
          (
          const DataObject *
          data)







virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Reimplemented from itk::DataObject.



Reimplemented in itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, itk::LevelSetQuadEdgeMesh< TMesh >, and itk::LevelSetDenseImage< TImage >.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual OutputType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Evaluate
          (
          const InputType &
          iP)
           const






pure virtual







Returns the value of the level set function at a given location iP













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Evaluate
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






pure virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateBackwardGradient
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






pure virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateForwardGradient
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






pure virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual GradientType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateGradient
          (
          const InputType &
          iP)
           const






pure virtual







Returns the gradient of the level set function at a given location iP













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateGradient
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






pure virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual OutputRealType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateGradientNorm
          (
          const InputType &
          iP)
           const






virtual


















template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateGradientNorm
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual HessianType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateHessian
          (
          const InputType &
          iP)
           const






pure virtual







Returns the hessian of the level set function at a given location iP













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateHessian
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






pure virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual OutputRealType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateLaplacian
          (
          const InputType &
          iP)
           const






pure virtual


















template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateLaplacian
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






pure virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual OutputRealType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateMeanCurvature
          (
          const InputType &
          iP)
           const






pure virtual


















template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::EvaluateMeanCurvature
          (
          const InputType &
          iP,






          LevelSetDataType &
          ioData





          )
           const






virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::GetBufferedRegion
          (
          )
           const






virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::GetMaximumNumberOfRegions
          (
          )
           const






virtual







Get the maximum number of regions that this data can be separated into.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual const char* itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::GetNameOfClass
          (
          )
           const






virtual







Run-time type information



Reimplemented from itk::DataObject.



Reimplemented in itk::LevelSetDenseImage< TImage >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::GetRequestedRegion
          (
          )
           const






virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Graft
          (
          const DataObject *
          data)







virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Reimplemented from itk::DataObject.



Reimplemented in itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, and itk::LevelSetDenseImage< TImage >.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Initialize
          (
          )







virtual







Initialize the level set function



Reimplemented from itk::DataObject.



Reimplemented in itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, itk::LevelSetQuadEdgeMesh< TMesh >, and itk::LevelSetDenseImage< TImage >.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual bool itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::IsInside
          (
          const InputType &
          iP)
           const






virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::operator=
          (
          const Self &
          )







private







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Reimplemented from itk::DataObject.



Reimplemented in itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetQuadEdgeMesh< TMesh >, itk::LevelSetDenseImage< TImage >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, and itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual bool itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::RequestedRegionIsOutsideOfTheBufferedRegion
          (
          )







virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Reimplemented from itk::DataObject.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::SetBufferedRegion
          (
          const RegionType &
          region)







virtual







Set/Get the Buffered region













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::SetRequestedRegion
          (
          const DataObject *
          data)







virtual







Set the requested region from this data object to match the requested region of the data object passed in as a parameter. This method implements the API from DataObject. The data object parameter must be castable to a PointSet.



Reimplemented from itk::DataObject.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::SetRequestedRegion
          (
          const RegionType &
          region)







virtual







Set/Get the Requested region













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::SetRequestedRegionToLargestPossibleRegion
          (
          )







virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Reimplemented from itk::DataObject.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual void itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::UpdateOutputInformation
          (
          )







virtual







Methods to manage streaming.



Reimplemented from itk::DataObject.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          virtual bool itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::VerifyRequestedRegion
          (
          )







virtual







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Reimplemented from itk::DataObject.







Member Data Documentation








template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          const unsigned int itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::Dimension = VDimension






static








Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetImage< TInput, VDimension, TOutput >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetImage< Index< VDimension >, VDimension, TOutput >, itk::LevelSetImage< Index< VDimension >, VDimension, TImage::PixelType >, itk::LevelSetImage< Index< VDimension >, VDimension, int8_t >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.



Definition at line 52 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::m_BufferedRegion






protected







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Definition at line 232 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::m_MaximumNumberOfRegions






protected







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Definition at line 229 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::m_NumberOfRegions






protected







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Definition at line 230 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::m_RequestedNumberOfRegions






protected







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Definition at line 231 of file itkLevelSetBase.h.













template<class TInput, unsigned int VDimension, typename TOutput, class TDomain>










          RegionType itk::LevelSetBase< TInput, VDimension, TOutput, TDomain >::m_RequestedRegion






protected







Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0 $



Definition at line 233 of file itkLevelSetBase.h.







The documentation for this class was generated from the following file:







  Generated on Wed Jul 11 2012 00:13:34 for ITK by doxygen 1.8.1
