#include <itkLevelSetImage.h>

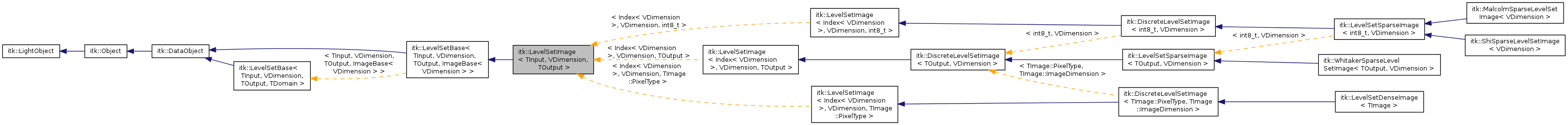

Inheritance diagram for itk::LevelSetImage< TInput, VDimension, TOutput >:

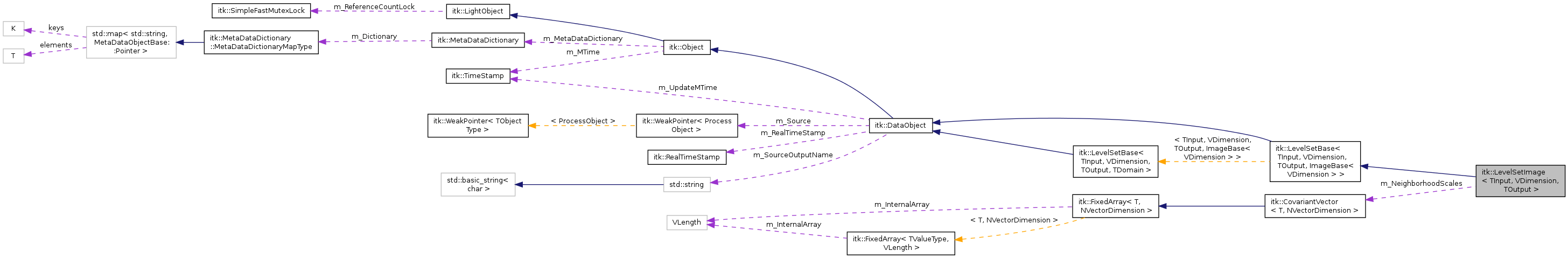

Collaboration diagram for itk::LevelSetImage< TInput, VDimension, TOutput >:

Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::GradientType	GradientType
typedef Superclass::HessianType	HessianType
typedef ImageBase< VDimension >	ImageBaseType
typedef Superclass::InputType	InputType
typedef Superclass::LevelSetDataType	LevelSetDataType
typedef Superclass::OutputRealType	OutputRealType
typedef Superclass::OutputType	OutputType
typedef SmartPointer< Self >	Pointer
typedef LevelSetImage	Self
typedef LevelSetBase< TInput, VDimension, TOutput, ImageBaseType >	Superclass
Public Types inherited from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >
typedef ImageBase< VDimension >	DomainType
typedef IdentifierType	RegionType
Public Types inherited from itk::DataObject
typedef std::string	DataObjectIdentifierType
typedef std::vector< Pointer > ::size_type	DataObjectPointerArraySizeType
Public Types inherited from itk::Object
Public Types inherited from itk::LightObject

Public Member Functions
virtual const char *	GetNameOfClass () const
Public Member Functions inherited from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >
virtual OutputType	Evaluate (const InputType &iP) const =0
virtual GradientType	EvaluateGradient (const InputType &iP) const =0
virtual OutputRealType	EvaluateGradientNorm (const InputType &iP) const
virtual HessianType	EvaluateHessian (const InputType &iP) const =0
virtual OutputRealType	EvaluateLaplacian (const InputType &iP) const =0
virtual OutputRealType	EvaluateMeanCurvature (const InputType &iP) const =0
virtual void	Evaluate (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateGradient (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateHessian (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateLaplacian (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateGradientNorm (const InputType &iP, LevelSetDataType &ioData) const
virtual void	EvaluateMeanCurvature (const InputType &iP, LevelSetDataType &ioData) const
virtual void	EvaluateForwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0
virtual void	EvaluateBackwardGradient (const InputType &iP, LevelSetDataType &ioData) const =0
virtual bool	IsInside (const InputType &iP) const
virtual RegionType	GetMaximumNumberOfRegions () const
virtual void	Initialize ()
virtual void	UpdateOutputInformation ()
virtual void	SetRequestedRegionToLargestPossibleRegion ()
virtual void	CopyInformation (const DataObject *data)
virtual void	Graft (const DataObject *data)
virtual bool	RequestedRegionIsOutsideOfTheBufferedRegion ()
virtual bool	VerifyRequestedRegion ()
virtual void	SetRequestedRegion (const DataObject *data)
virtual void	SetRequestedRegion (const RegionType &region)
virtual RegionType	GetRequestedRegion () const
virtual void	SetBufferedRegion (const RegionType &region)
virtual RegionType	GetBufferedRegion () const
Public Member Functions inherited from itk::DataObject
virtual void	DataHasBeenGenerated ()
void	DisconnectPipeline ()
bool	GetDataReleased () const
virtual const bool &	GetReleaseDataFlag ()
SmartPointerForwardReference < ProcessObject >	GetSource () const
DataObjectPointerArraySizeType	GetSourceOutputIndex () const
const DataObjectIdentifierType &	GetSourceOutputName () const
virtual unsigned long	GetUpdateMTime () const
virtual void	PrepareForNewData ()
virtual void	PropagateRequestedRegion ()
void	ReleaseData ()
virtual void	ReleaseDataFlagOff ()
virtual void	ReleaseDataFlagOn ()
virtual void	ResetPipeline ()
void	SetReleaseDataFlag (bool flag)
bool	ShouldIReleaseData () const
virtual void	Update ()
virtual void	UpdateOutputData ()
void	SetPipelineMTime (unsigned long time)
virtual const unsigned long &	GetPipelineMTime ()
virtual void	SetRealTimeStamp (RealTimeStamp _arg)
virtual const RealTimeStamp &	GetRealTimeStamp ()
Public Member Functions inherited from itk::Object
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const TimeStamp &	GetTimeStamp () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
virtual void	Modified () const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Public Member Functions inherited from itk::LightObject
virtual void	Delete ()
virtual int	GetReferenceCount () const
	itkCloneMacro (Self)
void	Print (std::ostream &os, Indent indent=0) const

Static Public Attributes
static const unsigned int	Dimension = Superclass::Dimension
Static Public Attributes inherited from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >

Protected Types
typedef GradientType	ScalingType

Protected Member Functions
virtual bool	IsInsideDomain (const InputType &iP) const =0
	LevelSetImage ()
virtual	~LevelSetImage ()
	LevelSetBase ()
virtual	~LevelSetBase ()
Protected Member Functions inherited from itk::DataObject
virtual void	PropagateResetPipeline ()
	DataObject ()
	~DataObject ()
void	PrintSelf (std::ostream &os, Indent indent) const
Protected Member Functions inherited from itk::Object
	Object ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	SetTimeStamp (const TimeStamp &time)
virtual	~Object ()
Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer	InternalClone () const
	LightObject ()
virtual void	PrintHeader (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual	~LightObject ()

Protected Attributes
ScalingType	m_NeighborhoodScales
RegionType	m_MaximumNumberOfRegions
RegionType	m_NumberOfRegions
RegionType	m_RequestedNumberOfRegions
RegionType	m_BufferedRegion
RegionType	m_RequestedRegion

Private Member Functions
	LevelSetImage (const Self &)
void	operator= (const Self &)

Detailed Description

template<class TInput, unsigned int VDimension, class TOutput>
class itk::LevelSetImage< TInput, VDimension, TOutput >

Abstract class for a level-set function on one Image.

Template Parameters:

TOutput	OutputType of the level-set function value
VDimension	Dimension of the underlying Image.

Definition at line 39 of file itkLevelSetImage.h.

Member Typedef Documentation

template<class TInput, unsigned int VDimension, class TOutput>

typedef SmartPointer< const Self > itk::LevelSetImage< TInput, VDimension, TOutput >::ConstPointer

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

Definition at line 47 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef Superclass::GradientType itk::LevelSetImage< TInput, VDimension, TOutput >::GradientType

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 58 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef Superclass::HessianType itk::LevelSetImage< TInput, VDimension, TOutput >::HessianType

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 59 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef ImageBase< VDimension > itk::LevelSetImage< TInput, VDimension, TOutput >::ImageBaseType

Definition at line 43 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef Superclass::InputType itk::LevelSetImage< TInput, VDimension, TOutput >::InputType

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 55 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef Superclass::LevelSetDataType itk::LevelSetImage< TInput, VDimension, TOutput >::LevelSetDataType

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 60 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef Superclass::OutputRealType itk::LevelSetImage< TInput, VDimension, TOutput >::OutputRealType

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 57 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef Superclass::OutputType itk::LevelSetImage< TInput, VDimension, TOutput >::OutputType

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 56 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef SmartPointer< Self > itk::LevelSetImage< TInput, VDimension, TOutput >::Pointer

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

Definition at line 46 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef GradientType itk::LevelSetImage< TInput, VDimension, TOutput >::ScalingType

protected

Definition at line 67 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef LevelSetImage itk::LevelSetImage< TInput, VDimension, TOutput >::Self

Standard class typedefs.

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, and itk::ShiSparseLevelSetImage< VDimension >.

Definition at line 45 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

typedef LevelSetBase< TInput, VDimension, TOutput, ImageBaseType > itk::LevelSetImage< TInput, VDimension, TOutput >::Superclass

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 48 of file itkLevelSetImage.h.

Constructor & Destructor Documentation

template<class TInput, unsigned int VDimension, class TOutput>

itk::LevelSetImage< TInput, VDimension, TOutput >::LevelSetImage ( )

protected

template<class TInput, unsigned int VDimension, class TOutput>

virtual itk::LevelSetImage< TInput, VDimension, TOutput >::~LevelSetImage ( )

protectedvirtual

template<class TInput, unsigned int VDimension, class TOutput>

itk::LevelSetImage< TInput, VDimension, TOutput >::LevelSetImage ( const Self & )

private

Member Function Documentation

template<class TInput, unsigned int VDimension, class TOutput>

virtual const char* itk::LevelSetImage< TInput, VDimension, TOutput >::GetNameOfClass ( ) const

virtual

Run-time type information

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

template<class TInput, unsigned int VDimension, class TOutput>

virtual bool itk::LevelSetImage< TInput, VDimension, TOutput >::IsInsideDomain ( const InputType & iP ) const

protectedpure virtual

template<class TInput, unsigned int VDimension, class TOutput>

void itk::LevelSetImage< TInput, VDimension, TOutput >::operator= ( const Self & )

private

Returns true if iP is inside the level set, i.e. $\phi(p) \leqslant 0$

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::ShiSparseLevelSetImage< VDimension >, and itk::LevelSetDenseImage< TImage >.

Member Data Documentation

template<class TInput, unsigned int VDimension, class TOutput>

const unsigned int itk::LevelSetImage< TInput, VDimension, TOutput >::Dimension = Superclass::Dimension

static

Reimplemented from itk::LevelSetBase< TInput, VDimension, TOutput, ImageBase< VDimension > >.

Reimplemented in itk::LevelSetDenseImage< TImage >, itk::MalcolmSparseLevelSetImage< VDimension >, itk::WhitakerSparseLevelSetImage< TOutput, VDimension >, itk::ShiSparseLevelSetImage< VDimension >, itk::LevelSetSparseImage< TOutput, VDimension >, itk::LevelSetSparseImage< int8_t, VDimension >, itk::DiscreteLevelSetImage< TOutput, VDimension >, itk::DiscreteLevelSetImage< int8_t, VDimension >, and itk::DiscreteLevelSetImage< TImage::PixelType, TImage::ImageDimension >.

Definition at line 53 of file itkLevelSetImage.h.

template<class TInput, unsigned int VDimension, class TOutput>

ScalingType itk::LevelSetImage< TInput, VDimension, TOutput >::m_NeighborhoodScales

protected

Definition at line 68 of file itkLevelSetImage.h.

The documentation for this class was generated from the following file:

itkLevelSetImage.h

Public Types

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

template<class TInput, unsigned int VDimension, class TOutput> class itk::LevelSetImage< TInput, VDimension, TOutput >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class TInput, unsigned int VDimension, class TOutput>
class itk::LevelSetImage< TInput, VDimension, TOutput >
