#include <itkBioCell.h>

Inheritance diagram for itk::bio::Cell< NSpaceDimension >:

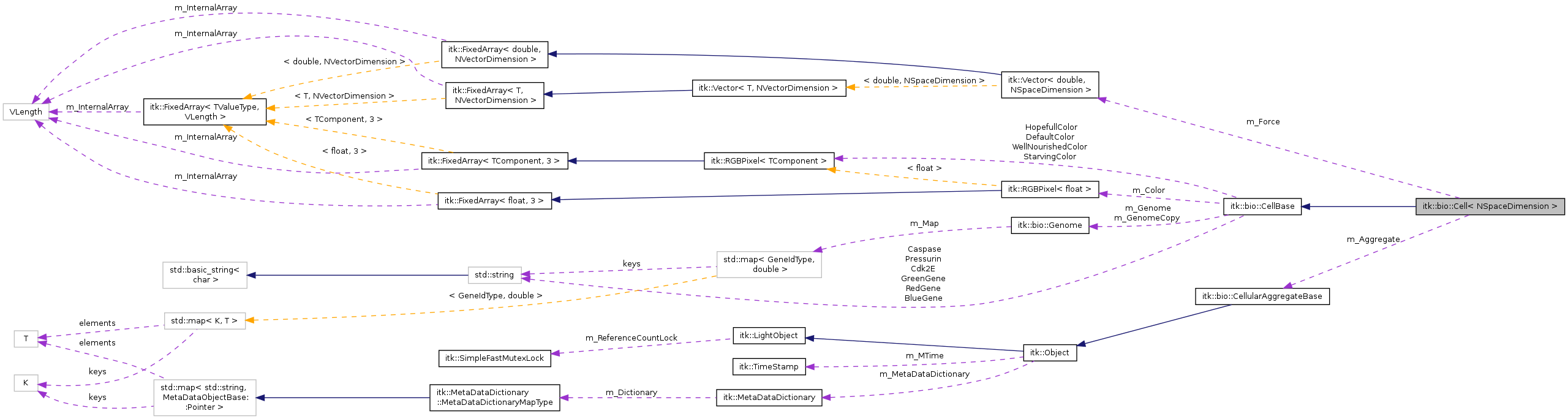

Collaboration diagram for itk::bio::Cell< NSpaceDimension >:

Public Types
typedef itk::Point< double, NSpaceDimension >	PointType
typedef CellBase	Superclass
typedef itk::Vector< double, NSpaceDimension >	VectorType
Public Types inherited from itk::bio::CellBase
enum	CellCycleState { M = 1UL, Gap1, S, Gap2, Gap0, Apop }
typedef itk::RGBPixel< float >	ColorType
typedef GenomeType::GeneIdType	GeneIdType
typedef itk::bio::Genome	GenomeType
typedef itk::IdentifierType	IdentifierType

Public Member Functions
virtual void	AddForce (const VectorType &force)
virtual void	AdvanceTimeStep (void)
virtual void	Apoptosis (void)
virtual void	ClearForce (void)
virtual CellularAggregateBase *	GetCellularAggregate (void)
virtual const CellularAggregateBase *	GetCellularAggregate (void) const
virtual const VectorType &	GetForce (void) const
virtual void	Mitosis (void)
virtual void	ReceptorsReading (void)
virtual void	SetCellularAggregate (CellularAggregateBase *)
virtual	~Cell ()
Public Member Functions inherited from itk::bio::CellBase
virtual ColorType	GetColor (void) const
IdentifierType	GetParentIdentifier (void) const
double	GetRadius (void) const
IdentifierType	GetSelfIdentifier (void) const
virtual bool	MarkedForRemoval (void) const

Static Public Member Functions
static Cell *	CreateEgg (void)
static unsigned int	GetDimension ()
static const char *	GetSpeciesName (void)
Static Public Member Functions inherited from itk::bio::CellBase
static SizeValueType	GetDivisionMaximumLatencyTime (void)
static SizeValueType	GetGrowthMaximumLatencyTime (void)
static double	GetGrowthRadiusLimit (void)
static void	Initialize (void)
static void	ResetCounter (void)
static void	SetChemoAttractantHighThreshold (double)
static void	SetChemoAttractantLowThreshold (double)
static void	SetDefaultColor (const ColorType &color)
static void	SetDefaultRadius (double)
static void	SetDivisionMaximumLatencyTime (SizeValueType)
static void	SetEnergySelfRepairLevel (double)
static void	SetGrowthMaximumLatencyTime (SizeValueType latency)
static void	SetGrowthRadiusIncrement (double)
static void	SetGrowthRadiusLimit (double)
static void	SetMaximumGenerationLimit (SizeValueType)
static void	SetNutrientSelfRepairLevel (double)

Protected Member Functions
	Cell ()
Protected Member Functions inherited from itk::bio::CellBase
	CellBase ()
virtual bool	CheckPointApoptosis (void)
virtual bool	CheckPointDNAReplication (void)
virtual bool	CheckPointGrowth (void)
virtual bool	CheckPointMitosis (void)
virtual void	ComputeGeneNetwork (void)
virtual void	DNAReplication (void)
virtual void	EnergyIntake (void)
virtual void	Grow (void)
void	MarkForRemoval (void)
virtual void	NutrientsIntake (void)
virtual void	SecreteProducts (void)
virtual	~CellBase ()

Protected Attributes
CellularAggregateBase *	m_Aggregate
VectorType	m_Force
Protected Attributes inherited from itk::bio::CellBase
double	m_ChemoAttractantLevel
ColorType	m_Color
CellCycleState	m_CycleState
SizeValueType	m_DivisionLatencyTime
double	m_EnergyReserveLevel
SizeValueType	m_Generation
GenomeType *	m_Genome
GenomeType *	m_GenomeCopy
SizeValueType	m_GrowthLatencyTime
bool	m_MarkedForRemoval
double	m_NutrientsReserveLevel
IdentifierType	m_ParentIdentifier
double	m_Pressure
double	m_Radius
bool	m_ScheduleApoptosis
IdentifierType	m_SelfIdentifier

Friends
class	CellularAggregateBase

Additional Inherited Members
Static Protected Attributes inherited from itk::bio::CellBase
static GeneIdType	BlueGene
static GeneIdType	Caspase
static GeneIdType	Cdk2E
static double	ChemoAttractantHighThreshold
static double	ChemoAttractantLowThreshold
static SizeValueType	Counter
static ColorType	DefaultColor
static double	DefaultEnergyIntake
static double	DefaultNutrientsIntake
static double	DefaultRadius
static SizeValueType	DivisionMaximumLatencyTime
static double	EnergySelfRepairLevel
static GeneIdType	GreenGene
static SizeValueType	GrowthMaximumLatencyTime
static double	GrowthRadiusIncrement
static double	GrowthRadiusLimit
static ColorType	HopefullColor
static SizeValueType	MaximumGenerationLimit
static double	NutrientSelfRepairLevel
static GeneIdType	Pressurin
static GeneIdType	RedGene
static ColorType	StarvingColor
static ColorType	WellNourishedColor

Detailed Description

This class implements the minimal behavior of a biological cell.

The basic behavior of a cell is related to the cell cycle. Geometrical concepts like size and shape are also managed by this abstract cell.

Definition at line 39 of file itkBioCell.h.
