itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge > Class Template Reference

#include <itkQuadEdgeMeshBaseIterator.h>

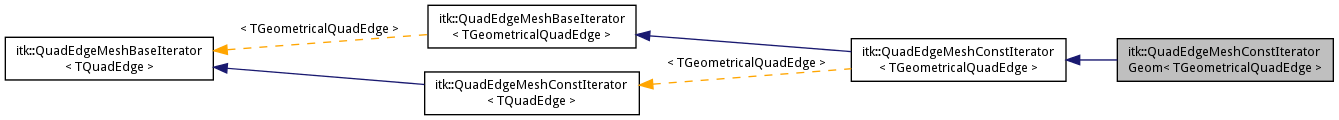

Inheritance diagram for itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >:

Collaboration diagram for itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >:

Detailed Description

template<typename TGeometricalQuadEdge>
class itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >

Const geometrical iterator.

Definition at line 345 of file itkQuadEdgeMeshBaseIterator.h.

Public Types
typedef QuadEdgeMeshIteratorGeom < TGeometricalQuadEdge >	NoConstType
typedef QuadEdgeType::OriginRefType	OriginRefType
typedef TGeometricalQuadEdge	QuadEdgeType
typedef QuadEdgeMeshConstIteratorGeom	Self
typedef QuadEdgeMeshConstIterator < TGeometricalQuadEdge >	Superclass
Public Types inherited from itk::QuadEdgeMeshConstIterator< TGeometricalQuadEdge >
typedef QuadEdgeMeshIterator < TGeometricalQuadEdge >	NoConstType
typedef TGeometricalQuadEdge	QuadEdgeType
typedef QuadEdgeMeshConstIterator	Self
typedef QuadEdgeMeshBaseIterator < TGeometricalQuadEdge >	Superclass
Public Types inherited from itk::QuadEdgeMeshBaseIterator< TGeometricalQuadEdge >
enum
typedef TGeometricalQuadEdge	QuadEdgeType
typedef QuadEdgeMeshBaseIterator	Self

Public Member Functions
const OriginRefType	operator* () const
Self &	operator= (const NoConstType &r)
	QuadEdgeMeshConstIteratorGeom (const QuadEdgeType *e=(QuadEdgeType *) 0, int op=Superclass::OperatorOnext, bool start=true)
virtual	~QuadEdgeMeshConstIteratorGeom ()
Public Member Functions inherited from itk::QuadEdgeMeshConstIterator< TGeometricalQuadEdge >
Self &	operator= (const NoConstType &r)
	QuadEdgeMeshConstIterator (const QuadEdgeType *e=(QuadEdgeType *) 0, int op=Superclass::OperatorOnext, bool start=true)
const QuadEdgeType *	Value () const
virtual	~QuadEdgeMeshConstIterator ()
Public Member Functions inherited from itk::QuadEdgeMeshBaseIterator< TGeometricalQuadEdge >
QuadEdgeType *	GetIterator () const
int	GetOpType () const
bool	GetStart () const
QuadEdgeType *	GetStartEdge () const
bool	operator!= (Self &r)
bool	operator!= (const Self &r) const
Self &	operator++ ()
Self &	operator++ (int)
Self &	operator= (const Self &r)
bool	operator== (Self &r)
bool	operator== (const Self &r) const
	QuadEdgeMeshBaseIterator (QuadEdgeType *e, int op=OperatorOnext, bool start=true)
virtual	~QuadEdgeMeshBaseIterator ()

Additional Inherited Members
Protected Member Functions inherited from itk::QuadEdgeMeshBaseIterator< TGeometricalQuadEdge >
virtual void	GoToNext ()

Member Typedef Documentation

template<typename TGeometricalQuadEdge >

typedef QuadEdgeMeshIteratorGeom< TGeometricalQuadEdge > itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::NoConstType

Definition at line 353 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TGeometricalQuadEdge >

typedef QuadEdgeType::OriginRefType itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::OriginRefType

Geometric value type.

Definition at line 357 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TGeometricalQuadEdge >

typedef TGeometricalQuadEdge itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::QuadEdgeType

Definition at line 354 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TGeometricalQuadEdge >

typedef QuadEdgeMeshConstIteratorGeom itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::Self

Hierarchy typedefs and values.

Definition at line 351 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TGeometricalQuadEdge >

typedef QuadEdgeMeshConstIterator< TGeometricalQuadEdge > itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::Superclass

Definition at line 352 of file itkQuadEdgeMeshBaseIterator.h.

Constructor & Destructor Documentation

template<typename TGeometricalQuadEdge >

itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::QuadEdgeMeshConstIteratorGeom ( const QuadEdgeType *  e = (QuadEdgeType *)0, int  op = Superclass::OperatorOnext, bool  start = true  )

inline

Definition at line 360 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TGeometricalQuadEdge >

virtual itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::~QuadEdgeMeshConstIteratorGeom ( )

inlinevirtual

Definition at line 365 of file itkQuadEdgeMeshBaseIterator.h.

Member Function Documentation

template<typename TGeometricalQuadEdge >

const OriginRefType itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::operator* ( ) const

inline

Definition at line 376 of file itkQuadEdgeMeshBaseIterator.h.

template<typename TGeometricalQuadEdge >

Self& itk::QuadEdgeMeshConstIteratorGeom< TGeometricalQuadEdge >::operator= ( const NoConstType &  r )

inline

Definition at line 367 of file itkQuadEdgeMeshBaseIterator.h.

References itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetIterator(), itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetOpType(), itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetStart(), and itk::QuadEdgeMeshBaseIterator< TQuadEdge >::GetStartEdge().

---

The documentation for this class was generated from the following file:

• itkQuadEdgeMeshBaseIterator.h
