itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions > Class Template Reference
[Transforms]

#include <itkMatrixOffsetTransformBase.h>

Inheritance diagram for itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >:

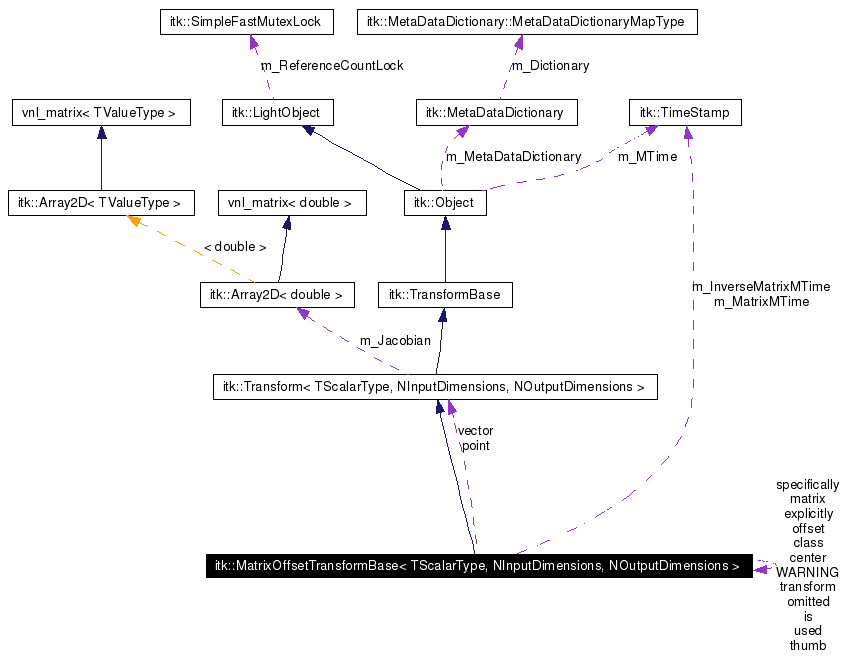

[legend]Collaboration diagram for itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >:

[legend]List of all members.

Detailed Description

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>
class itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >

Matrix and Offset transformation of a vector space (e.g. space coordinates)

This class serves as a base class for transforms that can be expressed as a linear transformation plus a constant offset (e.g., affine, similarity and rigid transforms). This base class also provides the concept of using a center of rotation and a translation instead of an offset.

As derived instances of this class are specializations of an affine transform, any two of these transformations may be composed and the result is an affine transformation. However, the order is important. Given two affine transformations T1 and T2, we will say that "precomposing T1 with T2" yields the transformation which applies T1 to the source, and then applies T2 to that result to obtain the target. Conversely, we will say that "postcomposing T1 with T2" yields the transformation which applies T2 to the source, and then applies T1 to that result to obtain the target. (Whether T1 or T2 comes first lexicographically depends on whether you choose to write mappings from right-to-left or vice versa; we avoid the whole problem by referring to the order of application rather than the textual order.)

There are three template parameters for this class:

ScalarT The type to be used for scalar numeric values. Either float or double.

NInputDimensions The number of dimensions of the input vector space.

NOutputDimensions The number of dimensions of the output vector space.

This class provides several methods for setting the matrix and offset defining the transform. To support the registration framework, the transform parameters can also be set as an Array<double> of size (NInputDimension + 1) * NOutputDimension using method SetParameters(). The first (NOutputDimension x NInputDimension) parameters defines the matrix in column-major order (where the column index varies the fastest). The last NOutputDimension parameters defines the translation in each dimensions.

Definition at line 80 of file itkMatrixOffsetTransformBase.h.

Public Types

typedef InputPointType CenterType

typedef SmartPointer< const
Self > ConstPointer

typedef Matrix< TScalarType,
itkGetStaticConstMacro(InputSpaceDimension),
itkGetStaticConstMacro(OutputSpaceDimension) InverseMatrixType )

typedef Superclass::JacobianType JacobianType

typedef Matrix< TScalarType,
itkGetStaticConstMacro(OutputSpaceDimension),
itkGetStaticConstMacro(InputSpaceDimension) MatrixType )

typedef OutputVectorType OffsetType

typedef CovariantVector< TScalarType,
itkGetStaticConstMacro(OutputSpaceDimension) OutputCovariantVectorType )

typedef Point< TScalarType,
itkGetStaticConstMacro(OutputSpaceDimension) OutputPointType )

typedef Vector< TScalarType,
itkGetStaticConstMacro(OutputSpaceDimension) OutputVectorType )

typedef vnl_vector_fixed<
TScalarType, itkGetStaticConstMacro(OutputSpaceDimension) OutputVnlVectorType )

typedef Superclass::ParametersType ParametersType

typedef SmartPointer< Self > Pointer

typedef Superclass::ScalarType ScalarType

typedef MatrixOffsetTransformBase Self

typedef Transform< TScalarType,
NInputDimensions, NOutputDimensions > Superclass

typedef OutputVectorType TranslationType

Public Member Functions

void Compose (const Self *other, bool pre=0)

virtual LightObject::Pointer CreateAnother () const

virtual void DebugOff () const

virtual void DebugOn () const

virtual void Delete ()

const InputPointType & GetCenter () const

Command * GetCommand (unsigned long tag)

bool GetDebug () const

virtual const ParametersType & GetFixedParameters (void) const

unsigned int GetInputSpaceDimension (void) const

*endcode **transform2 will
now contain the inverse of
transform1 and will *with
its center set to p Flipping
the two statements will produce
an *incorrect transform *bool GetInverse (Self *inverse) const

*transform1 GetInverse (transform2)

const InverseMatrixType & GetInverseMatrix (void) const

const JacobianType & GetJacobian (const InputPointType &point) const

const MatrixType & GetMatrix () const

const MetaDataDictionary & GetMetaDataDictionary (void) const

MetaDataDictionary & GetMetaDataDictionary (void)

virtual unsigned long GetMTime () const

virtual const char * GetNameOfClass () const

virtual unsigned int GetNumberOfParameters (void) const

const OutputVectorType & GetOffset (void) const

unsigned int GetOutputSpaceDimension (void) const

const ParametersType & GetParameters (void) const

virtual int GetReferenceCount () const

virtual std::string GetTransformTypeAsString () const

const OutputVectorType & GetTranslation (void) const

bool HasObserver (const EventObject &event) const

void InvokeEvent (const EventObject &) const

void InvokeEvent (const EventObject &)

itkStaticConstMacro (ParametersDimension, unsigned int, NOutputDimensions *(NInputDimensions+1))

itkStaticConstMacro (OutputSpaceDimension, unsigned int, NOutputDimensions)

Dimension of the domain space * itkStaticConstMacro (InputSpaceDimension, unsigned int, NInputDimensions)

virtual void Modified () const

Set offset (origin) of an MatrixOffset TransformBase.**This method sets the offset of an MatrixOffsetTransformBase to a *value specified by the user.*This updates Translation wrt current center.See the warning regarding *offset-versus-translation in the documentation for SetCenter.*To define an affine transform

void Print (std::ostream &os, Indent indent=0) const

virtual void Register () const

void RemoveAllObservers ()

void RemoveObserver (unsigned long tag)

Create inverse of an affine
transformation **This populates
the parameters an affine transform
such that *the transform is
the inverse of self If self
is not *an exception is thrown
*Note that by default the
inverese transform is centered
at *the origin If you need
to compute the inverse centered
at a **code *transform2 SetCenter (p)

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not *or is
set before the matrix and
the then it is safe to change
the *offset directly *As a
rule of if you wish to set
the center set *before Offset
computations are done **To
define an affine you must
set the and translation OR
the matrix and offset *void SetCenter (const InputPointType &center)

void SetDebug (bool debugFlag) const

virtual void SetFixedParameters (const ParametersType &)

virtual void SetIdentity (void)

Set matrix of an MatrixOffsetTransformBase
**This method sets the matrix
of an MatrixOffsetTransformBase
to a *value specified by the
user **This updates the Offset
wrt to current translation
*and center See the warning
regarding offset versus translation
*in the documentation for
SetCenter **To define an affine
you must set the and translation
OR the matrix and offset
*virtual void SetMatrix (const MatrixType &matrix)

void SetMetaDataDictionary (const MetaDataDictionary &rhs)

Set you must set the and translation
OR the matrix and offset
*void SetOffset (const OutputVectorType &offset)

void SetParameters (const ParametersType &parameters)

virtual void SetParametersByValue (const ParametersType &p)

virtual void SetReferenceCount (int)

Set translation of an MatrixOffsetTransformBase
**This method sets the translation
of an MatrixOffsetTransformBase
*This updates Offset to reflect
current translation *To define
an affine you must set the
and translation OR the matrix
and offset *void SetTranslation (const OutputVectorType &translation)

OutputCovariantVectorType TransformCovariantVector (const InputCovariantVectorType &vector) const

Transform by an affine transformation
**This method applies the
affine transform given by
self to a *given point or
returning the transformed
point or *vector The TransformPoint
method transforms its argument
as *an affine whereas the
TransformVector method transforms
*its argument as a vector
*OutputPointType TransformPoint (const InputPointType &point) const

OutputVnlVectorType TransformVector (const InputVnlVectorType &vector) const

OutputVectorType TransformVector (const InputVectorType &vector) const

virtual void UnRegister () const

Static Public Member Functions

static void BreakOnError ()

static bool GetGlobalWarningDisplay ()

static void GlobalWarningDisplayOff ()

static void GlobalWarningDisplayOn ()

static Pointer New ()

This is a global flag that
controls whether any warning
*or error messages are displayed
*static void SetGlobalWarningDisplay (bool flag)

Public Attributes

Allow people to add remove
invoke observers(callbacks)
to any ITK *object.This is
an implementation of the subject/observer design *pattern.An
observer is added by specifying
an event to respond to *and
an itk unsigned lon AddObserver )(const EventObject &event, Command *) const

Set translation of an MatrixOffsetTransformBase
**This method sets the translation
of an MatrixOffsetTransformBase
*This updates Offset to reflect
current translation *To define
an affine you must set the * center

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not *or is
set before the matrix and
the then it is safe to change
the *offset directly *As a
rule of if you wish to set
the center set *before Offset
computations are done **To
define an affine you must
set the * center

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new center

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s * center

Set you must set the * center

Set matrix of an MatrixOffsetTransformBase
**This method sets the matrix
of an MatrixOffsetTransformBase
to a *value specified by the
user **This updates the Offset
wrt to current translation
*and center See the warning
regarding offset versus translation
*in the documentation for
SetCenter **To define an affine
you must set the * center

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this class

This is a global flag that
controls whether any debug

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not *or is
set before the matrix and
the then it is safe to change
the *offset directly *As a
rule of if you wish to set
the center explicitly

Standard covariant vector
type for this class typedef
CovariantVector< TScalarType,
itkGetStaticConstMacro(InputSpaceDimension) InputCovariantVectorType )

Standard coordinate point
type for this class typedef
Point< TScalarType, itkGetStaticConstMacro(InputSpaceDimension) InputPointType )

Standard vector type for this
class typedef Vector< TScalarType,
itkGetStaticConstMacro(InputSpaceDimension) InputVectorType )

Standard vnl_vector type for
this class typedef vnl_vector_fixed<
TScalarType, itkGetStaticConstMacro(InputSpaceDimension) InputVnlVectorType )

Create inverse of an affine
transformation **This populates
the parameters an affine transform
such that *the transform is
the inverse of self If self
is not invertible

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That is

return m_Jacobian

Set translation of an MatrixOffsetTransformBase
**This method sets the translation
of an MatrixOffsetTransformBase
*This updates Offset to reflect
current translation *To define
an affine you must set the matrix

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not *or is
set before the matrix and
the then it is safe to change
the *offset directly *As a
rule of if you wish to set
the center set *before Offset
computations are done **To
define an affine you must
set the matrix

Set you must set the matrix

Set matrix of an MatrixOffsetTransformBase
**This method sets the matrix
of an MatrixOffsetTransformBase
to a *value specified by the
user **This updates the Offset
wrt to current translation
*and center See the warning
regarding offset versus translation
*in the documentation for
SetCenter **To define an affine
you must set the matrix

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not *or is
set before the matrix and
the offset

Create inverse of an affine
transformation **This populates
the parameters an affine transform
such that *the transform is
the inverse of self If self
is not *an exception is thrown
*Note that by default the
inverese transform is centered
at *the origin If you need
to compute the inverse centered
at a p

Create inverse of an affine
transformation **This populates
the parameters an affine transform
such that *the transform is
the inverse of self If self
is not *an exception is thrown
*Note that by default the
inverese transform is centered
at *the origin If you need
to compute the inverse centered
at a point

Transform by an affine transformation
**This method applies the
affine transform given by
self to a *given point or
returning the transformed
point or *vector The TransformPoint
method transforms its argument
as *an affine point

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces specifically

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not *or is
set before the matrix and
the then it is safe to change
the *offset directly *As a
rule of thumb

Set translation of an MatrixOffsetTransformBase
**This method sets the translation
of an MatrixOffsetTransformBase
*This updates Offset to reflect
current translation *To define
an affine transform

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not *or is
set before the matrix and
the then it is safe to change
the *offset directly *As a
rule of if you wish to set
the center set *before Offset
computations are done **To
define an affine transform

Set matrix of an MatrixOffsetTransformBase
**This method sets the matrix
of an MatrixOffsetTransformBase
to a *value specified by the
user **This updates the Offset
wrt to current translation
*and center See the warning
regarding offset versus translation
*in the documentation for
SetCenter **To define an affine transform

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform
we strongly recommend only
changing the *matrix and translation
to define a transform Changing
a transform s changes the
mapping between spaces translation
is *not changed with respect
to that new and so the offset
is updated *to *maintain the
consistency with translation
If a center is not used

Transform by an affine transformation
**This method applies the
affine transform given by
self to a *given point or vector

Set center of rotation of
an MatrixOffsetTransformBase
**This method sets the center
of rotation of an MatrixOffsetTransformBase
*to a fixed point for most
transforms derived from this
*this point is not a parameter
of the transform the exception
is that *centered transforms
have center as a parameter
during optimization **This
method updates offset wrt
to current translation and
matrix *That changing the
center changes the transform ** WARNING: When using the Center

Protected Member Functions

virtual void ComputeMatrix (void)

virtual void ComputeMatrixParameters (void)

virtual void ComputeOffset (void)

virtual void ComputeTranslation (void)

InverseMatrixType GetVarInverseMatrix (void) const

bool InverseMatrixIsOld (void) const

MatrixOffsetTransformBase ()

MatrixOffsetTransformBase (unsigned int outputDims, unsigned int paramDims)

Construct an MatrixOffsetTransformBase
object **This method constructs
a new MatrixOffsetTransformBase
object and *initializes the
matrix and offset parts of
the transformation *to values
specified by the caller If
the arguments are then the
MatrixOffsetTransformBase
is initialized to an identity
*transformation in the appropriate
number of dimensions ** MatrixOffsetTransformBase (const MatrixType &matrix, const OutputVectorType &offset)

bool PrintObservers (std::ostream &os, Indent indent) const

void PrintSelf (std::ostream &s, Indent indent) const

virtual void PrintTrailer (std::ostream &os, Indent indent) const

void SetVarCenter (const InputPointType &center)

void SetVarInverseMatrix (const InverseMatrixType &matrix) const

void SetVarMatrix (const MatrixType &matrix)

void SetVarOffset (const OutputVectorType &offset)

void SetVarTranslation (const OutputVectorType &translation)

virtual ~MatrixOffsetTransformBase ()

Protected Attributes

ParametersType m_FixedParameters

JacobianType m_Jacobian

ParametersType m_Parameters

int m_ReferenceCount

SimpleFastMutexLock m_ReferenceCountLock

Construct an MatrixOffsetTransformBase
object **This method constructs
a new MatrixOffsetTransformBase
object and *initializes the
matrix and offset parts of
the transformation *to values
specified by the caller If
the arguments are * omitted

Methods invoked by virtual
Print() to print information
about the object *including
superclasses.Typically not
called by the user(use Print()*instead) but used in the
hierarchical print process
to combine the *output of
several classes.*/virtual
void PrintSelf(std voi PrintHeader )(std::ostream &os, Indent indent) const

Member Typedef Documentation

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

typedef OutputVectorType itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::OffsetType

Reimplemented in itk::CenteredEuler3DTransform< TScalarType >, itk::CenteredRigid2DTransform< TScalarType >, itk::CenteredSimilarity2DTransform< TScalarType >, itk::Euler3DTransform< TScalarType >, itk::QuaternionRigidTransform< TScalarType >, itk::Rigid2DTransform< TScalarType >, itk::Rigid3DTransform< TScalarType >, itk::ScaleSkewVersor3DTransform< TScalarType >, itk::Similarity2DTransform< TScalarType >, itk::Similarity3DTransform< TScalarType >, itk::VersorRigid3DTransform< TScalarType >, and itk::VersorTransform< TScalarType >.
Definition at line 161 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

typedef OutputVectorType itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::TranslationType

Reimplemented in itk::CenteredEuler3DTransform< TScalarType >, itk::Euler3DTransform< TScalarType >, itk::QuaternionRigidTransform< TScalarType >, itk::Rigid3DTransform< TScalarType >, itk::ScaleSkewVersor3DTransform< TScalarType >, itk::Similarity3DTransform< TScalarType >, and itk::VersorRigid3DTransform< TScalarType >.
Definition at line 163 of file itkMatrixOffsetTransformBase.h.

Constructor & Destructor Documentation

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Construct an MatrixOffsetTransformBase object* * This method constructs a new MatrixOffsetTransformBase object and* initializes the matrix and offset parts of the transformation* to values specified by the caller If the arguments are then the MatrixOffsetTransformBase is initialized to an identity* transformation in the appropriate number of dimensions** itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::MatrixOffsetTransformBase ( const MatrixType & matrix,

const OutputVectorType & offset

) [protected]

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::MatrixOffsetTransformBase ( unsigned int outputDims,

unsigned int paramDims

) [protected]

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::~MatrixOffsetTransformBase ( ) [protected, virtual]

Destroy an MatrixOffsetTransformBase object

Member Function Documentation

static void itk::LightObject::BreakOnError ( ) [static, inherited]

This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::Compose ( const Self * other,

bool pre = 0

)

Compose with another MatrixOffsetTransformBase
This method composes self with another MatrixOffsetTransformBase of the same dimension, modifying self to be the composition of self and other. If the argument pre is true, then other is precomposed with self; that is, the resulting transformation consists of first applying other to the source, followed by self. If pre is false or omitted, then other is post-composed with self; that is the resulting transformation consists of first applying self to the source, followed by other. This updates the Translation based on current center.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::ComputeMatrix ( void ) [protected, virtual]

Reimplemented in itk::Euler3DTransform< TScalarType >, itk::QuaternionRigidTransform< TScalarType >, itk::Rigid2DTransform< TScalarType >, itk::ScaleSkewVersor3DTransform< TScalarType >, itk::Similarity2DTransform< TScalarType >, itk::Similarity3DTransform< TScalarType >, and itk::VersorTransform< TScalarType >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::ComputeMatrixParameters ( void ) [protected, virtual]

Reimplemented in itk::Euler3DTransform< TScalarType >, itk::QuaternionRigidTransform< TScalarType >, itk::Rigid2DTransform< TScalarType >, itk::ScaleSkewVersor3DTransform< TScalarType >, itk::Similarity2DTransform< TScalarType >, and itk::VersorTransform< TScalarType >.
Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix().

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::ComputeOffset ( void ) [protected, virtual]

Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetCenter(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix(), and itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetTranslation().

virtual LightObject::Pointer itk::Object::CreateAnother ( ) const [virtual, inherited]

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.
Reimplemented from itk::LightObject.

virtual void itk::Object::DebugOff ( ) const [virtual, inherited]

Turn debugging output off.

virtual void itk::Object::DebugOn ( ) const [virtual, inherited]

Turn debugging output on.

virtual void itk::LightObject::Delete ( ) [virtual, inherited]

Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

const InputPointType& itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetCenter ( void ) const [inline]

Get center of rotation of the MatrixOffsetTransformBase
This method returns the point used as the fixed center of rotation for the MatrixOffsetTransformBase. To define an affine transform, you must set the matrix, center, and translation OR the matrix and offset
Definition at line 250 of file itkMatrixOffsetTransformBase.h.

Command* itk::Object::GetCommand ( unsigned long tag ) [inherited]

Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used.

bool itk::Object::GetDebug ( ) const [inherited]

Get the value of the debug flag.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual const ParametersType& itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetFixedParameters ( void ) const [virtual]

Get the Fixed Parameters.
Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.
Reimplemented in itk::CenteredRigid2DTransform< TScalarType >, and itk::CenteredSimilarity2DTransform< TScalarType >.

static bool itk::Object::GetGlobalWarningDisplay ( ) [static, inherited]

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

unsigned int itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::GetInputSpaceDimension ( void ) const [inline, virtual, inherited]

Get the size of the input space
Implements itk::TransformBase.
Definition at line 87 of file itkTransform.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

* endcode* * transform2 will now contain the inverse of transform1 and will* with its center set to p Flipping the two statements will produce an* incorrect transform* bool itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetInverse ( Self * inverse ) const

Return the inverse of the transform. The inverse is recomputed if it has been modified
Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

* transform1 itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetInverse ( transform2 )

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

const InverseMatrixType& itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetInverseMatrix ( void ) const

Deprecated:
Use GetInverse instead.
Method will eventually be made a protected member function
Reimplemented in itk::QuaternionRigidTransform< TScalarType >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

const JacobianType& itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetJacobian ( const InputPointType & point ) const

Compute the Jacobian of the transformation
This method computes the Jacobian matrix of the transformation. given point or vector, returning the transformed point or vector. The rank of the Jacobian will also indicate if the transform is invertible at this point.
Reimplemented in itk::CenteredEuler3DTransform< TScalarType >, itk::CenteredRigid2DTransform< TScalarType >, itk::CenteredSimilarity2DTransform< TScalarType >, itk::Euler3DTransform< TScalarType >, itk::QuaternionRigidTransform< TScalarType >, itk::Rigid2DTransform< TScalarType >, itk::ScaleSkewVersor3DTransform< TScalarType >, itk::Similarity2DTransform< TScalarType >, itk::Similarity3DTransform< TScalarType >, itk::VersorRigid3DTransform< TScalarType >, and itk::VersorTransform< TScalarType >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

const MatrixType& itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetMatrix ( ) const [inline]

Get matrix of an MatrixOffsetTransformBase
This method returns the value of the matrix of the MatrixOffsetTransformBase. To define an affine transform, you must set the matrix, center, and translation OR the matrix and offset
Definition at line 193 of file itkMatrixOffsetTransformBase.h.

const MetaDataDictionary& itk::Object::GetMetaDataDictionary ( void ) const [inherited]

Returns:
A constant reference to this objects MetaDataDictionary.

MetaDataDictionary& itk::Object::GetMetaDataDictionary ( void ) [inherited]

Returns:
A reference to this objects MetaDataDictionary.

Warning:
This reference may be changed.

virtual unsigned long itk::Object::GetMTime ( ) const [virtual, inherited]

Return this objects modified time.
Reimplemented in itk::ImageRegistrationMethod< TFixedImage, TMovingImage >, itk::DeformationFieldSource< TOutputImage >, itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >, itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::BoundingBox< TPointIdentifier, VPointDimension, TCoordRep, TPointsContainer >, itk::SceneSpatialObject< SpaceDimension >, and itk::SceneSpatialObject< NDimensions >.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual unsigned int itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::GetNumberOfParameters ( void ) const [inline, virtual, inherited]

Return the number of parameters that completely define the Transfom
Implements itk::TransformBase.
Reimplemented in itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >, and itk::TranslationTransform< TScalarType, NDimensions >.
Definition at line 204 of file itkTransform.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

const OutputVectorType& itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetOffset ( void ) const [inline]

Get offset of an MatrixOffsetTransformBase
This method returns the offset value of the MatrixOffsetTransformBase. To define an affine transform, you must set the matrix, center, and translation OR the matrix and offset
Definition at line 214 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

unsigned int itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::GetOutputSpaceDimension ( void ) const [inline, virtual, inherited]

Get the size of the output space
Implements itk::TransformBase.
Definition at line 90 of file itkTransform.h.

virtual int itk::LightObject::GetReferenceCount ( ) const [inline, virtual, inherited]

Gets the reference count on this object.
Definition at line 98 of file itkLightObject.h.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual std::string itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::GetTransformTypeAsString ( ) const [virtual, inherited]

Generate a platform independant name
Implements itk::TransformBase.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

const OutputVectorType& itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetTranslation ( void ) const [inline]

Get translation component of the MatrixOffsetTransformBase
This method returns the translation used after rotation about the center point. To define an affine transform, you must set the matrix, center, and translation OR the matrix and offset
Definition at line 270 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

InverseMatrixType itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::GetVarInverseMatrix ( void ) const [inline, protected]

Definition at line 370 of file itkMatrixOffsetTransformBase.h.

static void itk::Object::GlobalWarningDisplayOff ( ) [inline, static, inherited]

Definition at line 100 of file itkObject.h.
References itk::Object::SetGlobalWarningDisplay().

static void itk::Object::GlobalWarningDisplayOn ( ) [inline, static, inherited]

Definition at line 98 of file itkObject.h.
References itk::Object::SetGlobalWarningDisplay().

bool itk::Object::HasObserver ( const EventObject & event ) const [inherited]

Return true if an observer is registered for this event.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

bool itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::InverseMatrixIsOld ( void ) const [inline, protected]

Definition at line 374 of file itkMatrixOffsetTransformBase.h.

void itk::Object::InvokeEvent ( const EventObject & ) const [inherited]

Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object.

void itk::Object::InvokeEvent ( const EventObject & ) [inherited]

Call Execute on all the Commands observing this event id.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::itkStaticConstMacro ( ParametersDimension ,

unsigned int,

NOutputDimensions * (NInputDimensions+1)

)

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::itkStaticConstMacro ( OutputSpaceDimension ,

unsigned int,

NOutputDimensions

)

Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Dimension of the domain space* itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::itkStaticConstMacro ( InputSpaceDimension ,

unsigned int,

NInputDimensions

)

Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.

virtual void itk::Object::Modified ( ) const [virtual, inherited]

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data.
Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetCenter(), itk::HistogramAlgorithmBase< TInputHistogram >::SetInputHistogram(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetOffset(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetRealThresholds(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints1(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints2(), itk::NonUniformBSpline< TDimension >::SetSplineOrder(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetThresholds(), itk::Statistics::GoodnessOfFitFunctionBase< typename ComponentType::HistogramType >::SetTotalObservedScale(), and itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetTranslation().

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::offset ( origin )

void itk::LightObject::Print ( std::ostream & os,

Indent indent = 0

) const [inherited]

Cause the object to print itself out.

bool itk::Object::PrintObservers ( std::ostream & os,

Indent indent

) const [protected, inherited]

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::PrintSelf ( std::ostream & s,

Indent indent

) const [protected, virtual]

Print contents of an MatrixOffsetTransformBase
Reimplemented from itk::Object.
Reimplemented in itk::CenteredEuler3DTransform< TScalarType >, itk::CenteredRigid2DTransform< TScalarType >, itk::CenteredSimilarity2DTransform< TScalarType >, itk::Euler2DTransform< TScalarType >, itk::Euler3DTransform< TScalarType >, itk::QuaternionRigidTransform< TScalarType >, itk::Rigid2DTransform< TScalarType >, itk::Rigid3DTransform< TScalarType >, itk::ScaleSkewVersor3DTransform< TScalarType >, itk::Similarity2DTransform< TScalarType >, itk::Similarity3DTransform< TScalarType >, itk::VersorRigid3DTransform< TScalarType >, and itk::VersorTransform< TScalarType >.

virtual void itk::LightObject::PrintTrailer ( std::ostream & os,

Indent indent

) const [protected, virtual, inherited]

virtual void itk::Object::Register ( ) const [virtual, inherited]

Increase the reference count (mark as used by another object).
Reimplemented from itk::LightObject.

void itk::Object::RemoveAllObservers ( ) [inherited]

Remove all observers .

void itk::Object::RemoveObserver ( unsigned long tag ) [inherited]

Remove the observer with this tag value.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Create inverse of an affine transformation* * This populates the parameters an affine transform such that* the transform is the inverse of self If self is not * an exception is thrown* Note that by default the inverese transform is centered at* the origin If you need to compute the inverse centered at a * * code* transform2 itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetCenter ( p )

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not * or is set before the matrix and the then it is safe to change the* offset directly* As a rule of if you wish to set the center set* before Offset computations are done* * To define an affine you must set the and translation OR the matrix and offset* void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetCenter ( const InputPointType & center ) [inline]

Definition at line 239 of file itkMatrixOffsetTransformBase.h.

void itk::Object::SetDebug ( bool debugFlag ) const [inherited]

Set the value of the debug flag. A non-zero value turns debugging on.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetFixedParameters ( const ParametersType & ) [virtual]

Set the fixed parameters and update internal transformation.
Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.
Reimplemented in itk::CenteredRigid2DTransform< TScalarType >, and itk::CenteredSimilarity2DTransform< TScalarType >.

This is a global flag that controls whether any warning* or error messages are displayed* static void itk::Object::SetGlobalWarningDisplay ( bool flag ) [static, inherited]

Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn().

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetIdentity ( void ) [virtual]

Set the transformation to an Identity
This sets the matrix to identity and the Offset to null.
Reimplemented in itk::Euler3DTransform< TScalarType >, itk::QuaternionRigidTransform< TScalarType >, itk::Rigid2DTransform< TScalarType >, itk::ScaleSkewVersor3DTransform< TScalarType >, itk::Similarity2DTransform< TScalarType >, and itk::VersorTransform< TScalarType >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set matrix of an MatrixOffsetTransformBase* * This method sets the matrix of an MatrixOffsetTransformBase to a* value specified by the user* * This updates the Offset wrt to current translation* and center See the warning regarding offset versus translation* in the documentation for SetCenter* * To define an affine you must set the and translation OR the matrix and offset* virtual void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetMatrix ( const MatrixType & matrix ) [inline, virtual]

Reimplemented in itk::Rigid2DTransform< TScalarType >, and itk::Similarity2DTransform< TScalarType >.
Definition at line 181 of file itkMatrixOffsetTransformBase.h.

void itk::Object::SetMetaDataDictionary ( const MetaDataDictionary & rhs ) [inherited]

Returns:
Set the MetaDataDictionary

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set you must set the and translation OR the matrix and offset* void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetOffset ( const OutputVectorType & offset ) [inline]

Definition at line 204 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

virtual void itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::SetParametersByValue ( const ParametersType & p ) [inline, virtual, inherited]

Set the transformation parameters and update internal transformation. This method forces the transform to copy the parameters. The default implementation is to call SetParameters. This call must be overridden if the transform normally implements SetParameters by keeping a reference to the parameters.
See also:
SetParameters

Implements itk::TransformBase.
Reimplemented in itk::BSplineDeformableTransform< TScalarType, NDimensions, VSplineOrder >.
Definition at line 151 of file itkTransform.h.

virtual void itk::Object::SetReferenceCount ( int ) [virtual, inherited]

Sets the reference count (use with care)
Reimplemented from itk::LightObject.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set translation of an MatrixOffsetTransformBase* * This method sets the translation of an MatrixOffsetTransformBase* This updates Offset to reflect current translation* To define an affine you must set the and translation OR the matrix and offset* void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetTranslation ( const OutputVectorType & translation ) [inline]

Definition at line 259 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetVarCenter ( const InputPointType & center ) [inline, protected]

Definition at line 392 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetVarInverseMatrix ( const InverseMatrixType & matrix ) const [inline, protected]

Definition at line 372 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetVarMatrix ( const MatrixType & matrix ) [inline, protected]

Definition at line 381 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetVarOffset ( const OutputVectorType & offset ) [inline, protected]

Definition at line 389 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

void itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::SetVarTranslation ( const OutputVectorType & translation ) [inline, protected]

Definition at line 385 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

OutputCovariantVectorType itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::TransformCovariantVector ( const InputCovariantVectorType & vector ) const [virtual]

Method to transform a CovariantVector.
Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.
Reimplemented in itk::Rigid3DTransform< TScalarType >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Transform by an affine transformation* * This method applies the affine transform given by self to a* given point or returning the transformed point or* vector The TransformPoint method transforms its argument as* an affine whereas the TransformVector method transforms* its argument as a vector* OutputPointType itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::TransformPoint ( const InputPointType & point ) const [virtual]

Method to transform a point.
Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

OutputVnlVectorType itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::TransformVector ( const InputVnlVectorType & vector ) const [virtual]

Method to transform a vnl_vector.
Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

OutputVectorType itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::TransformVector ( const InputVectorType & vector ) const [virtual]

Method to transform a vector.
Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.

virtual void itk::Object::UnRegister ( ) const [virtual, inherited]

Decrease the reference count (release by another object).
Reimplemented from itk::LightObject.

Member Data Documentation

Allow people to add remove invoke observers (callbacks) to any ITK * object. This is an implementation of the subject/observer design * pattern. An observer is added by specifying an event to respond to * and an itk unsigned lon itk::Object::AddObserver)(const EventObject &event, Command *) const [inherited]

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set translation of an MatrixOffsetTransformBase* * This method sets the translation of an MatrixOffsetTransformBase* This updates Offset to reflect current translation* To define an affine you must set the * itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::center

Definition at line 257 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not * or is set before the matrix and the then it is safe to change the* offset directly* As a rule of if you wish to set the center set* before Offset computations are done* * To define an affine you must set the * itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::center

Definition at line 221 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set you must set the * itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::center

Definition at line 202 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set matrix of an MatrixOffsetTransformBase* * This method sets the matrix of an MatrixOffsetTransformBase to a* value specified by the user* * This updates the Offset wrt to current translation* and center See the warning regarding offset versus translation* in the documentation for SetCenter* * To define an affine you must set the * itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::center

Definition at line 179 of file itkMatrixOffsetTransformBase.h.

This is a global flag that controls whether any itk::Object::debug [inherited]

Definition at line 94 of file itkObject.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not * or is set before the matrix and the then it is safe to change the* offset directly* As a rule of if you wish to set the center itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::explicitly

Definition at line 221 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Create inverse of an affine transformation* * This populates the parameters an affine transform such that* the transform is the inverse of self If self is not itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::invertible

Definition at line 328 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

ParametersType itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::m_FixedParameters [mutable, protected, inherited]

Definition at line 221 of file itkTransform.h.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

JacobianType itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::m_Jacobian [mutable, protected, inherited]

Reimplemented in itk::IdentityTransform< TScalarType, NDimensions >.
Definition at line 222 of file itkTransform.h.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

return itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::m_Jacobian [inherited]

Reimplemented in itk::IdentityTransform< TScalarType, NDimensions >.
Definition at line 199 of file itkTransform.h.

template<class TScalarType, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

ParametersType itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >::m_Parameters [mutable, protected, inherited]

Definition at line 217 of file itkTransform.h.

int itk::LightObject::m_ReferenceCount [mutable, protected, inherited]

Number of uses of this object by other objects.
Definition at line 119 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock [mutable, protected, inherited]

Mutex lock to protect modification to the reference count
Definition at line 122 of file itkLightObject.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set translation of an MatrixOffsetTransformBase* * This method sets the translation of an MatrixOffsetTransformBase* This updates Offset to reflect current translation* To define an affine you must set the itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::matrix

Definition at line 257 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not * or is set before the matrix and the then it is safe to change the* offset directly* As a rule of if you wish to set the center set* before Offset computations are done* * To define an affine you must set the itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::matrix

Definition at line 221 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set you must set the itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::matrix

Definition at line 202 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set matrix of an MatrixOffsetTransformBase* * This method sets the matrix of an MatrixOffsetTransformBase to a* value specified by the user* * This updates the Offset wrt to current translation* and center See the warning regarding offset versus translation* in the documentation for SetCenter* * To define an affine you must set the itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::matrix

Definition at line 179 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not * or is set before the matrix and the itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::offset

Definition at line 221 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Construct an MatrixOffsetTransformBase object* * This method constructs a new MatrixOffsetTransformBase object and* initializes the matrix and offset parts of the transformation* to values specified by the caller If the arguments are* itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::omitted [protected]

Definition at line 355 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Create inverse of an affine transformation* * This populates the parameters an affine transform such that* the transform is the inverse of self If self is not * an exception is thrown* Note that by default the inverese transform is centered at* the origin If you need to compute the inverse centered at a itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::p

Definition at line 329 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Create inverse of an affine transformation* * This populates the parameters an affine transform such that* the transform is the inverse of self If self is not * an exception is thrown* Note that by default the inverese transform is centered at* the origin If you need to compute the inverse centered at a itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::point

Definition at line 329 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Transform by an affine transformation* * This method applies the affine transform given by self to a* given point or returning the transformed point or* vector The TransformPoint method transforms its argument as* an affine itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::point

Definition at line 306 of file itkMatrixOffsetTransformBase.h.

Methods invoked by virtual Print () to print information about the object * including superclasses. Typically not called by the user (use Print() * instead) but used in the hierarchical print process to combine the * output of several classes. */ virtual void PrintSelf(std voi itk::LightObject::PrintHeader)(std::ostream &os, Indent indent) const [protected, inherited]

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not * or is set before the matrix and the then it is safe to change the* offset directly* As a rule of itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::thumb

Definition at line 221 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set translation of an MatrixOffsetTransformBase* * This method sets the translation of an MatrixOffsetTransformBase* This updates Offset to reflect current translation* To define an affine itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::transform

Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.
Definition at line 257 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not * or is set before the matrix and the then it is safe to change the* offset directly* As a rule of if you wish to set the center set* before Offset computations are done* * To define an affine itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::transform

Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.
Definition at line 221 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set matrix of an MatrixOffsetTransformBase* * This method sets the matrix of an MatrixOffsetTransformBase to a* value specified by the user* * This updates the Offset wrt to current translation* and center See the warning regarding offset versus translation* in the documentation for SetCenter* * To define an affine itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::transform

Reimplemented from itk::Transform< TScalarType, NInputDimensions, NOutputDimensions >.
Definition at line 179 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Set center of rotation of an MatrixOffsetTransformBase* * This method sets the center of rotation of an MatrixOffsetTransformBase* to a fixed point for most transforms derived from this * this point is not a parameter of the transform the exception is that* centered transforms have center as a parameter during optimization* * This method updates offset wrt to current translation and matrix* That changing the center changes the transform we strongly recommend only changing the* matrix and translation to define a transform Changing a transform s changes the mapping between spaces translation is* not changed with respect to that new and so the offset is updated* to* maintain the consistency with translation If a center is not itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::used

Definition at line 221 of file itkMatrixOffsetTransformBase.h.

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3>

Transform by an affine transformation* * This method applies the affine transform given by self to a* given point or itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >::vector

Definition at line 306 of file itkMatrixOffsetTransformBase.h.

The documentation for this class was generated from the following file:

itkMatrixOffsetTransformBase.h

Generated at Sun Jul 9 20:38:54 2006 for ITK by

itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions > Class Template Reference [Transforms]

Detailed Description

template<class TScalarType = double, unsigned int NInputDimensions = 3, unsigned int NOutputDimensions = 3> class itk::MatrixOffsetTransformBase< TScalarType, NInputDimensions, NOutputDimensions >

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes
