itk::ObjectFactoryBase Class Reference
[ITK System Objects]

#include <itkObjectFactoryBase.h>

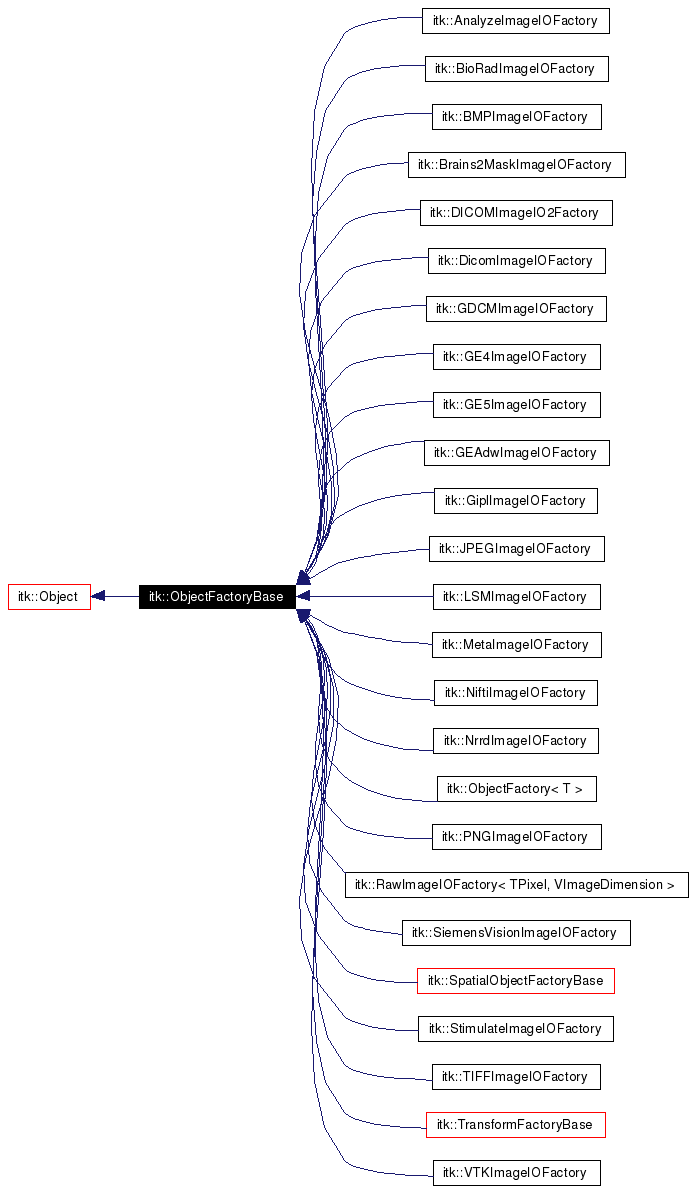

Inheritance diagram for itk::ObjectFactoryBase:

[legend]Collaboration diagram for itk::ObjectFactoryBase:

[legend]List of all members.

Detailed Description

Create instances of classes using an object factory.

ObjectFactoryBase is used to create itk objects. The base class ObjectFactoryBase contains a static method CreateInstance() that is used to create itk objects from the list of registerd ObjectFactoryBase sub-classes. The first time CreateInstance() is called, all dll's or shared libraries in the environment variable ITK_AUTOLOAD_PATH are loaded into the current process. The C function itkLoad is called on each dll. itkLoad should return an instance of the factory sub-class implemented in the shared library. ITK_AUTOLOAD_PATH is an environment variable containing a colon separated (semi-colon on win32) list of paths.

This can be use to overide the creation of any object in ITK.

Definition at line 50 of file itkObjectFactoryBase.h.

Public Types

typedef SmartPointer< const
Self > ConstPointer

typedef SmartPointer< Self > Pointer

typedef ObjectFactoryBase Self

typedef Object Superclass

Public Member Functions

virtual LightObject::Pointer CreateAnother () const

virtual void DebugOff () const

virtual void DebugOn () const

virtual void Delete ()

virtual void Disable (const char *className)

virtual std::list< std::string > GetClassOverrideDescriptions ()

virtual std::list< std::string > GetClassOverrideNames ()

virtual std::list< std::string > GetClassOverrideWithNames ()

Command * GetCommand (unsigned long tag)

bool GetDebug () const

virtual const char * GetDescription (void) const =0

virtual bool GetEnableFlag (const char *className, const char *subclassName)

virtual std::list< bool > GetEnableFlags ()

virtual const char * GetITKSourceVersion (void) const =0

const char * GetLibraryPath ()

const MetaDataDictionary & GetMetaDataDictionary (void) const

MetaDataDictionary & GetMetaDataDictionary (void)

virtual unsigned long GetMTime () const

virtual const char * GetNameOfClass () const

virtual int GetReferenceCount () const

bool HasObserver (const EventObject &event) const

void InvokeEvent (const EventObject &) const

void InvokeEvent (const EventObject &)

virtual void Modified () const

void Print (std::ostream &os, Indent indent=0) const

virtual void Register () const

void RemoveAllObservers ()

void RemoveObserver (unsigned long tag)

void SetDebug (bool debugFlag) const

virtual void SetEnableFlag (bool flag, const char *className, const char *subclassName)

void SetMetaDataDictionary (const MetaDataDictionary &rhs)

virtual void SetReferenceCount (int)

virtual void UnRegister () const

Static Public Member Functions

static void BreakOnError ()

static std::list< LightObject::Pointer > CreateAllInstance (const char *itkclassname)

static LightObject::Pointer CreateInstance (const char *itkclassname)

static bool GetGlobalWarningDisplay ()

static std::list< ObjectFactoryBase * > GetRegisteredFactories ()

static void GlobalWarningDisplayOff ()

static void GlobalWarningDisplayOn ()

static Pointer New ()

static void RegisterFactory (ObjectFactoryBase *)

static void ReHash ()

This is a global flag that
controls whether any warning
*or error messages are displayed
*static void SetGlobalWarningDisplay (bool flag)

static void UnRegisterAllFactories ()

static void UnRegisterFactory (ObjectFactoryBase *)

Public Attributes

Allow people to add remove
invoke observers(callbacks)
to any ITK *object.This is
an implementation of the subject/observer design *pattern.An
observer is added by specifying
an event to respond to *and
an itk unsigned lon AddObserver )(const EventObject &event, Command *) const

This is a global flag that
controls whether any debug

Protected Member Functions

virtual LightObject::Pointer CreateObject (const char *itkclassname)

ObjectFactoryBase ()

bool PrintObservers (std::ostream &os, Indent indent) const

virtual void PrintSelf (std::ostream &os, Indent indent) const

virtual void PrintTrailer (std::ostream &os, Indent indent) const

void RegisterOverride (const char *classOverride, const char *overrideClassName, const char *description, bool enableFlag, CreateObjectFunctionBase *createFunction)

virtual ~ObjectFactoryBase ()

Protected Attributes

int m_ReferenceCount

SimpleFastMutexLock m_ReferenceCountLock

Methods invoked by virtual
Print() to print information
about the object *including
superclasses.Typically not
called by the user(use Print()*instead) but used in the
hierarchical print process
to combine the *output of
several classes.*/virtual
void PrintSelf(std voi PrintHeader )(std::ostream &os, Indent indent) const

Classes

struct OverrideInformation

Member Typedef Documentation

Constructor & Destructor Documentation

itk::ObjectFactoryBase::ObjectFactoryBase ( ) [protected]

virtual itk::ObjectFactoryBase::~ObjectFactoryBase ( ) [protected, virtual]

Member Function Documentation

static void itk::LightObject::BreakOnError ( ) [static, inherited]

This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

static std::list<LightObject::Pointer> itk::ObjectFactoryBase::CreateAllInstance ( const char * itkclassname ) [static]

Create and return all possible instances of the named itk object. Each loaded ObjectFactoryBase will be asked in the order the factory was in the ITK_AUTOLOAD_PATH. All created objects will be returned in the list.

virtual LightObject::Pointer itk::Object::CreateAnother ( ) const [virtual, inherited]

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.
Reimplemented from itk::LightObject.

static LightObject::Pointer itk::ObjectFactoryBase::CreateInstance ( const char * itkclassname ) [static]

Create and return an instance of the named itk object. Each loaded ObjectFactoryBase will be asked in the order the factory was in the ITK_AUTOLOAD_PATH. After the first factory returns the object no other factories are asked.
Referenced by itk::ObjectFactory< T >::Create().

virtual LightObject::Pointer itk::ObjectFactoryBase::CreateObject ( const char * itkclassname ) [protected, virtual]

This method is provided by sub-classes of ObjectFactoryBase. It should create the named itk object or return 0 if that object is not supported by the factory implementation.

virtual void itk::Object::DebugOff ( ) const [virtual, inherited]

Turn debugging output off.

virtual void itk::Object::DebugOn ( ) const [virtual, inherited]

Turn debugging output on.

virtual void itk::LightObject::Delete ( ) [virtual, inherited]

Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

virtual void itk::ObjectFactoryBase::Disable ( const char * className ) [virtual]

Set all enable flags for the given class to 0. This will mean that the factory will stop producing class with the given name.

virtual std::list<std::string> itk::ObjectFactoryBase::GetClassOverrideDescriptions ( ) [virtual]

Return a list of descriptions for class overrides.

virtual std::list<std::string> itk::ObjectFactoryBase::GetClassOverrideNames ( ) [virtual]

Return a list of classes that this factory overrides.

virtual std::list<std::string> itk::ObjectFactoryBase::GetClassOverrideWithNames ( ) [virtual]

Return a list of the names of classes that override classes.

Command* itk::Object::GetCommand ( unsigned long tag ) [inherited]

Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used.

bool itk::Object::GetDebug ( ) const [inherited]

Get the value of the debug flag.

virtual bool itk::ObjectFactoryBase::GetEnableFlag ( const char * className,

const char * subclassName

) [virtual]

Get the Enable flag for the specific override of className.

virtual std::list<bool> itk::ObjectFactoryBase::GetEnableFlags ( ) [virtual]

Return a list of enable flags.

static bool itk::Object::GetGlobalWarningDisplay ( ) [static, inherited]

const char* itk::ObjectFactoryBase::GetLibraryPath ( )

This returns the path to a dynamically loaded factory.

const MetaDataDictionary& itk::Object::GetMetaDataDictionary ( void ) const [inherited]

Returns:
A constant reference to this objects MetaDataDictionary.

MetaDataDictionary& itk::Object::GetMetaDataDictionary ( void ) [inherited]

Returns:
A reference to this objects MetaDataDictionary.

Warning:
This reference may be changed.

virtual unsigned long itk::Object::GetMTime ( ) const [virtual, inherited]

Return this objects modified time.
Reimplemented in itk::ImageRegistrationMethod< TFixedImage, TMovingImage >, itk::DeformationFieldSource< TOutputImage >, itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >, itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >, itk::BoundingBox< TPointIdentifier, VPointDimension, TCoordRep, TPointsContainer >, itk::SceneSpatialObject< SpaceDimension >, and itk::SceneSpatialObject< NDimensions >.

virtual int itk::LightObject::GetReferenceCount ( ) const [inline, virtual, inherited]

Gets the reference count on this object.
Definition at line 98 of file itkLightObject.h.

static std::list<ObjectFactoryBase*> itk::ObjectFactoryBase::GetRegisteredFactories ( ) [static]

Return the list of all registered factories. This is NOT a copy, do not remove items from this list!

static void itk::Object::GlobalWarningDisplayOff ( ) [inline, static, inherited]

Definition at line 100 of file itkObject.h.
References itk::Object::SetGlobalWarningDisplay().

static void itk::Object::GlobalWarningDisplayOn ( ) [inline, static, inherited]

Definition at line 98 of file itkObject.h.
References itk::Object::SetGlobalWarningDisplay().

bool itk::Object::HasObserver ( const EventObject & event ) const [inherited]

Return true if an observer is registered for this event.

void itk::Object::InvokeEvent ( const EventObject & ) const [inherited]

Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object.

void itk::Object::InvokeEvent ( const EventObject & ) [inherited]

Call Execute on all the Commands observing this event id.

virtual void itk::Object::Modified ( ) const [virtual, inherited]

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data.
Referenced by itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetCenter(), itk::HistogramAlgorithmBase< TInputHistogram >::SetInputHistogram(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetMatrix(), itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetOffset(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetRealThresholds(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints1(), itk::CollidingFrontsImageFilter< TInputImage, TOutputImage >::SetSeedPoints2(), itk::NonUniformBSpline< TDimension >::SetSplineOrder(), itk::ThresholdLabelerImageFilter< TInputImage, TOutputImage >::SetThresholds(), itk::Statistics::GoodnessOfFitFunctionBase< typename ComponentType::HistogramType >::SetTotalObservedScale(), and itk::MatrixOffsetTransformBase< TScalarType, 3, 3 >::SetTranslation().

void itk::LightObject::Print ( std::ostream & os,

Indent indent = 0

) const [inherited]

Cause the object to print itself out.

bool itk::Object::PrintObservers ( std::ostream & os,

Indent indent

) const [protected, inherited]

virtual void itk::ObjectFactoryBase::PrintSelf ( std::ostream & os,

Indent indent

) const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from itk::Object.
Reimplemented in itk::AnalyzeImageIOFactory, itk::GE4ImageIOFactory, itk::GE5ImageIOFactory, itk::GEAdwImageIOFactory, itk::NiftiImageIOFactory, and itk::SiemensVisionImageIOFactory.

virtual void itk::LightObject::PrintTrailer ( std::ostream & os,

Indent indent

) const [protected, virtual, inherited]

virtual void itk::Object::Register ( ) const [virtual, inherited]

Increase the reference count (mark as used by another object).
Reimplemented from itk::LightObject.

void itk::ObjectFactoryBase::RegisterOverride ( const char * classOverride,

const char * overrideClassName,

const char * description,

bool enableFlag,

CreateObjectFunctionBase * createFunction

) [protected]

Register object creation information with the factory.
Referenced by itk::SpatialObjectFactoryBase::RegisterSpatialObject().

static void itk::ObjectFactoryBase::ReHash ( ) [static]

Re-check the ITK_AUTOLOAD_PATH for new factory libraries. This calls UnRegisterAll before re-loading.

void itk::Object::RemoveAllObservers ( ) [inherited]

Remove all observers .

void itk::Object::RemoveObserver ( unsigned long tag ) [inherited]

Remove the observer with this tag value.

void itk::Object::SetDebug ( bool debugFlag ) const [inherited]

Set the value of the debug flag. A non-zero value turns debugging on.

virtual void itk::ObjectFactoryBase::SetEnableFlag ( bool flag,

const char * className,

const char * subclassName

) [virtual]

Set the Enable flag for the specific override of className.

This is a global flag that controls whether any warning* or error messages are displayed* static void itk::Object::SetGlobalWarningDisplay ( bool flag ) [static, inherited]

Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn().

void itk::Object::SetMetaDataDictionary ( const MetaDataDictionary & rhs ) [inherited]

Returns:
Set the MetaDataDictionary

virtual void itk::Object::SetReferenceCount ( int ) [virtual, inherited]

Sets the reference count (use with care)
Reimplemented from itk::LightObject.

virtual void itk::Object::UnRegister ( ) const [virtual, inherited]

Decrease the reference count (release by another object).
Reimplemented from itk::LightObject.

static void itk::ObjectFactoryBase::UnRegisterAllFactories ( ) [static]

Unregister all factories.

static void itk::ObjectFactoryBase::UnRegisterFactory ( ObjectFactoryBase * ) [static]

Remove a factory from the list of registered factories.

Member Data Documentation

Allow people to add remove invoke observers (callbacks) to any ITK * object. This is an implementation of the subject/observer design * pattern. An observer is added by specifying an event to respond to * and an itk unsigned lon itk::Object::AddObserver)(const EventObject &event, Command *) const [inherited]

This is a global flag that controls whether any itk::Object::debug [inherited]

Definition at line 94 of file itkObject.h.

int itk::LightObject::m_ReferenceCount [mutable, protected, inherited]

Number of uses of this object by other objects.
Definition at line 119 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock [mutable, protected, inherited]

Mutex lock to protect modification to the reference count
Definition at line 122 of file itkLightObject.h.

Methods invoked by virtual Print () to print information about the object * including superclasses. Typically not called by the user (use Print() * instead) but used in the hierarchical print process to combine the * output of several classes. */ virtual void PrintSelf(std voi itk::LightObject::PrintHeader)(std::ostream &os, Indent indent) const [protected, inherited]

The documentation for this class was generated from the following file:

itkObjectFactoryBase.h

Generated at Sun Jul 9 21:01:13 2006 for ITK by


Public Types
typedef SmartPointer< const Self >	ConstPointer
typedef SmartPointer< Self >	Pointer
typedef ObjectFactoryBase	Self
typedef Object	Superclass
Public Member Functions
virtual LightObject::Pointer	CreateAnother () const
virtual void	DebugOff () const
virtual void	DebugOn () const
virtual void	Delete ()
virtual void	Disable (const char *className)
virtual std::list< std::string >	GetClassOverrideDescriptions ()
virtual std::list< std::string >	GetClassOverrideNames ()
virtual std::list< std::string >	GetClassOverrideWithNames ()
Command *	GetCommand (unsigned long tag)
bool	GetDebug () const
virtual const char *	GetDescription (void) const =0
virtual bool	GetEnableFlag (const char className, const char subclassName)
virtual std::list< bool >	GetEnableFlags ()
virtual const char *	GetITKSourceVersion (void) const =0
const char *	GetLibraryPath ()
const MetaDataDictionary &	GetMetaDataDictionary (void) const
MetaDataDictionary &	GetMetaDataDictionary (void)
virtual unsigned long	GetMTime () const
virtual const char *	GetNameOfClass () const
virtual int	GetReferenceCount () const
bool	HasObserver (const EventObject &event) const
void	InvokeEvent (const EventObject &) const
void	InvokeEvent (const EventObject &)
virtual void	Modified () const
void	Print (std::ostream &os, Indent indent=0) const
virtual void	Register () const
void	RemoveAllObservers ()
void	RemoveObserver (unsigned long tag)
void	SetDebug (bool debugFlag) const
virtual void	SetEnableFlag (bool flag, const char className, const char subclassName)
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetReferenceCount (int)
virtual void	UnRegister () const
Static Public Member Functions
static void	BreakOnError ()
static std::list< LightObject::Pointer >	CreateAllInstance (const char *itkclassname)
static LightObject::Pointer	CreateInstance (const char *itkclassname)
static bool	GetGlobalWarningDisplay ()
static std::list< ObjectFactoryBase * >	GetRegisteredFactories ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	RegisterFactory (ObjectFactoryBase *)
static void	ReHash ()
This is a global flag that controls whether any warning or error messages are displayed static void	SetGlobalWarningDisplay (bool flag)
static void	UnRegisterAllFactories ()
static void	UnRegisterFactory (ObjectFactoryBase *)
Public Attributes
Allow people to add remove invoke observers(callbacks) to any ITK object.This is an implementation of the subject/observer design pattern.An observer is added by specifying an event to respond to *and an itk unsigned lon	AddObserver )(const EventObject &event, Command *) const
This is a global flag that controls whether any	debug
Protected Member Functions
virtual LightObject::Pointer	CreateObject (const char *itkclassname)
	ObjectFactoryBase ()
bool	PrintObservers (std::ostream &os, Indent indent) const
virtual void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
void	RegisterOverride (const char classOverride, const char overrideClassName, const char description, bool enableFlag, CreateObjectFunctionBase createFunction)
virtual	~ObjectFactoryBase ()
Protected Attributes
int	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock
Methods invoked by virtual Print() to print information about the object including superclasses.Typically not called by the user(use Print()instead) but used in the hierarchical print process to combine the output of several classes./virtual void PrintSelf(std voi	PrintHeader )(std::ostream &os, Indent indent) const
Classes
struct	OverrideInformation

itk::ObjectFactoryBase Class Reference [ITK System Objects]

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Classes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

itk::ObjectFactoryBase Class Reference
[ITK System Objects]
